Description
With a mechanical life of up to 1,000,000 operations for push buttons and 300,000 for keylocks, our switch guarantees longevity and reliability. It boasts an IP40, IP65, or IP67 protection level, making it suitable for various environments. The switch is also CQC and CE certified, ensuring it meets international safety standards.
As a factory supplier, we offer competitive pricing and excellent after-sales service. Whether you’re looking for a single unit or bulk orders, we’ve got you covered. Our switch is perfect for emergency stop applications, thanks to its mushroom-head design and waterproof features.
Don’t miss out on this opportunity to upgrade your machinery with our durable and efficient push button switch. Contact us today for more information or to place an order.
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |

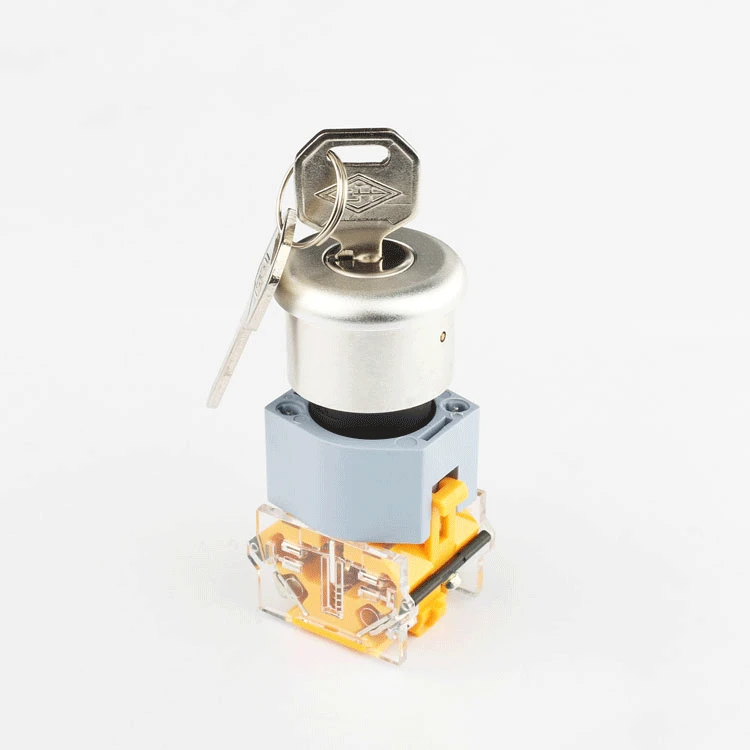

| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Why Choose Our 22mm Push Button Switch?
Our 22mm Push Button Switch stands out due to its high-quality construction, with a rated thermal current of 10A and a rated insulation voltage of 660V AC. It's designed to withstand extreme temperatures, making it ideal for a variety of industrial applications. The switch's vibrant cap colors and waterproof features enhance its usability and safety.
What Are the Advantages of Buying from Our Factory?
As a factory supplier, we offer competitive pricing, excellent after-sales service, and the ability to purchase in bulk. Our switches are CQC and CE certified, ensuring they meet international safety standards. You can trust in the quality and reliability of our products.
What Are the Key Features of Our Push Button Switch?
Our switch boasts a long mechanical life, with up to 1,000,000 operations for push buttons and 300,000 for keylocks. It offers multiple protection levels (IP40, IP65, IP67) and is suitable for various environments. The emergency stop functionality and waterproof design make it a top choice for safety-critical applications.
