10A 660VAC Pushbutton Rotary Switch | Wholesale Supplier Factory

100 - 499  pieces
$4.80

>= 500  pieces
$4.50

0 reviews

Factory direct 10A 660VAC pushbutton rotary switch supplier. Wholesale available, customize to your needs.

Description

Looking for a reliable and customizable pushbutton rotary switch? Our 30mm key electrical switch lock, with a maximum current of 10A and maximum voltage of 660V AC, is the perfect choice. As a direct factory supplier and wholesaler, we offer competitive prices and the flexibility to customize the switch according to your specific requirements. Our company boasts an independent plant, injection workshop, and advanced experimental equipment, ensuring top-notch quality. With over 60 senior engineers and workshops adhering to 5S and 5m management standards, we are committed to delivering excellence. This switch features a switch combination of 1NO, an operating temperature range of -25℃~+55℃, a mechanical life of 300,000 cycles, and an operation frequency of 120 cycles per hour. It also has a rated insulation voltage of AC660V and a maximum insulation voltage of 2500V/min. With a vibration resistance of 10~2000Hz, 1mm, 15g, and an installation height of ≤2000m, it is suitable for various environments. The relative humidity tolerance is ≤98%, and it comes with protection levels of IP40/IP65/IP67. Our switch stands out from competitors with its durability, customization options, and factory-direct pricing. Choose us for your wholesale needs and experience the difference.

Electronic component for cross-border e-commerceElectronic device for cross-border salesElectronic gadget for cross-border e-commerce


Why Choose Our Pushbutton Rotary Switch?

Our pushbutton rotary switch offers unmatched durability and reliability, with a mechanical life of 300,000 cycles and an operation frequency of 120 cycles per hour. It is designed to withstand harsh environments, with an operating temperature range of -25℃~+55℃ and vibration resistance up to 2000Hz. As a factory supplier, we offer customization options to meet your specific needs, ensuring a perfect fit for your application.

What Makes Our Switch Stand Out?

Unlike other switches on the market, our product comes with a factory-direct price advantage and the flexibility to customize. With over 60 senior engineers and advanced experimental equipment, we guarantee top-notch quality and performance. The switch also features a rated insulation voltage of AC660V and a maximum insulation voltage of 2500V/min, providing an extra layer of safety.

Who Can Benefit From Our Switch?

Our pushbutton rotary switch is ideal for industrial control, electrical equipment, automation systems, machinery, and robotics. Its wide temperature range, vibration resistance, and customization options make it suitable for a variety of applications. Whether you are a wholesaler looking for a reliable supplier or an end-user seeking a high-quality switch, we have you covered.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

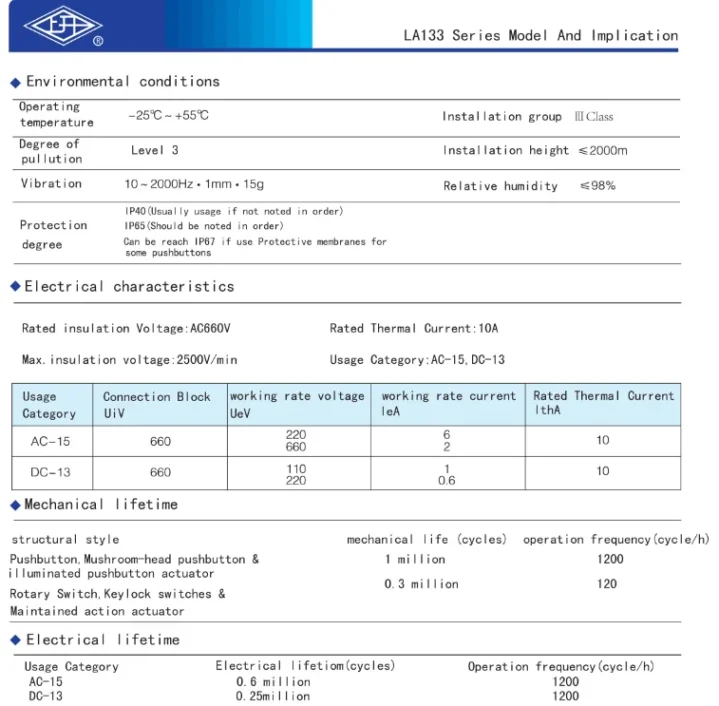

Additional information

Max. Current

10A

Max. Voltage

660V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shangkai)

Model Number

LA133

LED

Other

Whether the smart

NO

Switch Combination

1NO

Operating temperature

-25℃~+55℃

mechanical life

300000

operation frequency

120 cycle/h

rated insulation voltage

AC660V

max.insulation voltage

2500V/min

vibration

10~2000Hz.1mm.15g

installation height

≤2000m

relative humidity

≤98%

Name

30mm key electrical switch lock

Protection Level

IP40/IP65/IP67
