Description

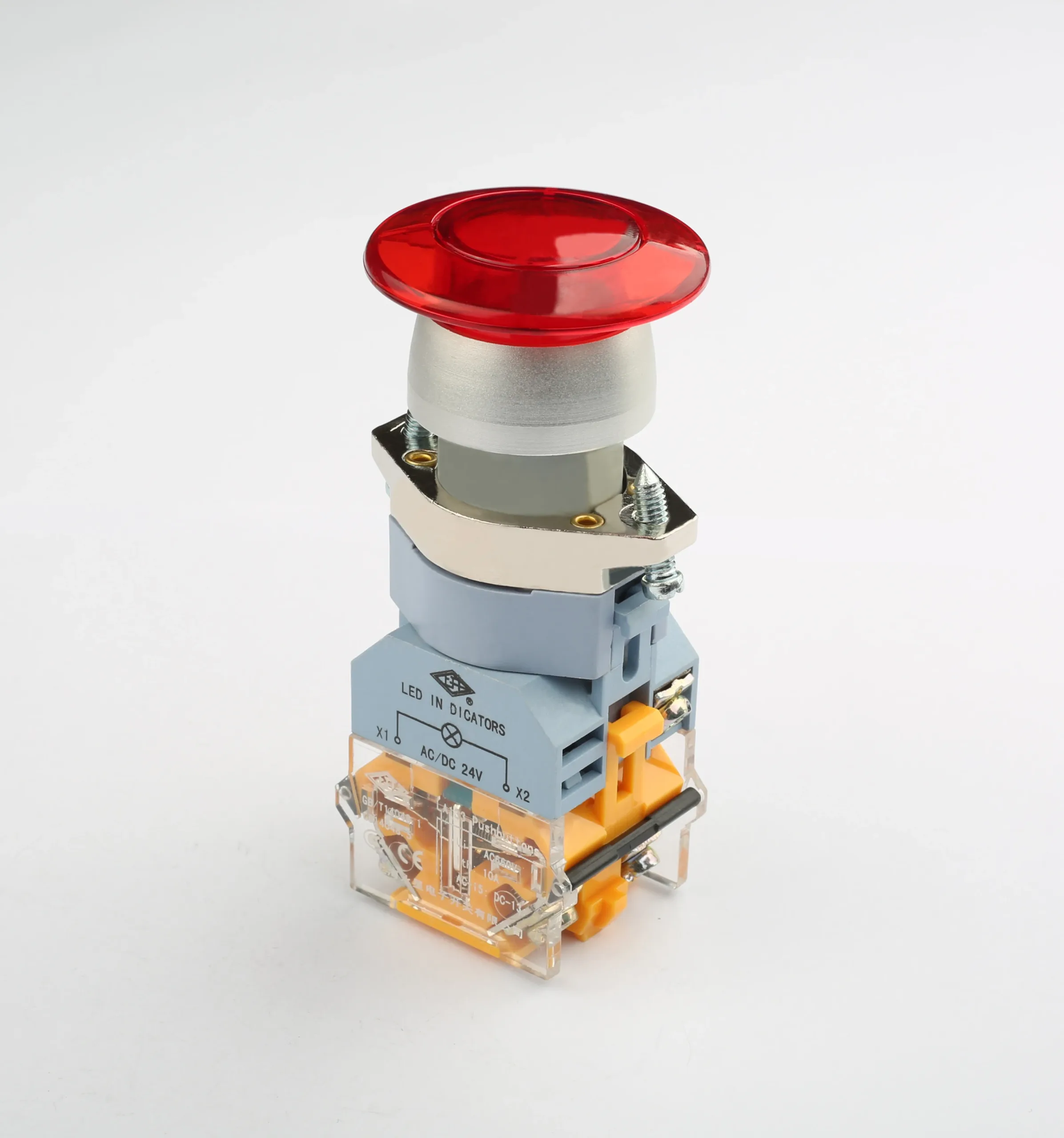

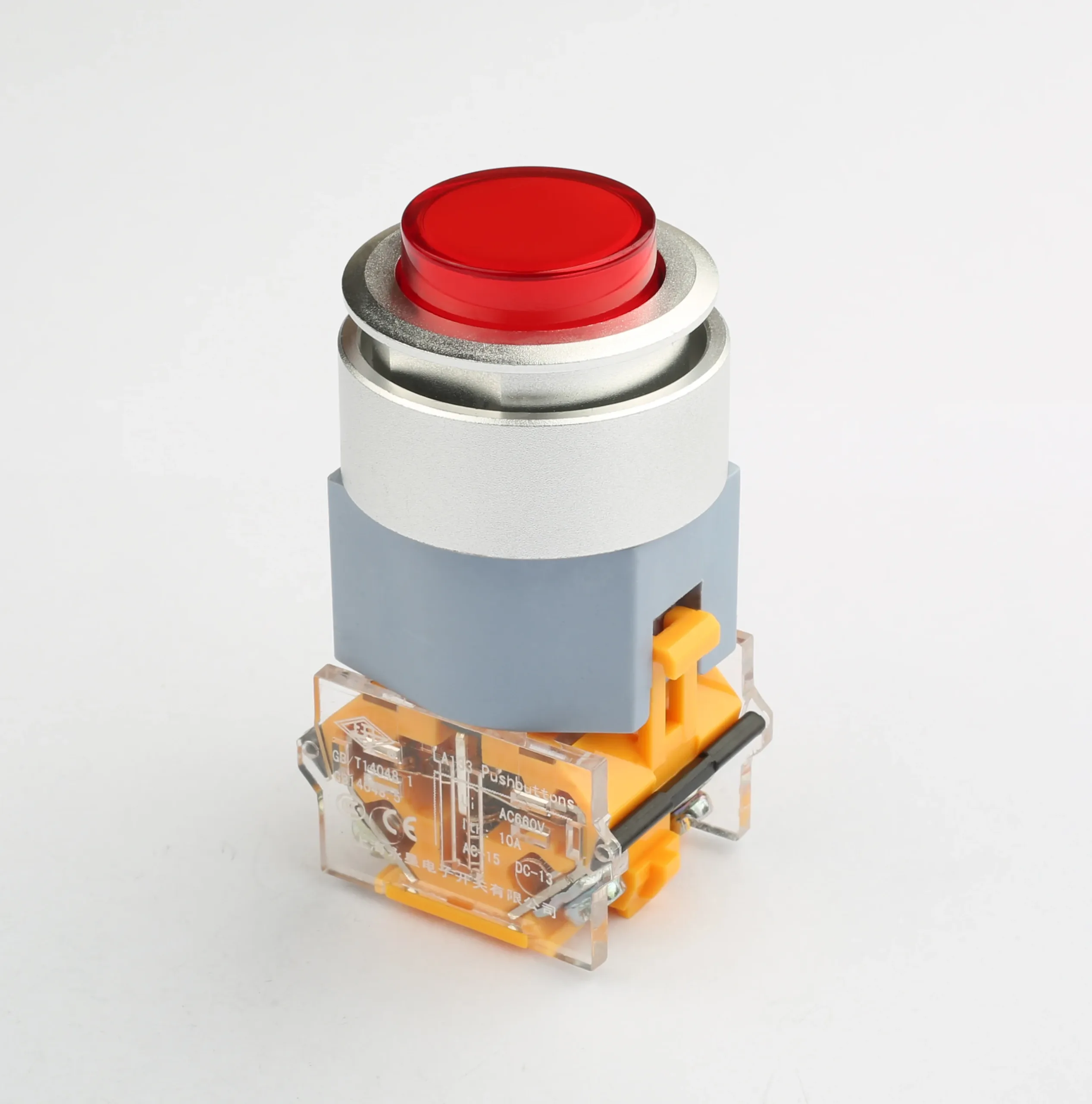

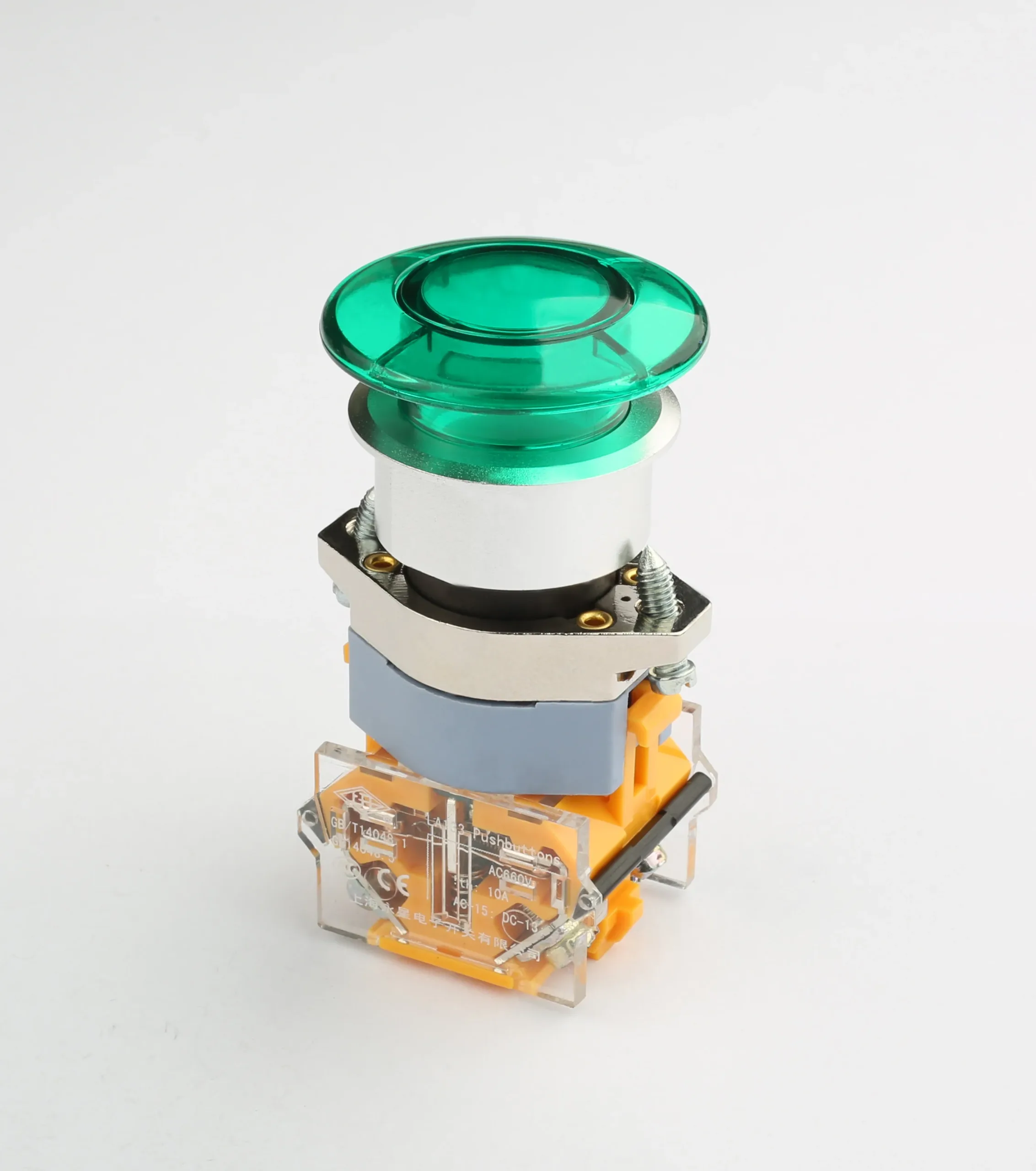

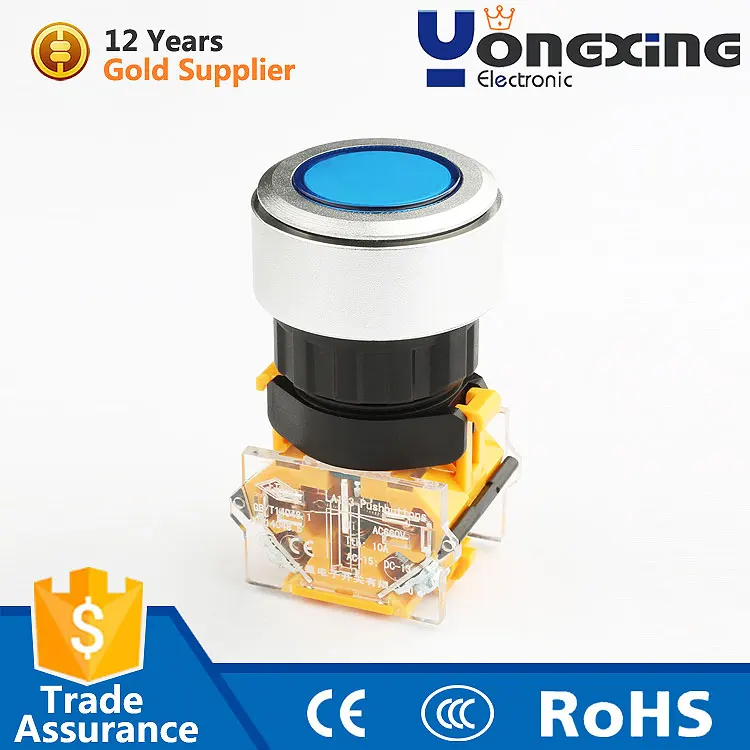

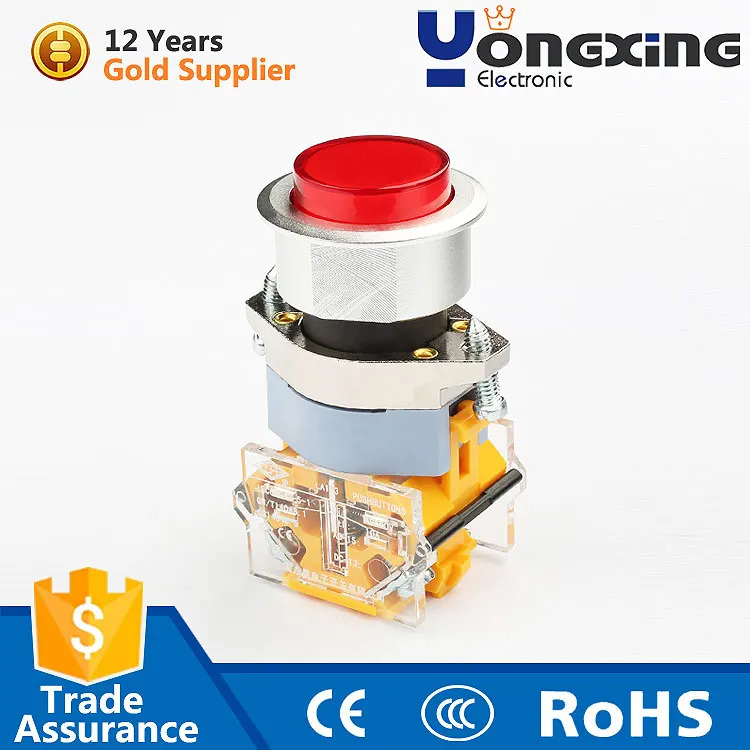

Introducing our high-quality 10A 660VAC Pushbutton Switch, a must-have for electric appliances. As a direct factory supplier, we offer wholesale prices on this durable and reliable switch. With a protection level of IP40, IP65, and IP67, it’s built to withstand various environments. The switch boasts a max current of 10A and a max voltage of 660VAC, ensuring stable performance. Its rated insulation voltage is 660V AC, with a max insulation voltage of 2500V/min, providing excellent electrical safety. The mechanical life is an impressive 1,000,000 cycles, and it offers an electrical life of 600,000 cycles for AC-15 and 250,000 cycles for DC-13. The 22mm diameter mounting hole size makes installation a breeze. What sets our switch apart is its LED indicator, which is a handy feature not found in all similar products. Plus, we offer comprehensive after-sales service, ensuring your satisfaction. Choose us, the factory supplier, for your wholesale needs.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-B1.Y2S-K20
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
Why Choose Our 10A 660VAC Pushbutton Switch?
Our switch is designed for durability and reliability, with a high mechanical life and stable performance. The LED indicator adds convenience, and the multiple protection levels ensure it can withstand various environments.
What Makes Us Different?
As a factory supplier, we offer wholesale prices and comprehensive after-sales service. Our switch also includes an LED indicator, a feature not commonly found in similar products.
Where Can You Use Our Switch?
Our 10A 660VAC Pushbutton Switch is perfect for electric appliances, industrial control systems, and home automation projects. Its versatile design and high performance make it a great choice for a wide range of applications.
