Description
Premium 10mm/12mm 3A 250V Mini LED Push Button from Factory Direct Supplier

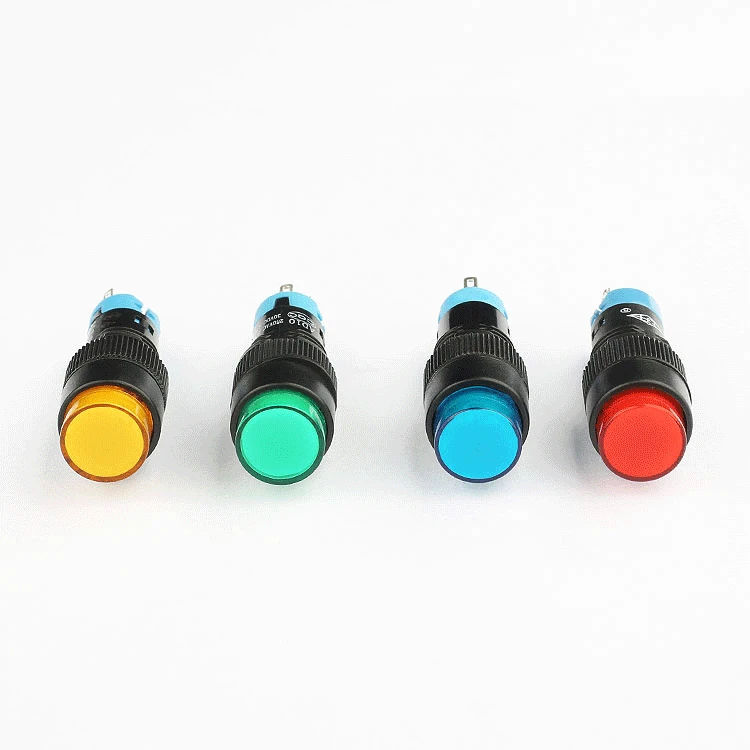

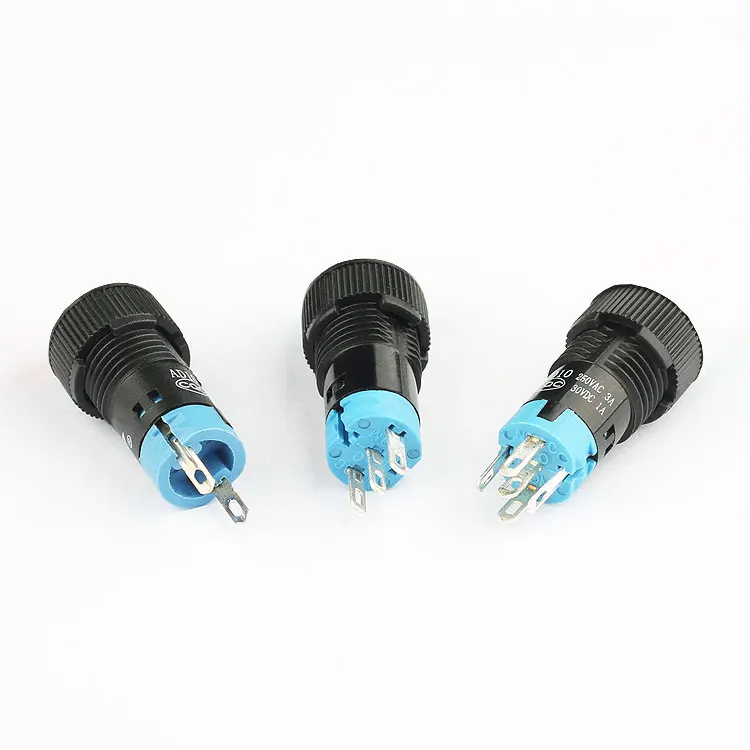

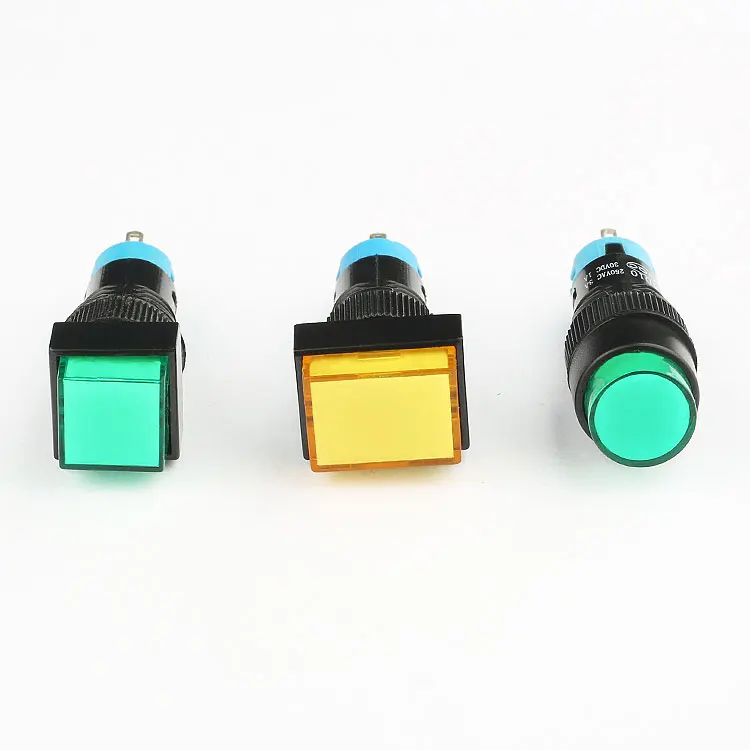

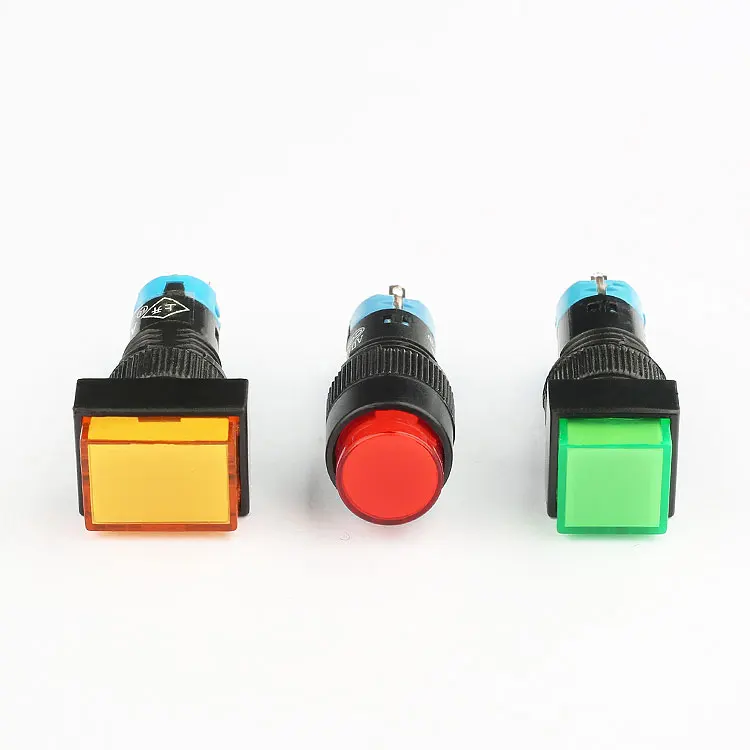

Introducing our high-quality Mini LED Push Button, available in both 10mm and 12mm panel cutout sizes, perfect for a wide range of applications. This button is designed to handle a maximum rating of 3A at 250V AC, making it suitable for resistive loads. With built-in LED indication in vibrant colors including red, green, yellow, blue, orange, and white, it ensures clear visibility in various lighting conditions.
Key Features:
- Durable Construction: Boasts a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ, ensuring reliable performance.
- High Dielectric Strength: Withstands up to 1,500V, providing enhanced safety and reliability.
- Long Lifespan: Offers an electronic life of 50,000 cycles for momentary operation and 25,000 cycles for alternate operation, with a mechanical life of up to 200,000 cycles.
- Wide Operating Temperature: Functions efficiently from -5°C to +75°C, suitable for diverse environments.
- Certified Quality: Comes with CQC and CE certifications, guaranteeing compliance with international standards.
- IP40 Protection: Provides basic protection against solid objects larger than 1mm.
Versatile Applications: Ideal for use in control panels, industrial machinery, automotive applications, and more. Our Mini LED Push Button is the perfect choice for any project requiring a reliable and visually appealing switch solution.
Why Choose Us?
- We are a factory direct supplier, offering competitive prices and high-quality products.
- Our products are available for wholesale, perfect for bulk purchases.
- We provide excellent after-sales service, ensuring your satisfaction.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our Mini LED Push Button?
Our Mini LED Push Button stands out for its durability, reliability, and versatility. With a maximum rating of 3A at 250V AC, it can handle a wide range of resistive loads. The built-in LED indication in multiple colors ensures clear visibility, making it ideal for various applications.
What Are the Key Advantages?
The button offers a long electronic and mechanical lifespan, ensuring reliable performance over time. It also has a high dielectric strength and wide operating temperature range, making it suitable for diverse environments. Additionally, our factory direct supply ensures competitive pricing and high-quality products.
How Can It Benefit Your Project?
Whether you're working on control panels, industrial machinery, or automotive applications, our Mini LED Push Button provides a reliable and visually appealing switch solution. Its compact size and multiple color options make it a versatile choice for any project requiring a high-quality push button.
