Description
Our switch features a robust design with a max. rating current of 3A and a voltage of 250V AC, ensuring reliable performance. It boasts a low contact resistance of ≤50mΩ and high insulation resistance of ≥1000 MΩ, providing excellent electrical efficiency. With a dielectric strength of 1500V, it guarantees safety and durability.
This switch offers an impressive electronic life of 50,000 cycles and a mechanical life of 200,000 cycles, making it ideal for heavy-duty use. It operates within a temperature range of -5°C to +75°C and has an IP40 rating, ensuring protection against dust and solid objects.

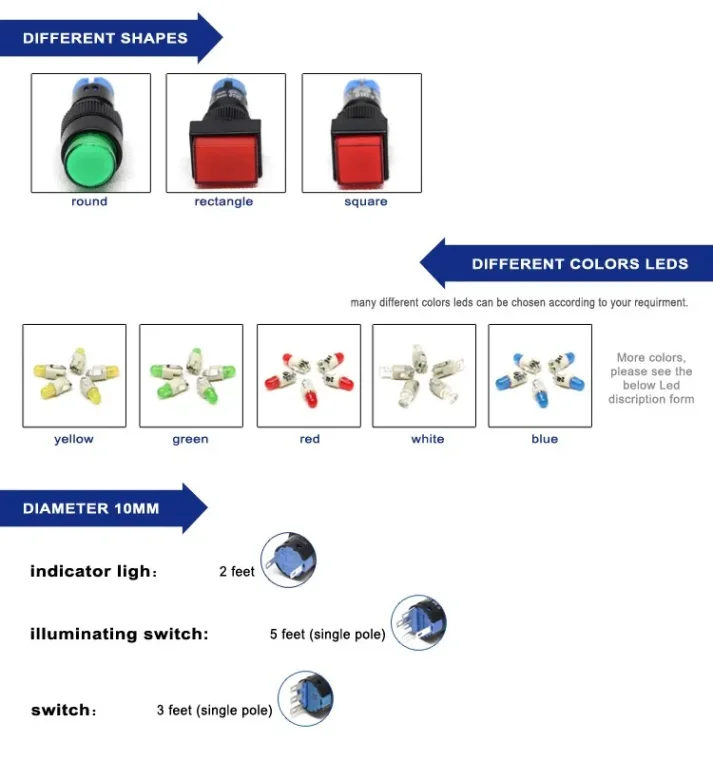

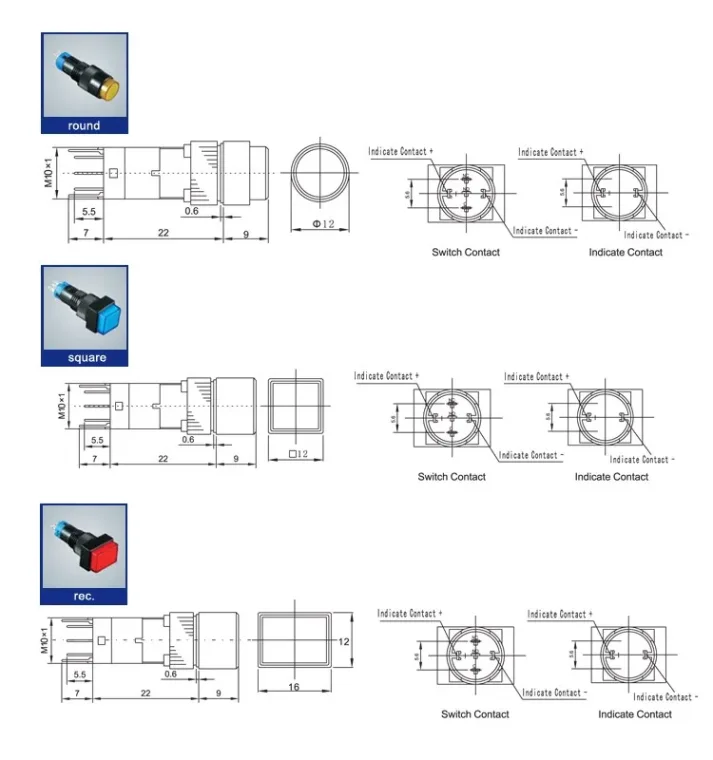

Available in various lamp voltages (6V, 12V, 24V, 110VAC, 220V), it suits diverse electrical systems. The switch comes with a 1NO1NC configuration, offering flexibility in circuit design.
We take pride in our CQC CE certification, guaranteeing quality and compliance with international standards. Our packaging is efficient, with 100 pieces per box and 2000 pieces per standard export carton, facilitating easy handling and shipping.
Choose our factory-direct switch for unbeatable value, quality, and reliability. Contact us today for wholesale inquiries and experience the difference!
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |

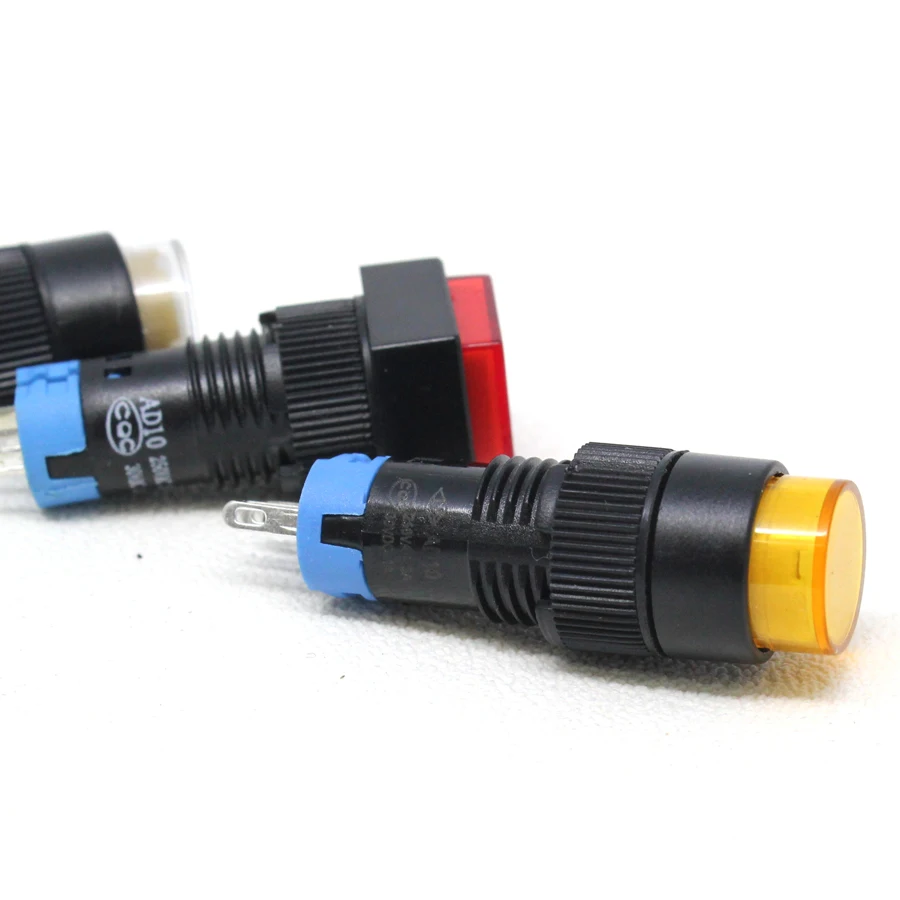

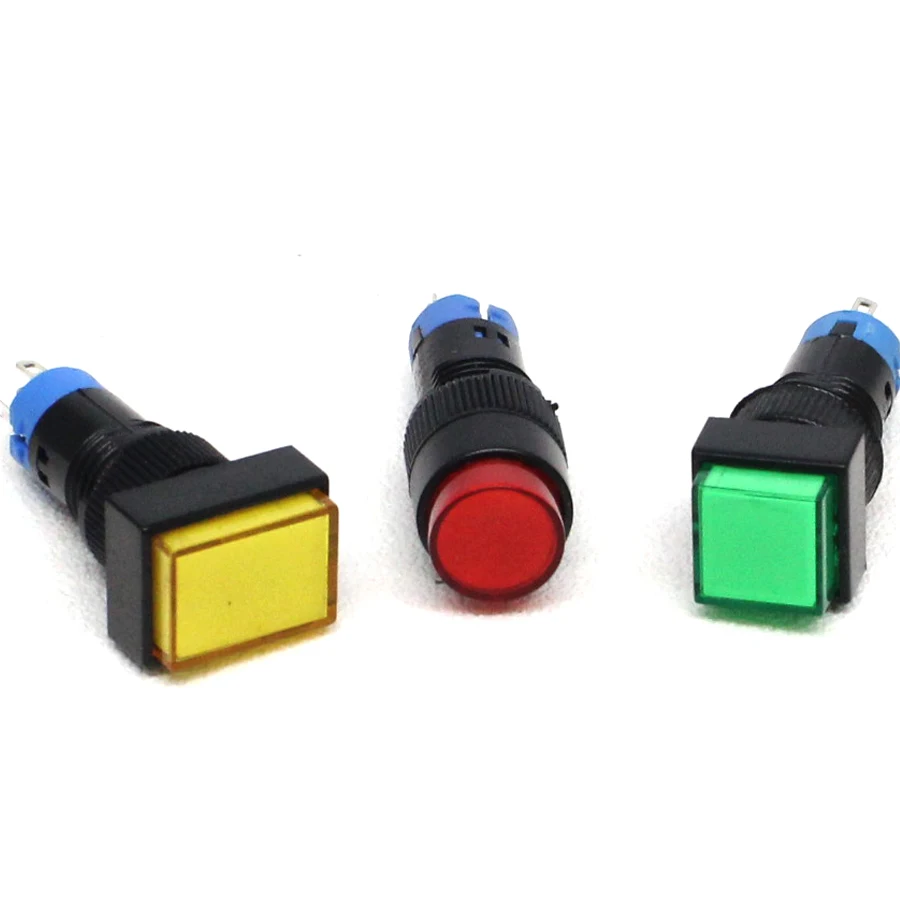

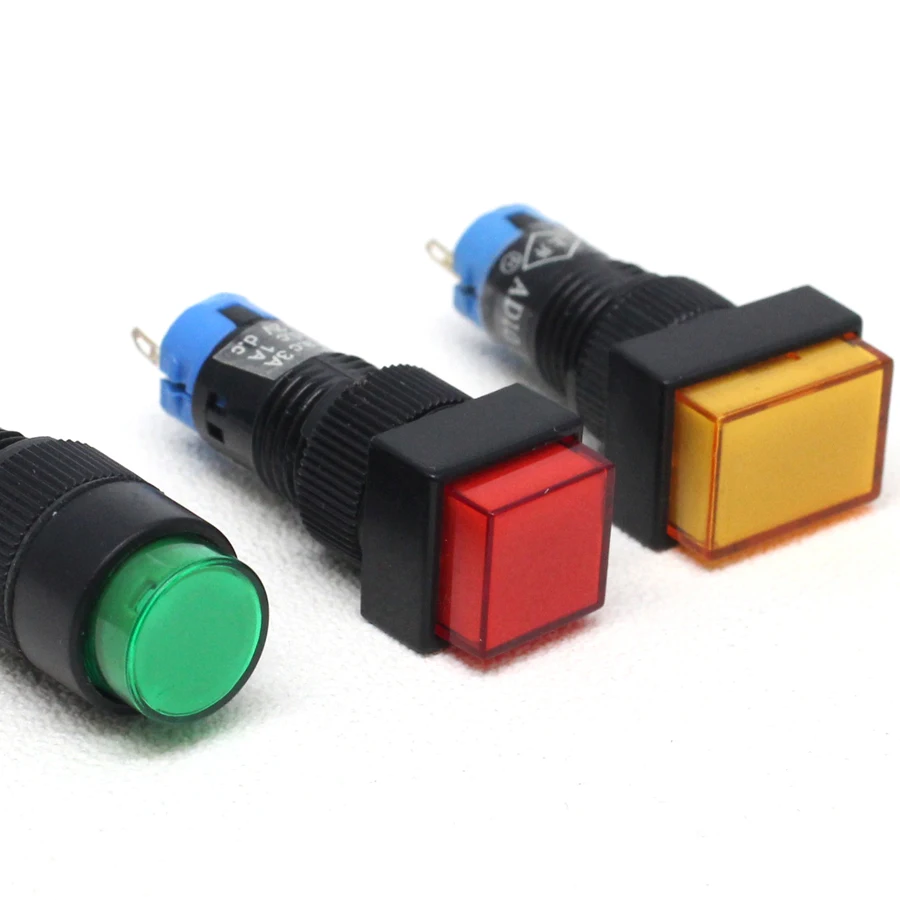

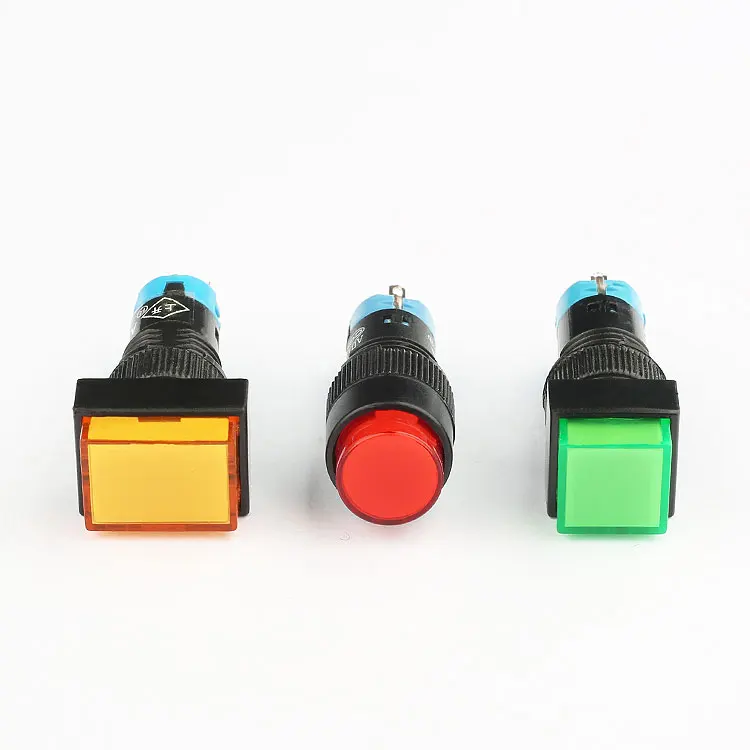

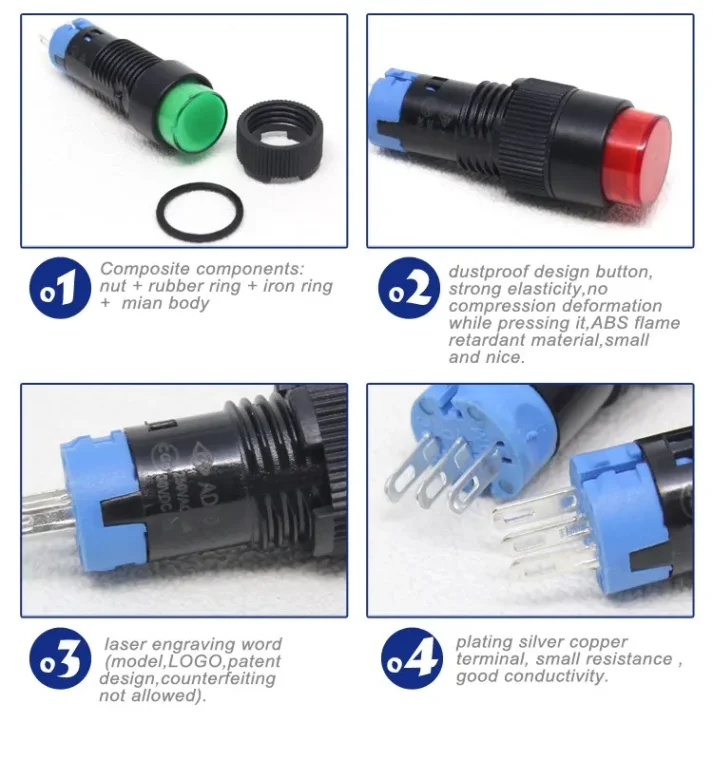

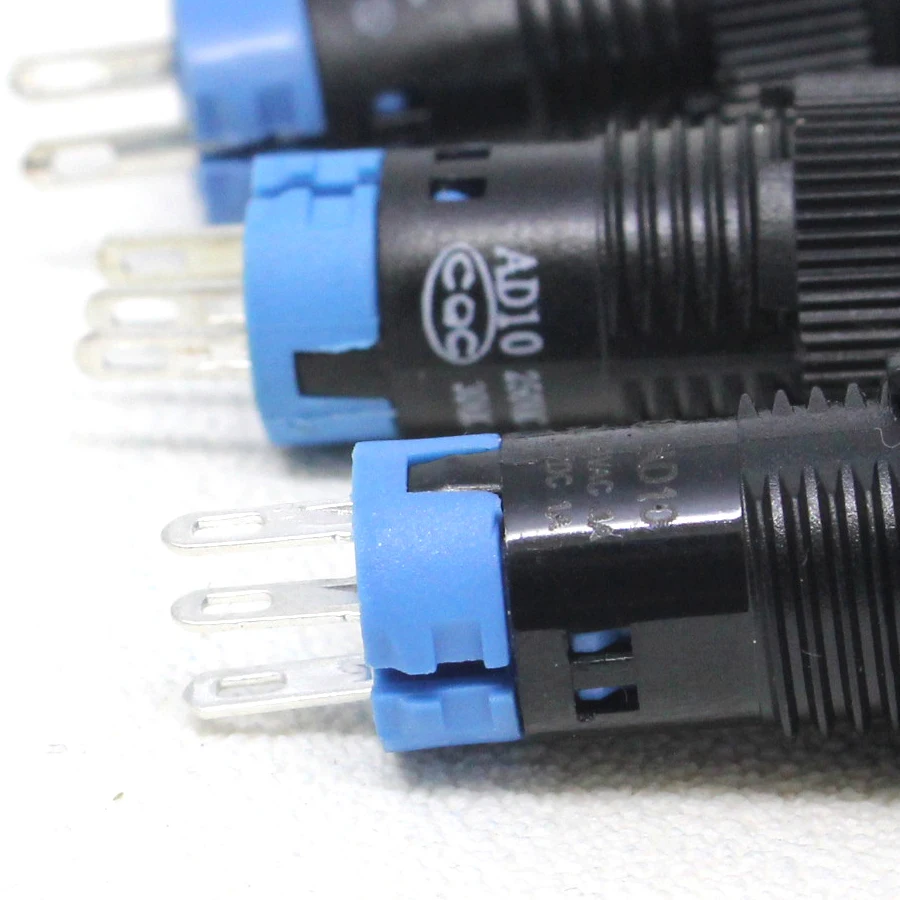

Why Choose Our 10mm LED Latching Push Button Switch?
Our 10mm LED Latching Push Button Switch stands out for its durability, versatility, and efficiency. With a max. rating current of 3A and a voltage of 250V AC, it ensures reliable performance in various applications. The LED indicator provides clear visual feedback, enhancing user experience.
What Are the Key Features of This Switch?
Key features include a low contact resistance of ≤50mΩ, high insulation resistance of ≥1000 MΩ, and a dielectric strength of 1500V. It offers an impressive electronic life of 50,000 cycles and a mechanical life of 200,000 cycles, making it ideal for heavy-duty use. The switch is also CQC CE certified, ensuring quality and compliance.
How Does Our Wholesale Offering Benefit You?
As a direct supplier, we offer wholesale prices on our 10mm LED Latching Push Button Switch. This means you can enjoy significant savings while getting a high-quality product. Our efficient packaging and shipping ensure quick delivery, making it easy for you to stock up on this essential component for your projects.
