Description

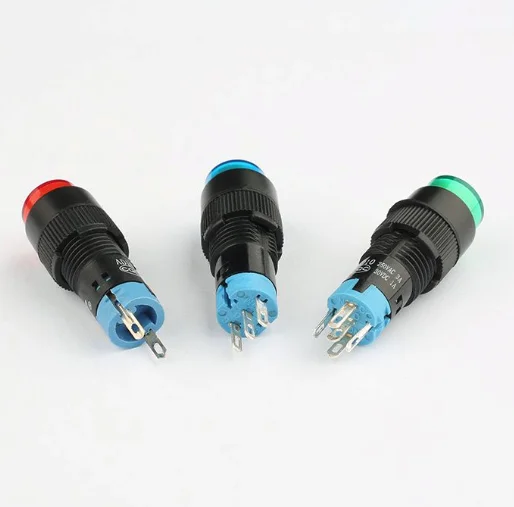

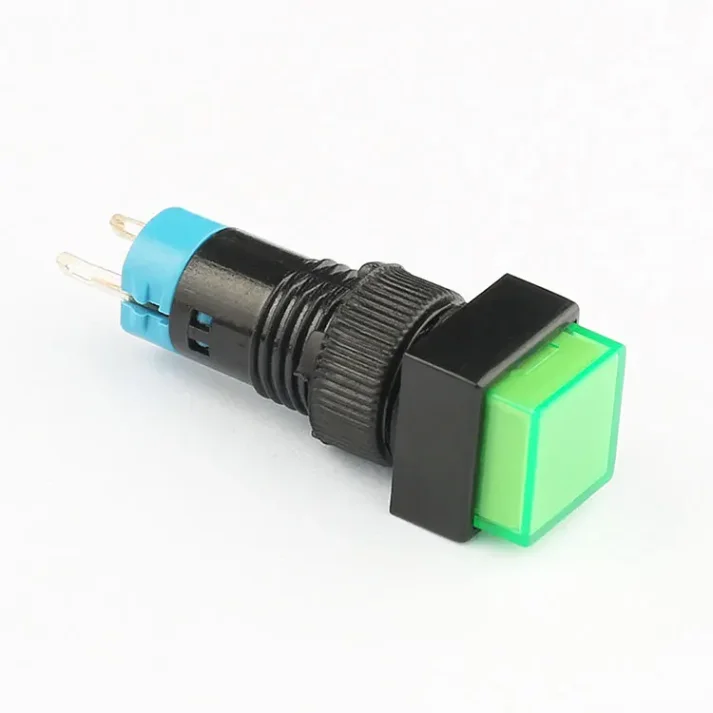

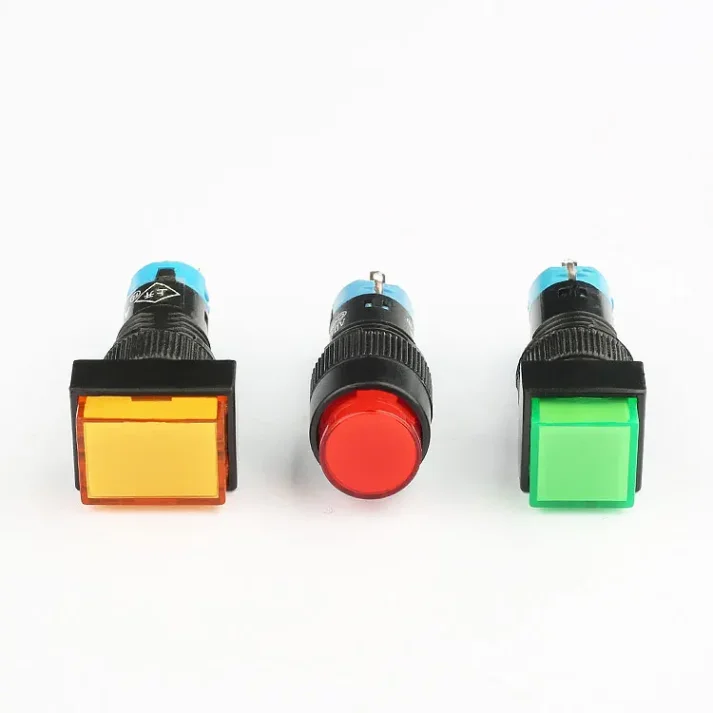

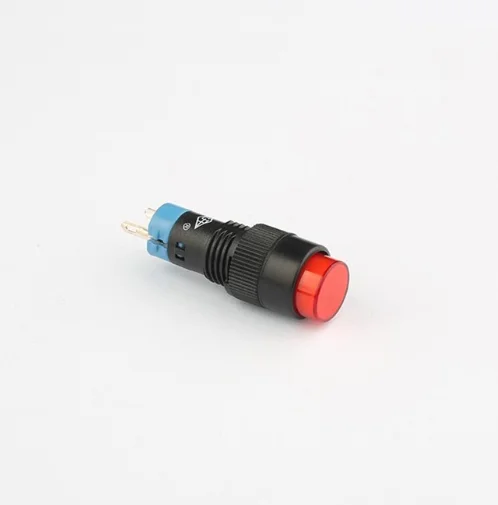

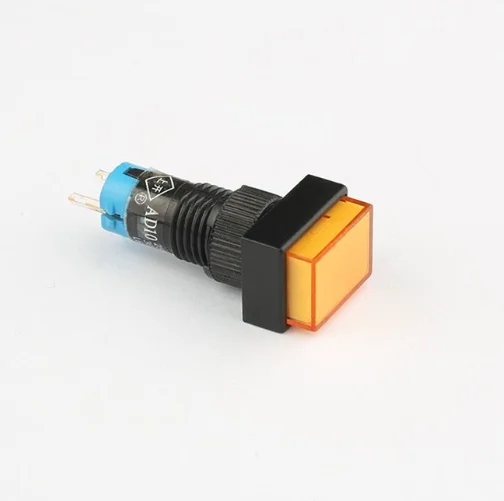

Introducing our premium 10mm LED Push Button Switch, a high-quality product designed for durability and reliability. As a factory direct supplier, we offer wholesale pricing and customization options to meet your specific needs. Our switch features a 1NO 1NC momentary configuration, suitable for both AC and DC applications. With a maximum rating current of 3A and voltage up to 250VAC, it’s perfect for a wide range of industrial and commercial uses. The built-in LED indicator adds a visual element, making it easy to identify the switch status. Our switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥1000 MΩ, and dielectric strength of 1500V, ensuring safe and efficient operation. It has an electronic life of 50,000 cycles for momentary operation and 25,000 cycles for latching, with a wide operating temperature range of -5°C to +75°C. The IP40 protection level offers basic dust protection, making it suitable for various environments. We are proud to offer this product with CQC, CE, and ROHS certifications, guaranteeing its quality and compliance with international standards. As a trusted supplier, we provide excellent after-sales service and support. Contact us today to discuss your wholesale needs and take advantage of our factory-direct pricing!
| Max.Rating Current & Voltage(Resistive Load) | 3A/6V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life | 30000 hours |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Key Features
Our 10mm LED Push Button Switch stands out with its 1NO 1NC momentary configuration, LED indicator, and high durability. It's perfect for industrial and commercial applications requiring reliable switching solutions.
Why Choose Us?
As a factory direct supplier, we offer competitive wholesale pricing and customization options. Our switch is certified with CQC, CE, and ROHS, ensuring quality and compliance. With a long electronic life and wide operating temperature range, it's built to last.
Applications
This switch is ideal for use in various industrial and commercial settings, including machinery, control panels, and automation systems. Its AC/DC compatibility makes it versatile for different power requirements.
