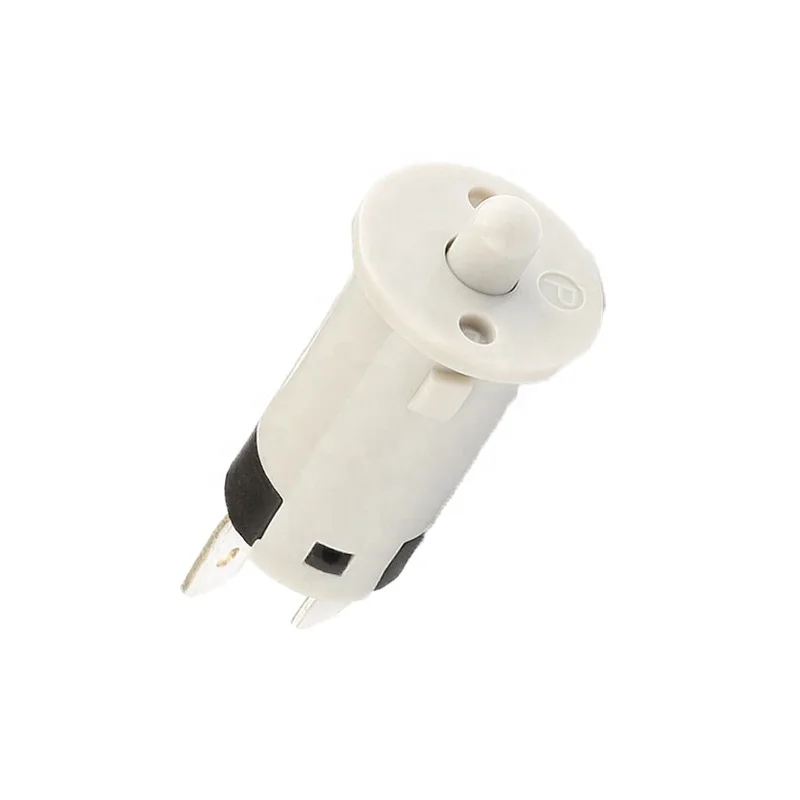

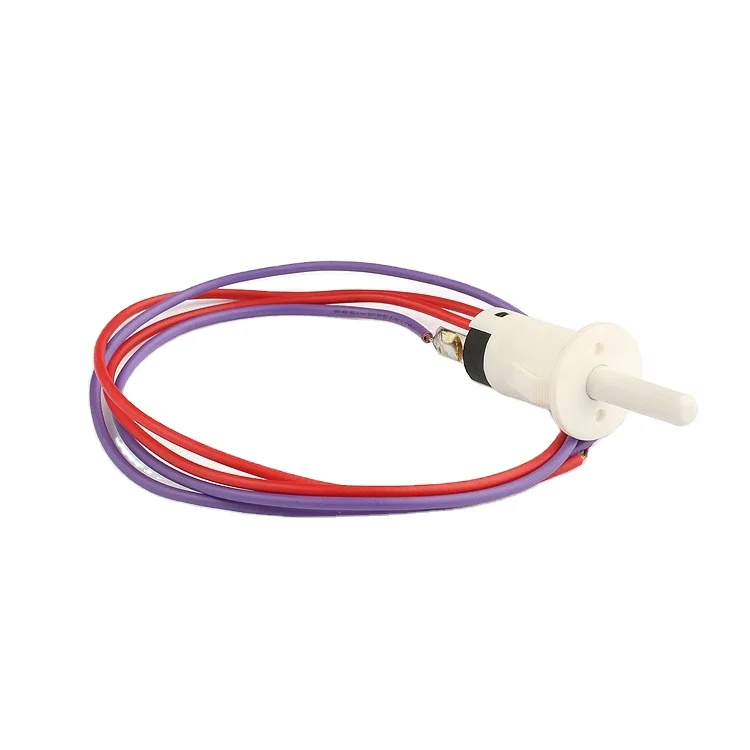

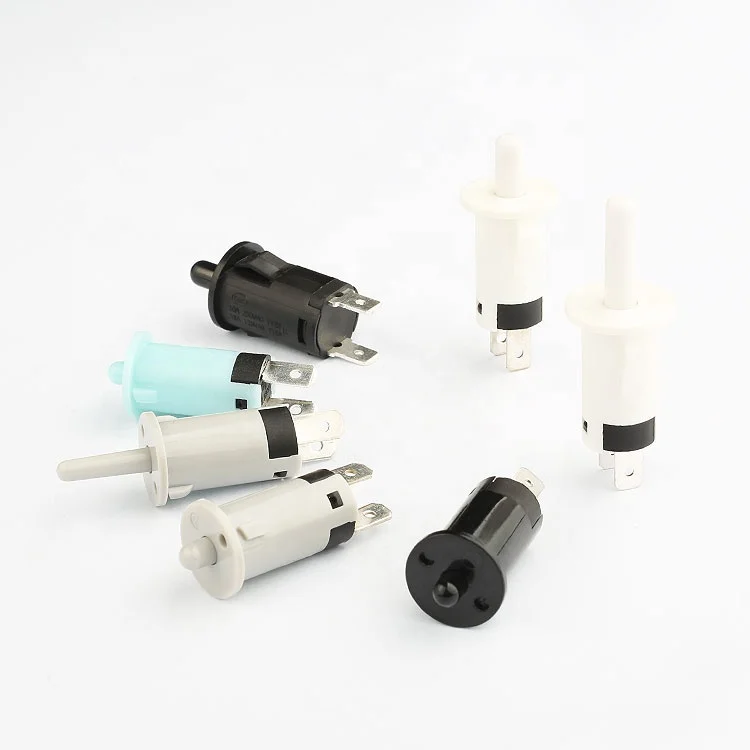

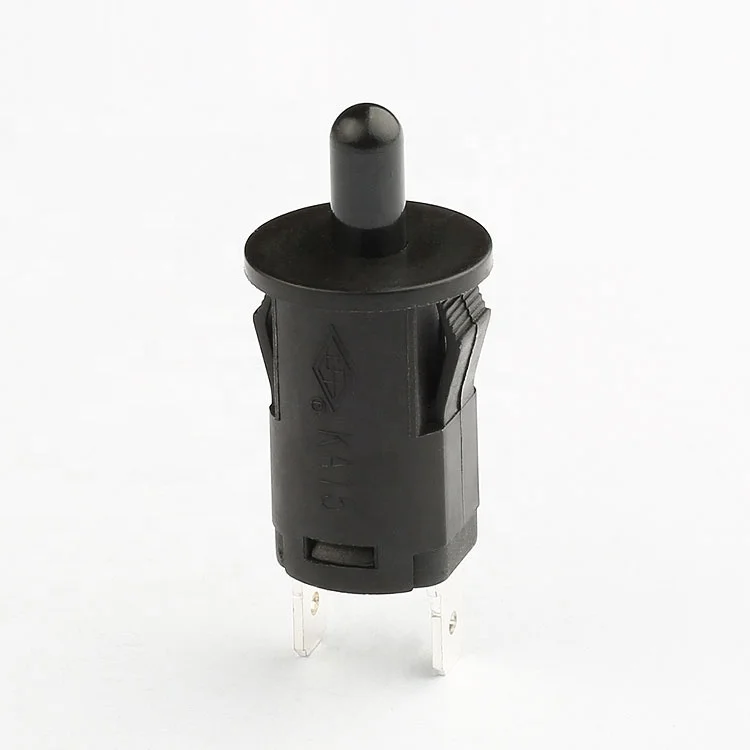

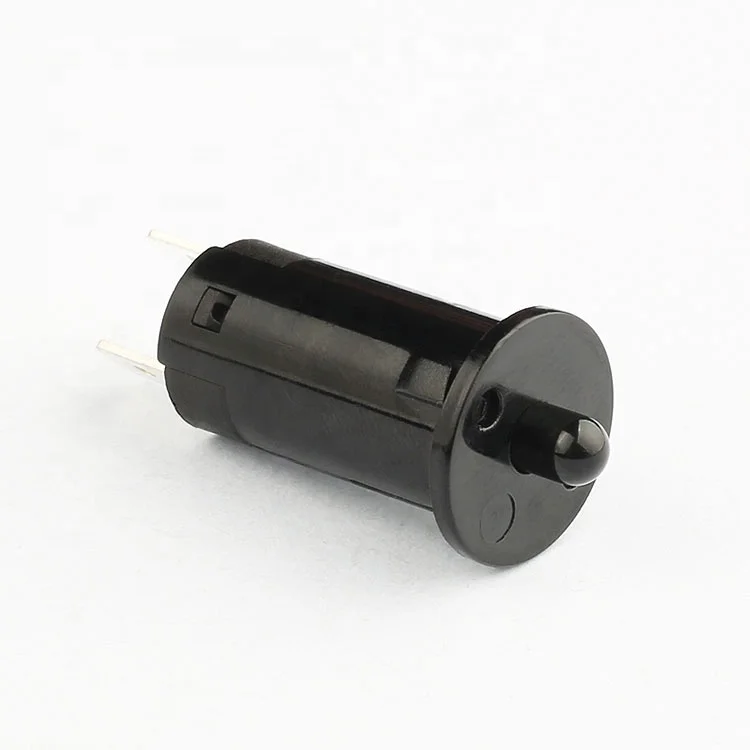

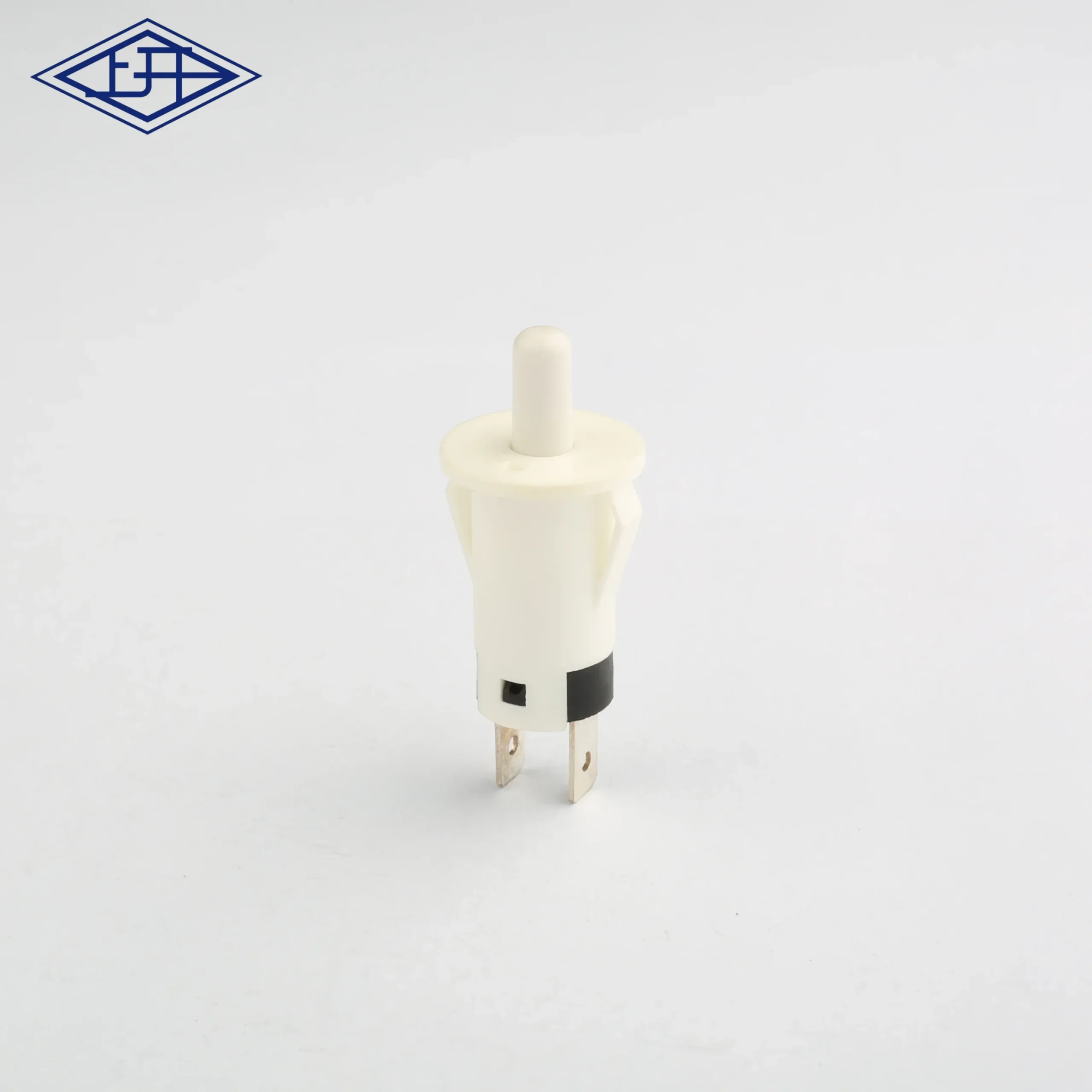

10mm Round Head Door Push Button Switch | Wholesale Supplier

>= 10  pieces
$0.21

0 reviews

Wholesale 10mm Push Button Switch. Factory supplier. Durable, safe, versatile.

Description

Discover our high-quality 10mm Round Head Door Push Button Switch, a reliable solution for electric, home appliance, and industrial control applications. As a factory-direct supplier and wholesaler, we offer competitive prices without compromising on quality. This switch boasts a plastic construction, ensuring durability and safety. With a max current of 1A and max voltage of 250V, it’s suitable for a wide range of uses. The switch features a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, providing long-lasting performance. Its operating temperature range of -25℃ to +55℃ makes it versatile for various environments. The switch is available in multiple colors including red, yellow, green, and black, allowing you to choose the one that best suits your needs. With an IP40 rating, it offers protection against solid objects larger than 1mm. Our switch stands out with its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ), ensuring efficient and safe operation. We provide excellent after-sales service and support, making your purchase worry-free.
contact resistance
≤50MΩ
electronic life
10000
insulation resistance
≥100MΩ
operating temperature
25T55
dielectric strength
1500V
IP code
IP40

Electronic component product image for cross-border e-commerceElectronic device product display for cross-border e-commerce


Why Choose Our 10mm Door Push Button Switch?

Our 10mm Door Push Button Switch is designed for durability and reliability, making it an ideal choice for electric, home appliance, and industrial control applications. With a plastic construction, it ensures safety and longevity. The switch's mechanical life of 50,000 cycles and electronic life of 10,000 cycles guarantee long-lasting performance, reducing the need for frequent replacements.

What Makes Our Switch Stand Out?

Our switch stands out with its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ), ensuring efficient and safe operation. It's also available in multiple colors, allowing you to match it with your existing devices. With an IP40 rating, it offers protection against solid objects larger than 1mm, making it suitable for various environments.

Why Buy from Us?

As a factory-direct supplier and wholesaler, we offer competitive prices without compromising on quality. We provide excellent after-sales service and support, ensuring your purchase is worry-free. Choose us for reliable, high-quality switches that meet your needs and exceed your expectations.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KA5

LED

NO

Application

Electric, Home Appliance, Industrial Control, latching

Material

plastic

Structure

Electronic, Mechanical, Electromagnetic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

none

IP level

IP40

Switch Combination

1NO

Color

Red, Yellow ,Green, Black,etc

Mechanical life

50000cycles

Electronic life

10000cycles

Operating temperature

-25℃~+55℃

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Resistance

1,500V

IP code

IP40
