Description
Our factory, equipped with 60 senior engineers, an injection molding workshop, a 5S production workshop, and advanced experimental equipment, ensures that every switch meets the highest standards. We offer customization services to meet specific customer requirements, a feature that sets us apart from other suppliers.
The switch has a contact resistance of ≤50mΩ, an insulation resistance of ≥100MΩ, and a dielectric strength of 1500V, ensuring safety and durability. It is certified by CQC, CE, and ROHS, guaranteeing compliance with international standards. The operating temperature range of -5℃ to +75℃ and an IP40 protection level make it suitable for a variety of environments.
As a direct factory supplier, we offer competitive wholesale prices and excellent after-sales service. Choose our LED push button switch for your next project and experience the difference in quality and service.
| Max. Rating Current & Voltage |
3A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ momentary push button switch |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

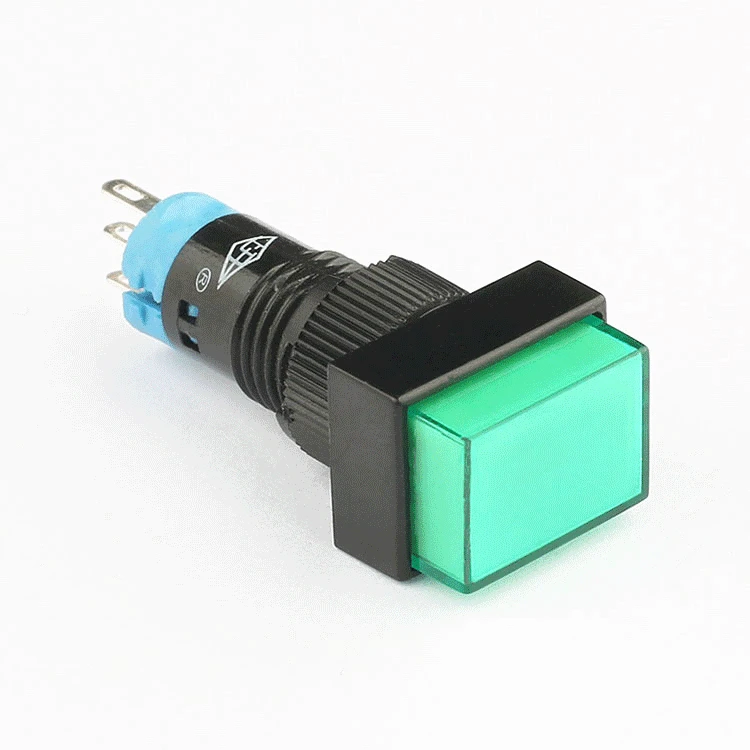

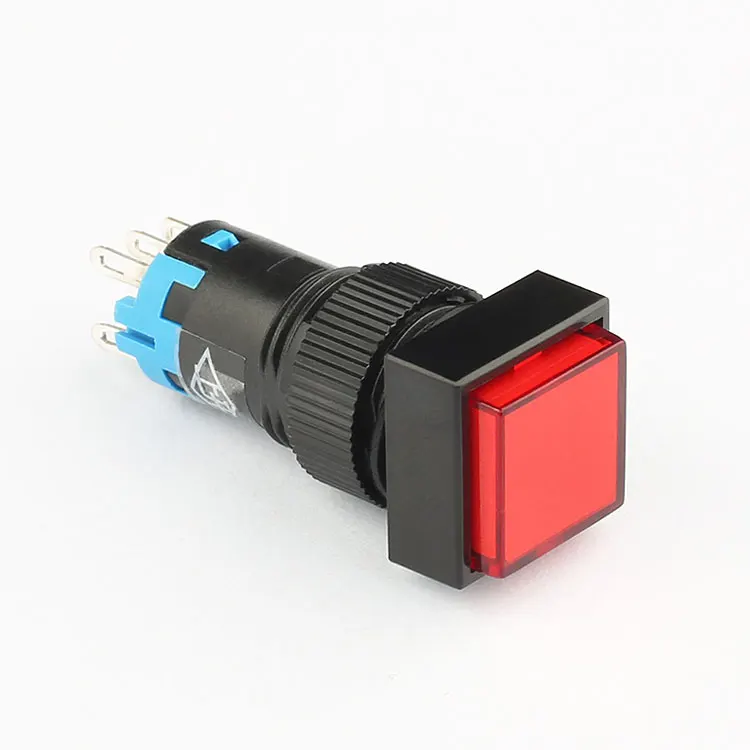

Why Choose Our 12mm 12V LED Push Button Switch?
Our switch stands out with its high durability, offering a mechanical life of 200,000 cycles, ensuring long-lasting performance. The built-in LED provides clear indication, making it ideal for applications where visual feedback is required. As a factory supplier, we offer customization services to meet your specific needs, a feature not commonly found with other suppliers.
What Are the Key Specifications?

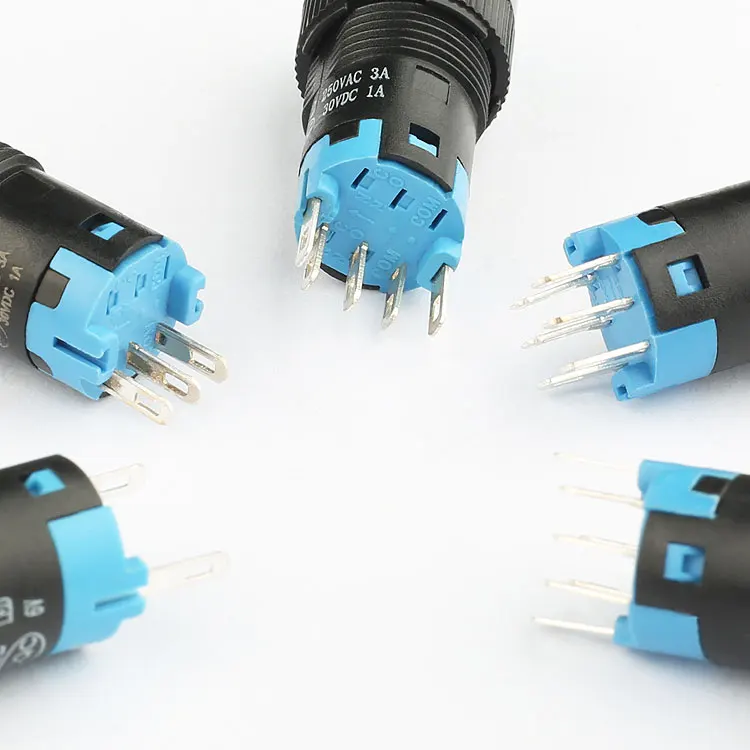

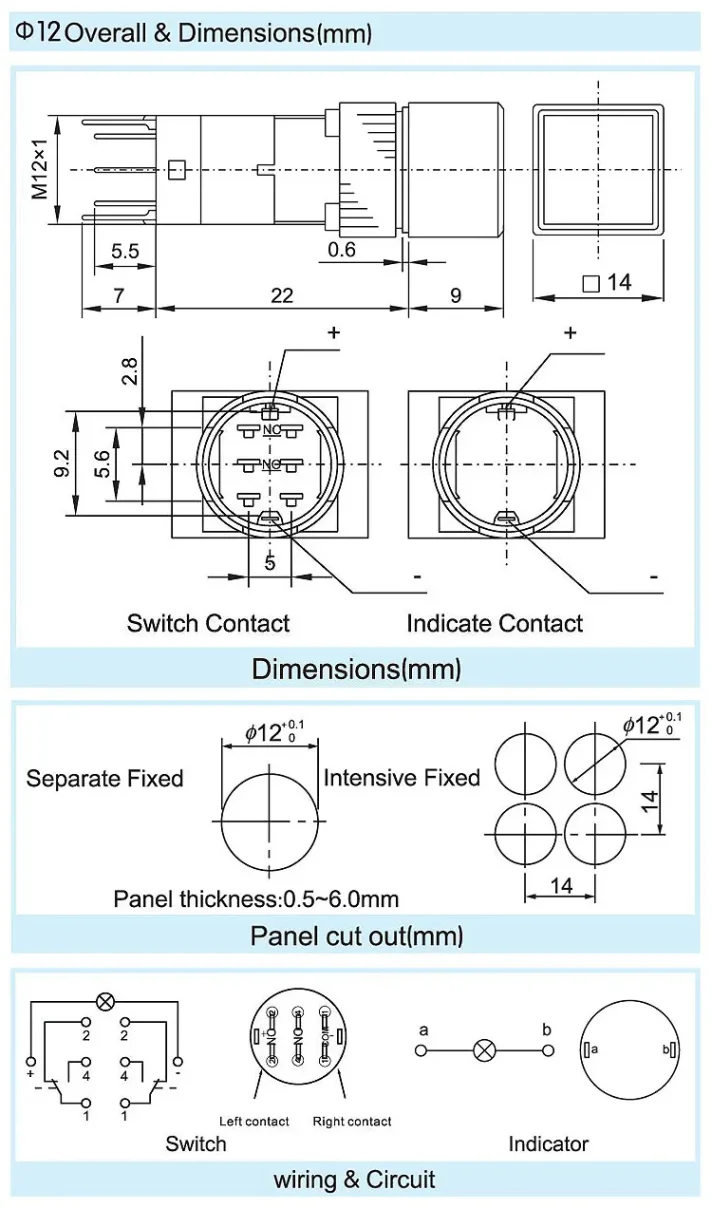

The switch has a 12mm size, operates at 12V, and features 5 pins with a 1NO1NC switch combination. It has a maximum rating of 3A 250V AC, a contact resistance of ≤50mΩ, and an insulation resistance of ≥100MΩ. These specifications ensure reliable and safe operation in various environments.
How Does Our Factory Ensure Quality?
Our factory is equipped with 60 senior engineers, an injection molding workshop, a 5S production workshop, and advanced experimental equipment. This ensures that every switch is manufactured to the highest standards. We also offer certification by CQC, CE, and ROHS, guaranteeing compliance with international standards.
