Description

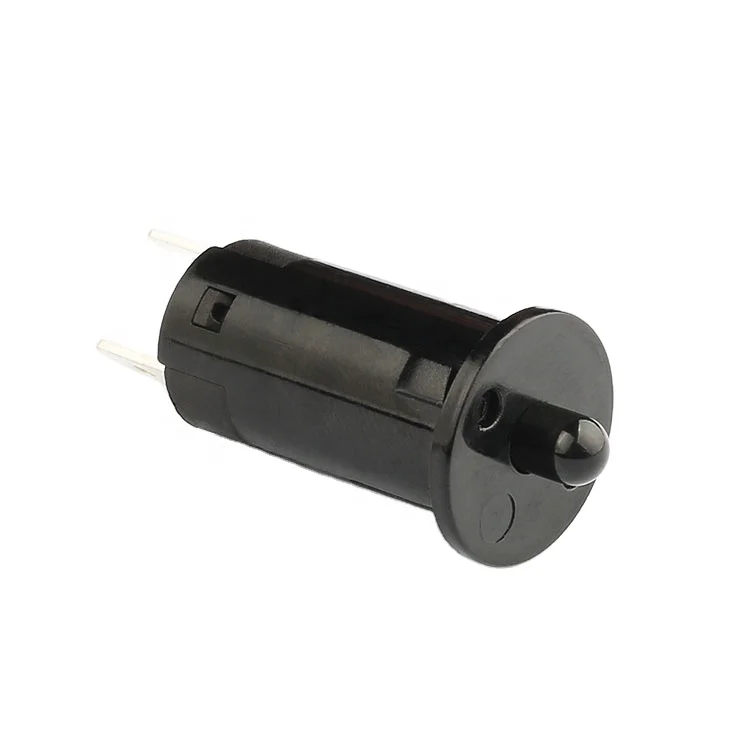

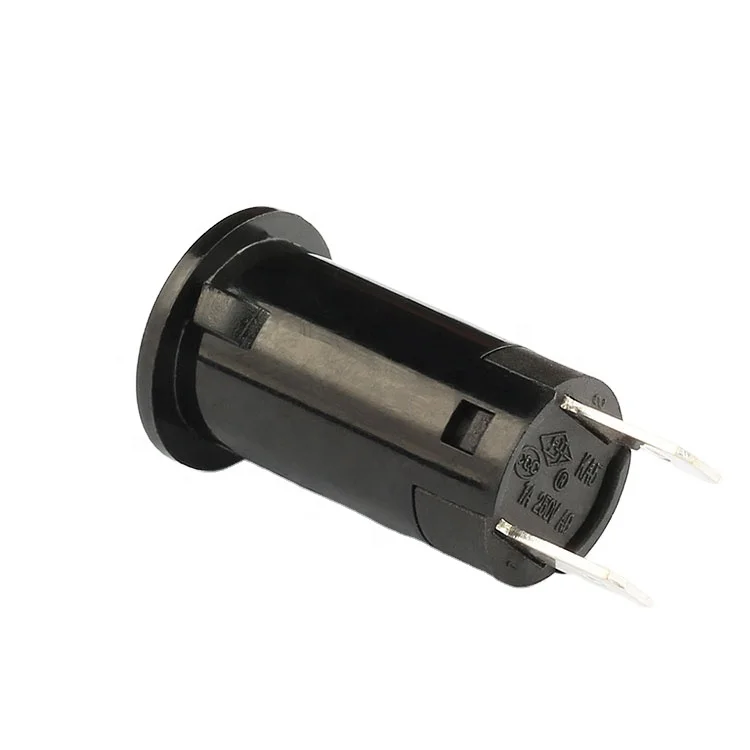

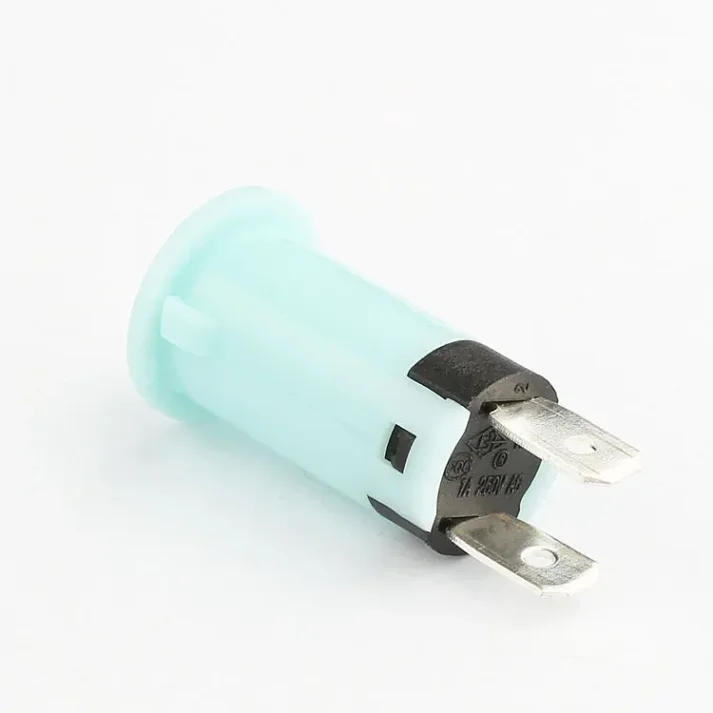

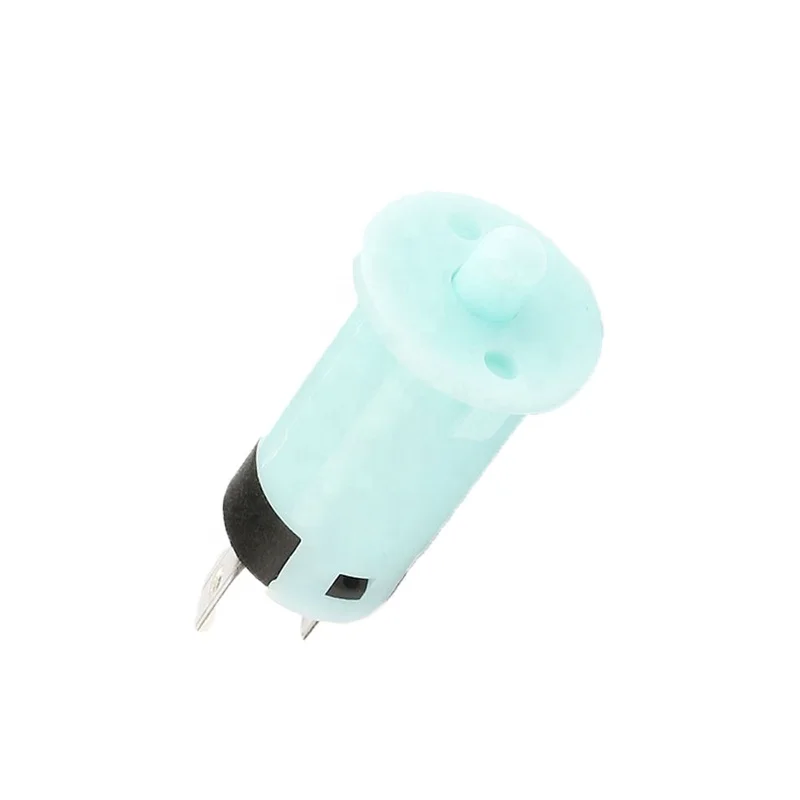

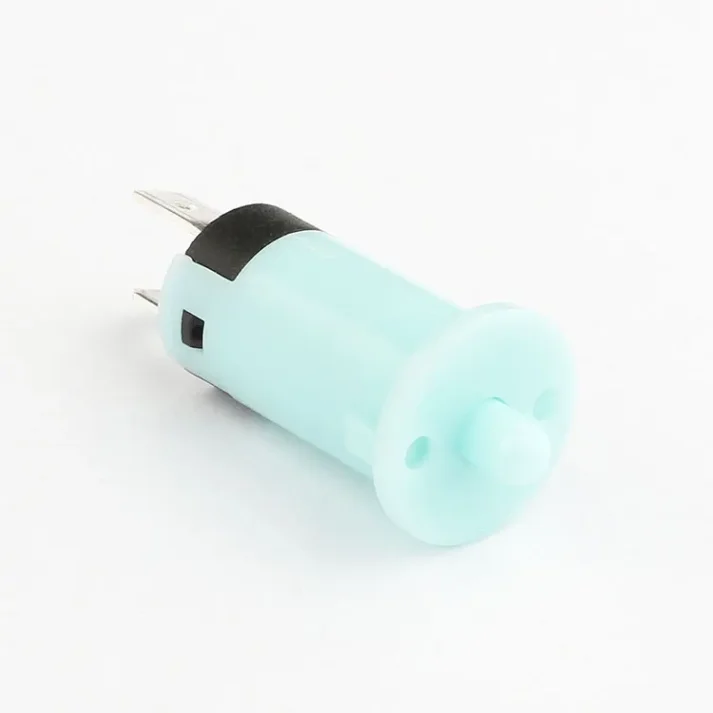

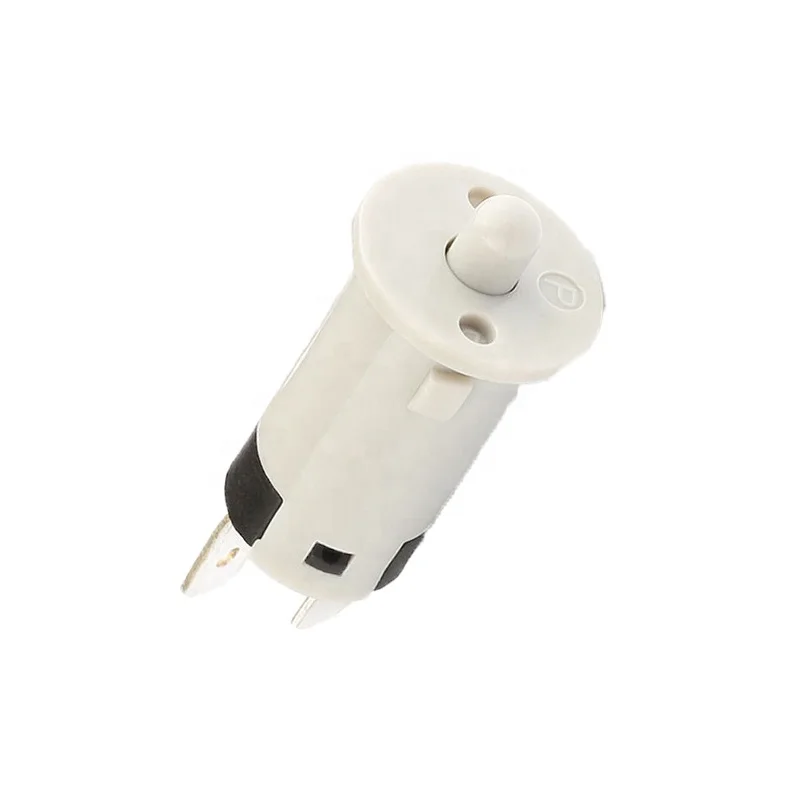

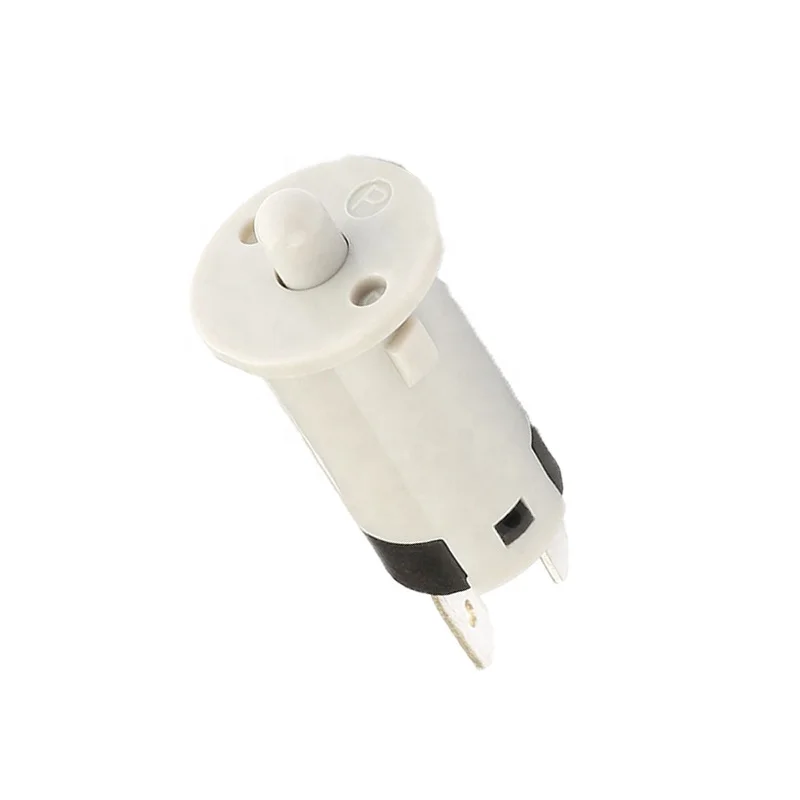

Our factory-direct 12mm 1A 250VAC Mini Plastic Push Button Switch is a high-quality, durable solution for refrigerator door applications. As a trusted supplier, we offer this switch in both Normally Open (NO) and Normally Closed (NC) configurations, ensuring compatibility with a wide range of needs. Key specifications include a maximum current of 1A and a maximum voltage of 250V AC, with a contact resistance of 50mΩ Max. and insulation resistance of 100MΩ Min. The switch boasts a dielectric strength of 1500V, ensuring safety and reliability. With a mechanical life of 50,000 times and an electrical life of 100,000 times, it’s built to last. Operating temperatures range from -25°C to +55°C, and it features an IP40 protection class. The mounting hole size is 12mm, and it accommodates panel thicknesses of 0.4-0.6mm, 0.8-2.4mm, and 1.4-1.6mm. Our switch stands out with its compact design, long lifespan, and excellent electrical performance, making it a superior choice over competitors. As a wholesale supplier, we offer competitive pricing and bulk order discounts. Plus, we provide excellent after-sales service to ensure your satisfaction.
|

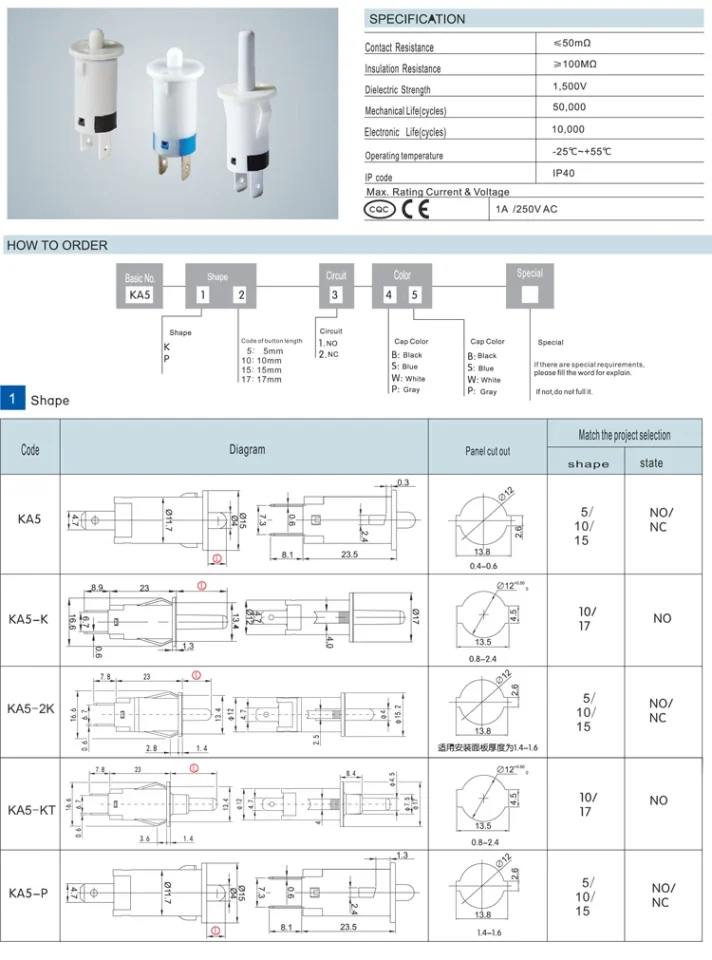

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-5-NO-BB
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Why Choose Our 12mm Push Button Switch?
Our 12mm Push Button Switch is designed for durability and reliability, making it perfect for refrigerator doors and other electrical appliances. With a factory-direct supply, we ensure high quality at competitive prices.
What Are the Key Features?
The switch features both NO and NC configurations, a 12mm mounting hole size, and accommodates various panel thicknesses. It has a long mechanical and electrical life, ensuring long-term performance.
How Does It Benefit You?
As a wholesale supplier, we offer bulk order discounts and excellent after-sales service. Our switch's compact design, high insulation resistance, and wide operating temperature range make it a superior choice for your needs.
