Description
Our switch boasts a max current of 1A and max voltage of 250V AC, ensuring it can handle demanding electrical loads. It has a contact resistance of 50mΩ Max. and insulation resistance of 100MΩ Min., providing excellent electrical performance. The dielectric strength of 1500V guarantees safety in high-voltage environments.
With a mechanical life of 50,000 times and an electrical life of 100,000 times, our switch is built to last. It operates within a temperature range of -25℃ to +55℃, making it suitable for a wide range of conditions. The IP40 protection level ensures resistance to dust and limited water ingress.
This switch is easy to install with a 12mm mounting hole size and supports panel thicknesses of 0.4-0.6mm, 0.8-2.4mm, and 1.4-1.6mm. It offers both NC and NO functions, providing flexibility in circuit design.
Choose our factory-direct switch for superior quality, competitive pricing, and reliable performance. We are committed to providing excellent customer service and after-sales support. Order now and experience the difference!
|

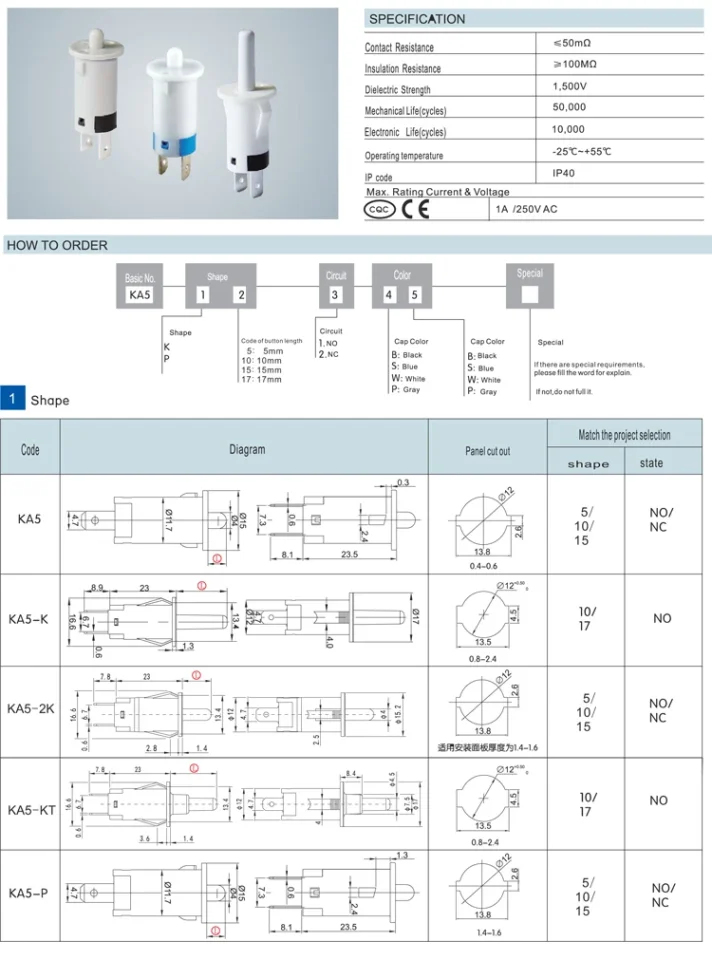

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-K17-NO-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Key Features and Benefits

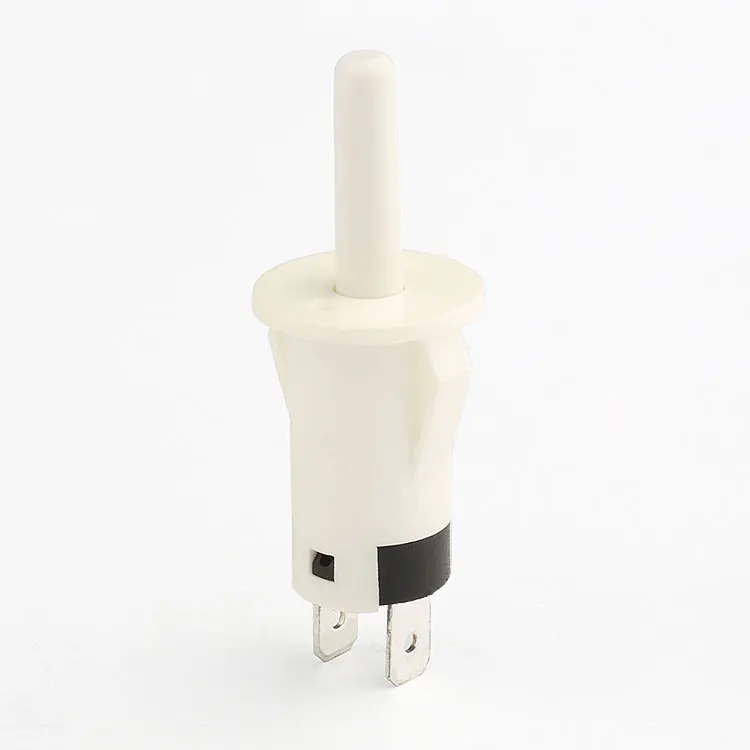

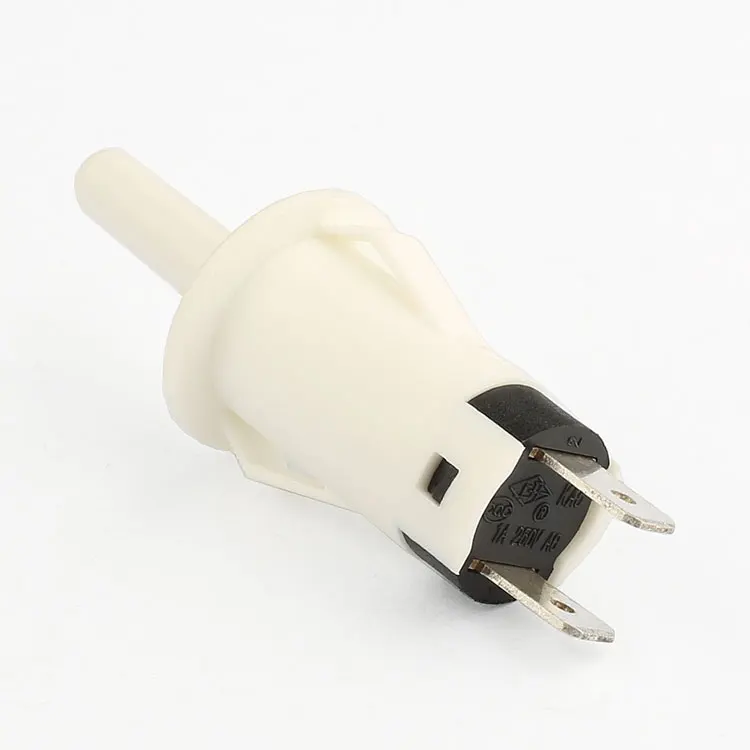

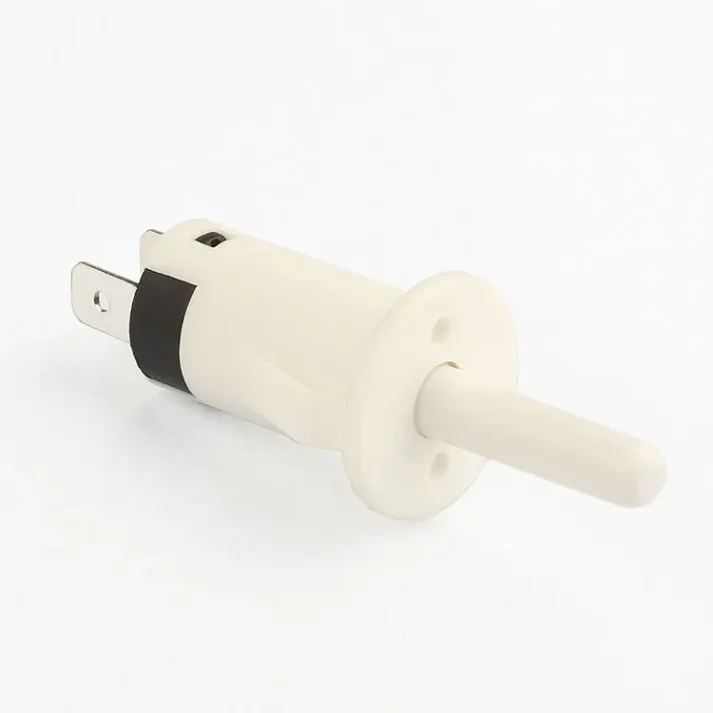

Our 12mm 1A 250VAC Mini Push Button Switch is designed for durability and reliability, making it ideal for refrigerator doors and other electrical control applications. With a compact plastic design and normally on/off function, it offers flexibility and ease of use.
Superior Electrical Performance
The switch boasts a max current of 1A and max voltage of 250V AC, ensuring it can handle demanding electrical loads. It has a low contact resistance and high insulation resistance, providing excellent electrical performance and safety.
Long Lifespan and Versatility
With a mechanical life of 50,000 times and an electrical life of 100,000 times, our switch is built to last. It supports various panel thicknesses and offers both NC and NO functions, making it suitable for a wide range of applications.
