Description
Our Push Button Switch boasts a maximum rating of 3A at 250V AC (resistive load) and offers excellent electrical performance with a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ. It has a dielectric strength of 1500V, ensuring safety and reliability. The switch has a long electronic life of 50,000 cycles (momentary) and 25,000 cycles (alternate), with an even longer mechanical life of 200,000 cycles (momentary) and 50,000 cycles (alternate).
Certified by CQC and CE, our Push Button Switch operates within a temperature range of -5℃ to +75℃ and has an IP40 protection level, making it suitable for various environments. As a factory supplier, we provide competitive pricing and excellent customer service, ensuring a hassle-free purchasing experience.
Whether you’re looking for a reliable switch for industrial machinery, control panels, or any other application, our 12mm Push Button Switch is the perfect choice. Contact us today to learn more about our wholesale pricing and to place your order.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
What are the key features of our 12mm Push Button Switch?

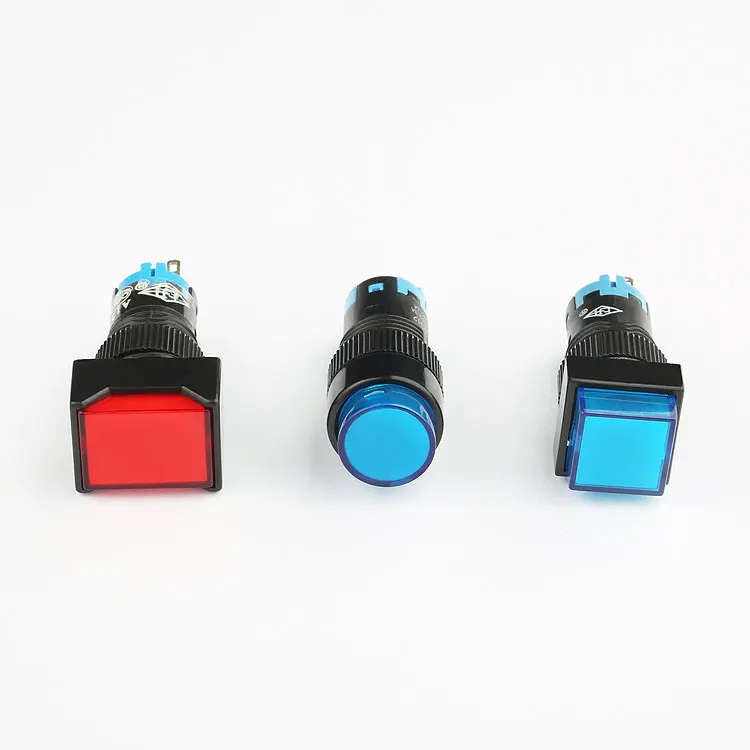

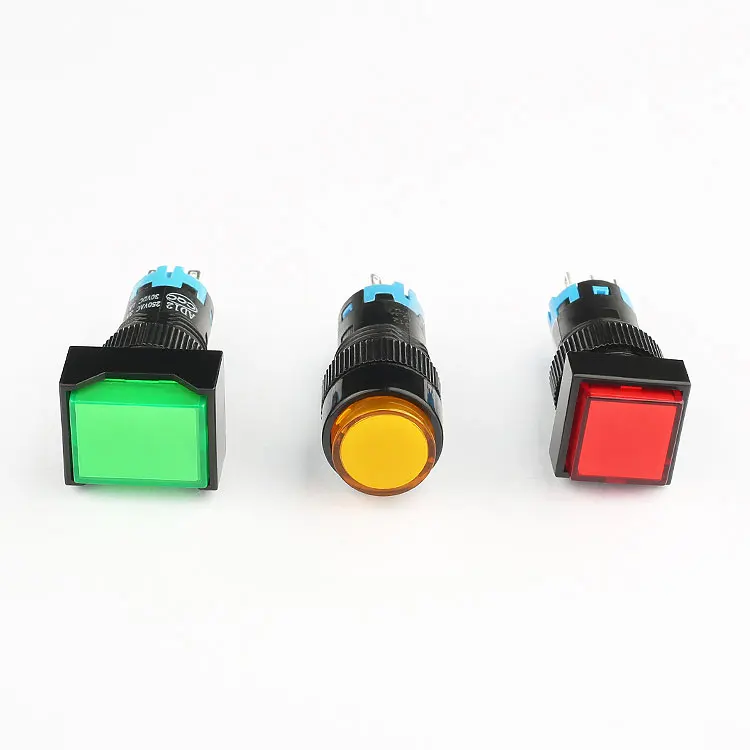

Our 12mm Push Button Switch offers a 12mm panel cutout, available in 1NO1NC and 2NO2NC configurations, with a round, mushroom, square, or rectangular pushbutton head. It features an LED indicator and has a maximum rating of 3A at 250V AC, with excellent electrical performance and long life cycles.
What certifications does our Push Button Switch have?
Our Push Button Switch is certified by CQC and CE, ensuring safety and reliability.
Why choose our factory supplier for Push Button Switches?
As a factory supplier, we offer wholesale pricing, excellent customer service, and a hassle-free purchasing experience. Our switches are reliable, durable, and suitable for a wide range of applications.
