12mm 1NO1NC Latching LED Push Button Switch – Wholesale Supplier

Category: Tags: , ,
50 - 99  pieces
$1.25

100 - 499  pieces
$1.20

500 - 999  pieces
$1.15

>= 1,000  pieces
$1.10
0 reviews

Wholesale 12mm LED Push Button Switch – Factory Supplier

Clean All

Description

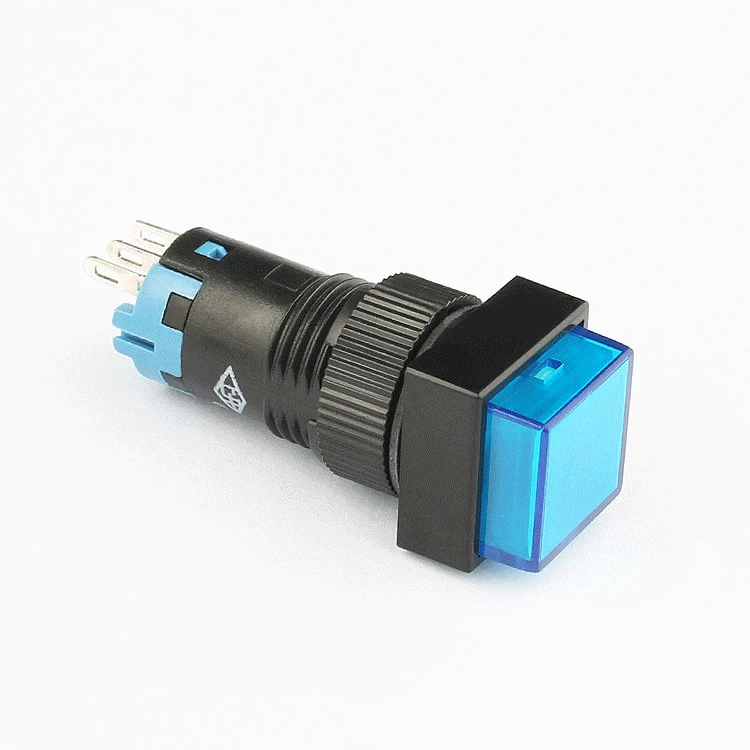

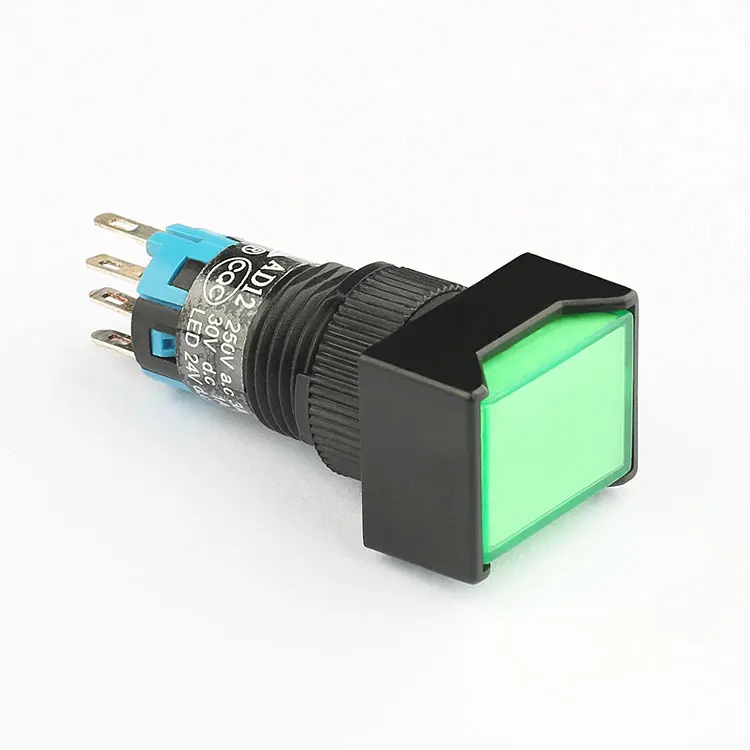

Introducing our 12mm 1NO1NC Latching LED Push Button Switch, a high-quality product designed for durability and performance. As a factory-direct supplier, we offer wholesale pricing on this rectangular plastic switch, which operates at 12V and features a bright LED indicator. Our switch stands out with its IP40 protection level, ensuring reliability in various environments. It has a maximum current of 3A and a maximum voltage of 250V, making it suitable for a wide range of applications. With a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, our switch offers long-lasting performance. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, ensuring safety and efficiency. Our product is CQC, CE, and ROHS certified, guaranteeing quality and compliance. Choose our switch for its superior performance, reliability, and competitive pricing.
item
value
Place of Origin
Shanghai,China
Brand Name
SK(Shangkai)
Model Number
AD12-213L2A-G
IP(ingress protection)
IP40
Max.Current
3A
Max.Voltage
250V
Contact Resistance
≤50mΩ
Insulation Resistence
≥100MΩ
Dielectric Strength
1500V
Operating Temperature
5T75
Mechanical Life
50000
Electrical Life
25000
Voltage of indicator
2vac
Current of indicator
＜15mA

Electronic component product image for cross-border e-commerceHigh-quality electronic device image for SEO optimizationElectronic product display image for cross-border e-commerceElectronic accessory product image for SEO purpose


Why Choose Our 12mm 1NO1NC Latching LED Push Button Switch?

Our switch is designed for durability and performance, with a high mechanical and electrical life, ensuring long-lasting reliability. The bright LED indicator provides clear visual feedback, making it ideal for industrial control, electronic devices, and home appliances.

What Makes Our Switch Stand Out?

Our switch offers superior protection with an IP40 rating, ensuring it can withstand various environmental conditions. It also features a low contact resistance and high insulation resistance, guaranteeing safety and efficiency in operation.

Why Buy From Us?

As a factory-direct supplier, we offer wholesale pricing on our high-quality switches. Our products are CQC, CE, and ROHS certified, ensuring quality and compliance. Choose us for competitive pricing, reliable performance, and excellent customer service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A
Max. Voltage

250V
Place of Origin

Shanghai,China
Brand Name

SK(Shangkai)
Model Number

AD12-113L12-G
LED

Yes
Whether the smart

NO
IP level

ip65, ip40
Switch Combination

1NO1NC, 1NO, 2NO2NC, 2NO
Contact Resistance

≤50mΩ
Insulation Resistence

≥100MΩ
Dielectric Strength

1500V
Operating Temperature

5T75
Mechanical Life

50000
Electrical Life

25000
Voltage of Indicator

2vac
Certification

CQC CE ROHS
Protection Level

IP40
