Description
Key specifications include a maximum current of 3A and a maximum voltage of 250V, making it suitable for a wide range of applications. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, ensuring efficient and safe operation. The switch also boasts a dielectric strength of 1500V and an operating temperature range of 5°C to 75°C.
Our switch offers a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, providing long-lasting performance. The indicator voltage is 6VDC, with a current of ≤15mA, available in red, green, yellow, blue, and white colors.
As a factory-direct supplier, we offer competitive pricing and bulk discounts. Our switches are known for their high quality, durability, and competitive pricing, making them a preferred choice among our customers. Choose us for your wholesale needs and experience the difference.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-111L6D-Y
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
6vdc
|
|
Current of indicator
|
＜15mA
|
Product Overview

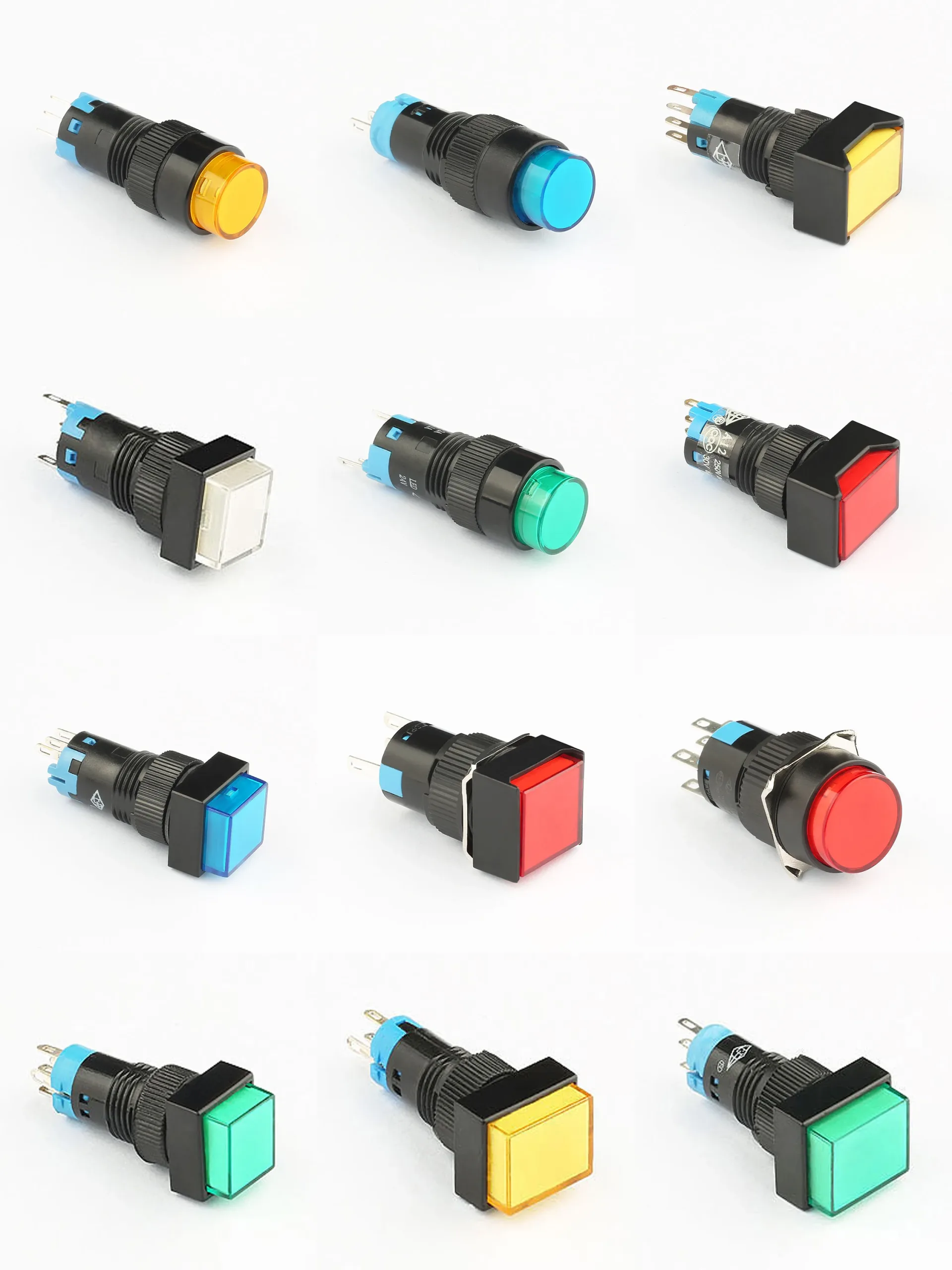

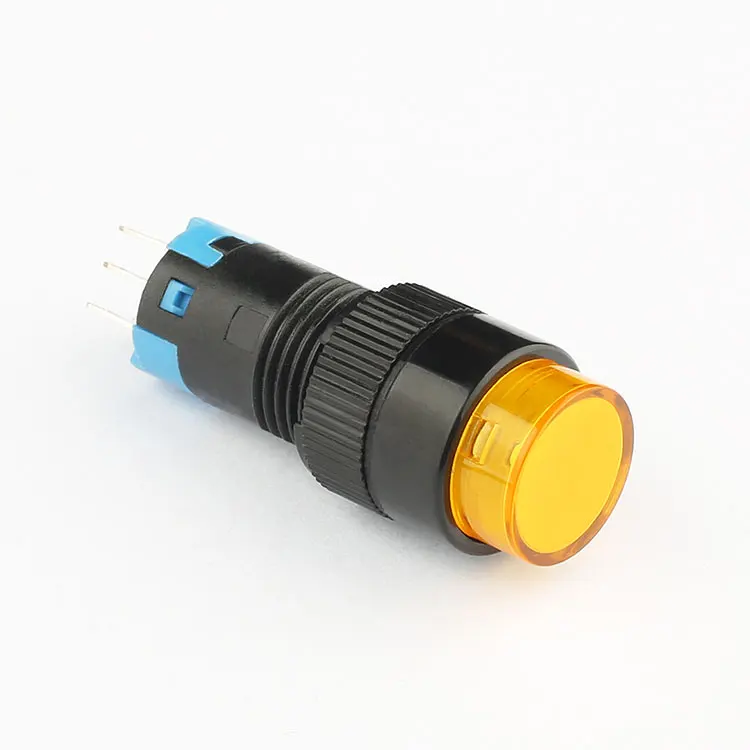

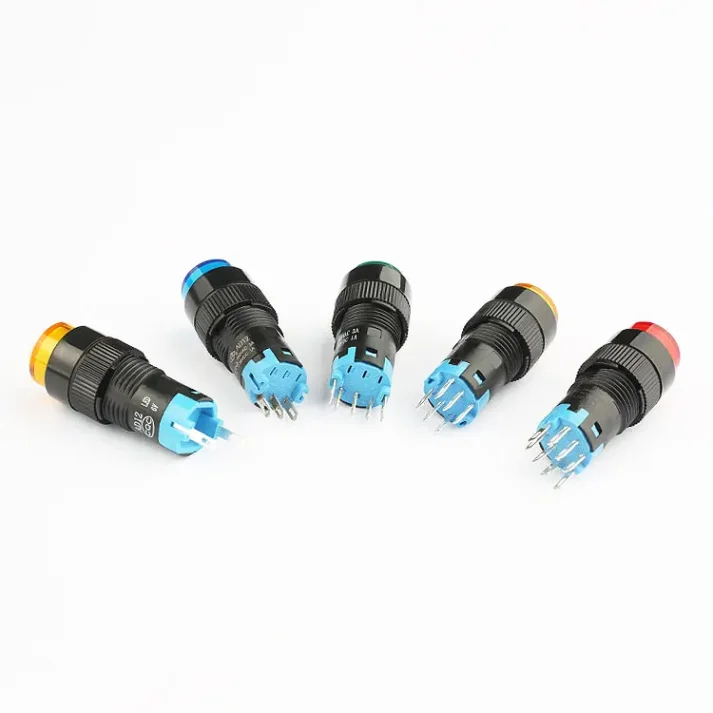

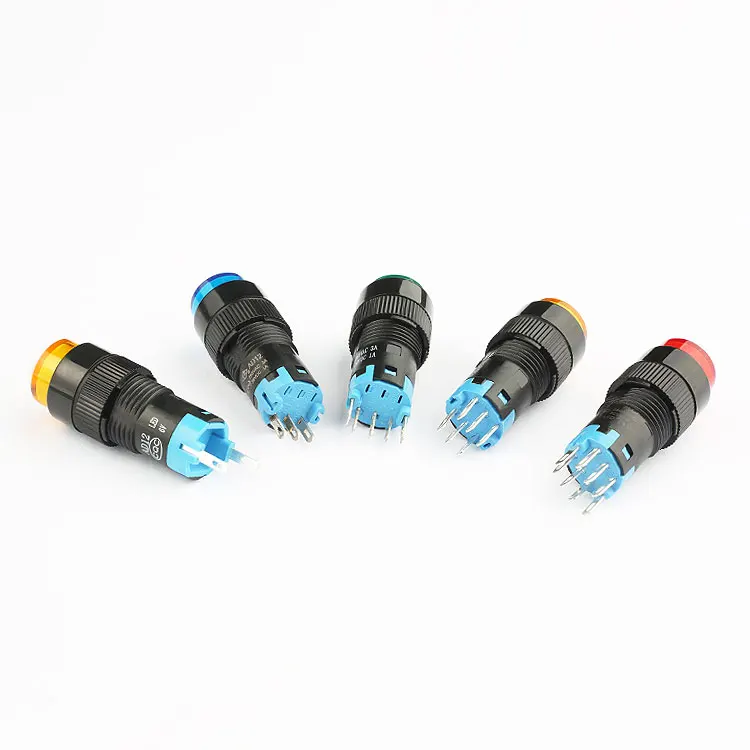

Our 12mm 1NO1NC Latching Plastic Push Button Switch is a versatile and reliable component designed for a wide range of industrial and commercial applications. With its latching function, it maintains its state until pressed again, making it ideal for control panels and machinery.
Key Features and Advantages
This switch stands out with its IP40 ingress protection, ensuring durability in various environments. It offers a high maximum current and voltage, along with low contact and high insulation resistance, ensuring efficient and safe operation. The long mechanical and electrical life further adds to its reliability.
Why Choose Our Switch?
As a factory-direct supplier, we offer competitive pricing and bulk discounts. Our switches are known for their high quality, durability, and competitive pricing. Choose us for your wholesale needs and experience the difference in performance and value.
