Description
Our switch boasts impressive specifications, including a maximum current of 3A and a maximum voltage of 250V, ensuring it can handle a wide range of electrical loads. With an IP40 protection level, it’s resistant to dust and splashes, perfect for various industrial and commercial environments. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, guaranteeing excellent electrical performance.
What sets our switch apart is its long mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, ensuring long-lasting reliability. The switch combination of 1NO1NC provides flexibility in circuit design, and the LED indicator current is ≤15mA, ensuring energy efficiency.
Choose our switch for its superior quality, competitive pricing, and excellent after-sales service. We are a trusted supplier and factory, ready to meet your wholesale needs.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-123L24A-R
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
24 vac
|
|
Current of indicator
|
＜15mA
|

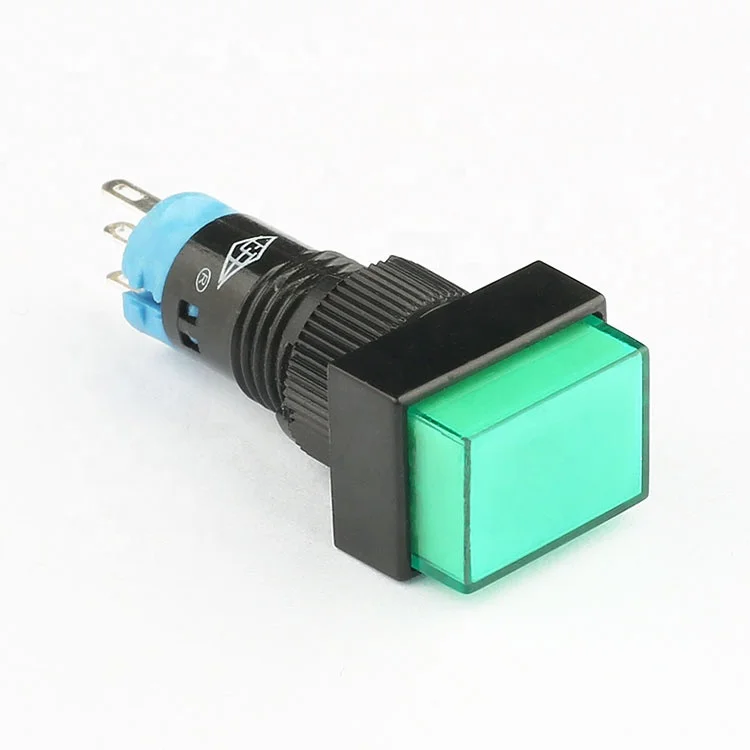

Why Choose Our 12mm LED Push Button Switch?
Our 12mm LED push button switch stands out with its durable plastic body, bright LED indicator, and excellent electrical performance. With a maximum current of 3A and voltage of 250V, it's suitable for a wide range of applications. The IP40 protection level ensures resistance to dust and splashes, making it ideal for industrial and commercial environments.
What Are the Key Features?
Key features include a 1NO1NC switch combination, long mechanical and electrical life, and energy-efficient LED indicator. The switch is designed for reliability and durability, with a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ.
How Does It Benefit Your Business?
As a factory direct supplier and wholesaler, we offer competitive pricing and excellent after-sales service. Our switch's superior quality and long-lasting reliability ensure it meets your business needs, reducing maintenance costs and downtime. Choose us for a trusted partner in electrical components.
