Description
**Product Specifications**:
– **Max. Current & Voltage**: 3A, 250VAC
– **Contact Resistance**: <50mΩ
– **Insulation Resistance**: >100mΩ
– **Dielectric Resistance**: 1500V
– **Mechanical Life**: 200,000 cycles (momentary), 50,000 cycles (alternate)
– **Electrical Life**: 50,000 cycles (momentary), 25,000 cycles (alternate)
– **Operating Temperature**: -5°C to +75°C
– **Certifications**: CQC, CE, ROHS
– **Protection Level**: IP40

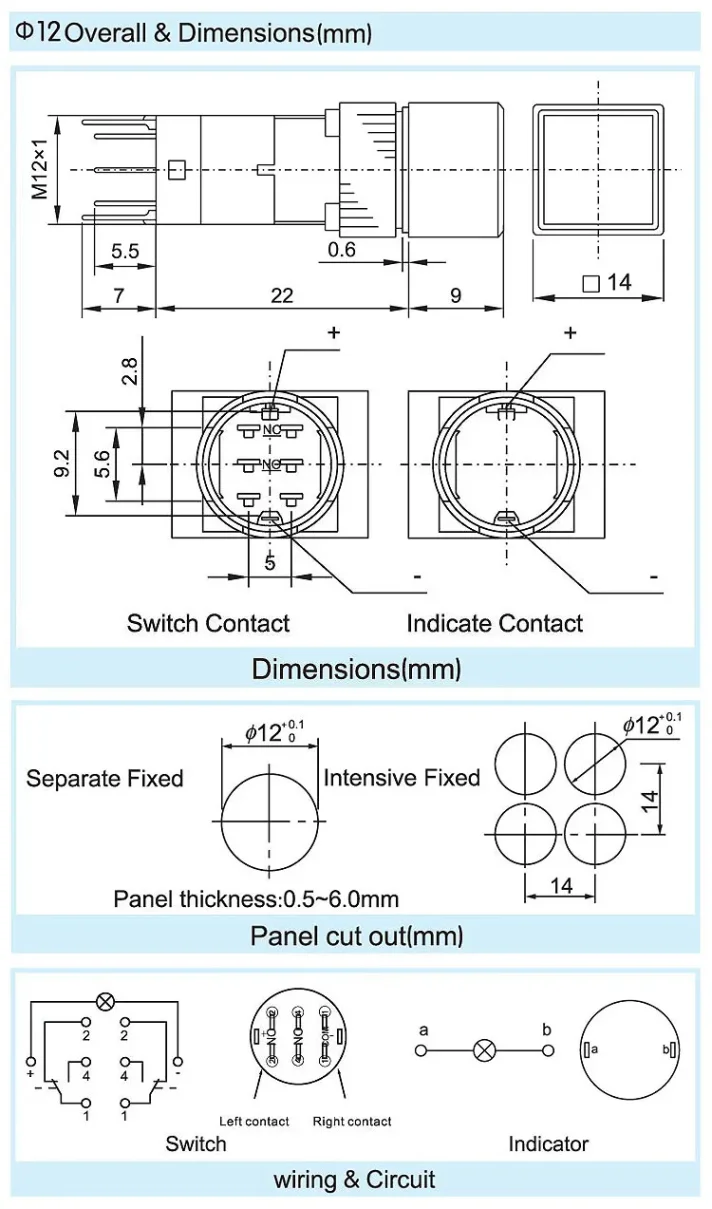

– **Mounting Hole Size**: 12mm
– **LED Voltage Options**: 2V, 6V, 12V, 24V, 110V, 220V (selectable)
**Advantages**:
– **Customization**: We can customize the switch to meet your specific requirements, ensuring a perfect fit for your project.
– **Quality Assurance**: With over 60 senior engineers and advanced experimental equipment, our factory adheres to 5S and 5M management standards, guaranteeing top-notch quality.
– **Fast Delivery**: As a direct supplier, we streamline the supply chain, ensuring quick and efficient delivery.
– **After-Sales Support**: We provide comprehensive after-sales service, including technical support and warranty coverage.
Choose our 12mm LED Push Button Switch for its durability, versatility, and competitive pricing. Whether you’re a wholesaler, retailer, or end-user, we’re your trusted partner.
|
max.rating cnrrent&voltage
|
3a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical life
|
momentary 200000,alternate 50000
|
||
|
electronic life
|
momentary 50000,alternate 25000
|
||
|
operating temperature
|
-5℃ to +75℃
|
||
|
CQC,CE
|
|||
|
IP code
|
IP40
|
||
|
button shape
|
round
|
||
|
indicator voltage
|
2V,6V,12V,24V,110V,220V(selective)
|
||
|
color
|
red,yellow,green,blue,white(selective)
|
Why Choose Our 12mm LED Push Button Switch?
Our 12mm LED Push Button Switch stands out for its durability, versatility, and customization options. With a mechanical life of up to 200,000 cycles and an electrical life of 50,000 cycles, it ensures long-lasting performance. The LED indicator, available in multiple colors, adds a visual element to your control panel, making it easier to identify different functions.
Key Features and Benefits
- **Customization**: We can tailor the switch to your specific needs, including LED voltage, color, and switch combination (1NO1NC, 2NO2NC).
- **Quality**: Manufactured in our own factory with strict quality control measures, ensuring reliability and performance.
- **Value for Money**: As a direct supplier, we offer competitive pricing without compromising on quality.
Applications and Suitability
Our switch is ideal for a wide range of applications, including industrial equipment, home appliances, and custom projects. Its compact size and robust design make it suitable for both indoor and outdoor use. Whether you're looking for a standard switch or a customized solution, we've got you covered.
