Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-212L12-W
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
12v
|
|
Current of indicator
|
＜15mA
|
Product Overview

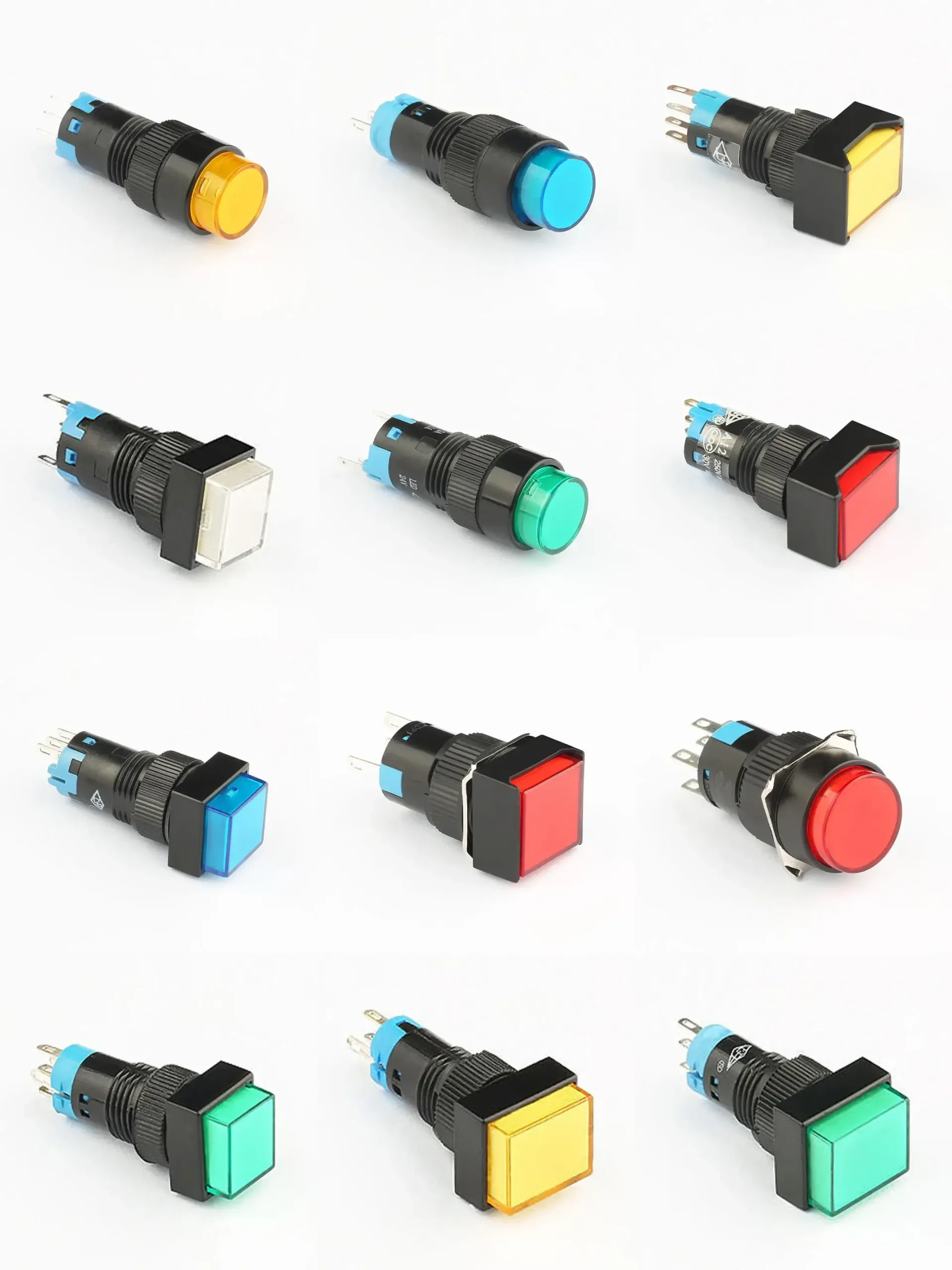

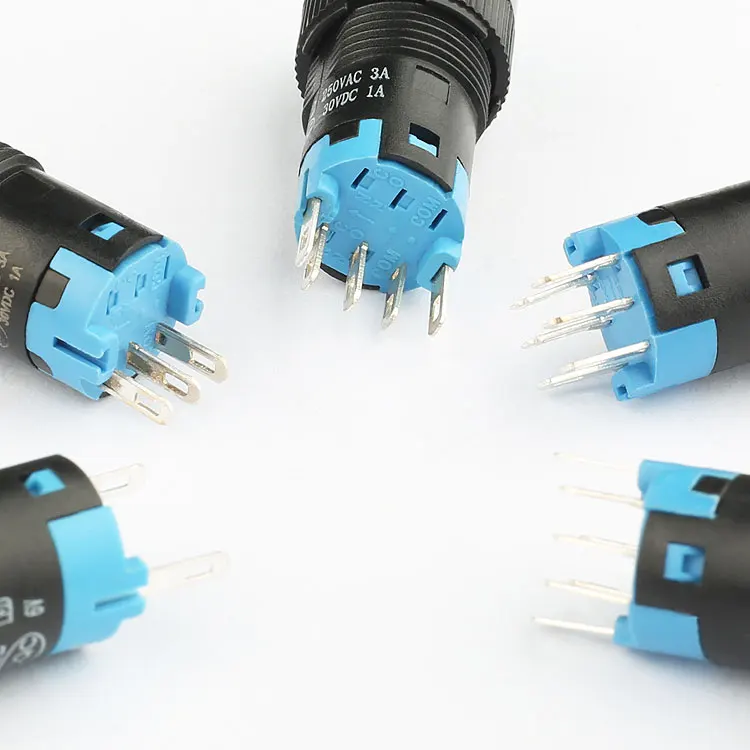

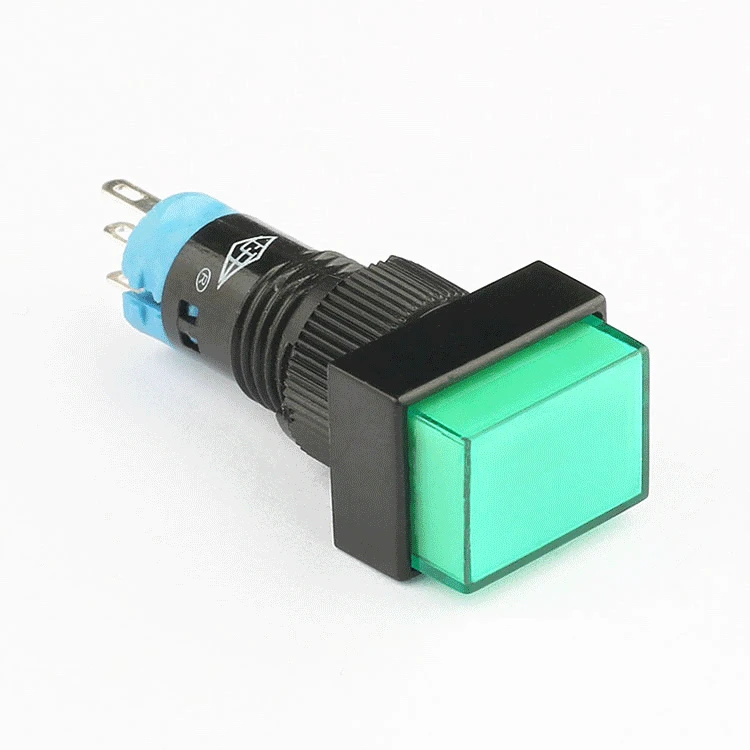

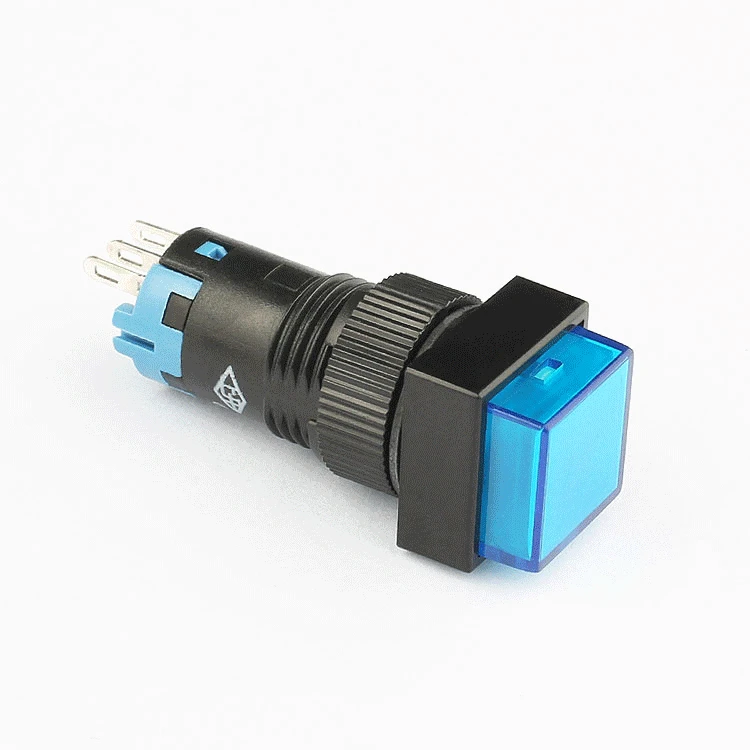

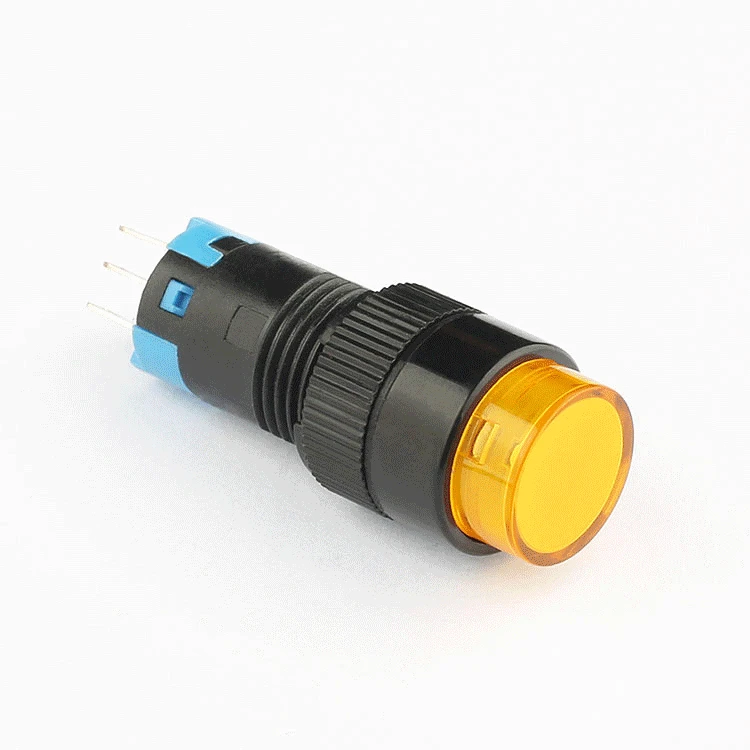

Our 12mm LED Push Button Switch is a top-tier choice for industrial and electronic applications. With its LED indicator and multiple voltage options, it offers versatility and convenience. As a factory direct supplier, we ensure competitive pricing without sacrificing quality.
Key Features
This switch boasts a maximum current of 3A and a maximum voltage of 250V, making it suitable for heavy-duty use. Its low contact resistance and high insulation resistance ensure reliable performance. With a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, it outlasts many competitors on the market.
Why Choose Us?
As a factory direct supplier and wholesaler, we offer unbeatable prices and superior quality. Our switch is certified with CQC, CE, and ROHS, meeting international safety standards. Choose our 12mm LED Push Button Switch for its durability, versatility, and longevity in various applications.
