Description
Product Specifications:
- Max. Current: 1A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai)
- Model Number: FD16-111L (Note: Although model number mentions 16mm, the title specifies 12mm as the focus here, assuming a variant or emphasis on size in title; actual product details should align with 12mm if that’s the case)
- LED: Yes
- Application: Industrial Control
- Material: Plastic
- Structure: Mechanical
- Head Type: Round Head
- Terminal Type: Pin terminal
- Illuminated Type: Full illuminated
- IP Level: IP41
- Switch Combination: 1NO1NC, 1NO, 1NC
- Operation Type: Alternate, Momentary

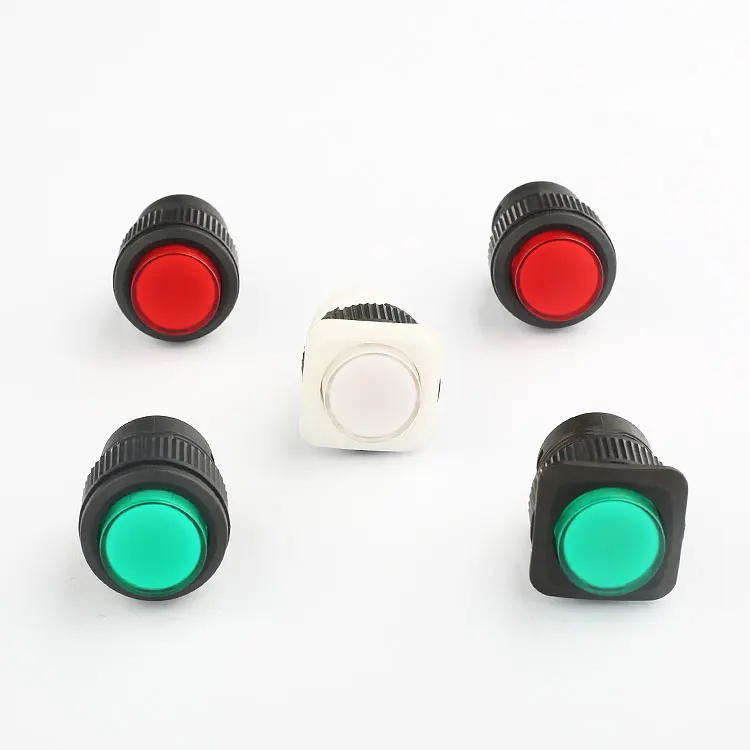

- Color: Red, Green, White

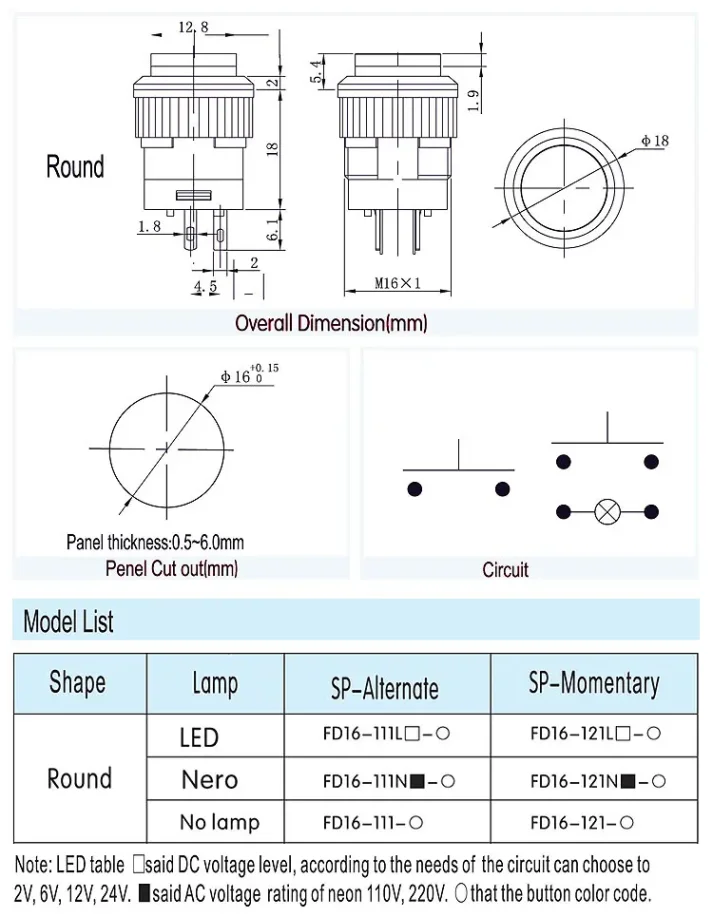

- Panel Cutout: 12MM plastic button switch (Adjusted to match title)
- Operating Temperature: -25 ℃~+55℃
- Dielectric Strength: 1,500V
- Electronic Life (cycles): Momentary: 10,000, Alternate: 5,000
Product Advantages:
- Compact size (12MM) makes it ideal for space-constrained applications.
- Self-locking mechanism ensures stable operation.
- Colorful buttons enhance visibility and aesthetics.
- High dielectric strength and insulation resistance ensure safety.
- Long electronic and mechanical life for reliable performance.
After-Sales Service: We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to providing high-quality products and excellent customer service.
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Resistance | 1,500V automatic reset pressure switch |
| Electronic life(cycles) | Momentary:10,000 Alternate:5,000 |
| Mechanical life(cycles) | Momentary:50,000 Alternate:10,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 small waterproof push button switch |
What makes this 12MM Mini Latching Push Button Switch stand out?
This switch stands out due to its compact 12MM size, self-locking mechanism, and colorful buttons, making it ideal for space-constrained applications while ensuring stable operation and enhanced visibility.
What are the key features of this push button switch?
Key features include a 1A 250V AC rating, IP41 protection level, full illuminated design, and alternate/momentary operation types, providing reliable performance and versatility.
Why choose our factory supplier for this push button switch?
Choosing our factory supplier ensures you get high-quality products directly from the source, with comprehensive after-sales service, technical support, and warranty coverage, making your purchase worry-free.
