Description
Max. Rating Current & Voltage |
1A 250V AC |
Contact Resistance | ≤50MΩ |
Insulation Resistance | ≥100MΩ |
Dielectric Resistance | 1,500V |
Electronic life(cycles) | 10,000 |
Mechanical life(cycles) | 50,000 |
Certification |
CQC , CE |
Operating temperature | -25℃~+55℃ |
IP code | IP40 |

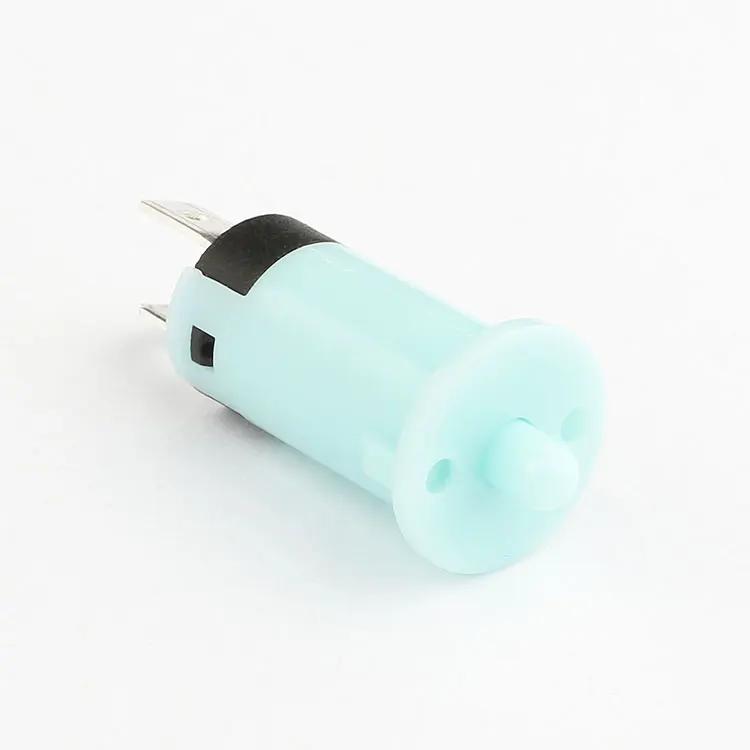

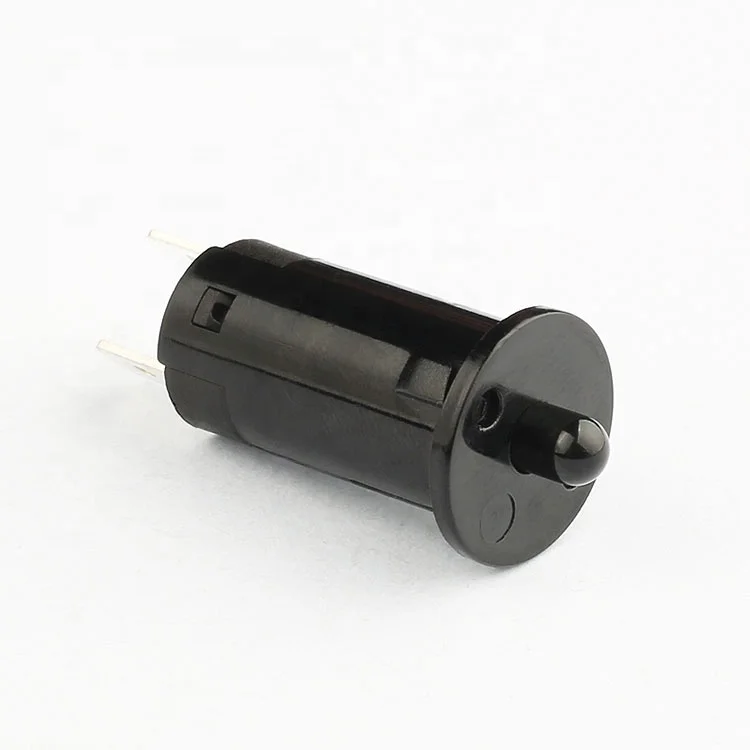

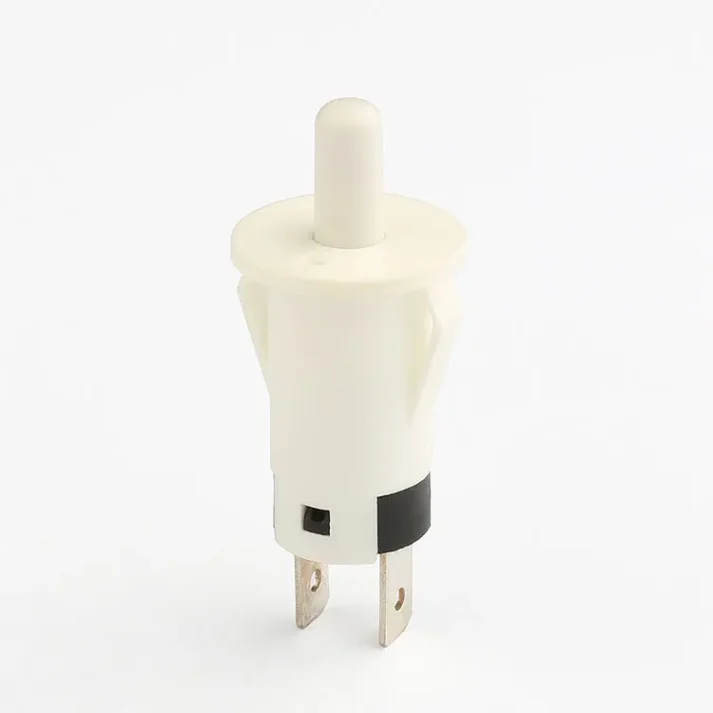

Why Choose Our 12mm Momentary Push Button?
Our 12mm Momentary Push Button is designed for water dispensers and other industrial applications, offering reliable performance and durability. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting use. The button's normally open configuration and low contact resistance make it ideal for precise control.
What Are the Key Features?
Key features include a maximum rating of 1A 250V AC, high insulation resistance (≥100mΩ), and a wide operating temperature range (-25℃ to +55℃). It is available in multiple colors and certified with CQC and CE, ensuring quality and safety.
How Does It Benefit Your Business?
As a factory-direct supplier, we offer wholesale pricing, making it cost-effective for your business. The button's high durability and reliability reduce maintenance costs and downtime, enhancing your product's overall value and customer satisfaction.
