12mm Plastic Push Button Switch | Wholesale Supplier Factory

Category: Tags: , ,
200 - 1,999  pieces
$0.17

2,000 - 4,999  pieces
$0.16

>= 5,000  pieces
$0.15
0 reviews

Factory-direct 12mm Plastic Push Button Switch supplier. Wholesale pricing, reliable quality.

Clean All

Description

Our 12mm Plastic Push Button Switch, a high-quality product from Yong Xing factory in Shanghai, China, is an ideal choice for your electrical needs. This switch, with a model number of KA5, is designed for a maximum current of 1A and a maximum voltage of 250V AC. It features a compact size of 12mm and comes in black, white, blue, or gray cap colors. The switch has a 1NO combination and is equipped with pin terminals for easy installation. With an electronic life of 10,000 cycles and a mechanical life of 50,000 cycles, it offers durability and reliability. The contact resistance is ≤50MΩ, and the insulation resistance is ≥100MΩ, ensuring safe operation. It also boasts a dielectric strength of 1500V and an IP40 protection level. Certified by CQC, CE, and CB, this switch meets international standards. As a factory-direct supplier, we offer wholesale pricing and excellent after-sales service. Choose our switch for its superior quality, competitive pricing, and reliable performance.
contact resistance
≤50MΩ
electronic life（cycles）
10000
insulation resistance
≥100MΩ
mechanical life（cycles）
50000
dielectric strength
1500V
operating temperature
25T55
IP code
IP40
max.rating current & voltage
1A 250V AC

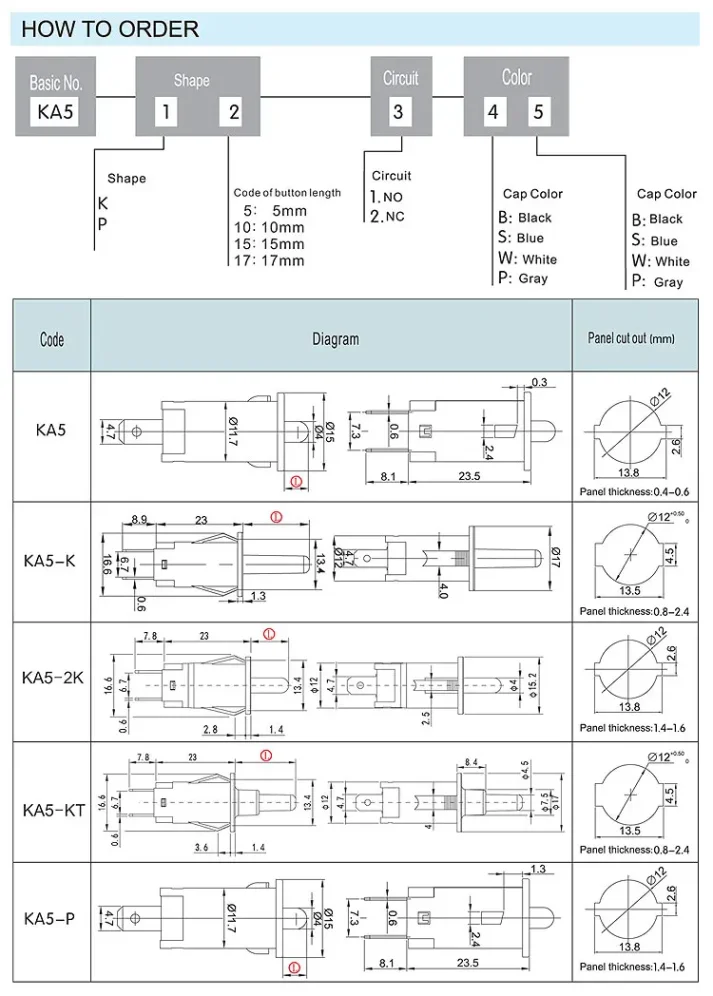

Electronic component product image for cross-border e-commerce


Why Choose Our 12mm Plastic Push Button Switch?

Our 12mm Plastic Push Button Switch stands out for its compact size, high durability, and reliable performance. With a maximum current of 1A and a maximum voltage of 250V AC, it is suitable for a wide range of electrical applications. The switch's 1NO combination and pin terminals make installation quick and easy.

What Are the Advantages of Our Switch?

Our switch offers a long electronic life of 10,000 cycles and a mechanical life of 50,000 cycles, ensuring long-lasting use. It has a low contact resistance (≤50MΩ) and high insulation resistance (≥100MΩ), providing safe operation. Additionally, it is certified by CQC, CE, and CB, meeting international quality standards.

Why Buy from Us as a Factory Supplier?

As a factory-direct supplier, we offer competitive wholesale pricing and excellent after-sales service. Our switches are manufactured in Shanghai, China, ensuring high quality and timely delivery. Choose us for reliable products, great prices, and outstanding customer support.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

Yong Xing
Model Number

KA5
LED

NO
Whether the smart

NO
IP level

IP40
Switch Combination

1NO
Certification

CQC, CE, CB
Cap colour

Black, White, Blue, Gray
Terminal Type

Pin terminal
Electronic life

10000cycles
Contact Resistance

≤50MΩ start stop engine switch button
Insulation Resistance

≥100MΩ snap round button
Dielectric Resistance

1500V
Protection Level

IP40
