Description

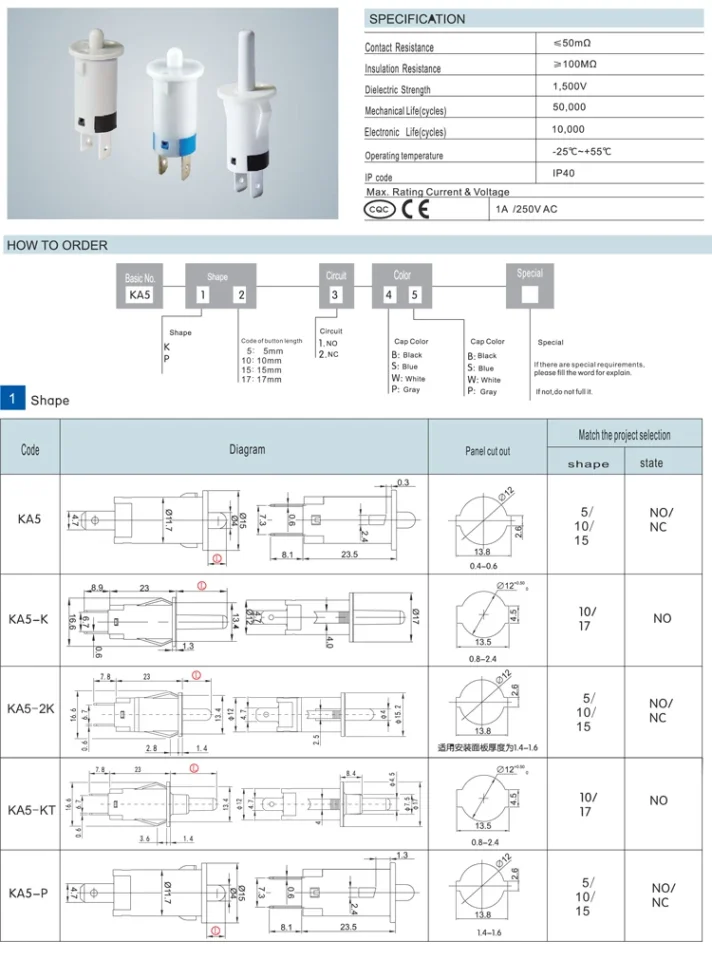

Specifications:
- Brand Name: SK (Shangkai)
- Model Number: KA5-K10-NO-WW
- Protection Level: IP40
- Max. Current: 1A
- Max. Voltage: 250V AC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Strength: 1500V
- Mechanical Life: 50,000 Times
- Electrical Life: 100,000 Times
- Operating Temperature: -25°C to +55°C
- Mounting Hole Size: 12mm
Advantages:
- Durable plastic construction ensures longevity.
- High mechanical and electrical life for reliable performance.
- Wide operating temperature range suitable for various environments.
- IP40 protection level provides basic dust protection.
- Competitive pricing as a factory supplier.
After-Sales Service: We offer comprehensive after-sales service, including technical support and warranty coverage, ensuring your satisfaction with our product.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-K10-NO-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Why Choose Our 12mm Plastic Push Button Switch?
Our 12mm Plastic Push Button Switch stands out for its durability, reliability, and competitive pricing. As a factory supplier, we ensure that each switch meets high-quality standards, offering a long mechanical and electrical life. The sleek white design and 17mm button length make it suitable for a wide range of industrial control applications.
Key Features:
Durable plastic construction, high contact and insulation resistance, and a wide operating temperature range ensure reliable performance in various environments. The IP40 protection level provides basic dust protection, making it ideal for panel mounting and equipment operation.
Wholesale and Supplier Benefits:
As a direct supplier and wholesaler, we offer competitive prices without compromising on quality. Our comprehensive after-sales service, including technical support and warranty coverage, ensures your satisfaction with our product. Choose us for your industrial control needs and experience the difference.
