Description

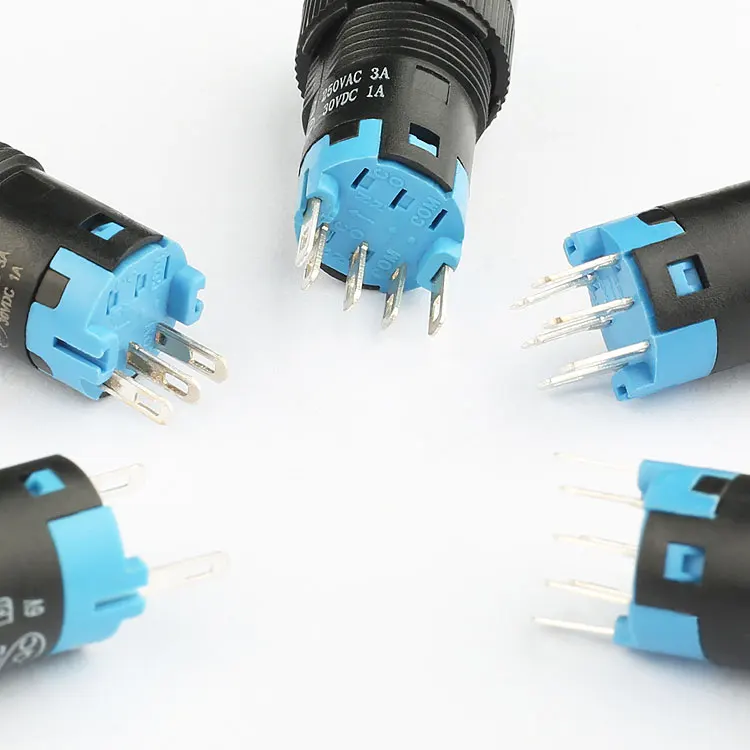

The switch features a 3-pin, 1NO1NC configuration, with a maximum current of 3A and a maximum voltage of 250V. It boasts an IP40 ingress protection rating, ensuring durability in various environments. The contact resistance is ≤50mΩ, while the insulation resistance is ≥100MΩ, providing reliable performance.
With a dielectric strength of 1500V and an operating temperature range of -5°C to 75°C, this switch is built to last. It has a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, ensuring long-term reliability. The indicator voltage is 24V, with a current of ≤15mA, making it energy-efficient.
Our switch stands out from competitors with its high-quality plastic construction, precise latching mechanism, and clear indicator light. It’s ideal for use in industrial controls, automotive applications, and more. As a factory-direct supplier, we offer competitive pricing and excellent customer service. Contact us today to learn more about our wholesale options!
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-212L24-W
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
24v
|
|
Current of indicator
|
＜15mA
|
Key Features

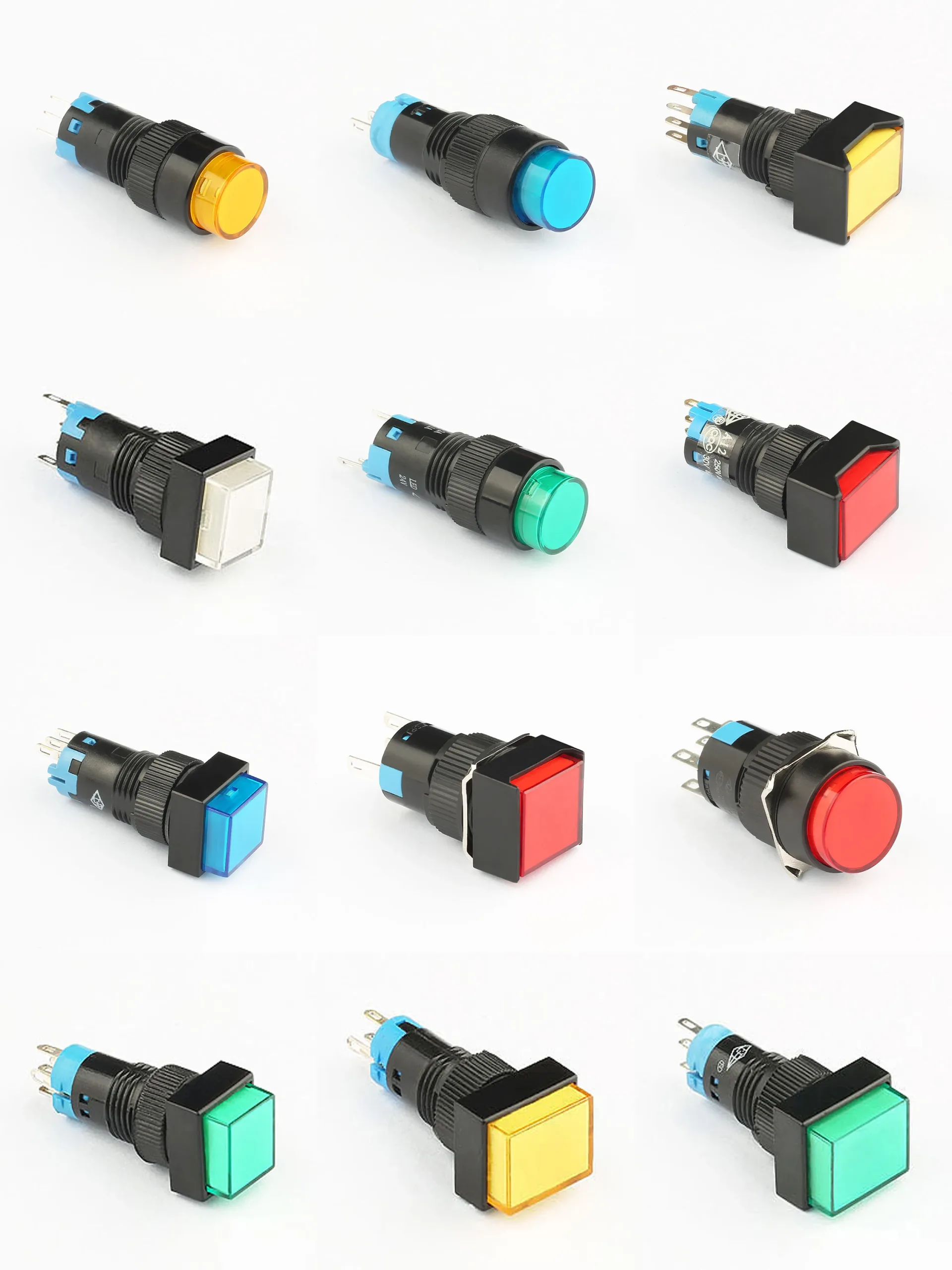

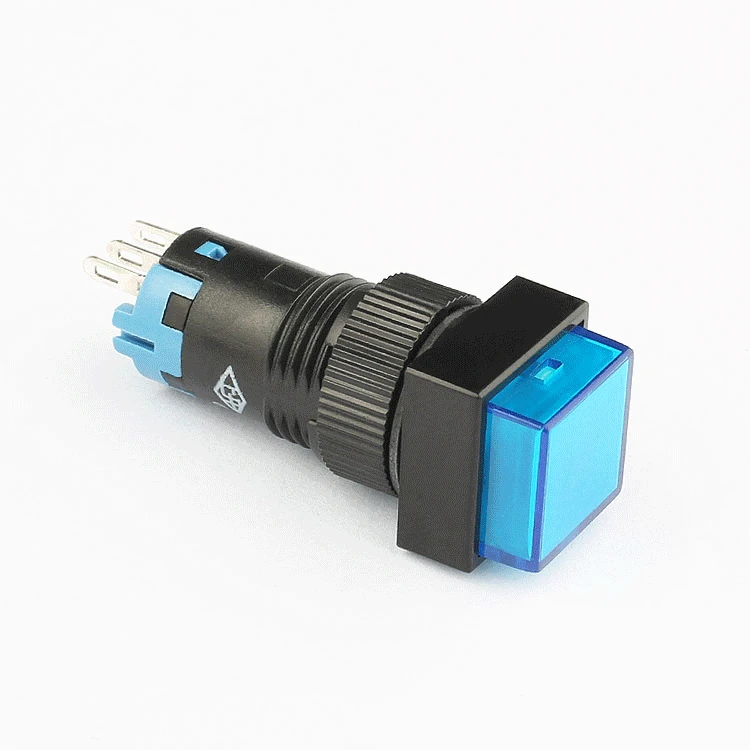

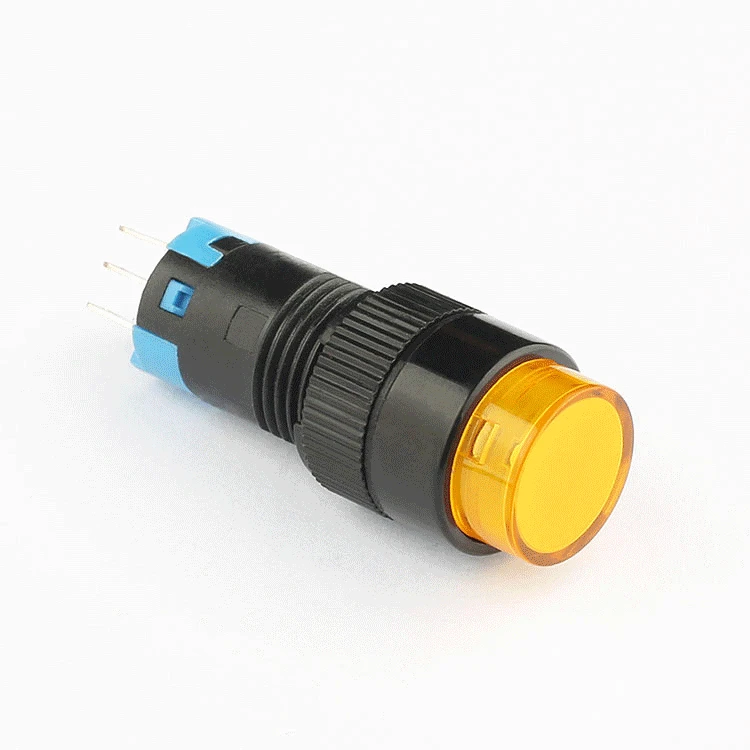

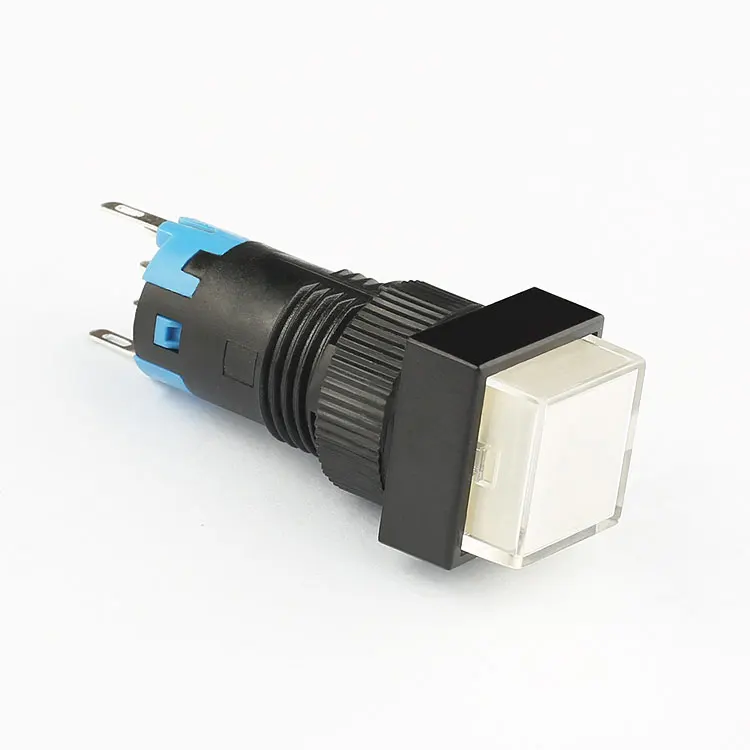

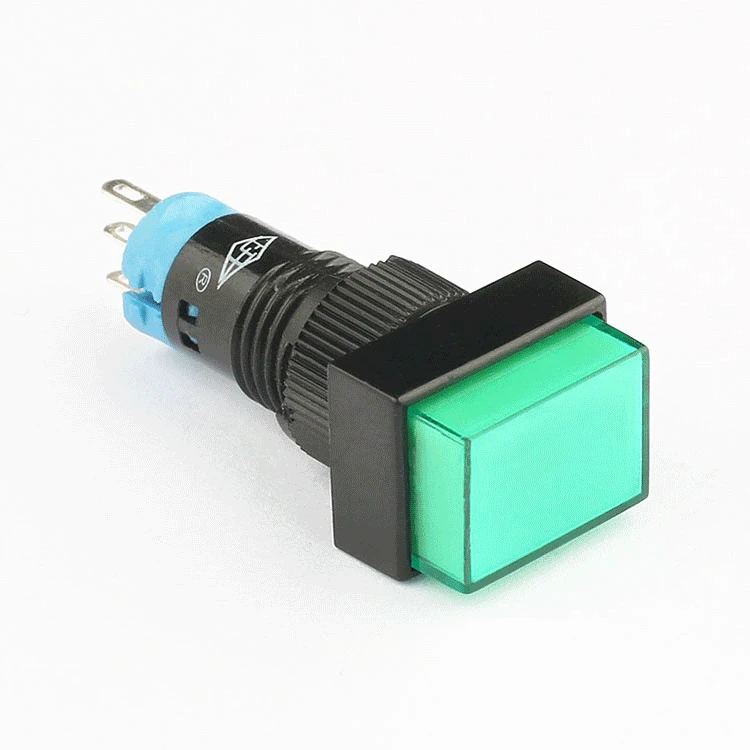

Our 12mm Plastic Push Button Switch offers a latching mechanism for reliable operation, an indicator light for clear status indication, and high current handling capabilities up to 3A.
Why Choose Our Switch?
As a factory-direct supplier, we offer competitive pricing without compromising on quality. Our switch is built to last, with a long mechanical and electrical life, ensuring reliable performance in your applications.
Applications
This switch is ideal for use in industrial controls, automotive systems, and various electronic devices where a durable and reliable push button switch is required.
