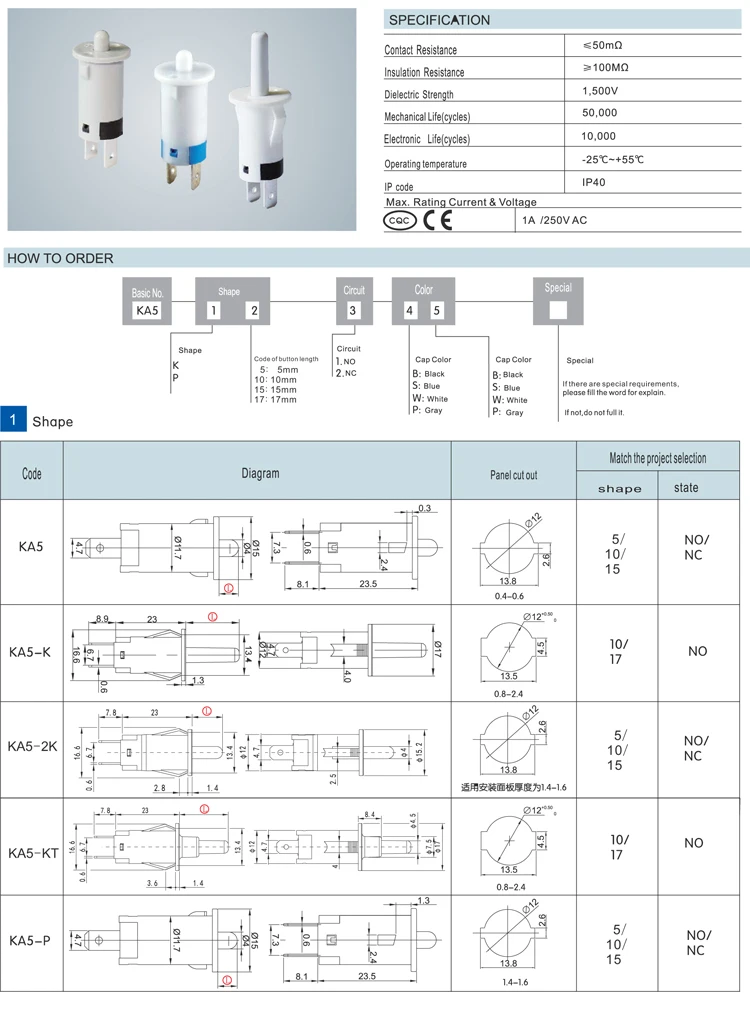

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-5-NC-SS
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|

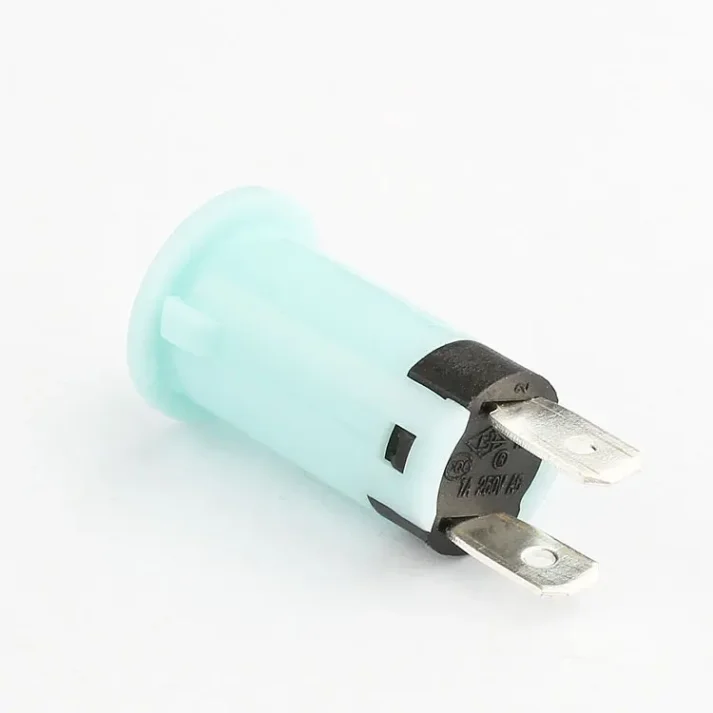

Why Choose Our 12mm Push Button Switch?
Our 12mm Push Button Switch is a top choice for wholesale buyers due to its durability, versatility, and competitive pricing. With both NO and NC functions, it's suitable for a wide range of applications, from refrigerator doors to industrial equipment. The IP40 protection level ensures it's protected against dust and limited water ingress, making it ideal for various environments.
What Makes Our Switch Stand Out?
As a direct supplier, we offer factory-direct pricing without compromising on quality. Our switch is crafted from durable plastic, ensuring longevity and reliability. With a high contact resistance and insulation resistance, it provides stable performance over time. Additionally, the 12mm mounting hole size makes it easy to install in various applications.
What Are the Key Specifications?
Our switch has a rating of 1A 250VAC, making it suitable for high-power applications. It also features a wide operating temperature range (-25℃~+55℃), ensuring it can withstand various environmental conditions. With a mechanical life of 50,000 times and an electrical life of 100,000 times, it's built to last. Choose our 12mm Push Button Switch for your wholesale needs and enjoy the benefits of quality, reliability, and affordability.
