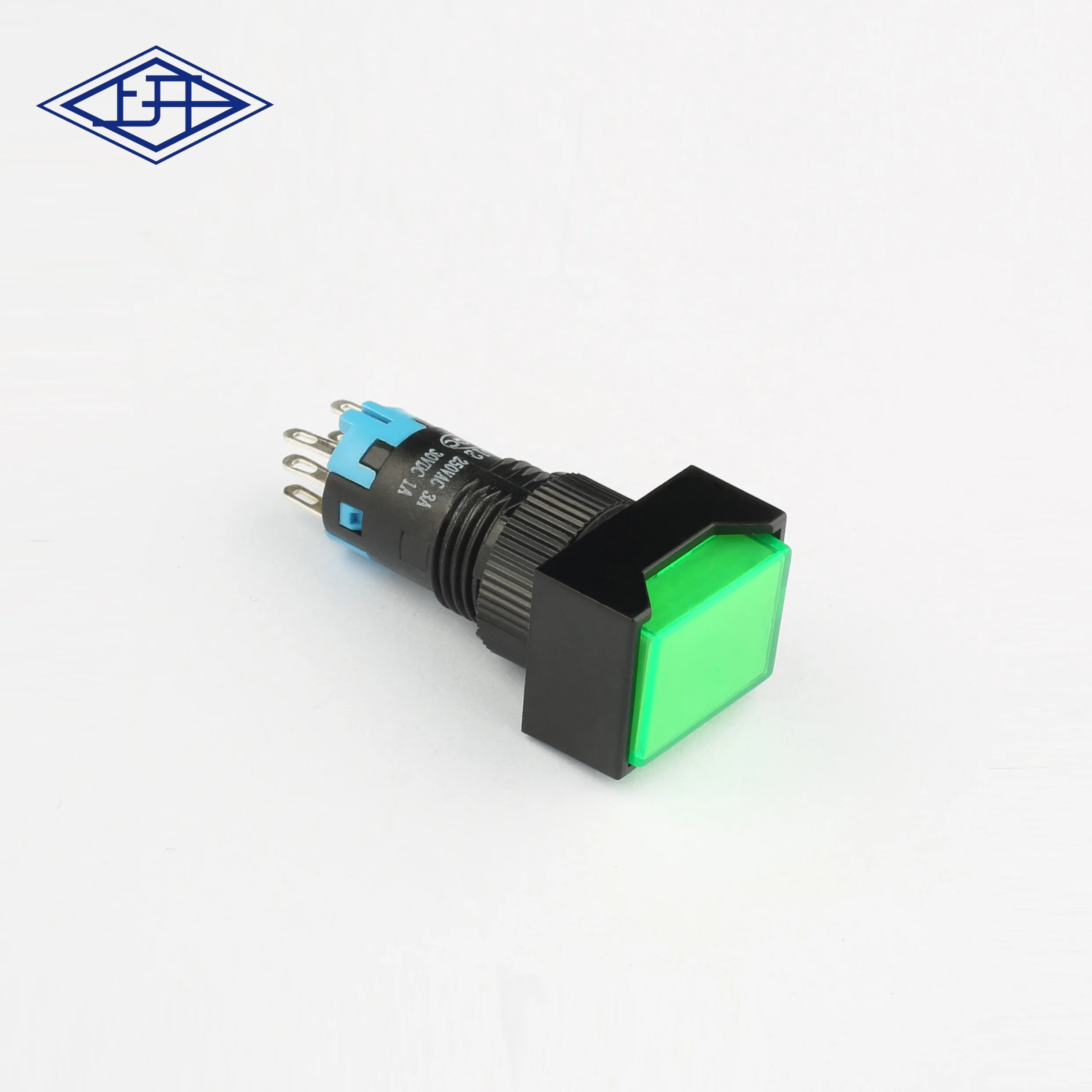

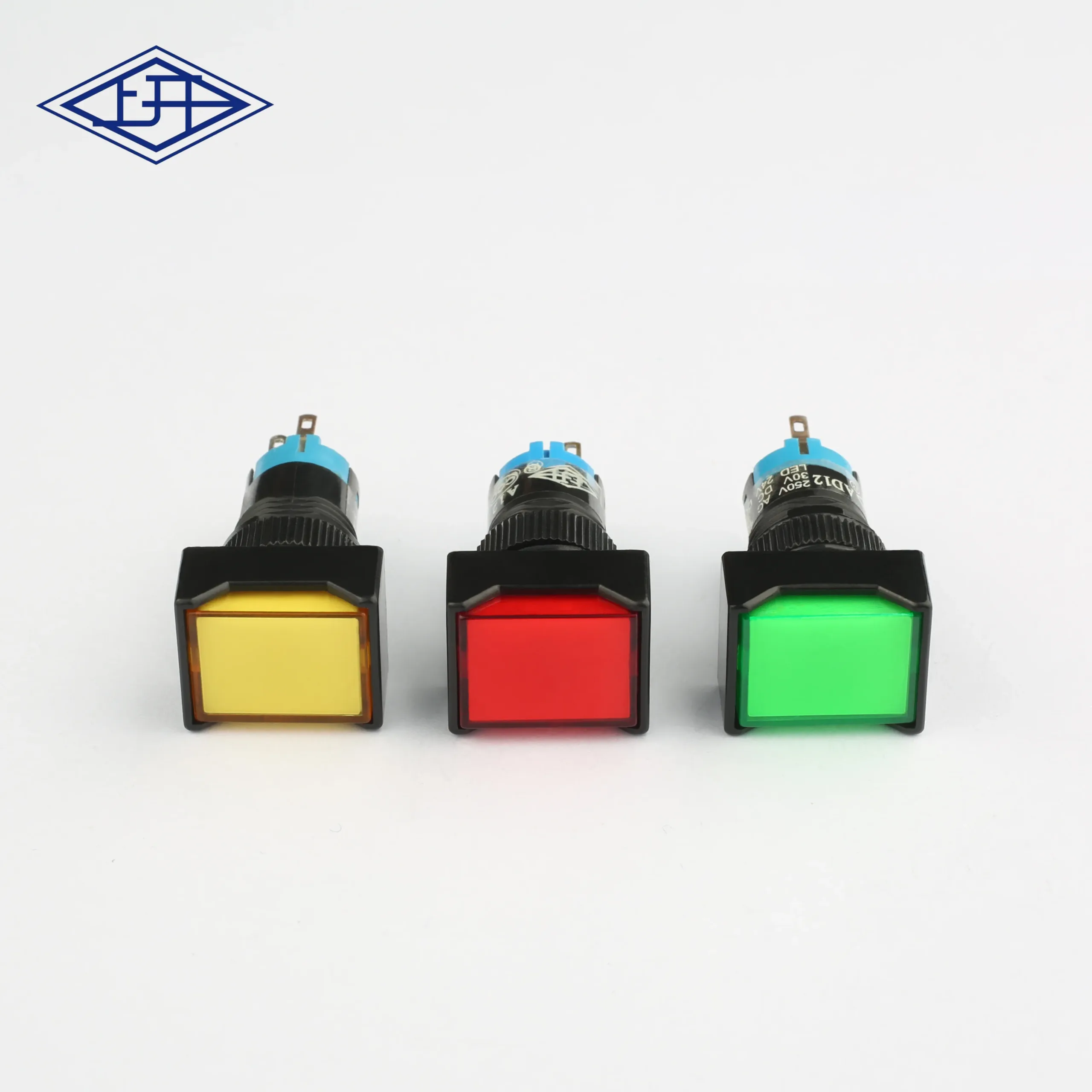

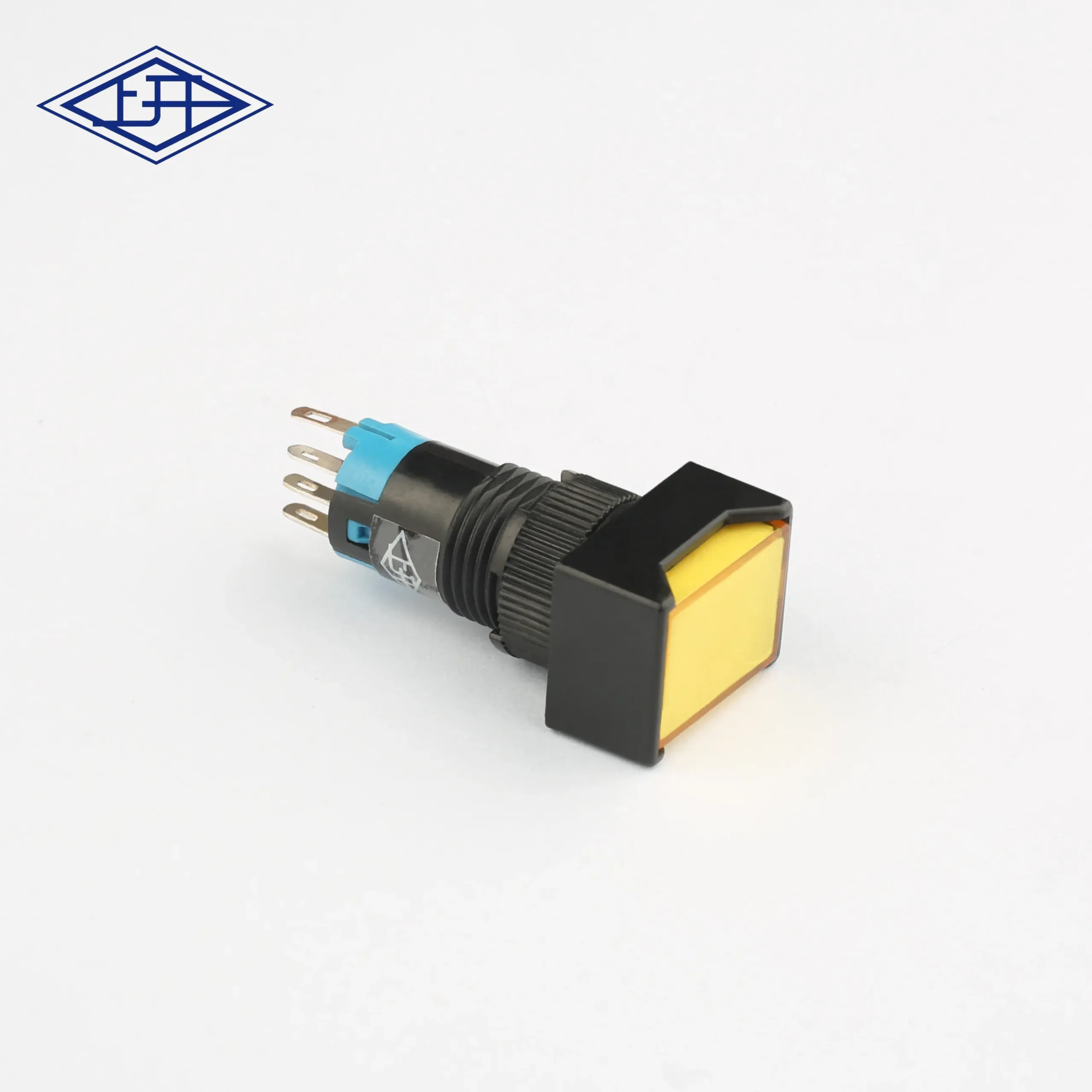

12mm Wholesale Self-Locking Push Button Switch Supplier

Category: Tags: , , , ,
>= 5,000  pieces
$0.63
0 reviews

Wholesale 12mm self-locking push button switch. Factory supplier, reliable quality.

Clean All

Description

Our high-quality 12mm self-locking push button switch, available in red, green, yellow, and blue, is a must-have for your electronic projects. As a direct factory supplier and wholesaler, we offer competitive prices and reliable quality. This switch features a contact resistance of ≤50mΩ, an insulation resistance of ≥1000MΩ, and a rated voltage and current of 250V and 3A respectively. With an IP40 rating, it ensures dust protection and is suitable for a wide range of applications, especially in home appliances. Its mechanical, electronic, and electromagnetic structure guarantees durability and long electrical life of 10,000 cycles. The round head and pin terminal design make it easy to install and use. Certified by CQC, CE, UL, CB, ENEC17, and ROHS, our switch meets international safety standards. Choose our factory-direct products for cost-effective and high-quality solutions.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥1000MΩ
operation temperature
5T75
IP code
IP40
max.rating current & voltage
3A 250V

Electronic component product display imageCross-border ecommerce electronics product


Key Features

Our 12mm self-locking push button switch stands out with its robust construction, featuring a plastic and brass body for durability. The self-locking mechanism ensures the switch remains in the desired position, making it ideal for applications requiring continuous operation.

Why Choose Our Switch?

As a factory supplier and wholesaler, we offer unbeatable prices without compromising on quality. Our switch is certified by multiple international standards, ensuring safety and reliability. With a long electrical life and easy installation, it's the perfect choice for home appliances and electronic projects.

Applications and Benefits

This switch is widely used in home appliances, providing a reliable and efficient way to control various functions. Its dust protection and high insulation resistance make it suitable for a variety of environments. Choose our switch for cost-effective, high-quality solutions that meet your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A
Max. Voltage

250V
Place of Origin

Shanghai, China
Brand Name

Yongxing
Model Number

AD12-121
LED

NO
Application

Home Appliance
Material

plastic, Brass
Structure

Mechanical, Electronic, Electromagnetic
Head Type

Round Head
Terminal Type

Pin terminal
Whether the smart

NO
illuminated Type

none
IP level

IP40
Switch Combination

1NO, 1NC, 1NO1NC
Contact Resistance

≤50mΩ
Insulation Resistance

≥1000MΩ
Dielectric Strength

1500VAC 1 Minute
Operating temperature

T55 T85 T125
Electrical Life

10000
Certification

CQC CE UL CB ENEC17 ROHS
