Description
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

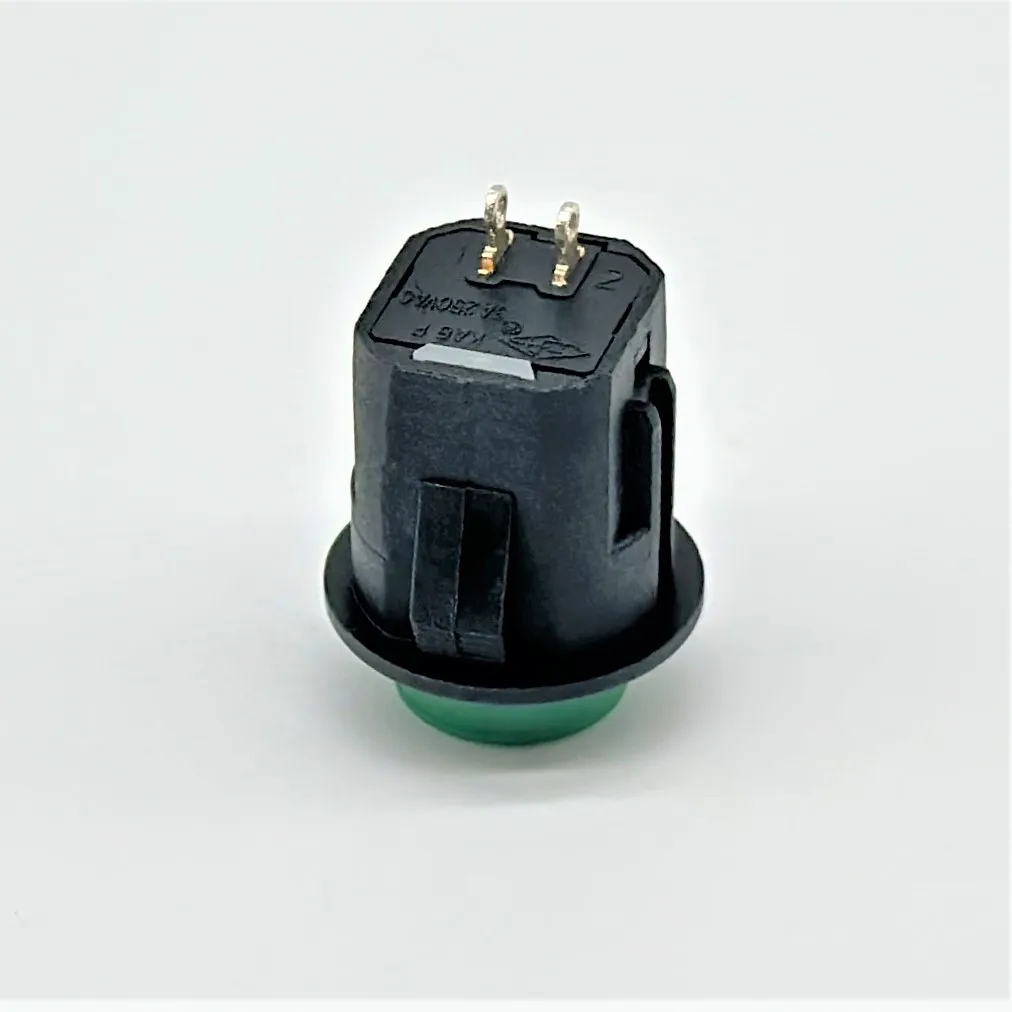

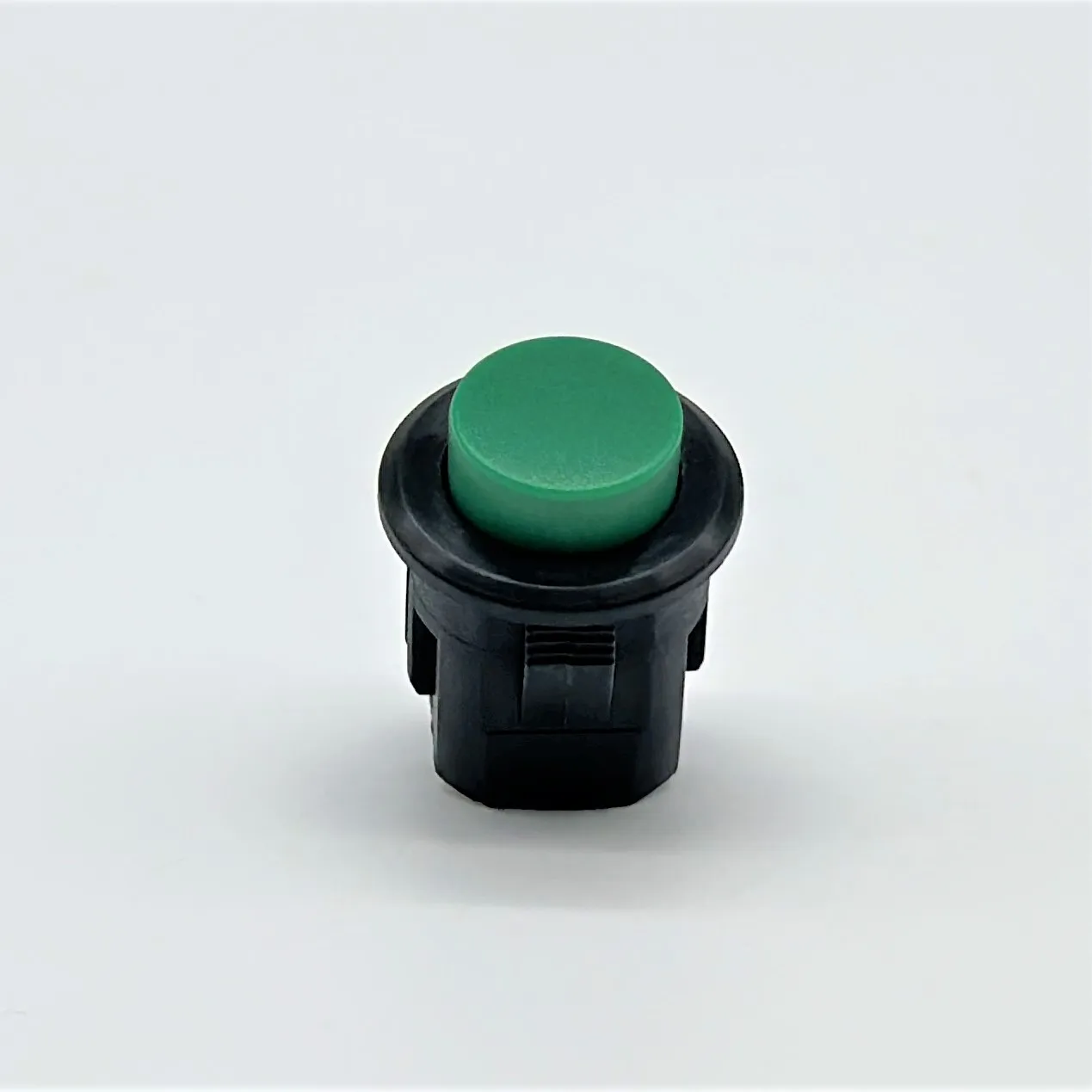

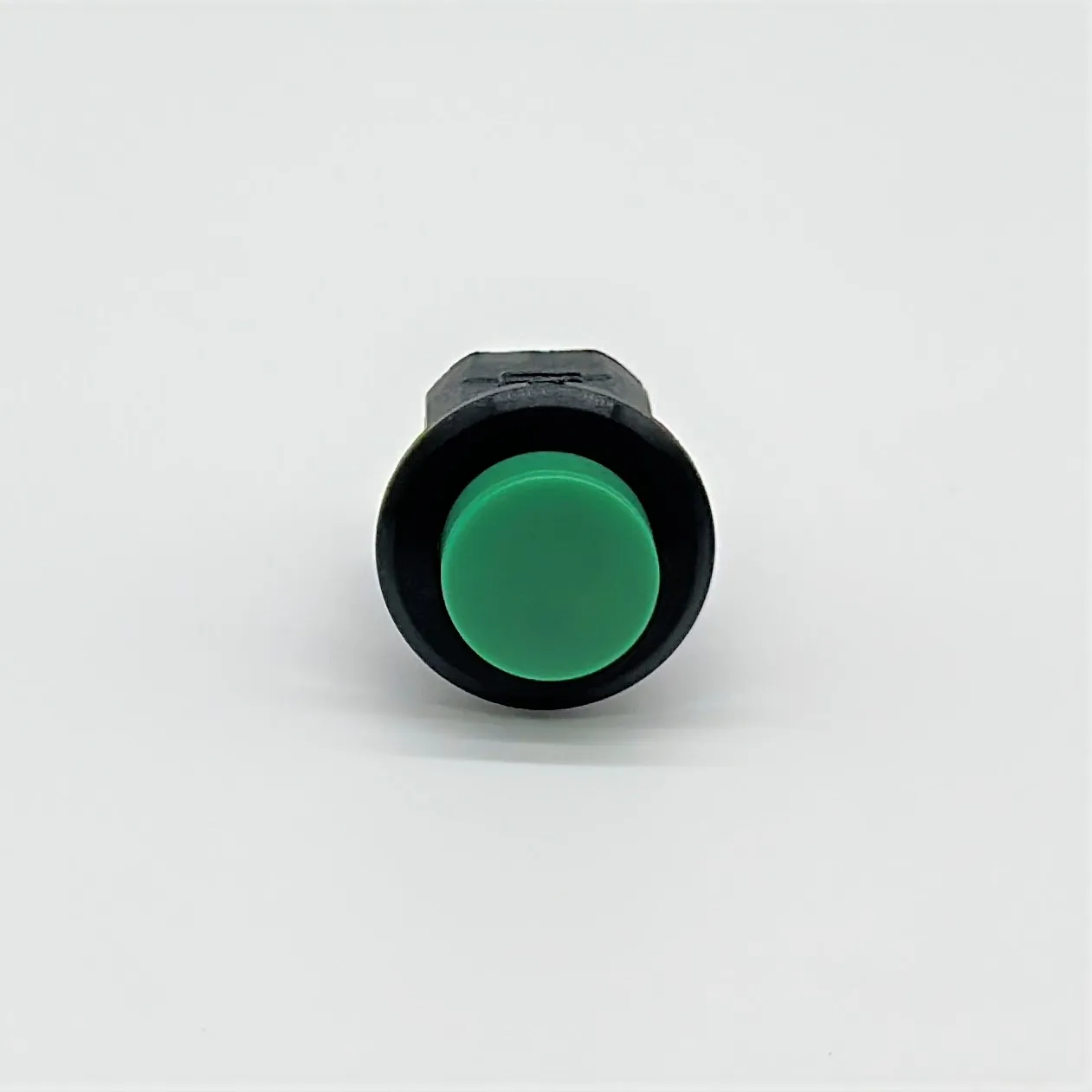

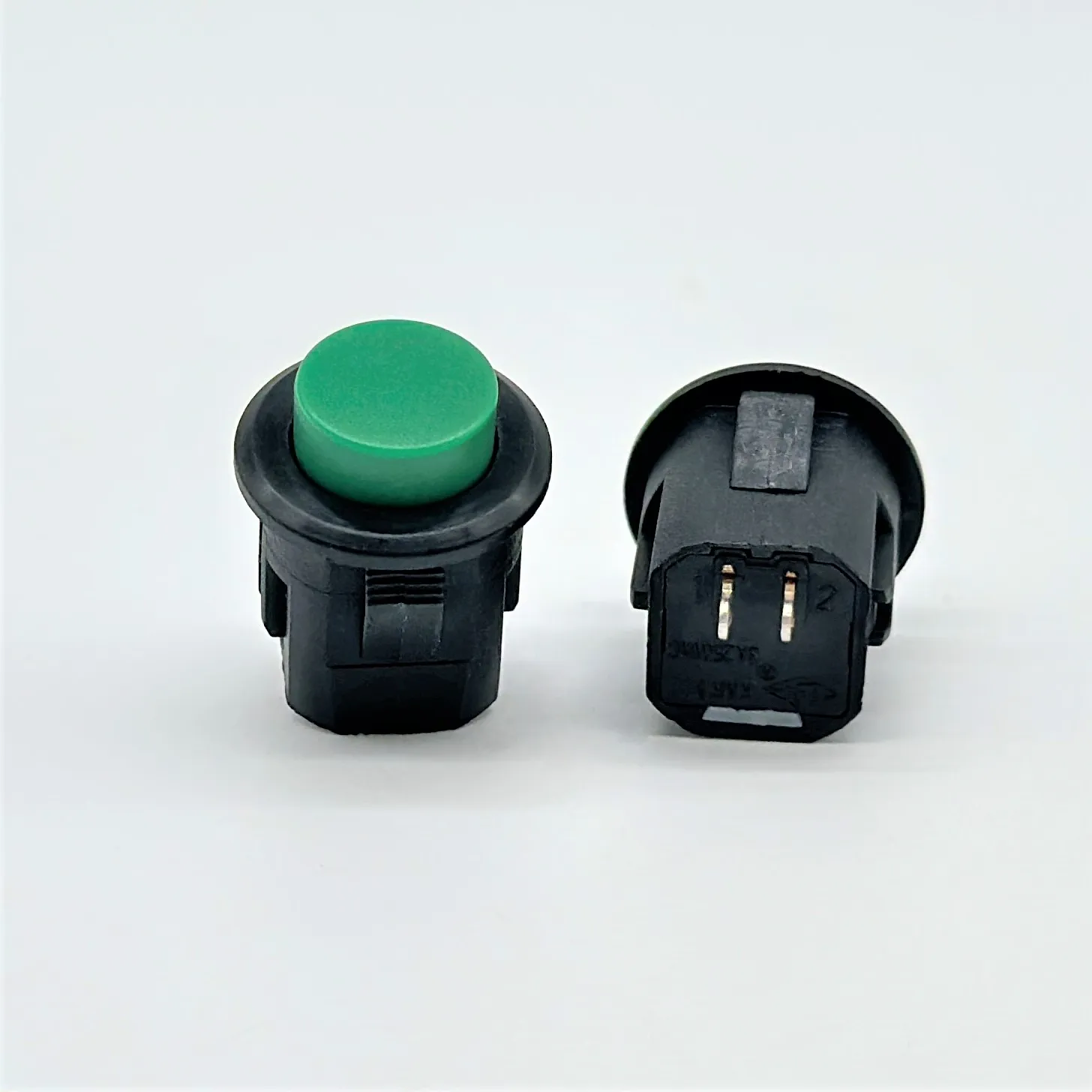

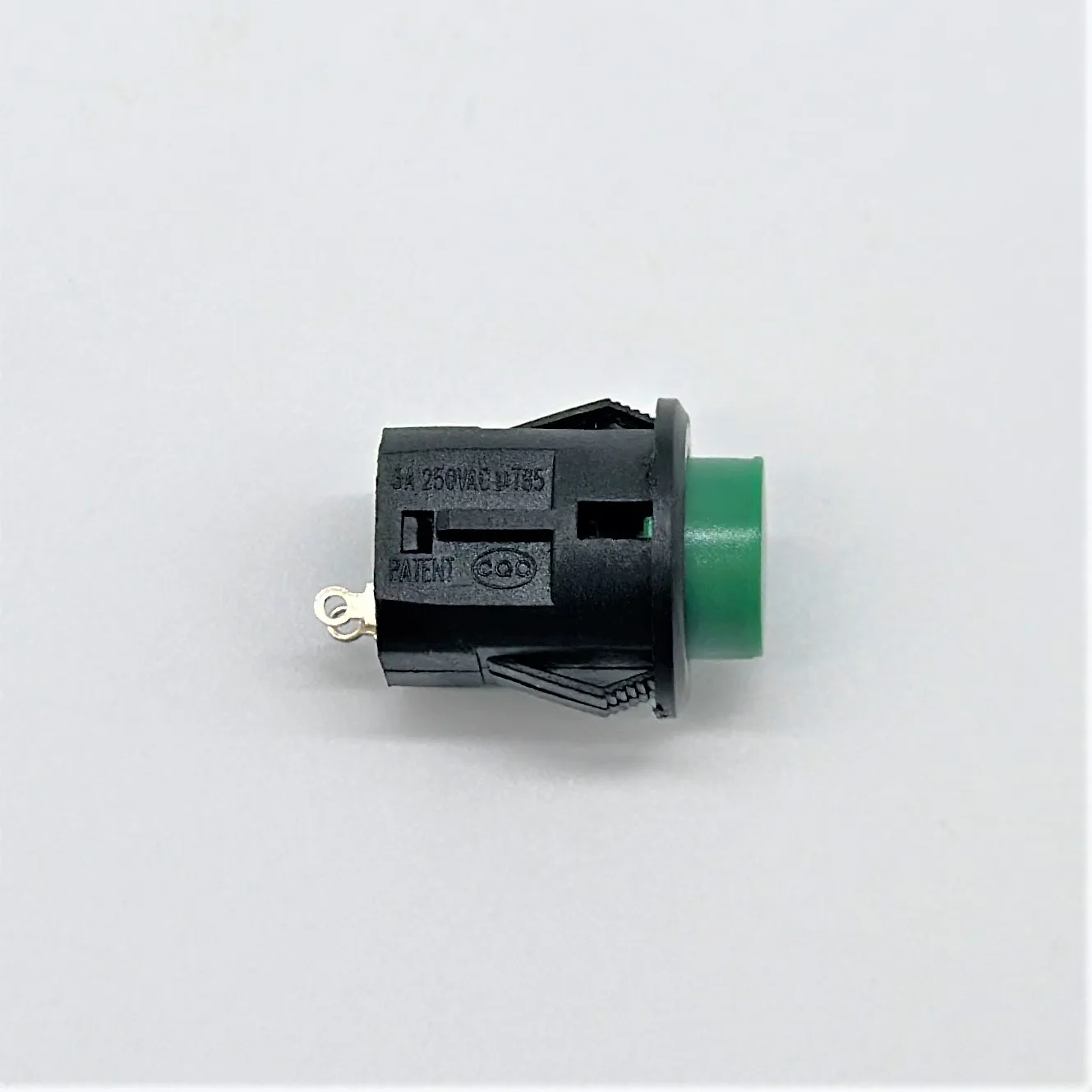

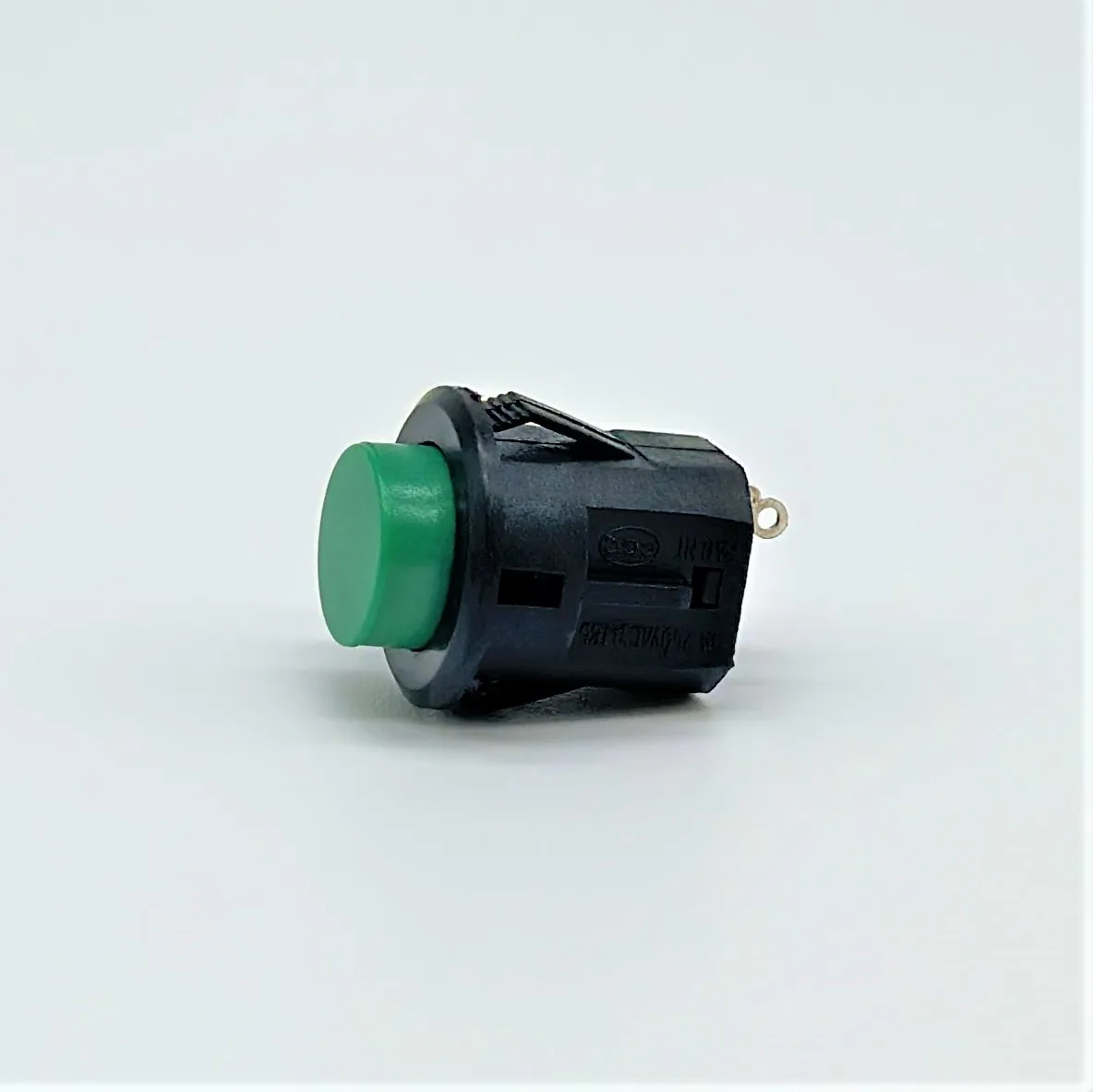

Why Choose Our 14mm Momentary Push Button Switch?
Our 14mm Momentary Push Button Switch stands out for its durability and reliability. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance. The switch is made from high-quality PA66 material, offering excellent insulation and resistance to wear and tear. Its compact 14mm size makes it suitable for various applications, including baby carriers, electronic devices, and industrial controls.
Key Features and Benefits
This switch features a contact resistance of ≤50MΩ and an insulation resistance of ≥100MΩ, ensuring safe and efficient operation. The dielectric strength of 1500V provides added protection against electrical faults. Operating at a temperature range of -25℃ to +85℃, it can withstand harsh environmental conditions. The black housing with a green button not only looks professional but also allows for easy identification and operation.
Factory Direct Wholesale Pricing
As a direct factory supplier, we offer competitive wholesale pricing without compromising on quality. Our CQC and CE certifications guarantee that our products meet international standards. With quick delivery and excellent after-sales support, we ensure a hassle-free purchasing experience. Choose us for your push button switch needs and enjoy the benefits of factory-direct pricing and reliable service.
