Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|
Key Features

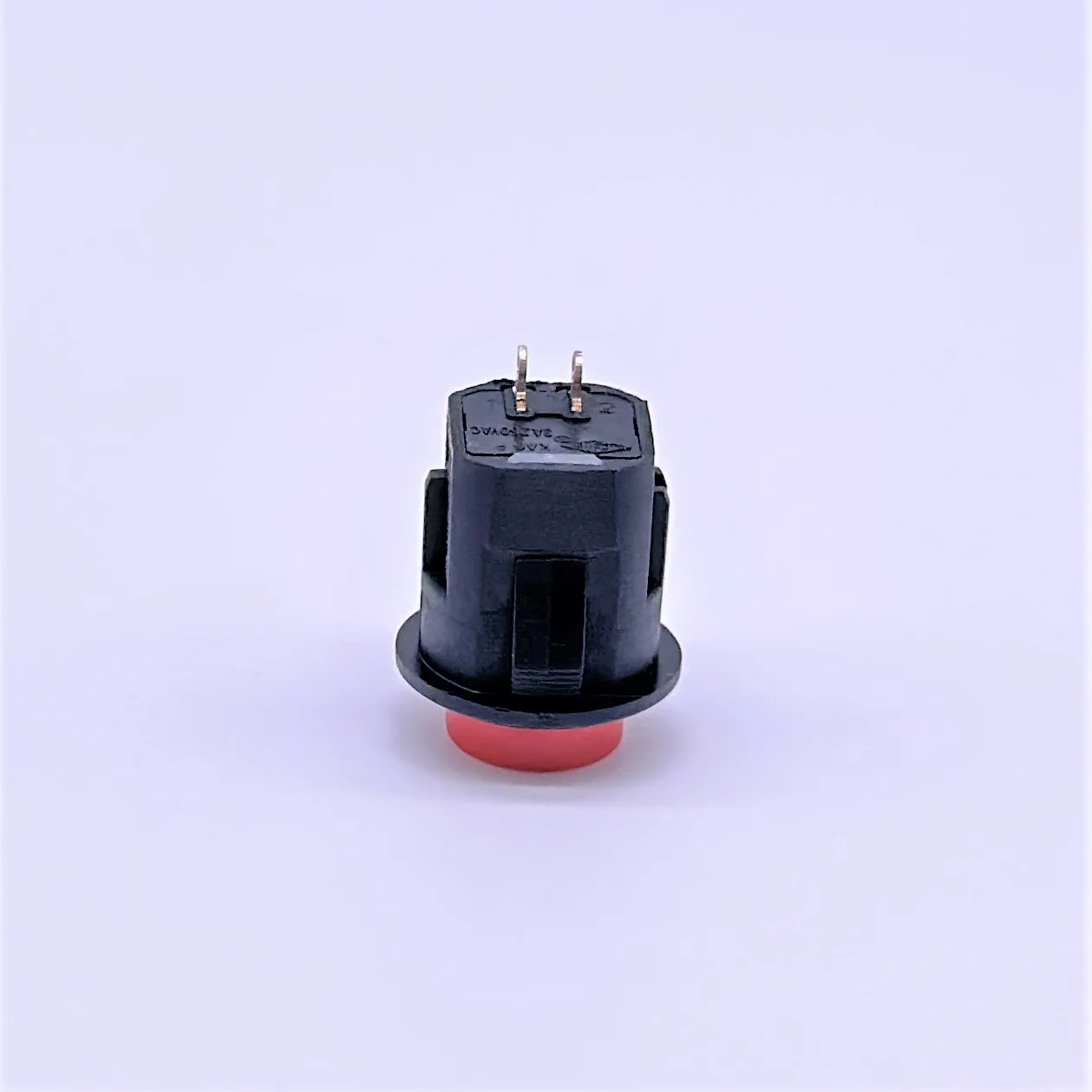

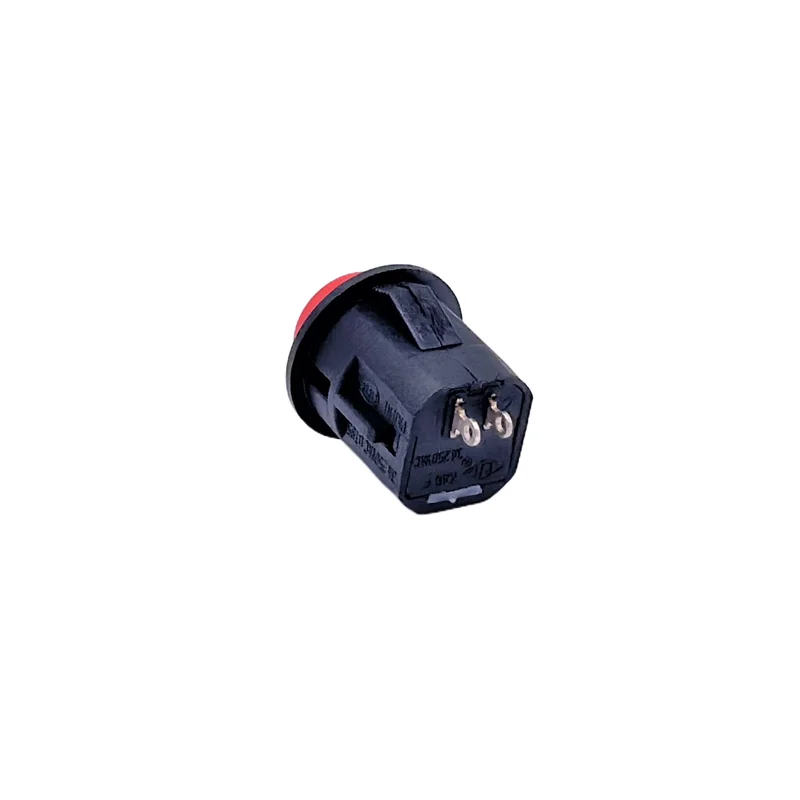

Our 14mm Self-Latched Push Button Switch is engineered for durability and reliability. With a PA66 plastic housing and a red button, it offers both aesthetic appeal and robustness. The switch's self-latching mechanism ensures stable operation, making it ideal for baby carriers and other electrical systems.
Why Choose Us?
As a factory-direct supplier and wholesaler, we eliminate the middleman, offering you competitive prices without compromising on quality. Our switch is CQC and CE certified, ensuring it meets international safety standards. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it outperforms many competitors in terms of durability.
Applications
This switch is perfect for baby carriers, as well as a wide range of industrial and electrical applications. Its wide operating temperature range (-25℃ to +85℃) and IP40 protection level make it suitable for various environments, ensuring reliable performance in any condition.
