Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |

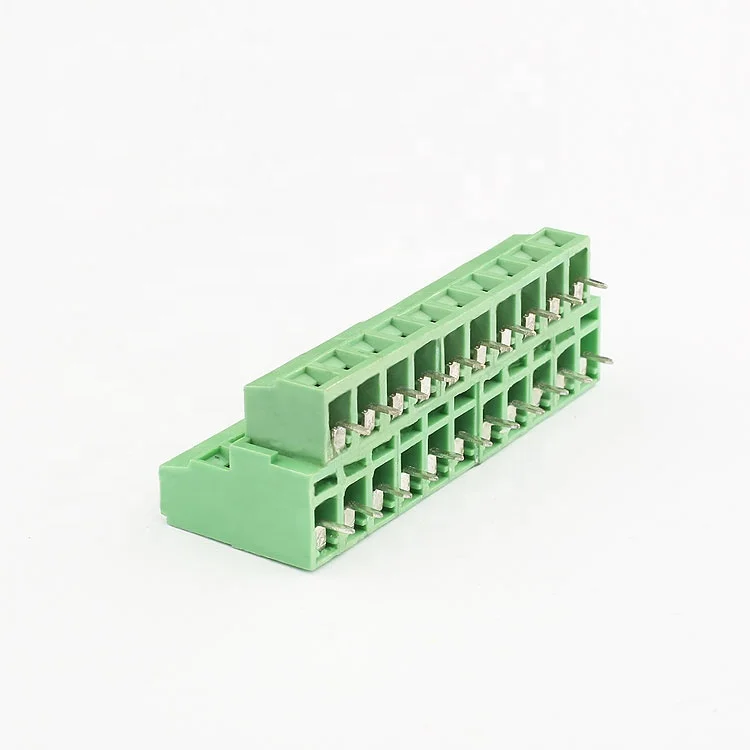

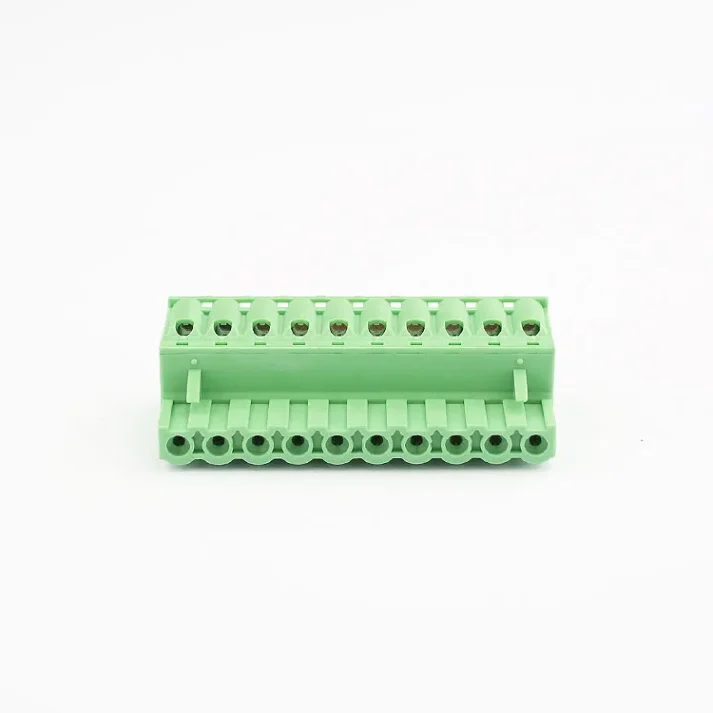

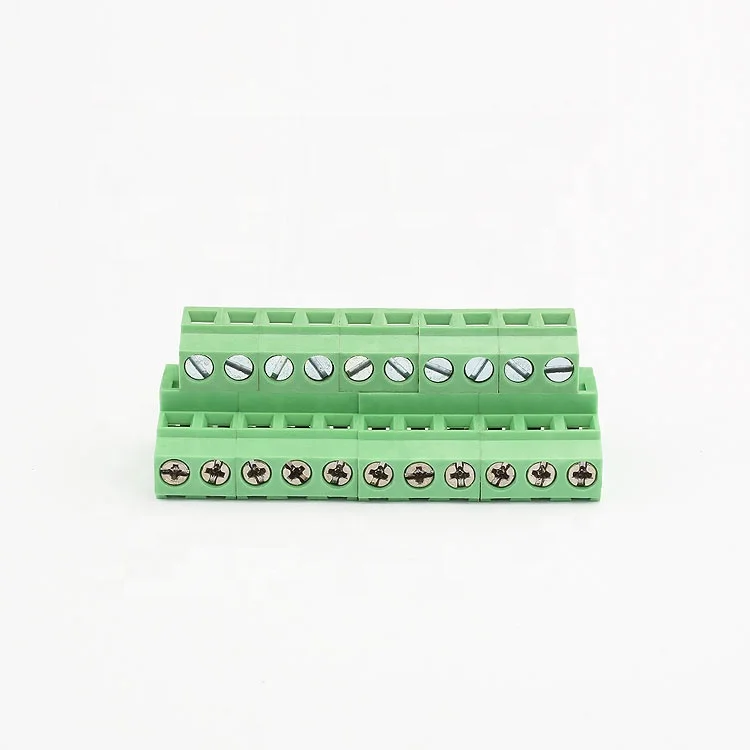

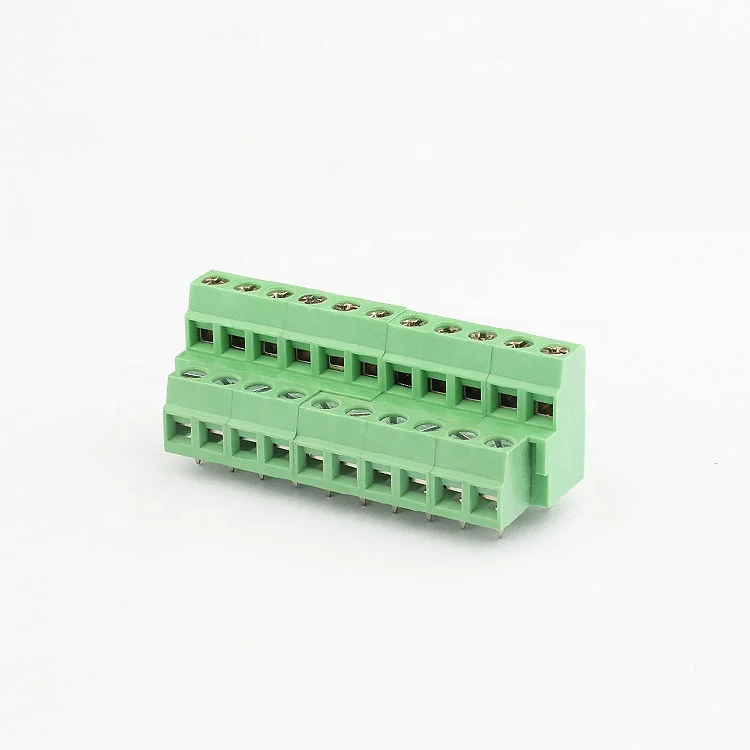

Why Choose Our 150 Amp Green Terminal Block?
Our 150 Amp Green Terminal Block stands out for its exceptional quality and durability. Made with premium materials, including brass contacts with tin plating and a PA66, UL94V-0 housing, it ensures reliable performance even in harsh environments. The high insulation resistance and withstanding voltage make it ideal for electrical connections that require safety and reliability.
What Are the Key Features?
Key features include a rated voltage of 300V, a rated current of 16A, and a contact resistance of just 20mΩ. The green, 10-pin connectors offer excellent insulation, and the terminal block can operate in temperatures ranging from -40°C to 150°C. Additionally, it accommodates conductors from 24-12AWG and has a pitch of 5.08mm, providing flexibility for various applications.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale pricing on our 150 Amp Green Terminal Block, ensuring you get the best value for your money. Our products are factory-direct, eliminating the middleman and passing on the savings to you. With a commitment to quality and customer satisfaction, we are your reliable partner for electrical connectors.
