Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V 1min
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
16(4)A 250V AC
|
Why Choose Our Push Button Switch?

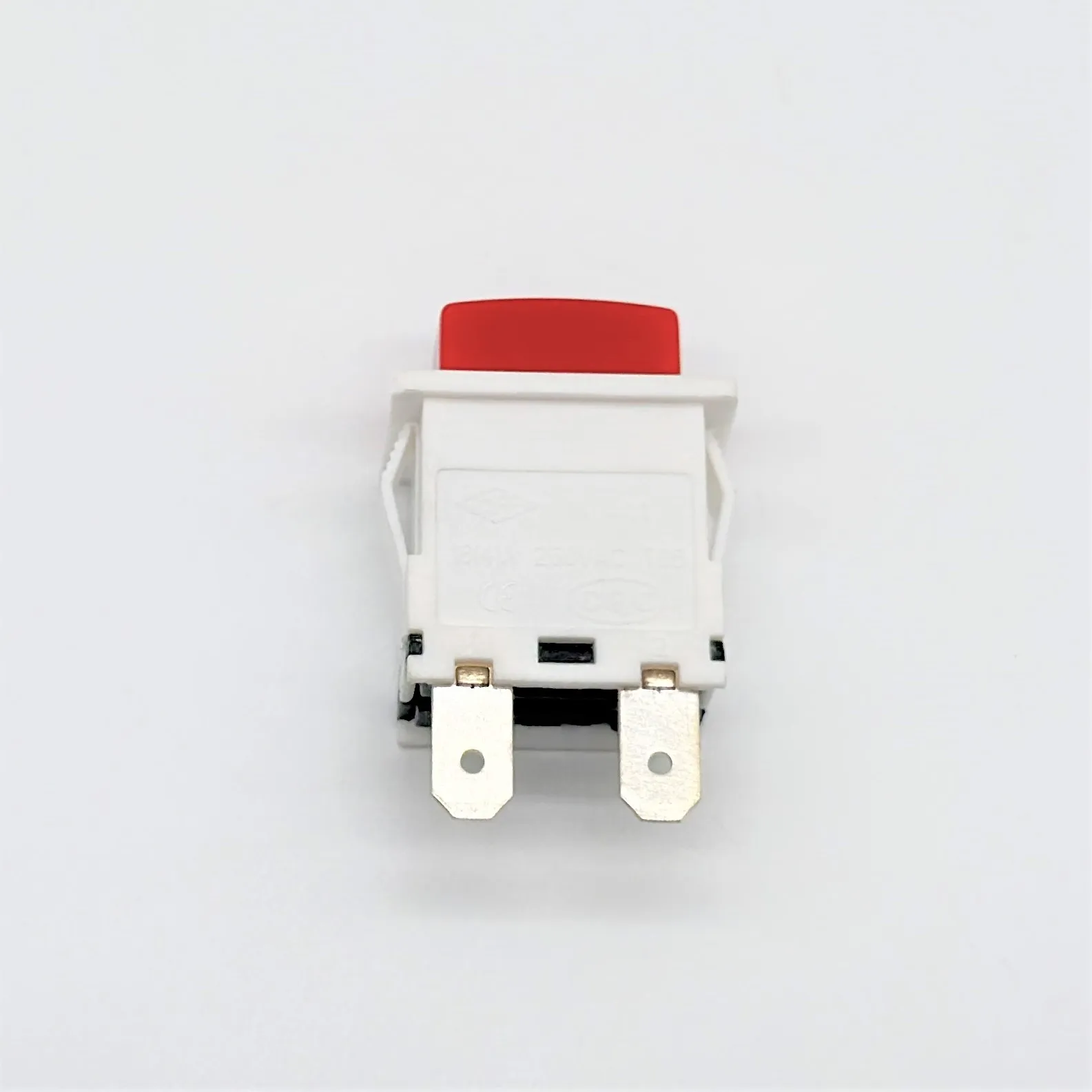

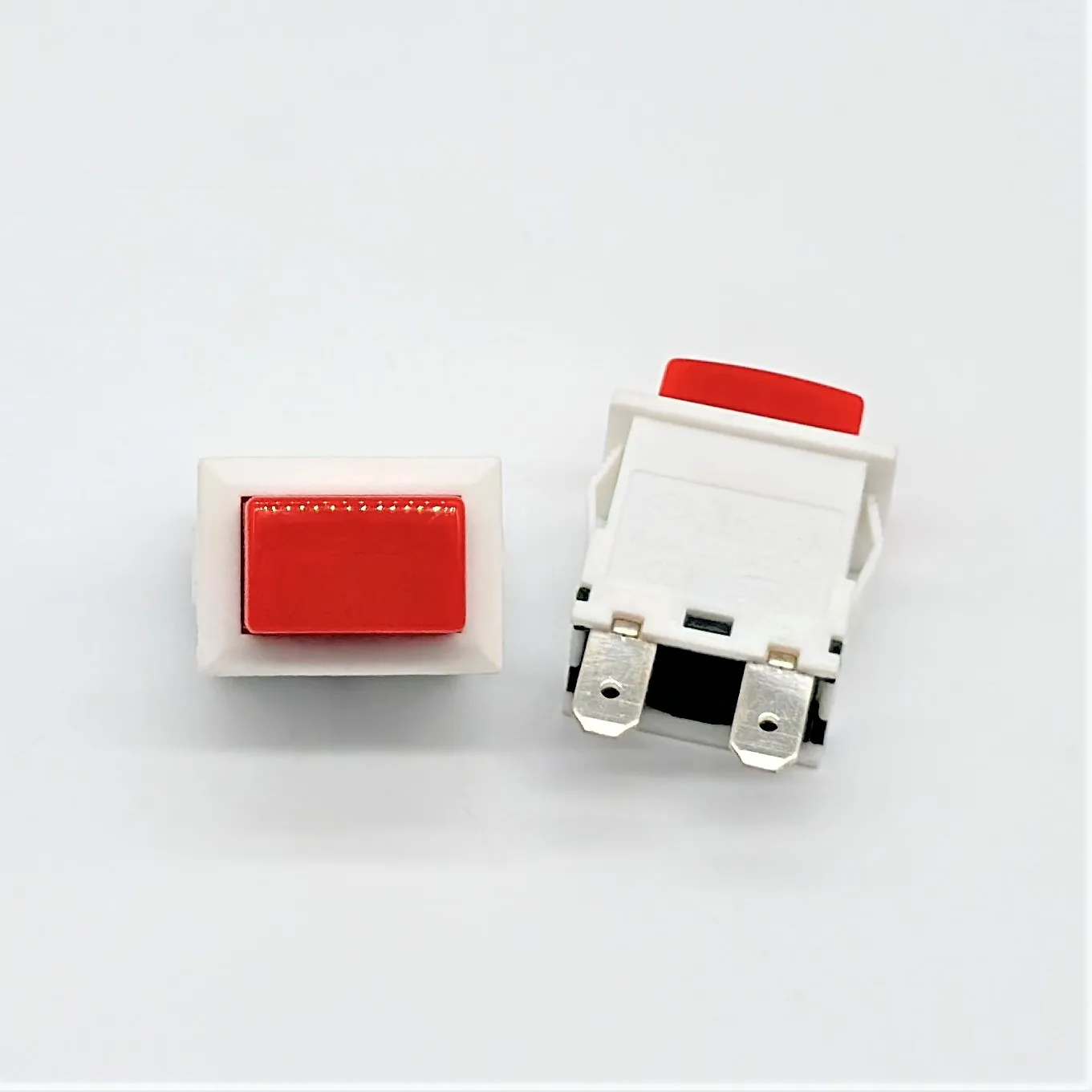

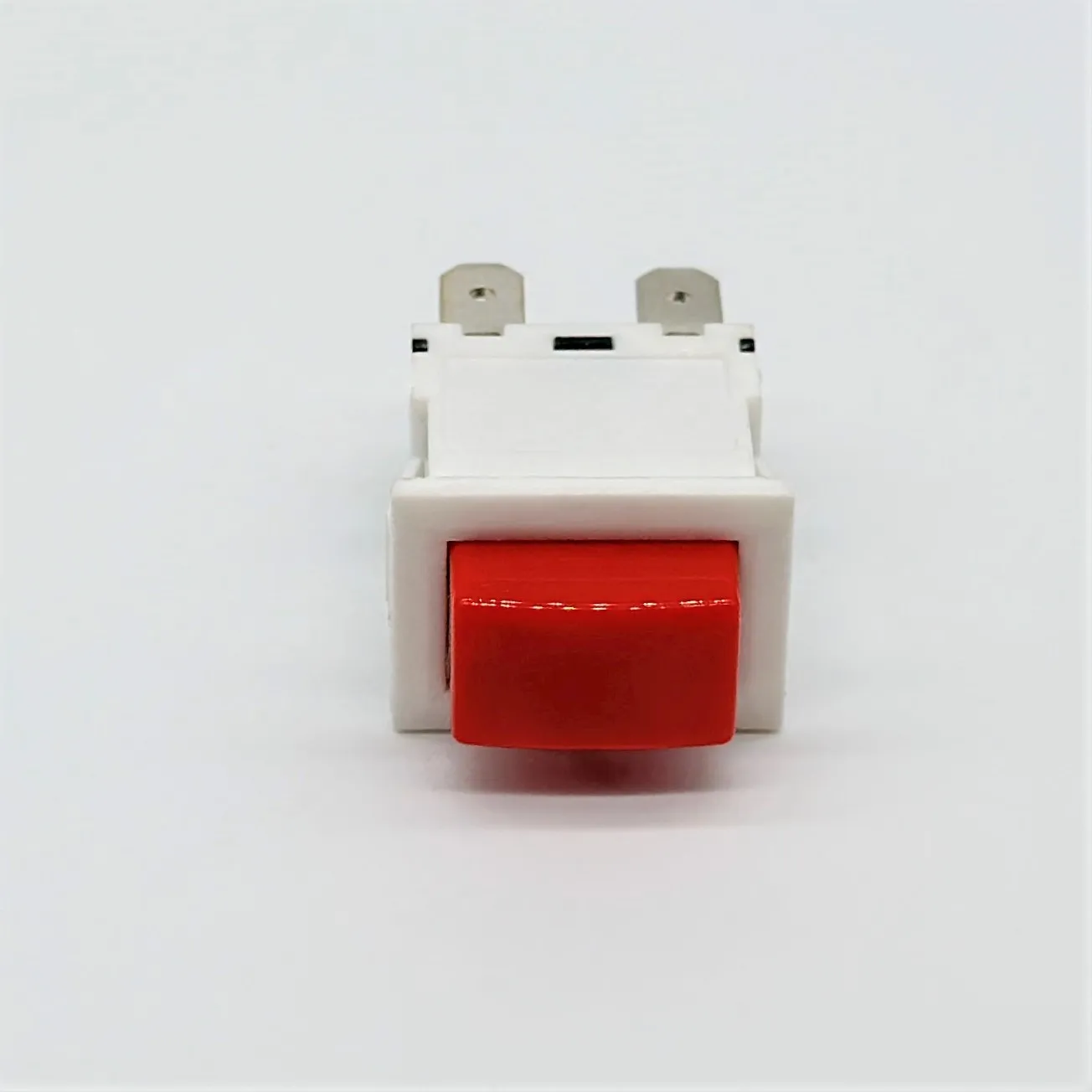

Our 16A 22x15mm rectangular momentary push button switch is designed for durability and reliability. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, it ensures long-lasting performance. The PA66 material construction provides excellent resistance to wear and tear, making it suitable for various demanding applications.
What Makes Our Switch Stand Out?
Apart from its robust construction, our switch features a sleek white housing with a red button, adding a touch of style to your devices. It also complies with international standards, as evidenced by our CQC and CB certificates. As a factory supplier and wholesaler, we offer competitive prices without compromising on quality.
Where Can You Use Our Switch?
Our push button switch is ideal for a wide range of applications, including electrical devices, industrial machinery, home appliances, and control panels. Its versatility and reliability make it a popular choice among professionals and DIY enthusiasts alike.
