16A 250V DPDT Rocker Switch | Wholesale Supplier Factory

Name: 16A 250V DPDT Rocker Switch | Wholesale Supplier Factory
SKU: 59559
Availability: InStock

Category: KCD2 series Rocker Switch Tags: factory Direct, Rocker Switch, wholesale Supplier

>= 10 pieces
$0.33

Rated 0 out of 5

0 reviews

Wholesale 16A 250V DPDT Rocker Switch Supplier. High Quality, Durable, & Certified.

Description
Specification

Description

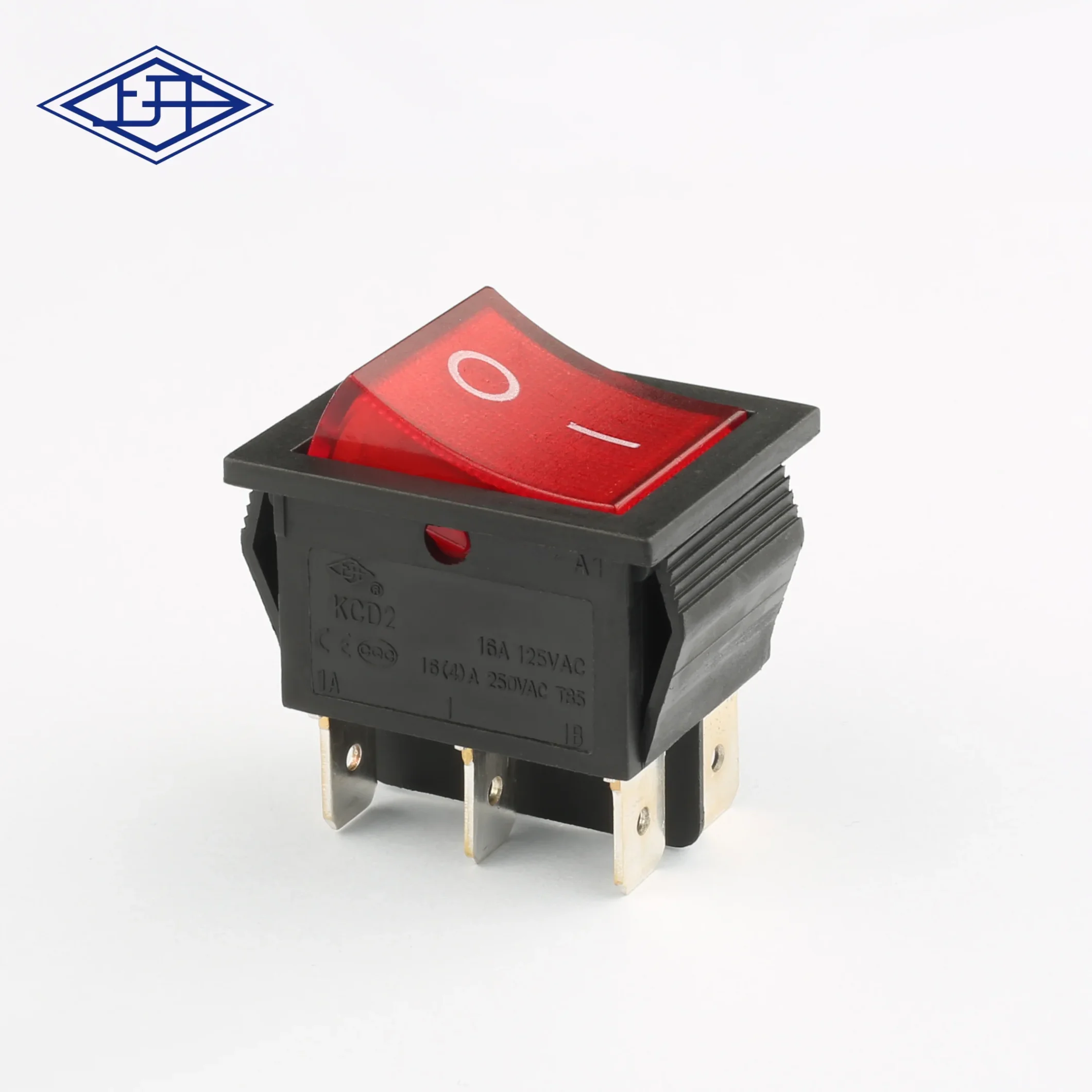

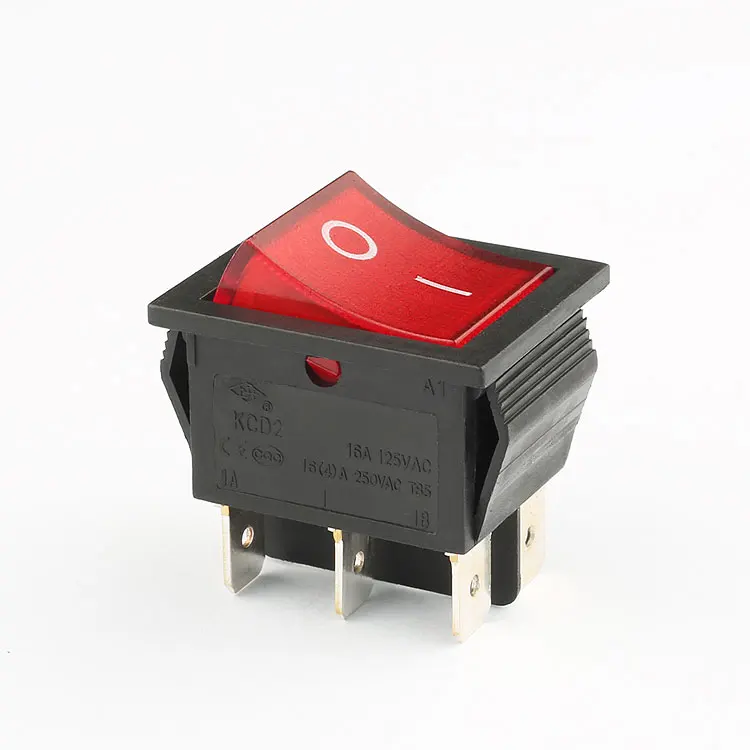

Our Yongxing brand KCD2-21N-C 250V Rocker Switch is a high-quality, CQC, CE, RoHS, and UL-certified product, perfect for a wide range of applications including cars, industrial machinery, marine vessels, buses, electric equipment, and off-road vehicles. With a maximum current of 16A and a maximum voltage of 250V AC, this 6-pin DPDT switch offers reliable performance. It features a contact resistance of ≤50mΩ, an insulation resistance of ≥1000MΩ, and a dielectric strength of 1500V AC for 1 minute. The switch is designed to operate at temperatures ranging from T55 to T125 and has an IP40 rating, ensuring durability and safety. Available in a variety of actuator colors including red, green, yellow, blue, orange, black, white, and gray, this switch is not only functional but also aesthetically versatile. As a factory direct supplier, we offer wholesale pricing and excellent customer service, making it an ideal choice for bulk purchases. Choose our rocker switch for its superior quality, competitive pricing, and reliable performance.

contact resistance	≤50MΩ	electronic life	10000
insulation resistance	≥1000MΩ	operating temperature	T55 T85 T125
dielectric strength	1500V	IP code	IP40

Why Choose Our Rocker Switch?

Our rocker switch stands out for its high current and voltage ratings, making it suitable for a wide range of heavy-duty applications. With certifications from CQC, CE, RoHS, and UL, you can trust in its quality and safety. The switch's durable construction and wide operating temperature range ensure reliable performance in various environments.

What Makes Our Product Different?

Unlike many competitors, our rocker switch offers a combination of high specifications, competitive pricing, and excellent customer service. As a factory direct supplier, we can offer wholesale pricing and ensure that you receive the best value for your money. The variety of actuator colors also allows for customization to suit your specific needs.

How Can Our Rocker Switch Benefit You?

By choosing our rocker switch, you are investing in a product that offers long-lasting performance, ease of use, and peace of mind. Its robust design and reliable functionality make it an ideal choice for any application requiring a high-quality switch. Plus, with our wholesale pricing and factory direct support, you can save money and get the best service possible.

Additional information

Max. Current	16A
Max. Voltage	250V AC
Place of Origin	Shanghai, China
Brand Name	Yongxing
Model Number	KCD2-21N-C
Application	Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles
Material	plastic
Pins	6P
Whether the smart	NO
Mechanical Life	10,000 Cycles
IP level	IP40
Switch Action	ON-OFF
Termination Type	solder
Certification	CCC,CQC, CE, RoHS, UL
Actuator color	red green yellow blue orange black white gray
Dielectric Strength	1500V AC ,1min
Name	250v rocker switch,rocker switch,t85 55 rocker switch
Function	ON-OFF
Operating Temperature	T55,T85,T125
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Lamp voltage	6D 12D 24D 110A 220A
life	10000
