Description

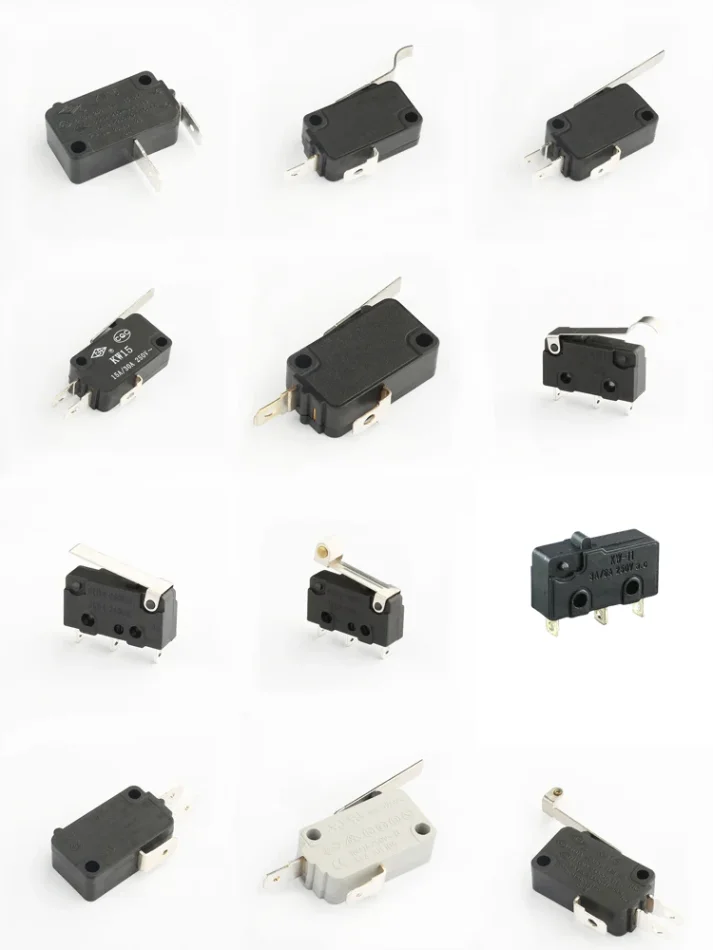

Our 16A 250V Miniature Limit Switch is a high-quality, durable product designed for various industrial applications. As a factory direct supplier and wholesaler, we offer competitive pricing and reliable delivery. This switch features a compact design with a remove lever and push button mechanism, making it easy to install and operate. It has a maximum current rating of 16A and a maximum voltage rating of 250VAC, ensuring reliable performance in demanding environments. The switch also boasts a wide operating temperature range from -25℃ to +125℃, an IP40 protection level, and excellent electrical properties including low contact resistance, high insulation resistance, and a dielectric strength of 1500V. With an electrical life of 50,000 cycles, this switch is built to last. Additionally, it is certified by CQC, CE, and ENEC, guaranteeing its quality and safety. Choose our Miniature Limit Switch for your industrial needs and experience the difference in quality and service.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW15-11A-OAA
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
50,000
|
|
Max. Current & Voltage
|
16A 250VAC T125 5E4 ; 10A 250V T125 5E4
|
|
Certification
|
CQC CE ENEC
|
What makes our Miniature Limit Switch stand out?
Our Miniature Limit Switch stands out due to its compact design, high current and voltage ratings, wide operating temperature range, and excellent electrical properties. It is also certified by CQC, CE, and ENEC, ensuring its quality and safety.
Why choose us as your supplier?
As a factory direct supplier and wholesaler, we offer competitive pricing, reliable delivery, and excellent customer service. We have a strong track record of providing high-quality products to our customers.
What are the key applications of this switch?
This switch is ideal for various industrial applications, including automation, control systems, and machinery. Its compact size and reliable performance make it a popular choice among engineers and technicians.
