16A 250VAC Illuminated Rocker Switch – Wholesale Supplier Factory

Name: 16A 250VAC Illuminated Rocker Switch - Wholesale Supplier Factory
SKU: 70420
Availability: InStock

Category: KCD1 series Rocker Switch Tags: Factory Supplier, High-Quality Switch, Illuminated Switch, Rocker Switch, Wholesale Switch

500 - 1,999 pieces
$0.33

2,000 - 4,999 pieces
$0.31

>= 5,000 pieces
$0.29

Rated 0 out of 5

0 reviews

Wholesale illuminated rocker switch – Factory supplier, 16A 250VAC, durable, safe.

Description
Specification

Description

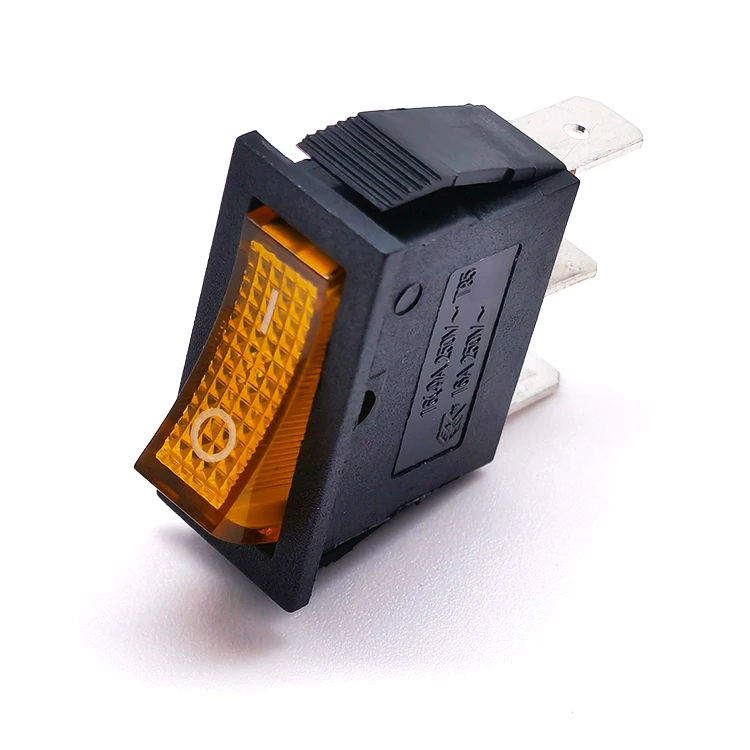

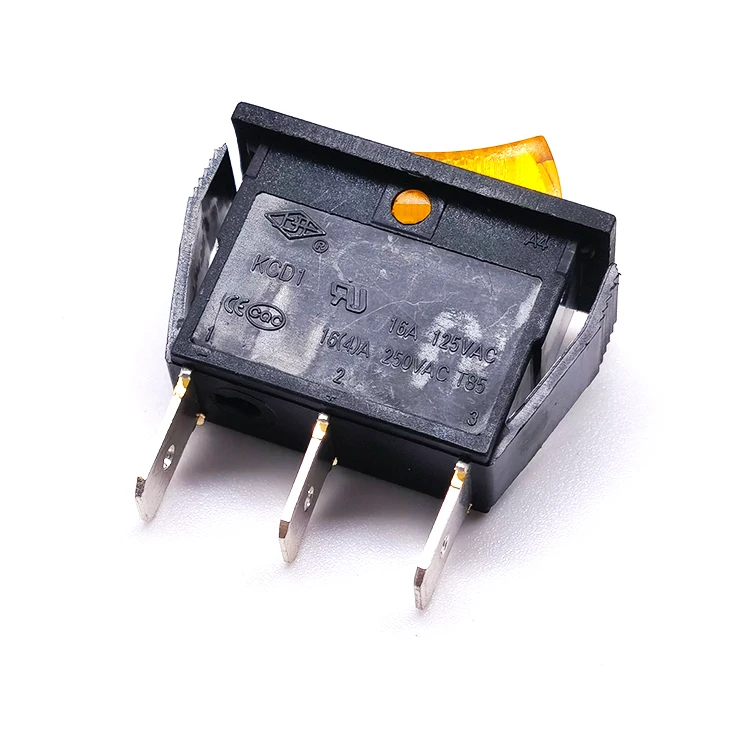

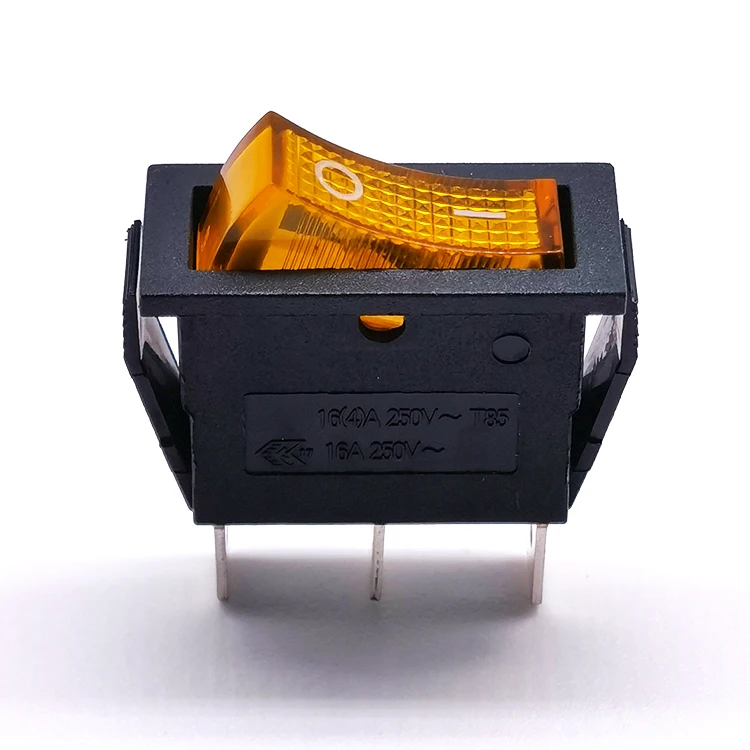

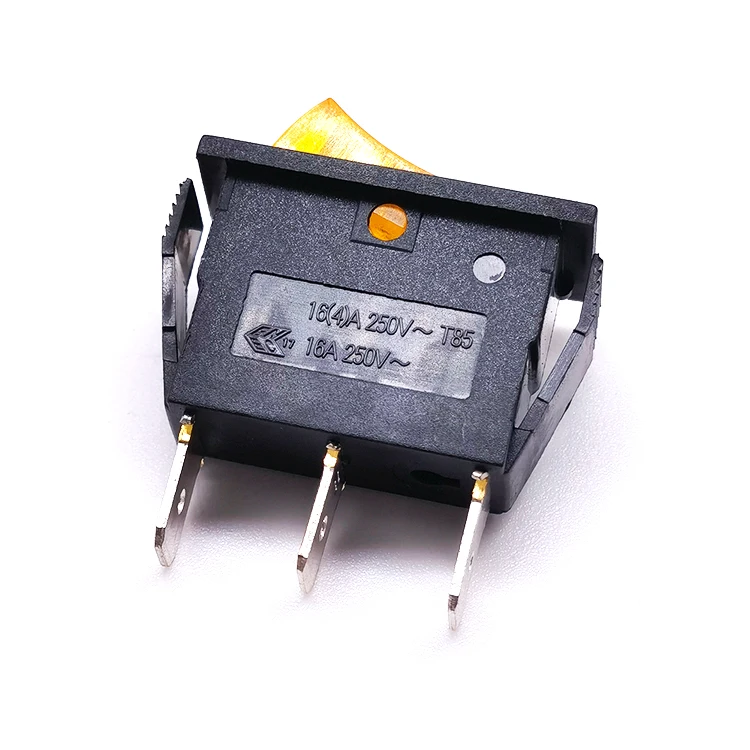

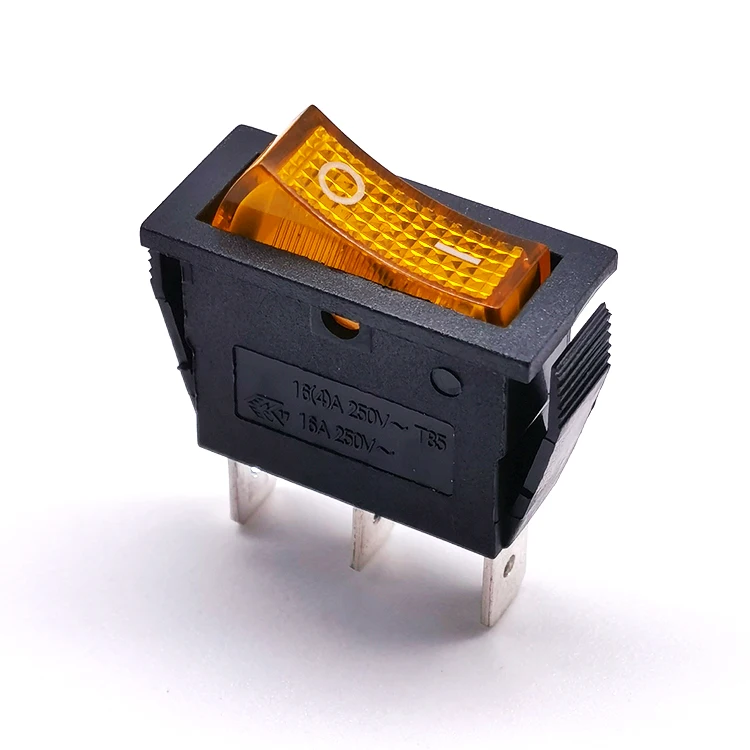

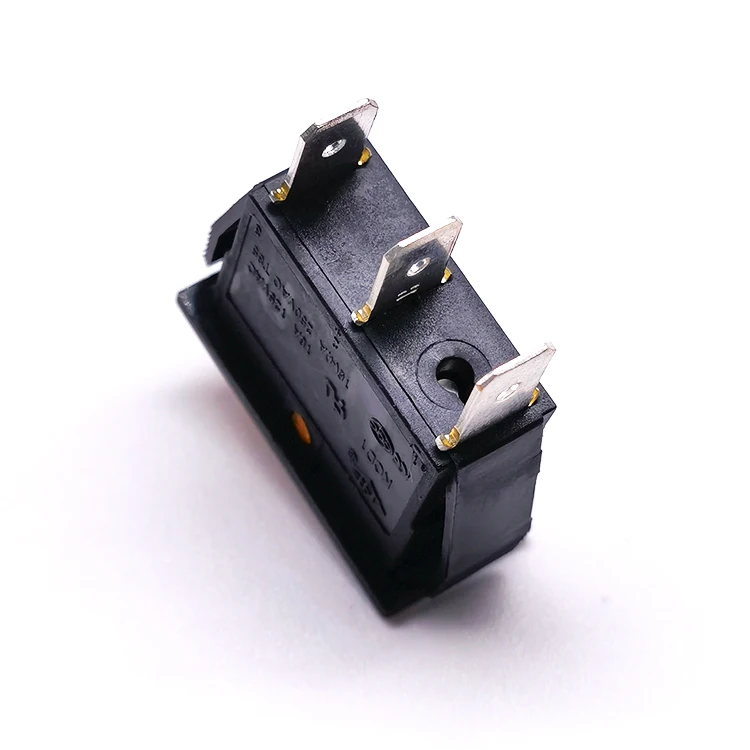

Our high-quality 16A 250VAC illuminated rocker switch is a perfect choice for cars, industrial equipment, and electric appliances. As a factory-direct supplier and wholesaler, we offer competitive prices without compromising on quality. This switch features a 3-pin SPST circuit, a yellow illuminated rocker, and is rated for 16A at 250V AC. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting durability. The switch is made of high-quality plastic, has a black housing with a yellow rocker, and is IP65/IP67 rated for dust and water resistance. It operates within a temperature range of 0~55℃, 0~85℃, or 0~105℃, making it suitable for various environments. Our switch also meets CQC, CE, CB, ENEC17, and ROHS standards, ensuring safety and reliability. With its compact dimension code of A4 28x11mm and standard contact piece code of A 6.3×0.8x10mm, it is easy to install and use. Choose our factory-direct illuminated rocker switch for superior quality and value.

item	value
Place of Origin	Shanghai, China
Brand Name	SK(shangkai) Yongxing
Model Number	KCD1-11N-CA4A-B-Y-01-AC220V
Current Rating	16A
Voltage Rating	250V AC
Mechanical Life	50,000 Cycles
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	1500VAC 1 Minute
Electronic Life (cycles)	10,000
Certificate	CQC CE CB ENEC17 ROHS
Circuit	SPST illuminated 3 pin rocker switch
Dimension Code	A4 28x11mm
Contact Piece Code	A 6.3X0.8X10mm standard
Lamp voltage	AC220V

Why Choose Our Illuminated Rocker Switch?

Our illuminated rocker switch stands out with its high-quality construction, long mechanical and electronic life, and compliance with multiple safety standards. The yellow illuminated rocker provides clear visibility in low-light conditions, making it ideal for cars, industrial equipment, and electric appliances.

What Makes Our Switch Different?

Unlike other switches on the market, our product offers a combination of durability, safety, and value. As a factory-direct supplier, we eliminate the middleman, allowing us to offer competitive prices without sacrificing quality. The switch's IP65/IP67 rating ensures it can withstand dust and water, making it suitable for rugged environments.

How Does Our Switch Benefit You?

By choosing our illuminated rocker switch, you benefit from a reliable product that meets international safety standards. Its long life and durability reduce maintenance costs, while the competitive pricing makes it a cost-effective choice for wholesalers and end-users alike. Whether you're upgrading your car's interior or outfitting industrial equipment, our switch delivers the performance and value you need.

Additional information

Max. Current	16A
Max. Voltage	250V AC
Place of Origin	Shanghai, China
Brand Name	Yongxing
Model Number	KCD1-11N-CA4A-B-Y-01-AC220V
Application	Cars, Industrial, electric equipment
Material	plastic
Pins	2P, 3p
Whether the smart	NO
Mechanical Life	50000 Cycles
IP level	ip65, ip67
Switch Action	ON-OFF
Termination Type	Plug-in
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	1500VAC 1 Minute
Electronic Life (cycles)	10,000
Circuit	SPST 2 pin rocker switch
Dimension Code	A4 28x11mm
Contact Piece Code	A 6.3×0.8x10mm
Electrical Life	10,000 cycles
Color	black housing, yellow rocker
Operating temperature	0~55℃ , 0~85℃ , 0~105℃,
