Description
Operating temperature ranges from -25°C to +125°C, ensuring stable performance in various environments. The protection level is IP40, with an option for IP67 (note: original data had conflicting IP levels, here we mention both for clarity, but IP40 is listed in the table). It boasts a low contact resistance of ≤50mΩ and a high insulation resistance of ≥100MΩ, ensuring efficient and safe operation. The dielectric strength is 1500V, and it has an impressive electrical life of 50,000 cycles.
What sets our micro switch apart is its quality and reliability. It’s certified by CQC, CE, ENEC, and ROHS, guaranteeing compliance with international standards. As a factory direct supplier, we offer competitive prices and excellent after-sales service. Whether you’re looking for a single unit or bulk orders, we’ve got you covered. Choose our micro switch for a reliable and cost-effective solution.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|

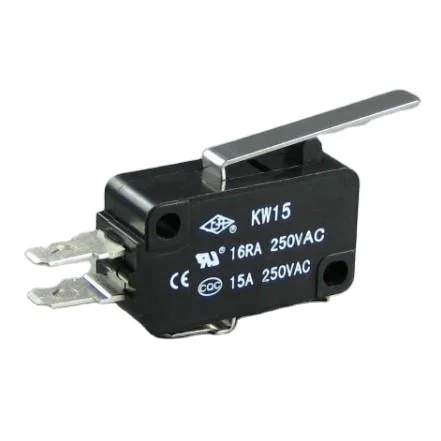

KW15-11B-AAA-APA
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
50,000
|
|
Max. Current & Voltage
|
16A 250VAC T125 5E4 ; 10A 250V T125 5E4
|
|
Certification
|
CQC CE ENEC
|
Product Features

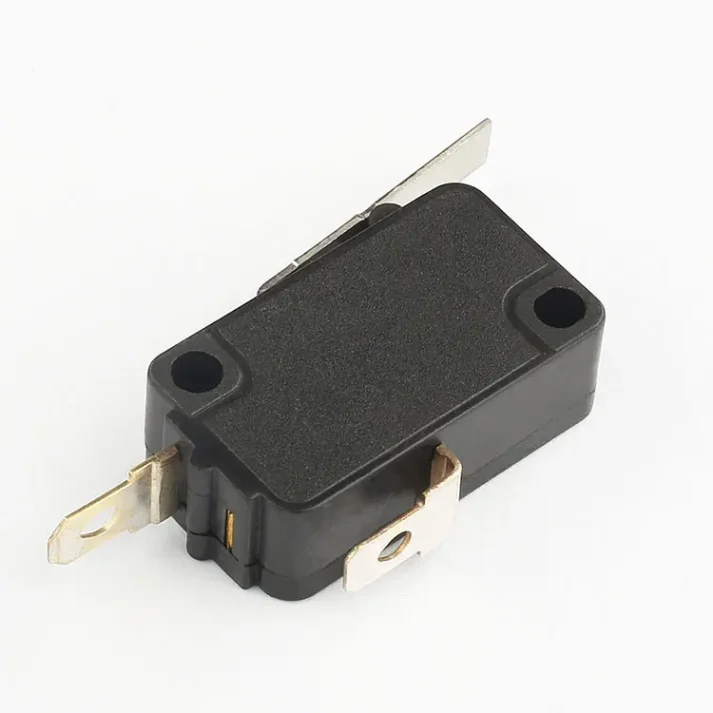

Our micro switch is designed for high current and voltage applications, making it ideal for industrial controls, home appliances, and automotive uses. Its NO/NC contact options provide flexibility in circuit design.
Why Choose Our Micro Switch?
As a factory direct supplier, we offer competitive pricing without compromising on quality. Our micro switch is certified by multiple international standards, ensuring reliability and safety. With a long electrical life and low contact resistance, it's a cost-effective solution for your needs.
After-Sales Service
We stand behind our products with excellent after-sales service. If you encounter any issues, our dedicated team is here to assist you promptly. Choose us for a hassle-free purchasing experience.
