Description

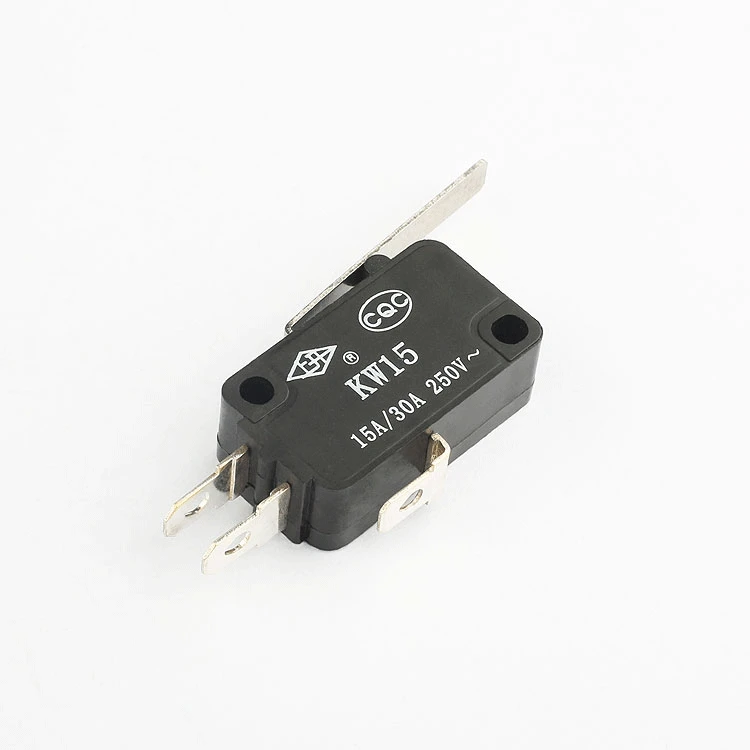

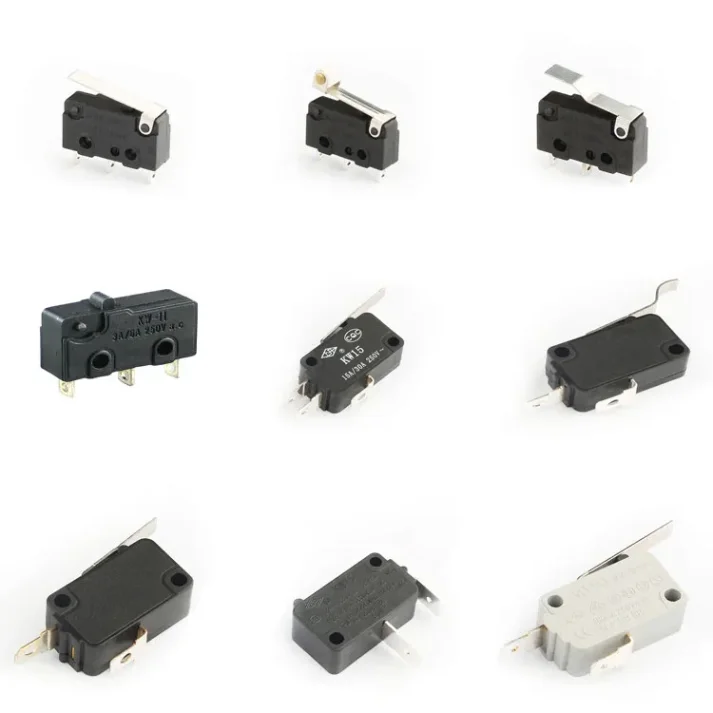

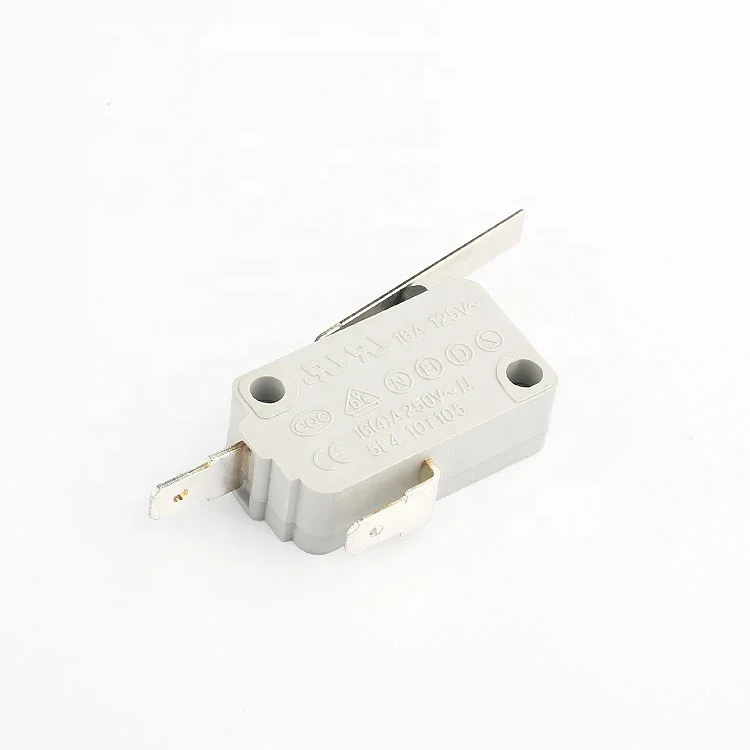

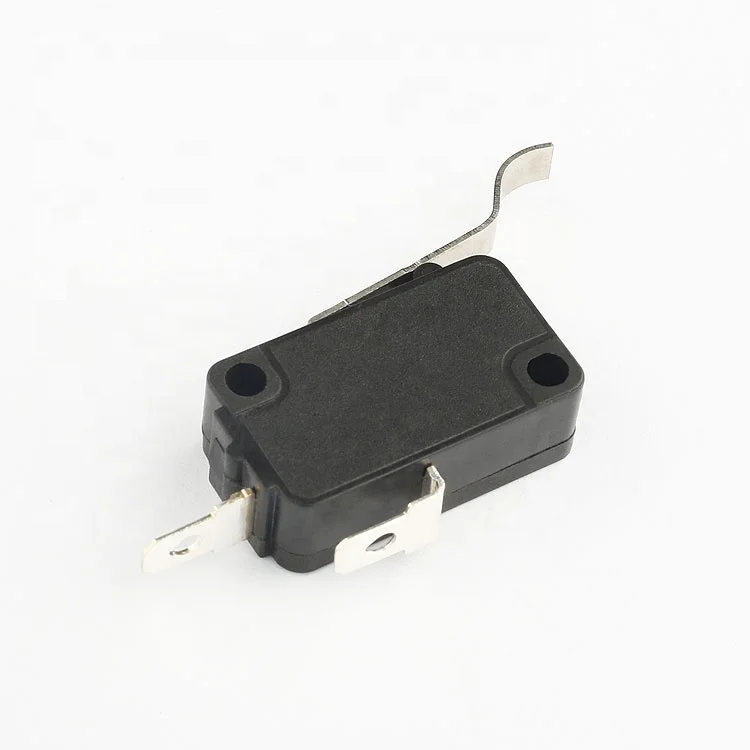

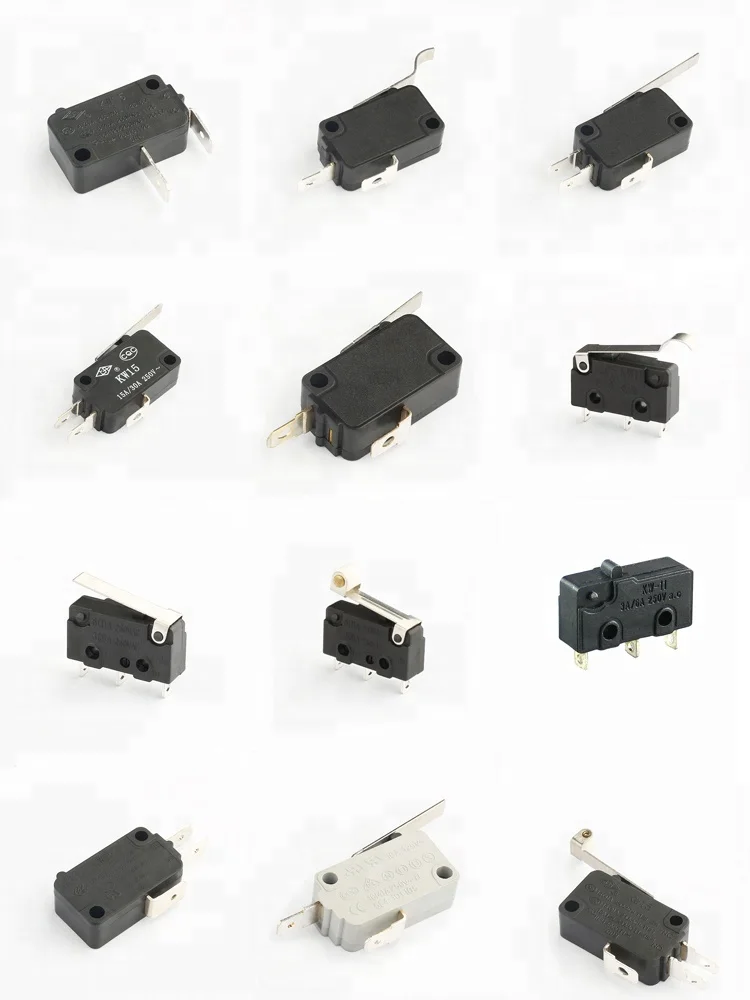

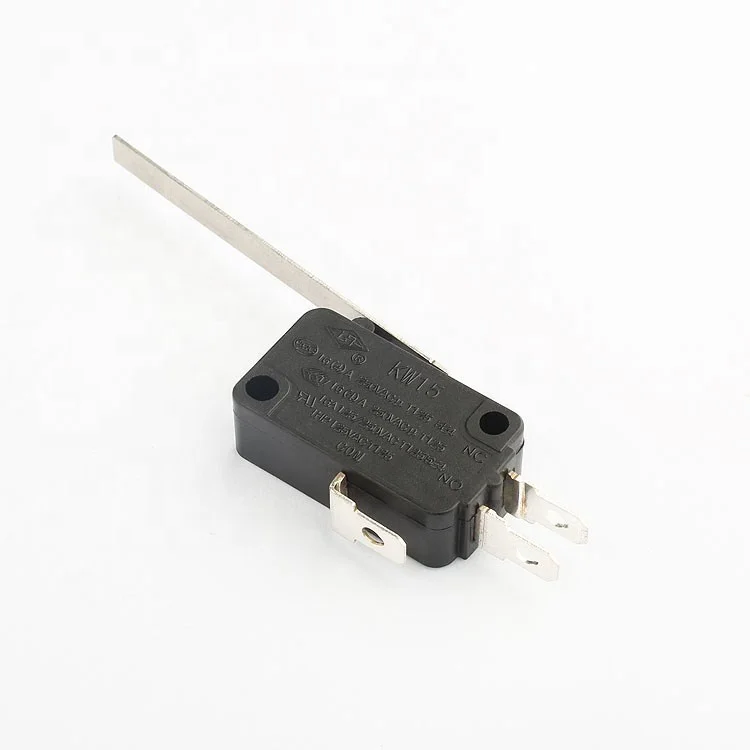

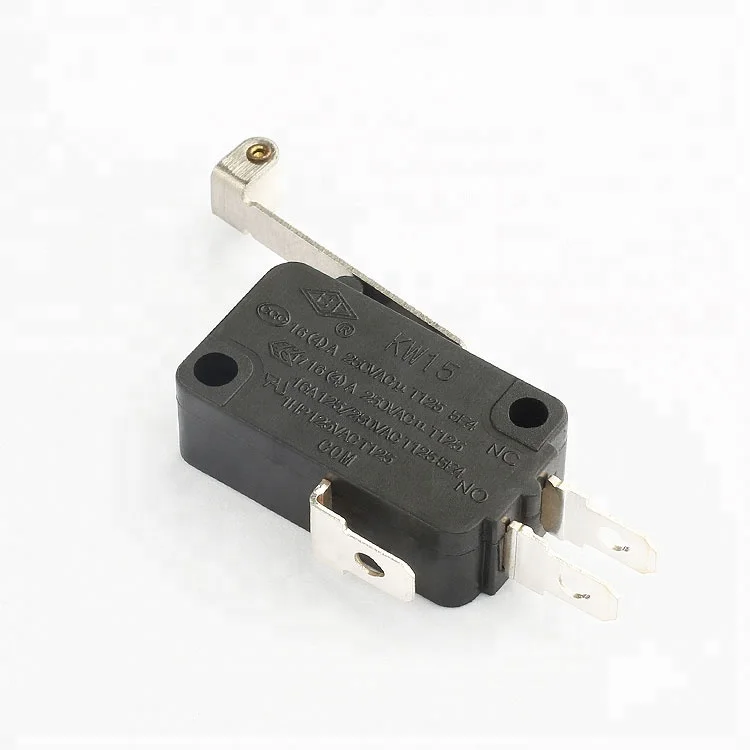

Introducing our high-quality 16A 250VAC Microswitch, a versatile component ideal for home appliances and various electronic devices. As a factory direct supplier, we offer competitive wholesale prices without compromising on quality. Our microswitch boasts a durable construction with an IP40/IP65 protection level, ensuring reliability in diverse environments. It operates within a wide temperature range of -25℃ to +125℃, making it suitable for both indoor and outdoor applications. With a rated current of 1A~16A and voltage of 125V~250V, it meets the demands of a broad spectrum of electrical systems. Our microswitch also features a long electrical life of 50,000 cycles, low contact resistance (≤50mΩ), and high insulation resistance (≥100MΩ), guaranteeing efficient and safe operation. Additionally, it complies with international certifications such as ENEC, UL, CQC, and CE, assuring customers of its quality and safety. Choose our microswitch for its superior performance, reliability, and cost-effectiveness.
| IP | IP40 , IP65 |
| Color | Black |
| Current | 1A~16A |
| Voltage | 125V~250V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectronic Strength | 1500V |
| electronic life(cycles) | 50,000 |
| operating temperature | -25℃~+125℃ |
| Certification | ENEC , UL , CQC,CE |
Why Choose Our 16A 250VAC Microswitch?
Our microswitch stands out for its robust construction, wide operating temperature range, and long electrical life. It ensures reliable performance in various applications, making it an ideal choice for home appliances and electronic devices.
What Are the Key Features of Our Microswitch?
Key features include a rated current of 1A~16A, voltage of 125V~250V, low contact resistance (≤50mΩ), high insulation resistance (≥100MΩ), and compliance with international certifications such as ENEC, UL, CQC, and CE.
How Does Our Microswitch Benefit You?
By choosing our microswitch, you benefit from its superior quality, reliability, and cost-effectiveness. As a factory direct supplier, we offer competitive wholesale prices, ensuring you get the best value for your money.
