Description
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V 1 min
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
16(4)A 250V AC
|

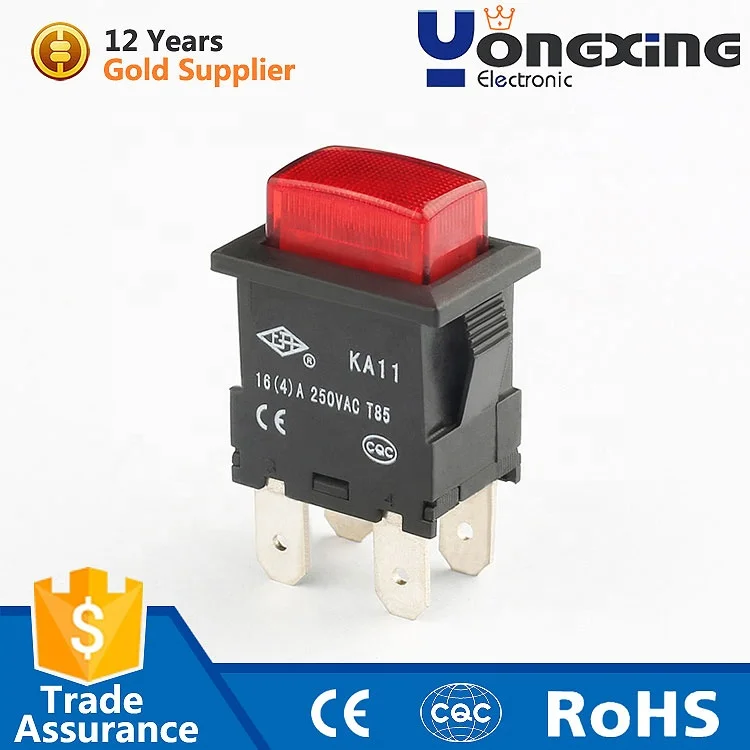

Why Choose Our Push Button Switch?
Our KA11 series push button switch is designed with durability and efficiency in mind. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, it ensures long-lasting performance, reducing the need for frequent replacements. The LED indicator adds a modern touch and provides visual feedback, enhancing user experience.
What Makes Our Switch Stand Out?
Our switch stands out with its excellent contact resistance (≤50mΩ) and insulation resistance (≥100MΩ), ensuring safety and efficiency in your applications. The IP40 protection level guarantees dust resistance, making it suitable for various environments. As a factory direct supplier, we offer competitive wholesale prices and excellent after-sales service, ensuring you get the best value for your money.
Where Can You Use Our Switch?
Our push button switch is versatile and can be used in a wide range of applications, including industrial control, home appliances, automotive applications, and electronic devices. Its reliable performance and durable design make it an ideal choice for any project requiring a high-quality switch.
