Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-11-CA1A-W-R-01/750
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPST ON-OFF 2Pin
|
|
Panel cutout
|
28.1*10.7mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|
White housing, red actuator
|
|
Marking
|
white I O
|
|
Material
|
PA66
|
Why Choose Our 16A 250VAC Rocker Switch?
Our 16A 250VAC Rocker Switch stands out with its long mechanical life of 100,000 cycles and electronic life of 10,000 cycles, ensuring durability and reliability. Certified with CQC, CE, and ROHS, it guarantees safety and compliance, making it ideal for various applications.
What Are the Key Features?

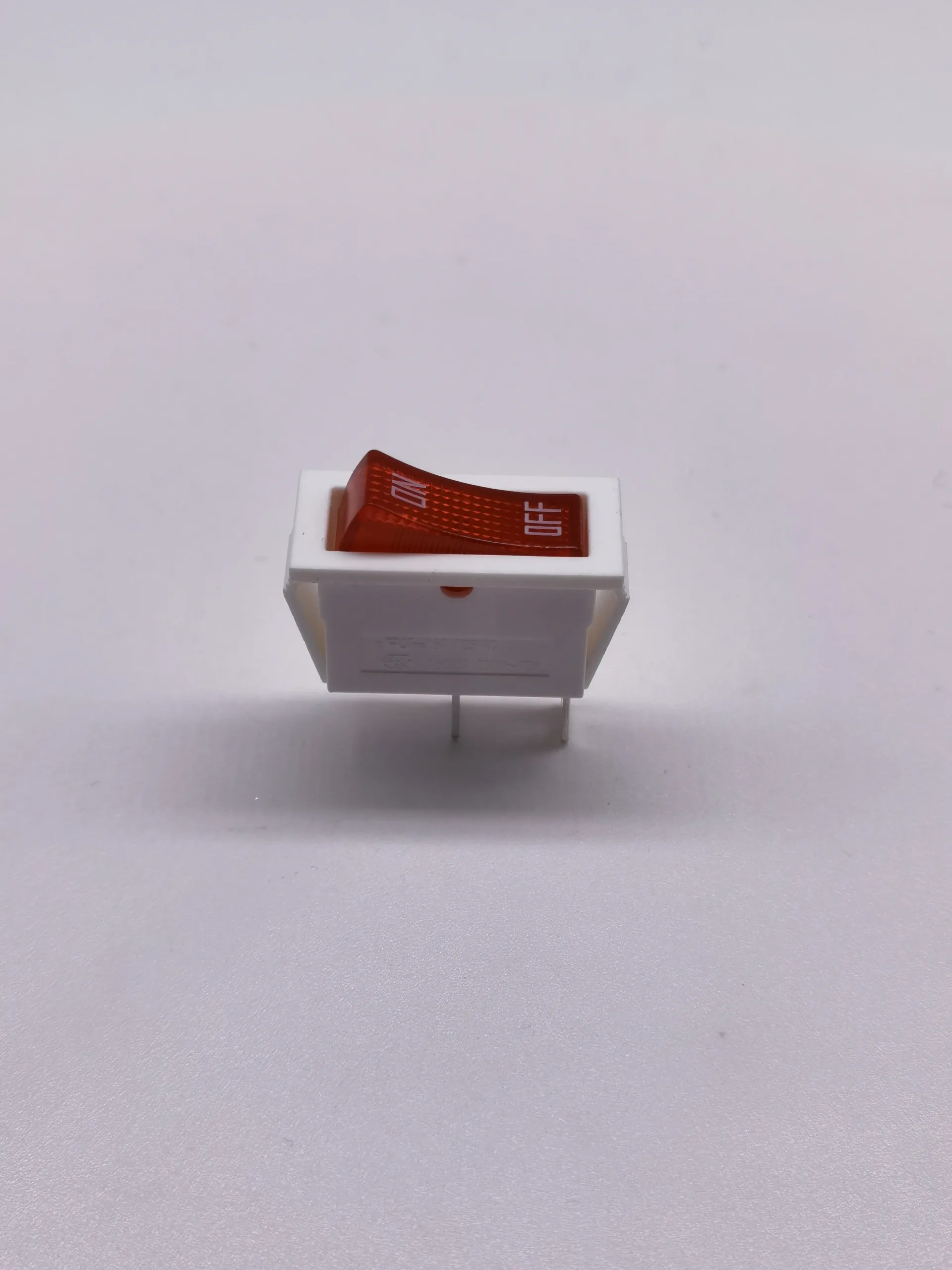

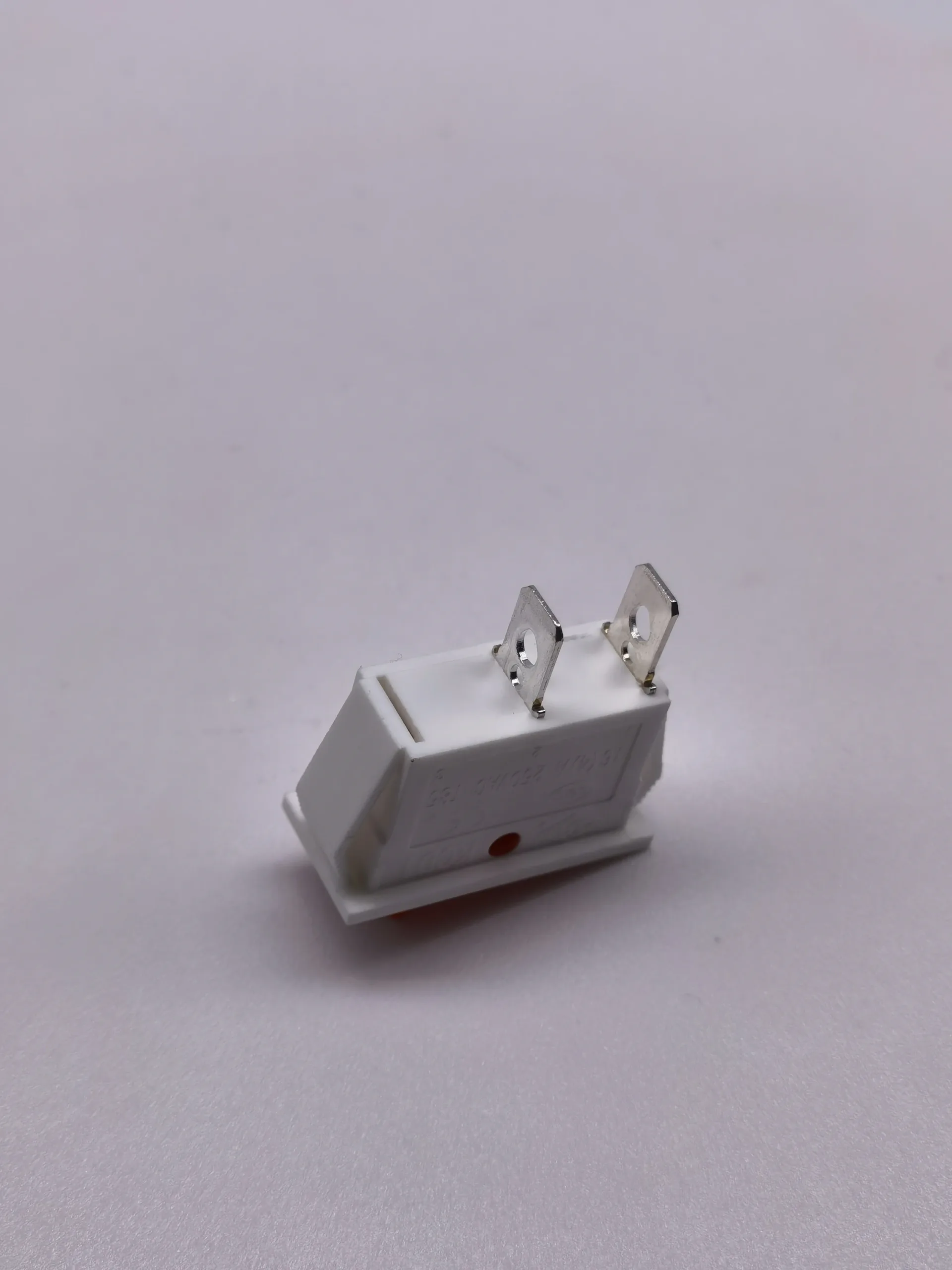

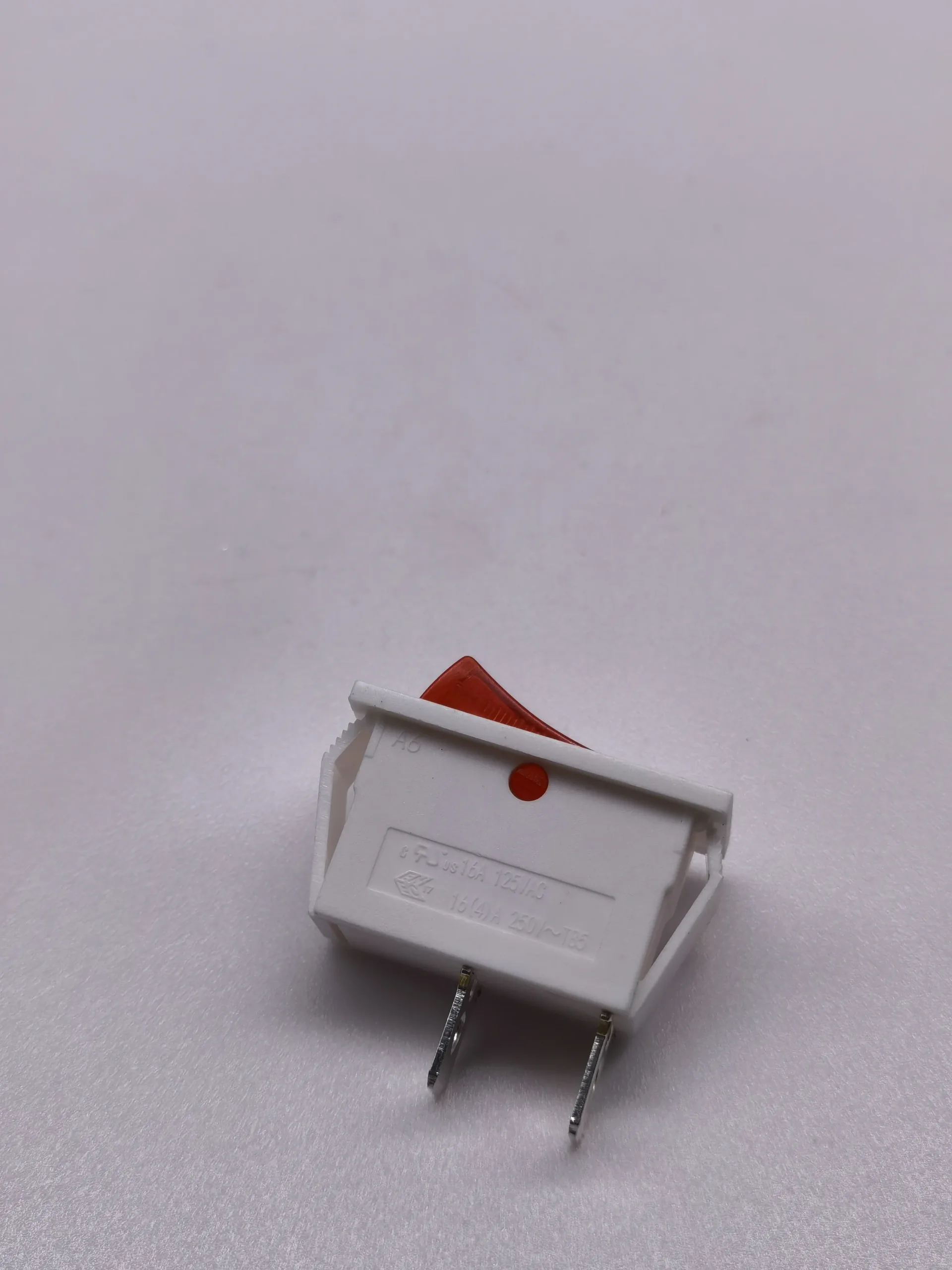

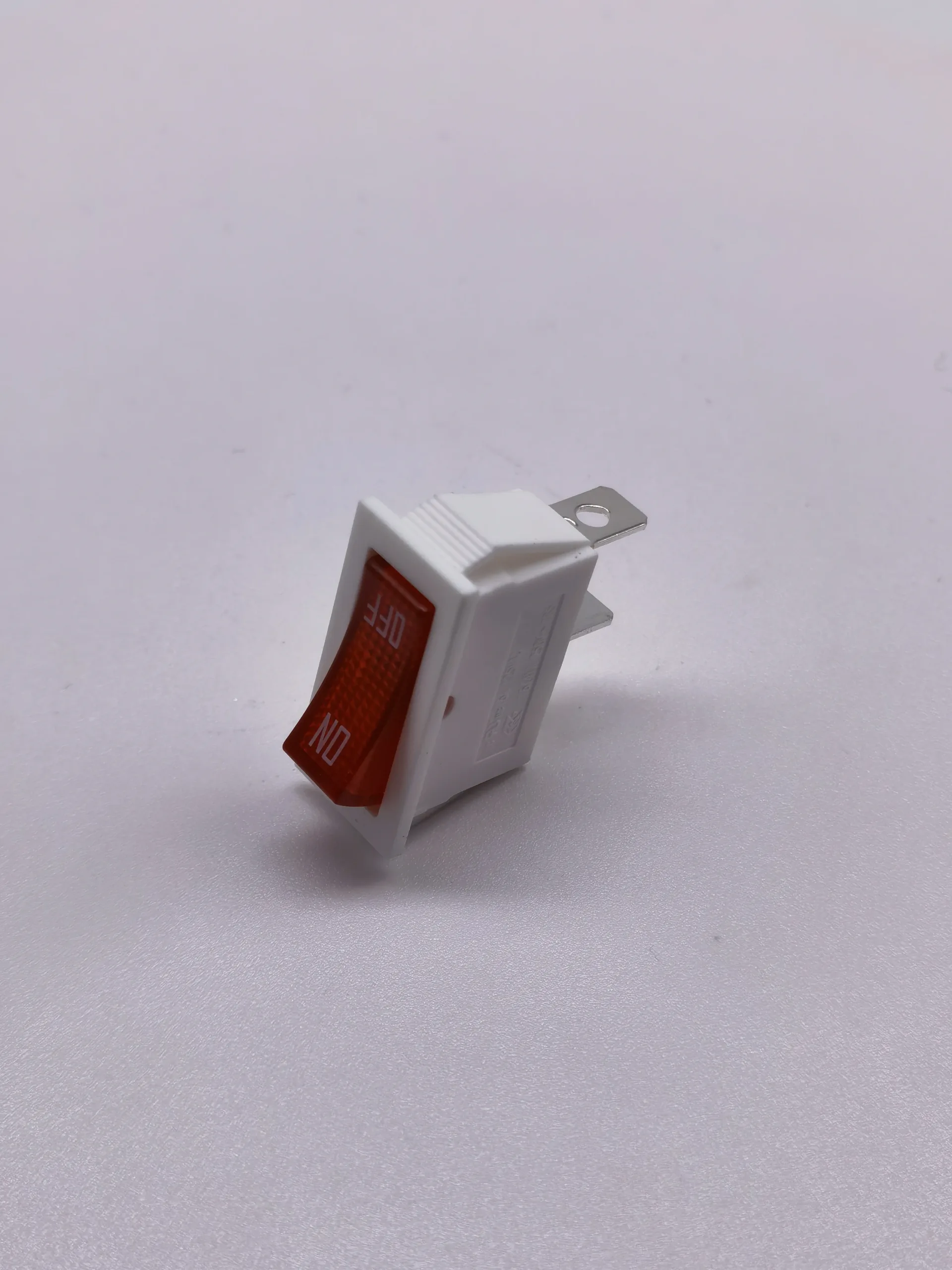

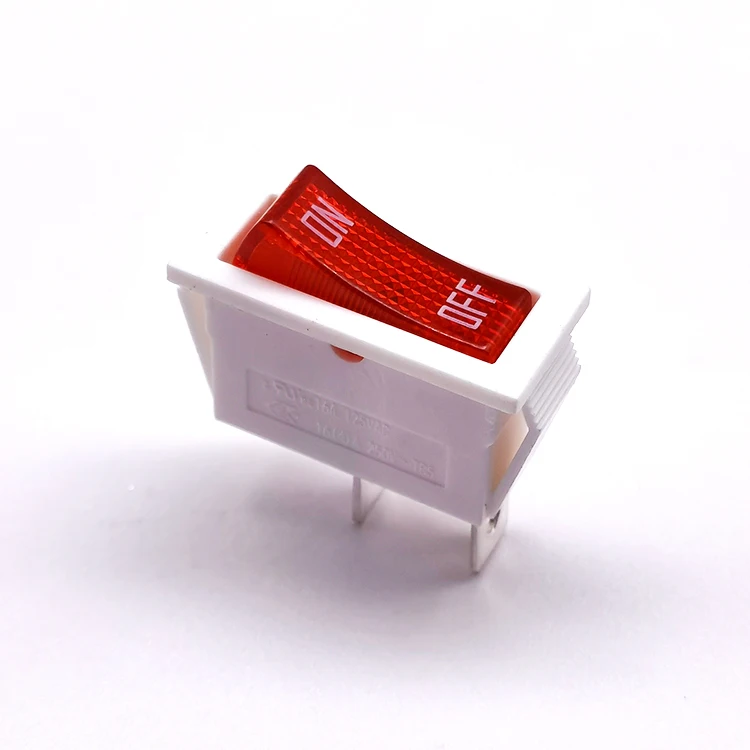

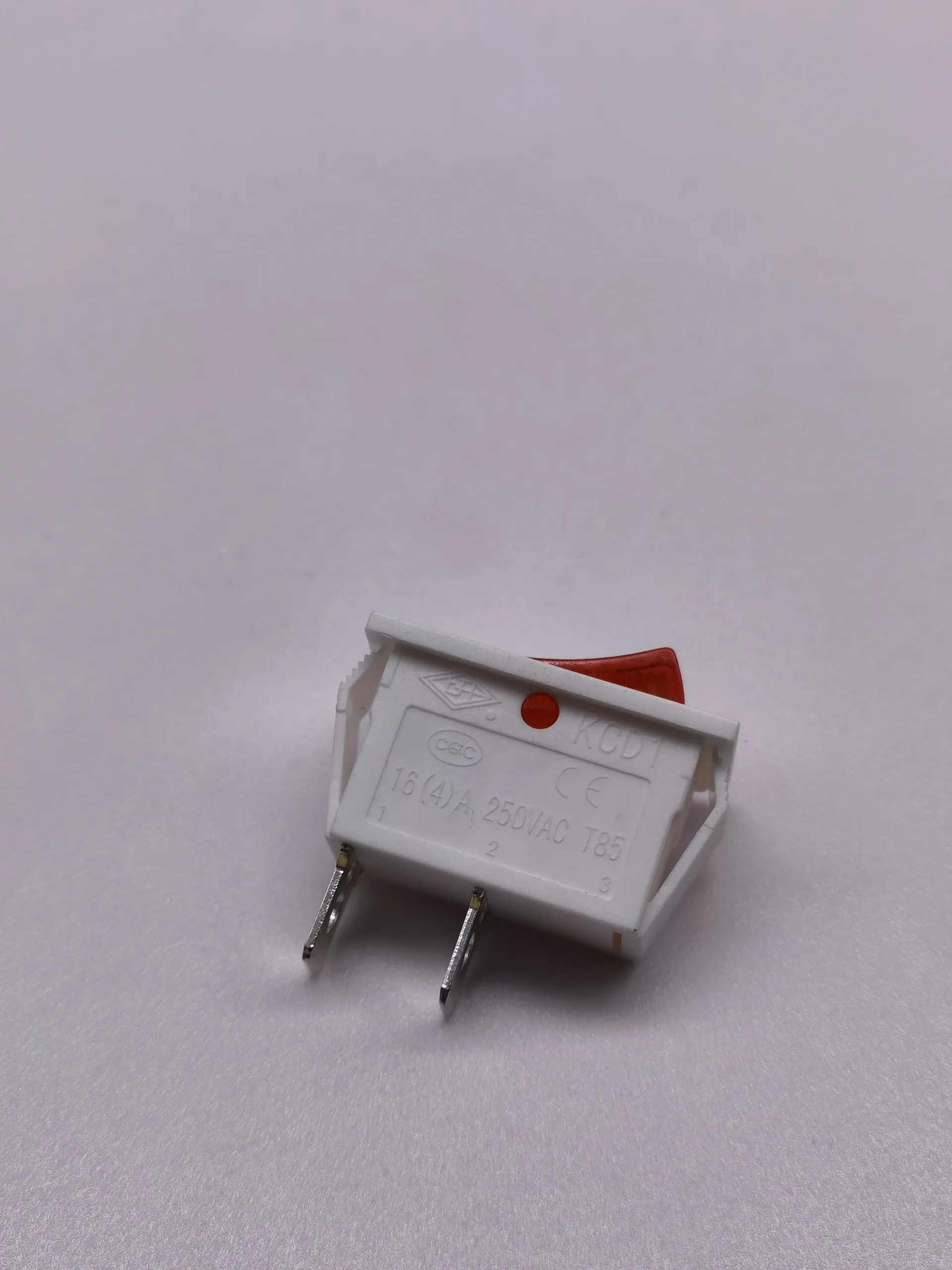

The switch features a white housing with a red actuator for easy identification. Its compact design with a 28.1*10.7mm panel cutout and standard 6.3x0.8mm terminals allows for easy installation. Made from PA66 material, it offers excellent insulation and contact resistance, ensuring optimal performance.
Where Can It Be Used?
Our Rocker Switch is perfect for household appliances, industrial equipment, and electrical controls. Its versatility and reliability make it a popular choice among manufacturers and DIY enthusiasts alike. Enjoy wholesale pricing and factory-direct service when you choose us as your supplier.
