Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|

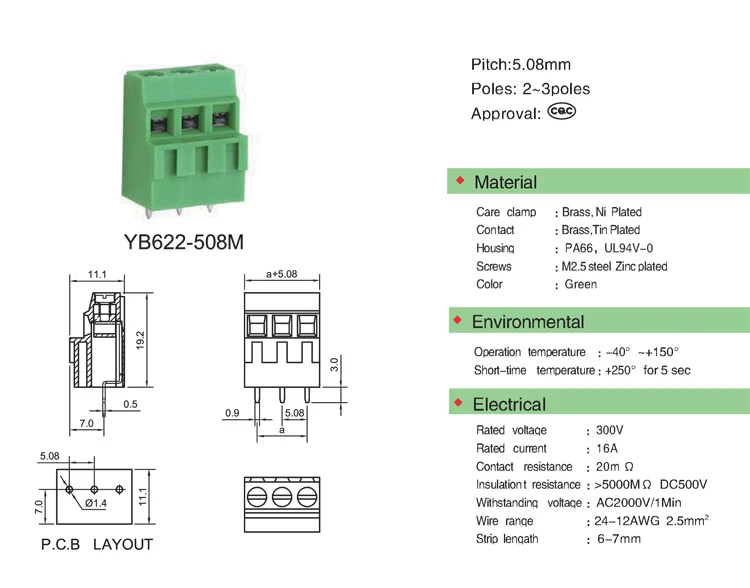

YB622-508M-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|

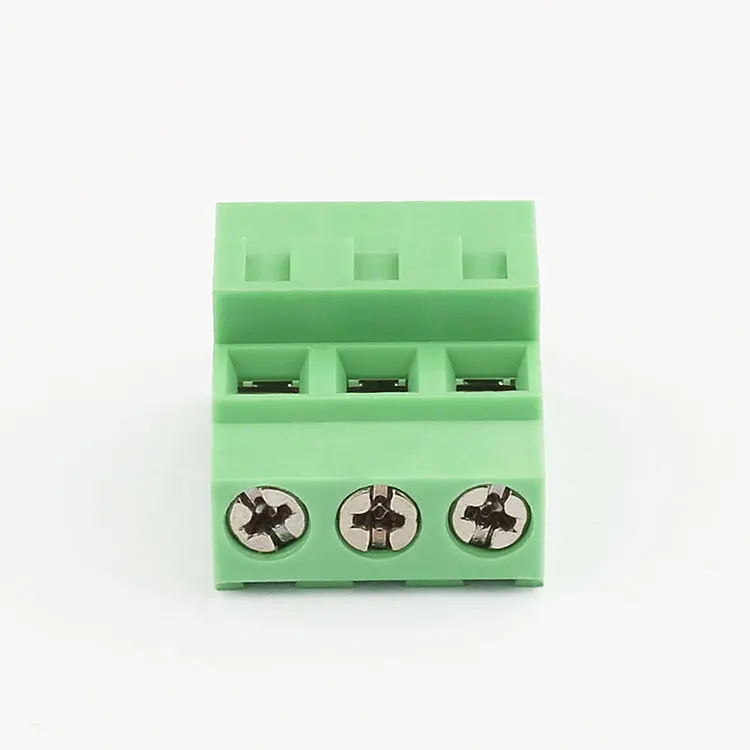

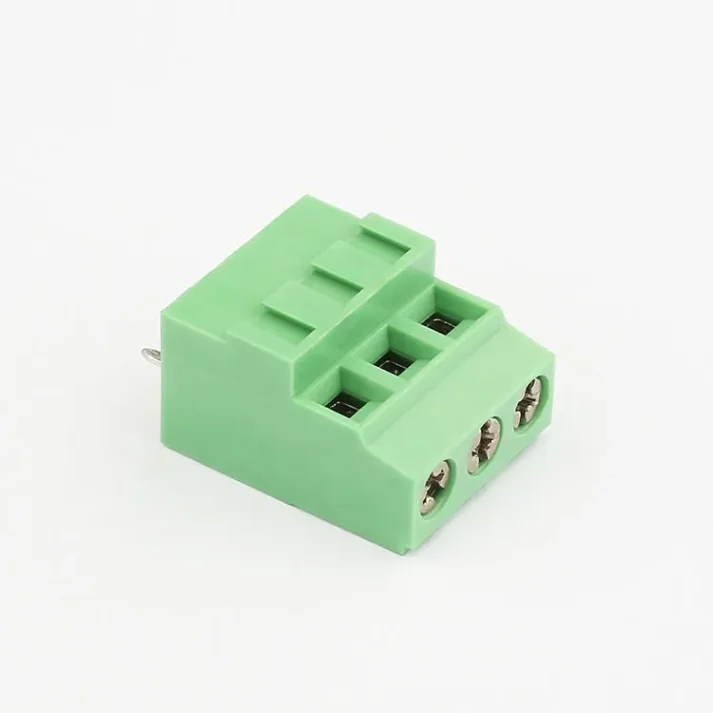

Why Choose Our 16A 300V 3-Pin PCB Screw Terminal Block?
Our terminal block is designed for high-performance electrical connections in industrial, automotive, and electric power applications. With a rated voltage of 300V and a rated current of 16A, it ensures safe and efficient operation. The low contact resistance and high insulation resistance guarantee reliable conductivity and insulation, while the ability to withstand voltages up to AC2000V/Min makes it suitable for demanding environments.
What Are the Key Features of Our Terminal Block?
Our terminal block features a durable plastic body with a matte varnishing finish, providing a sleek and professional look. The M2.5 steel zinc-plated screw and brass, tin-plated contacts offer excellent corrosion resistance and longevity. It accommodates a wide range of wire sizes (24-12AWG) and has a strip length of 6-7mm, offering flexibility in wiring. The operating temperature range of -40°C to +150°C ensures durability in extreme conditions.
Why Buy from Us as a Wholesale Supplier?
As a factory-direct supplier, we offer competitive wholesale prices and reliable service. Our terminal blocks are manufactured to the highest standards, ensuring quality and performance. With fast shipping and excellent customer support, we make it easy for you to get the products you need when you need them. Choose us for your terminal block needs and experience the difference in quality and service.
