Description

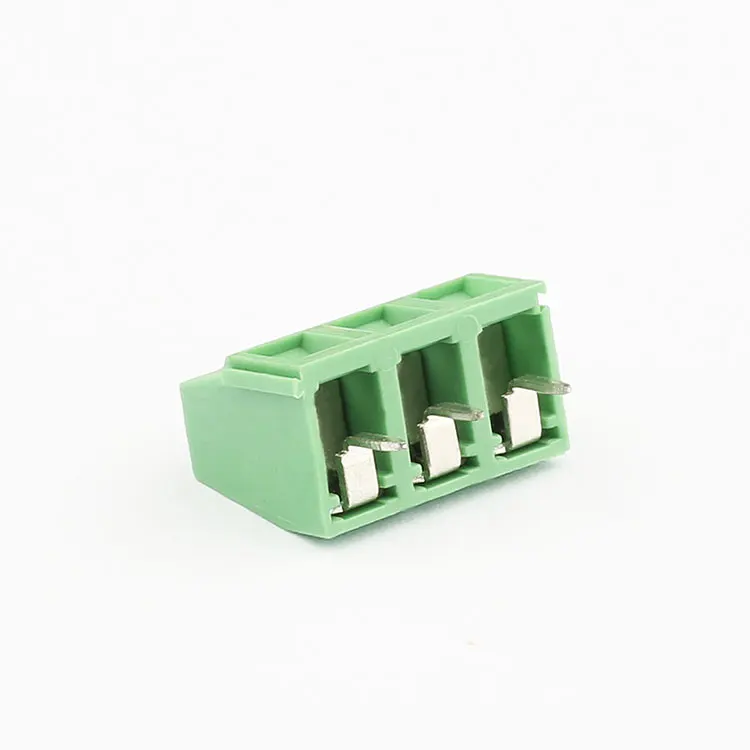

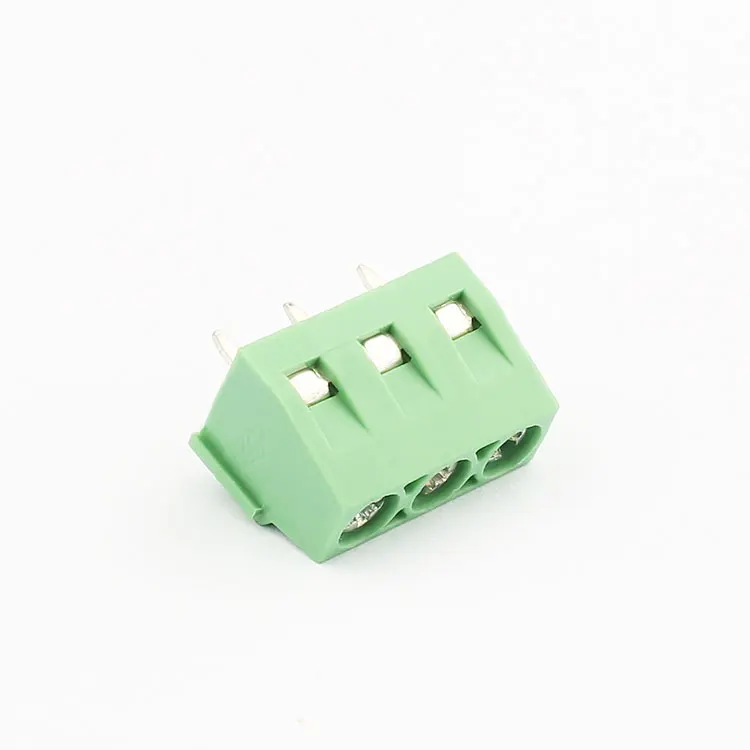

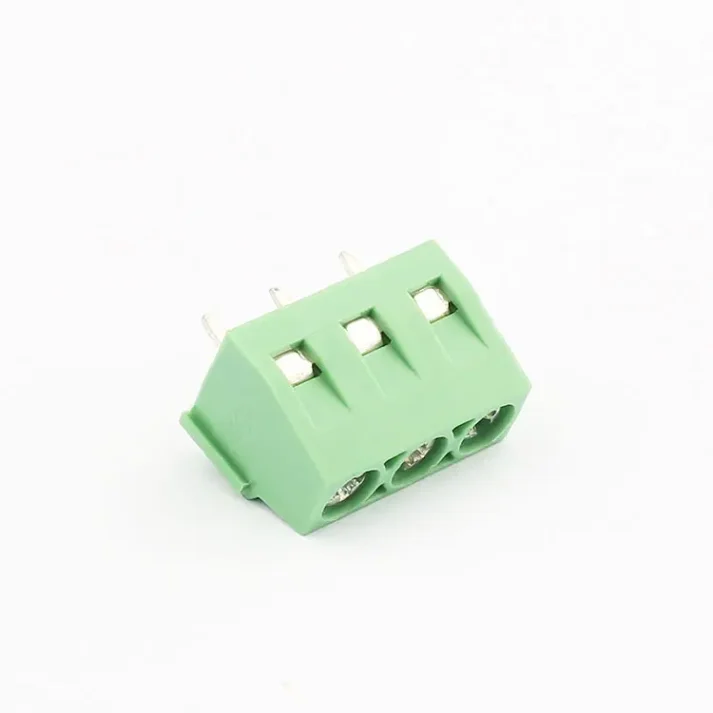

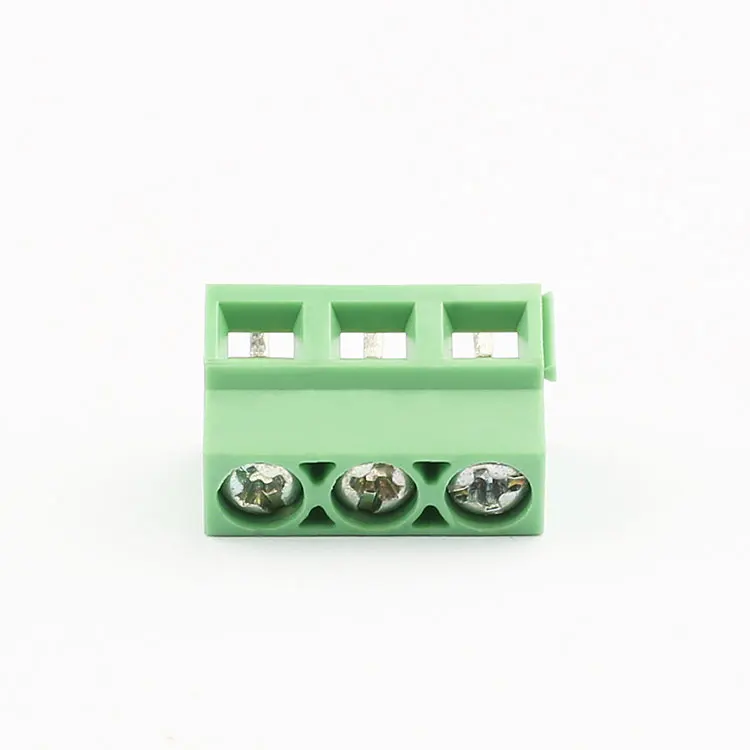

Discover our high-quality 3-pin, 5.08mm pitch PCB terminal block, rated at 16A and 300V, designed for reliable electrical connections. As a leading factory supplier, we offer this screw terminal block at wholesale prices, ensuring you get the best value for your money.

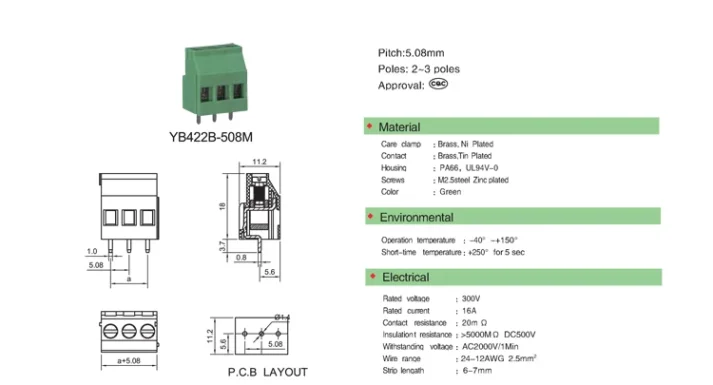

Specifications:
- Model: YB422B-508M-3P
- Type: Screw Terminal
- Rated Voltage: 300V
- Rated Current: 16A
- Contact Resistance: 20mΩ
- Insulation Resistance: >5000MΩ DC500V
- Withstand Voltage: AC2000V/Min
- Wire Range: 24-12AWG (2.5mm²)
- Strip Length: 6-7mm
- Operating Temperature: -40°C to +150°C
- Screw: M2.5 Steel, Zinc Plated
- Contact Material: Brass, Tin Plated
Advantages:
- High durability and reliability in various environments.
- Easy installation with screw terminals.
- Excellent electrical performance with low contact resistance.
- Wide operating temperature range.
Differentiated Competitiveness:
Our terminal blocks stand out with their superior insulation resistance and withstand voltage capabilities, ensuring safe and stable connections. As a factory supplier, we provide direct pricing and customization options to meet your specific needs.
After-Sales Service:
We offer comprehensive after-sales support, including technical assistance and warranty services, to ensure your satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB422B-508M-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|
Why Choose Our 3-Pin PCB Terminal Block?
Our 3-pin PCB terminal block is designed for high-performance electrical connections, offering reliable performance in various applications. With a rated current of 16A and voltage of 300V, it ensures stable and safe connections.
Key Features and Benefits
The screw terminal design allows for easy installation and maintenance. Its superior insulation resistance and withstand voltage capabilities make it ideal for use in harsh environments. As a factory supplier, we offer competitive pricing and customization options.
Applications and Suitability
This terminal block is widely used in industrial applications, automotive electronics, and PCB mounting. Its durable construction and excellent electrical performance make it a preferred choice for professionals seeking reliable and cost-effective solutions.
