Description

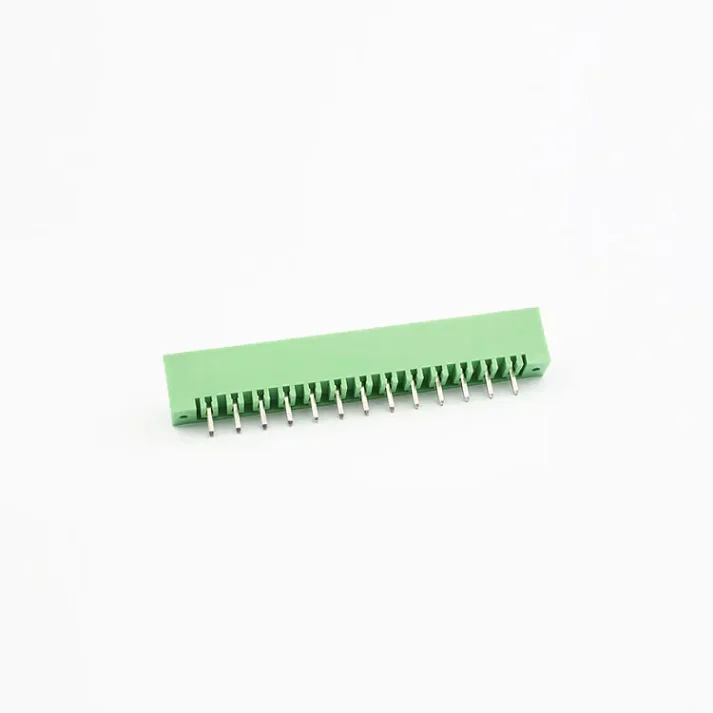

Our 16A 300V pluggable PCB terminal block, model YE060-500-12P, is a high-quality electrical connector designed for reliable performance. As a factory direct supplier and wholesaler, we offer competitive pricing and bulk order discounts. This terminal block features 12 poles with a 5.00mm pitch, making it suitable for a wide range of applications. Key specifications include a rated voltage of 300V, rated current of 16A, and contact resistance of 20mΩ. It boasts excellent insulation resistance (>5000MΩ DC500V) and withstand voltage (AC2000V/Min), ensuring safety and durability. The operating temperature range of -40℃ to +150℃ allows for use in extreme environments. The contacts are made of brass with tin plating, providing excellent conductivity and corrosion resistance. Available in green, this terminal block stands out with its high-quality construction and versatility. Choose us for factory-direct pricing, reliable supply, and exceptional customer service.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YE060-500-12P
|
|
Type
|
Plug Terminal （Socket）
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24 poles
|
|
Certificate
|
CQC
|
Why Choose Our Pluggable PCB Terminal Block?
Our pluggable PCB terminal block offers reliable electrical connections with a rated voltage of 300V and rated current of 16A, ensuring stable performance in various applications.
What Makes Our Product Stand Out?
With 12 poles and a 5.00mm pitch, our terminal block provides versatile connectivity options. The brass contacts with tin plating offer excellent conductivity and corrosion resistance, extending the product's lifespan.
Where Can Our Terminal Block Be Used?
Ideal for electrical connections in PCB mounting and industrial applications, our terminal block is suitable for use in extreme temperature environments ranging from -40℃ to +150℃.
