16A DPST 4-Pin Rocker Switch | Wholesale Supplier from Factory

>= 100  pieces
$0.46

0 reviews

Wholesale 16A DPST 4-Pin Rocker Switch from Factory Supplier. Durable, High Performance.

Description

Introducing our high-quality 16A DPST 4-Pin Rocker Switch, a must-have for your electrical needs. As a direct supplier and factory, we offer competitive wholesale prices. This switch is designed with precision, featuring a durable plastic housing in black and an eye-catching orange actuator. It boasts a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for a wide range of applications including home appliances, hair dryers, fountains, coffee makers, and water heaters. Our switch stands out with its excellent electrical performance: contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, dielectric strength of 1500VAC for 1 minute, and an operating temperature range of T55 T85 T125. With a mechanical life of 100,000 times and an electrical life of 10,000 cycles, it ensures long-lasting reliability. Additionally, it is IP54 rated, providing protection against dust and water splashes. Choose our switch for its superior quality, competitive pricing, and factory-direct availability.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life
10000
dielectric strength
1500V
IP code
IP54

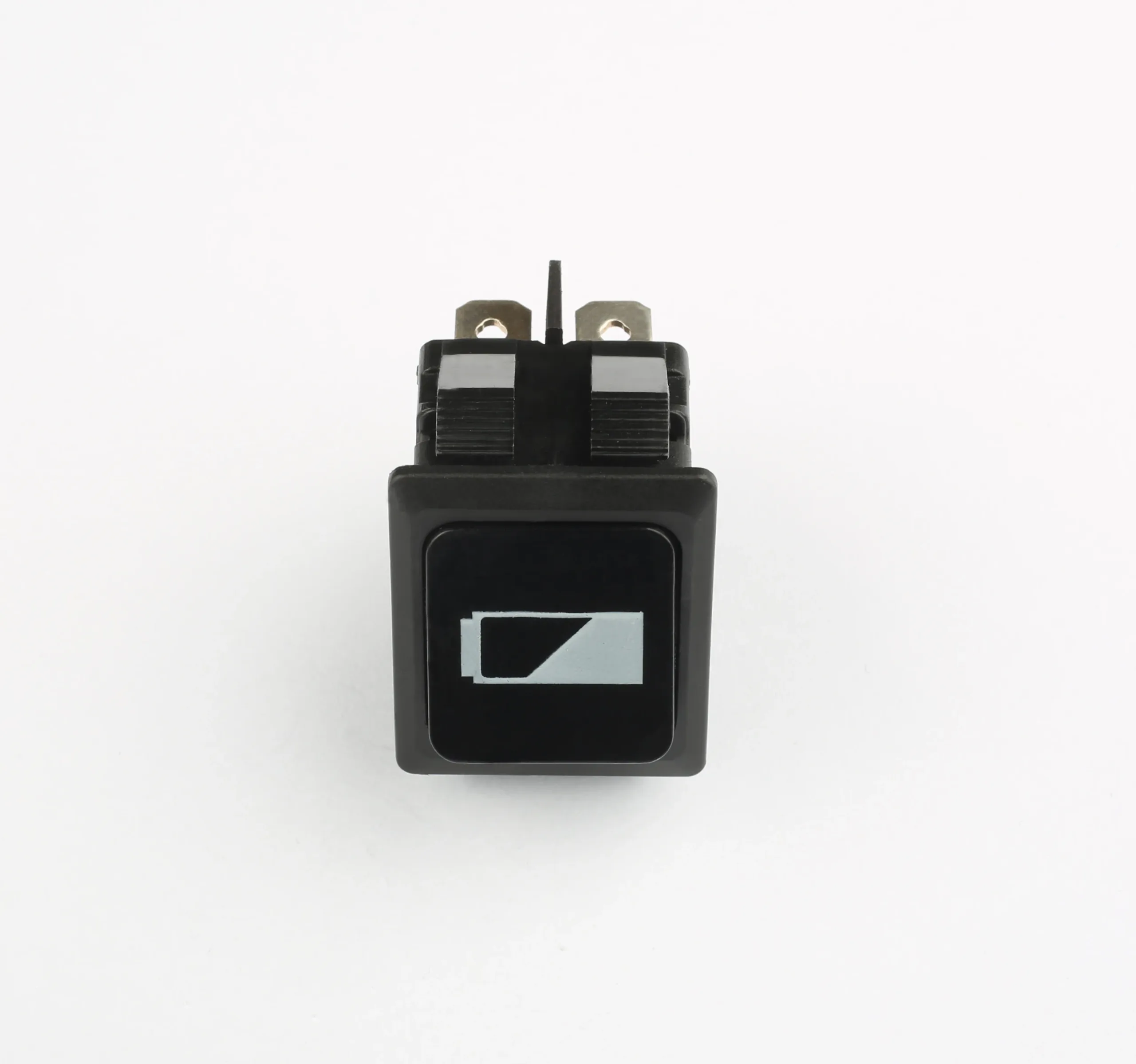

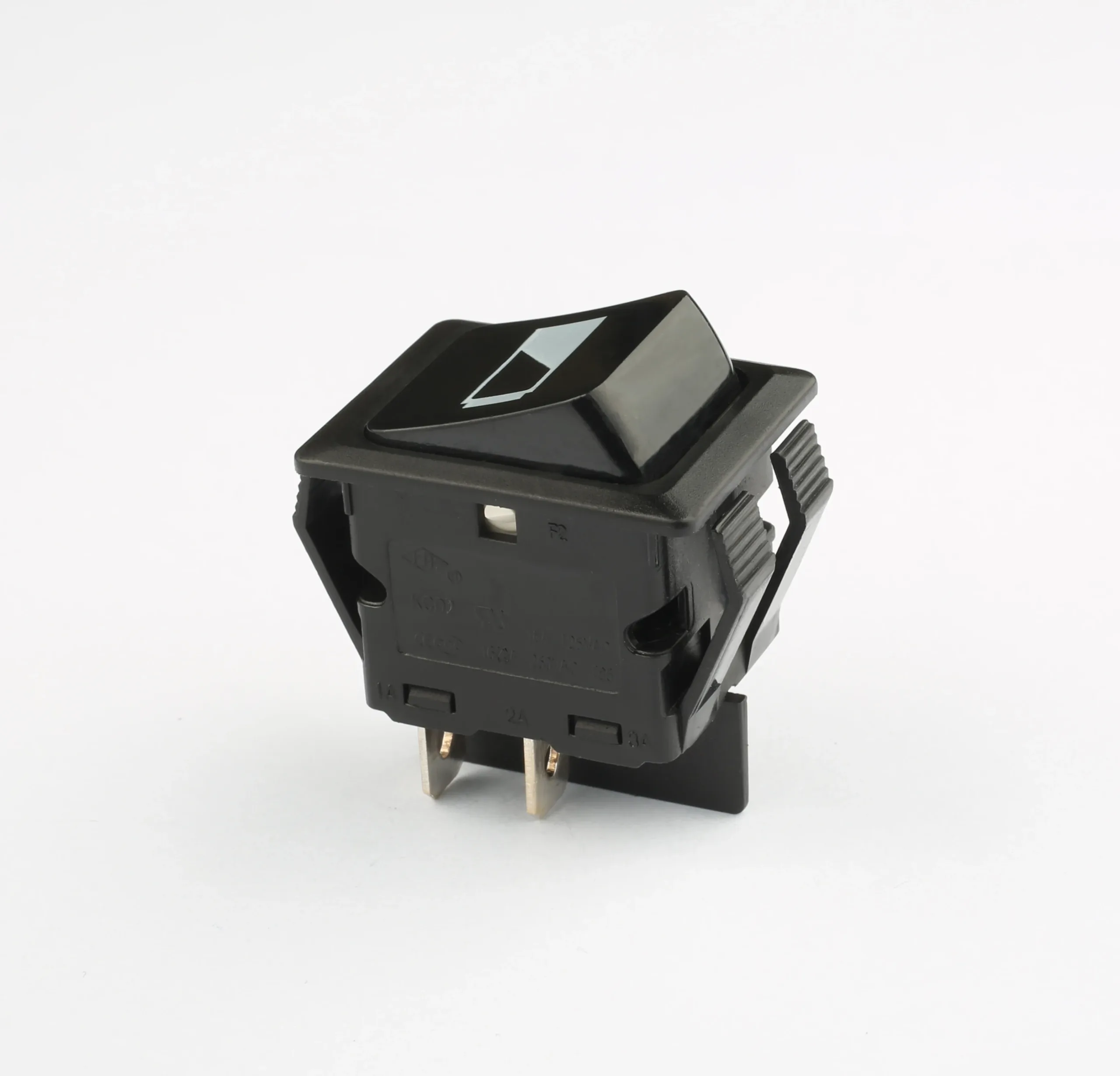

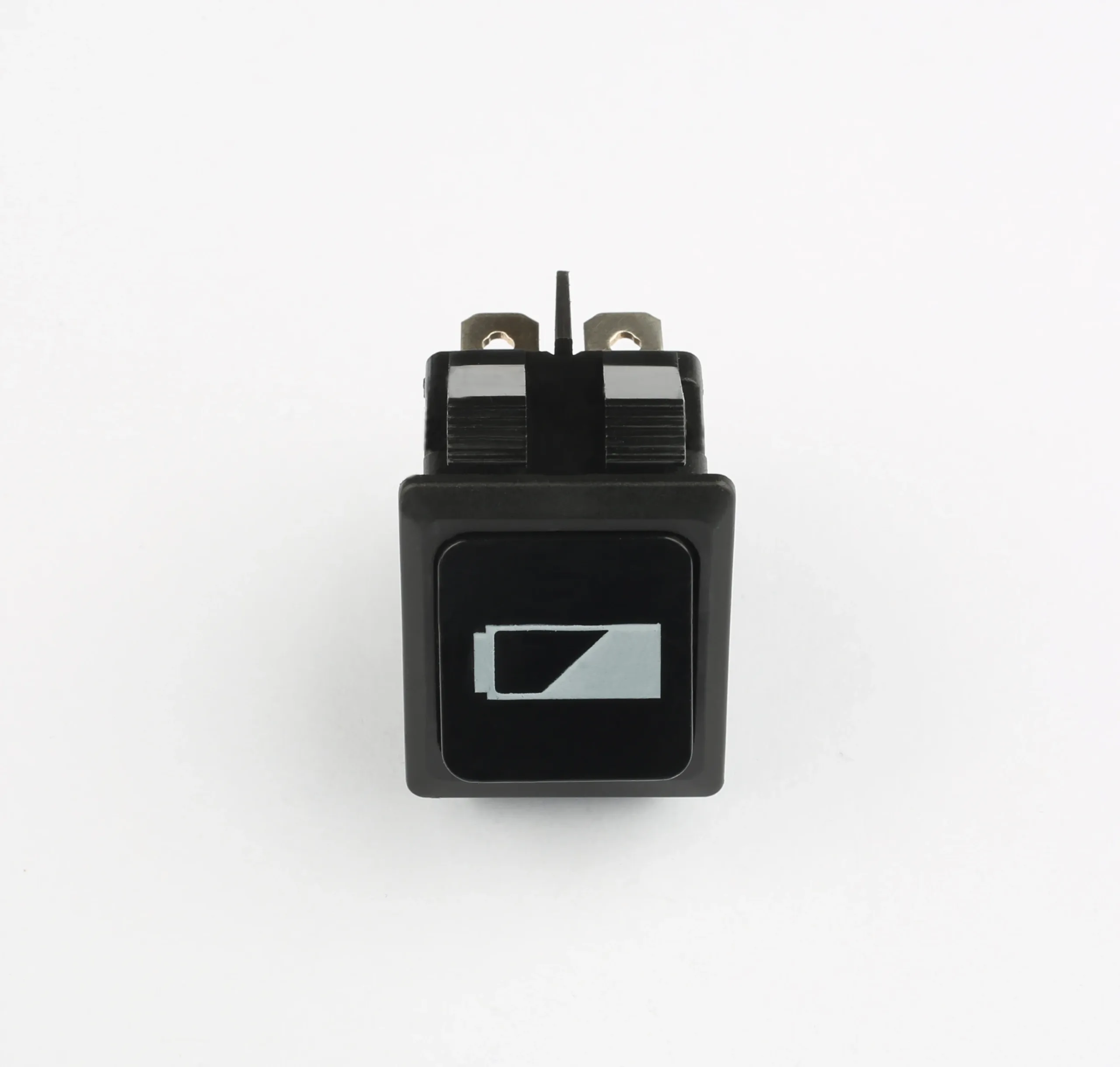

Electronic component product image for cross-border e-commerceElectronic device product shot for cross-border e-commerce


Why Choose Our 16A DPST 4-Pin Rocker Switch?

Our 16A DPST 4-Pin Rocker Switch is designed for durability and high performance. With a maximum current of 16A and a maximum voltage of 250VAC, it's perfect for a variety of electrical applications. The plastic housing and orange actuator not only look great but also ensure long-lasting use. The switch's IP54 rating provides protection against dust and water, making it suitable for various environments.

What Makes Our Switch Stand Out?

Our switch stands out with its excellent electrical properties, including a low contact resistance (≤50mΩ) and high insulation resistance (≥1000MΩ). It also has a high dielectric strength of 1500VAC for 1 minute, ensuring safety and reliability. With a mechanical life of 100,000 times and an electrical life of 10,000 cycles, it offers unmatched durability. As a factory supplier, we offer competitive wholesale prices, making it a cost-effective choice for your business.

Where Can You Use Our Switch?

Our 16A DPST 4-Pin Rocker Switch is versatile and can be used in a wide range of applications, including home appliances, hair dryers, fountains, coffee makers, and water heaters. Its robust design and high performance make it an ideal choice for both residential and commercial use. Choose our switch for its reliability, durability, and competitive pricing.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-21-CF

Application

Home Appliance,Hair Dryer, Fountain,Coffer Maker,Water Heater

Material

plastic

Pins

4P

Whether the smart

NO

Mechanical Life

100000 times

IP level

IP54

Switch Action

ON-OFF

Termination Type

solder

Name

Rocker Switch Lighted On Off 4 Pins DPST

Certificate

CQC,CE,ROHS

Rating

16A 250VAC / 10A 125VAC, ;Light Voltage:24V

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500VAC 1 Minute

Operating temperature

T55 T85 T125

Electrical Life

10000

Color

Black Housing,Orange Actuator
