Description

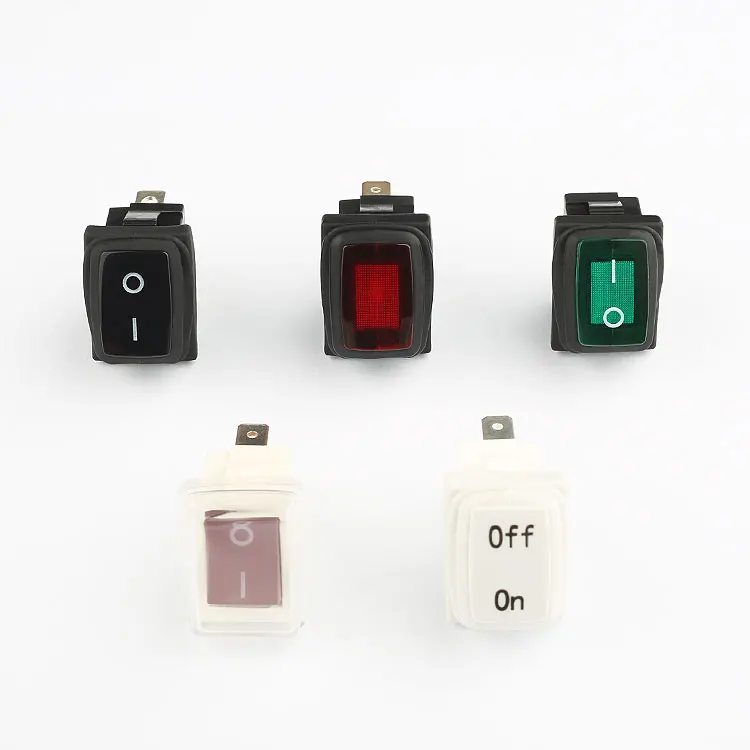

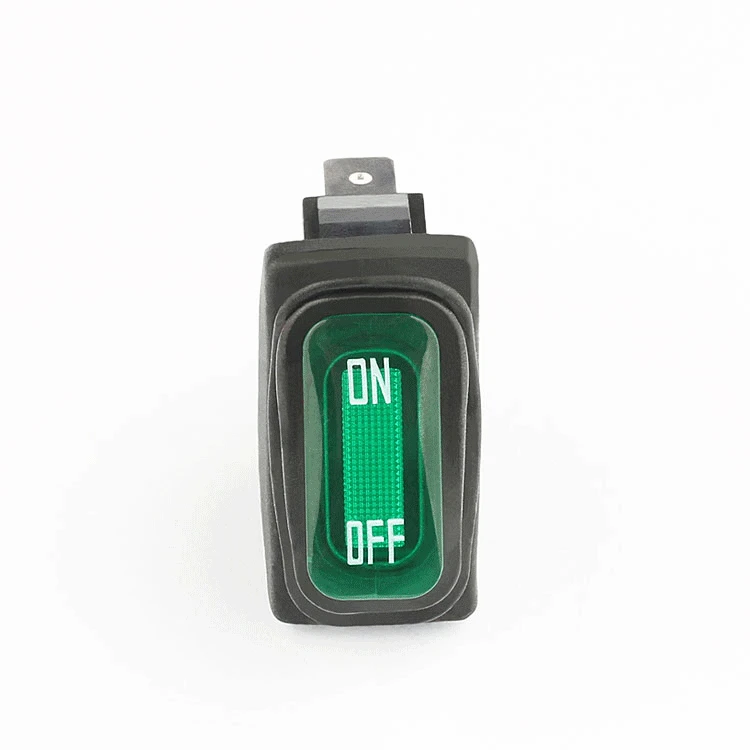

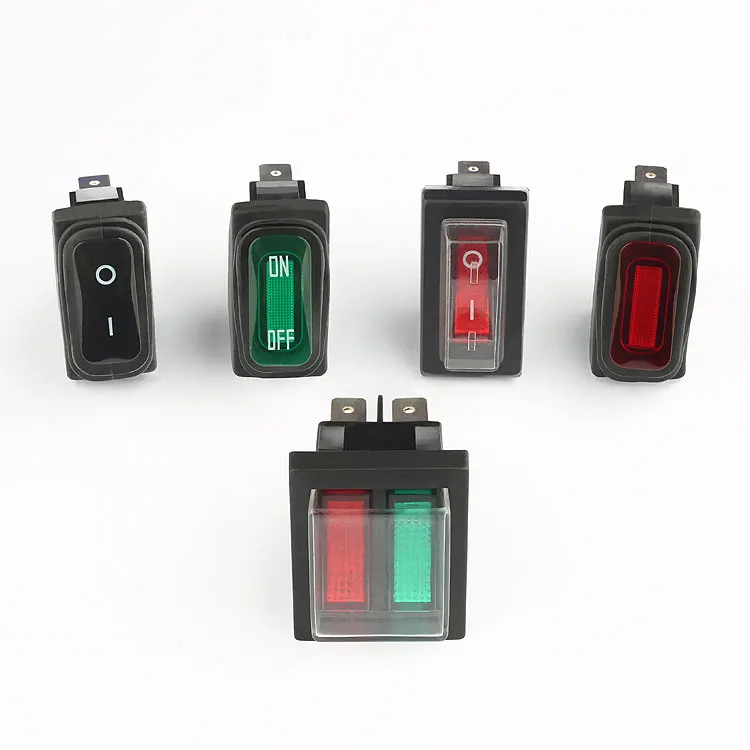

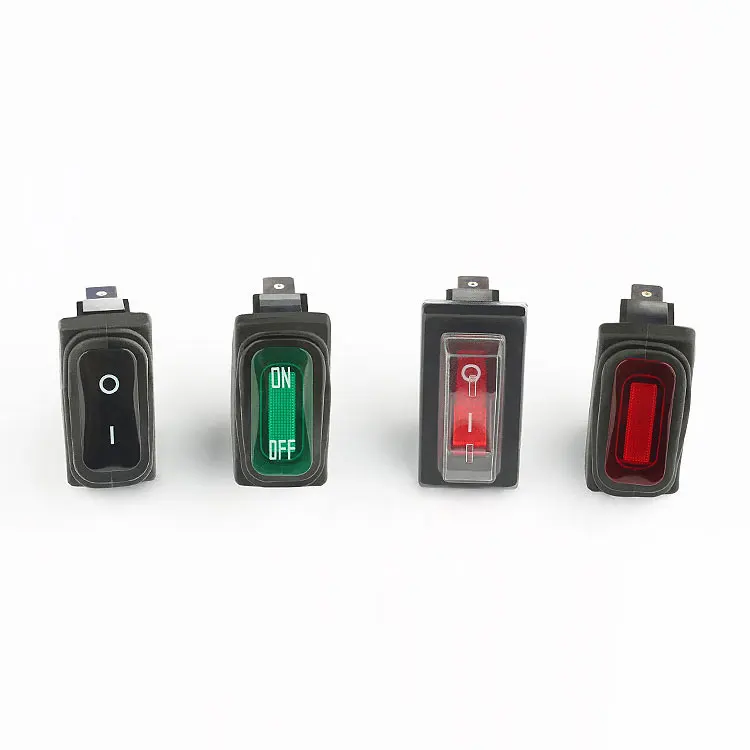

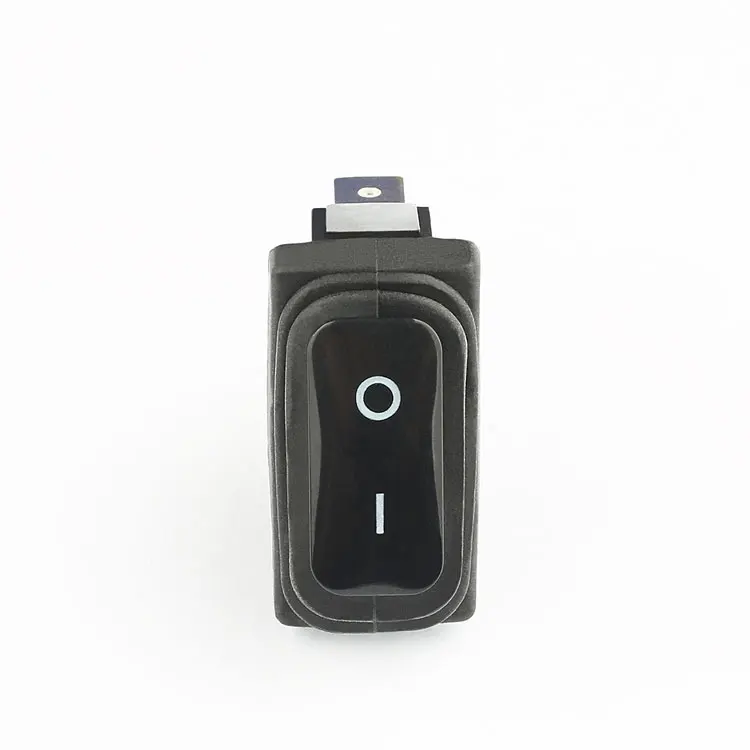

Our KCD1 rocker switch is designed with a plastic body, available in a variety of colors including Red, Yellow, Green, Black, White, Blue, Gray, and Orange. It features an IP65 waterproof rating, making it suitable for use in harsh environments. The switch has a maximum current rating of 16A and a maximum voltage rating of 250V, with different operating temperatures available (T55, T85, T125).
One of the key advantages of our rocker switch is its long mechanical life of up to 100,000 cycles and an electrical life of 10,000 cycles. It also boasts a low contact resistance of ≤50mΩ and a high insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. The switch is certified by CQC, CE, ENEC, and RoHs, guaranteeing its quality and compliance with international standards.
In addition to its technical specifications, our rocker switch stands out from the competition with its easy plug-in termination type and ON-OFF switch action. It is also available in 2P and 3P pin configurations, providing flexibility for different applications.
As a factory-direct supplier, we offer competitive pricing and excellent customer service. Our rocker switch is backed by a comprehensive warranty, giving you peace of mind with your purchase. Don’t miss out on this opportunity to upgrade your equipment with our high-quality waterproof rocker switch.

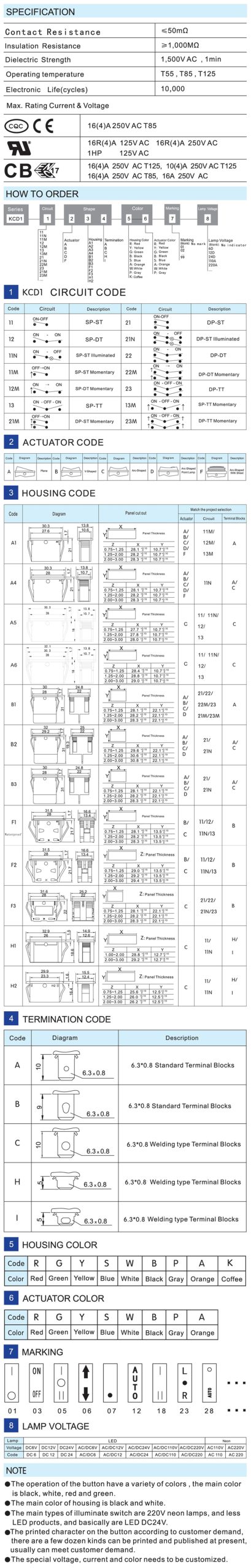

| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our 16A SPST Waterproof Rocker Switch?
Our 16A SPST Waterproof Rocker Switch is a top choice for industrial and electric equipment applications due to its durability, reliability, and IP65 waterproof rating. It can withstand harsh environments and ensure safe, efficient operation.
What Are the Key Features of Our Rocker Switch?
Our rocker switch features a long mechanical life of up to 100,000 cycles, a low contact resistance, and a high insulation resistance. It is also available in multiple colors and pin configurations, providing flexibility for different applications.
Why Buy from Us as a Factory Supplier?
As a factory-direct supplier, we offer competitive pricing, excellent customer service, and a comprehensive warranty on our rocker switch. You can trust in the quality and compliance of our product with international standards.
