Description

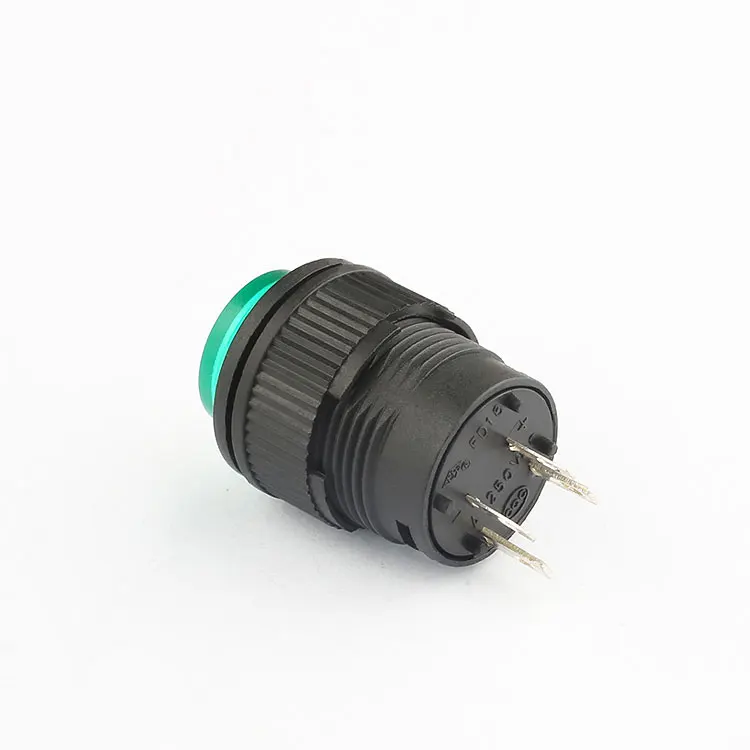

This switch features a round head design with a 16mm panel cut-out size, making it easy to install in various control panels. It operates at 12V DC, with a maximum current of 1A and a maximum voltage of 250V AC, ensuring reliable performance in demanding environments. The LED illumination provides clear visual feedback, enhancing user experience.
Our switch stands out with its excellent electrical life of 5000 cycles and mechanical life of 10000 cycles, indicating its durability and longevity. With an IP40 protection level, it offers adequate protection against dust and moisture. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, ensuring safe and efficient operation.
Additionally, our switch is made of high-quality plastic material, which is not only durable but also lightweight. The blue color adds a touch of style to your control panels. We offer a variety of terminal types, including pin terminals, to suit different connection needs.
As a trusted supplier, we provide excellent after-sales service and technical support. Whether you need a single unit or bulk quantities, we can meet your requirements. Choose our 16mm 1NO momentary LED push button switch for reliable performance and exceptional value.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-111L12D-G
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
Key Features
Our 16mm 1NO momentary LED push button switch is designed with precision and durability in mind. The round head design and 16mm panel cut-out size make it easy to integrate into various control panels. The LED illumination provides clear visual feedback, enhancing user experience and safety.
Durability and Longevity
With an excellent electrical life of 5000 cycles and mechanical life of 10000 cycles, our switch is built to last. The high-quality plastic material ensures durability and lightweight construction, making it suitable for a wide range of applications.
Why Choose Us?
As a factory direct supplier and wholesaler, we offer competitive prices without compromising on quality. We provide excellent after-sales service and technical support, ensuring your satisfaction. Choose our switch for reliable performance, exceptional value, and peace of mind.
