Description
Product Overview

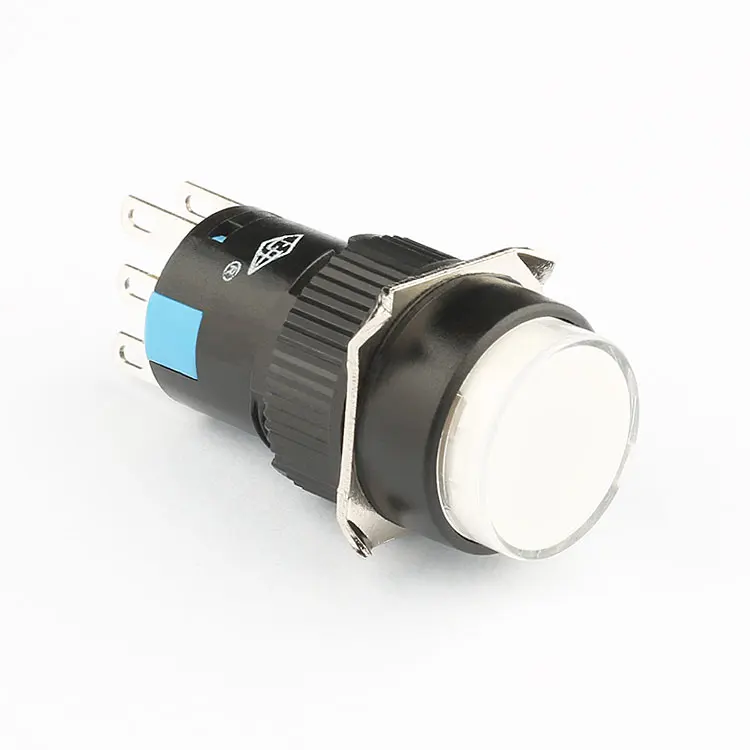

Introducing our high-quality 16mm 24V White LED Latching Push Button Switch, a versatile and reliable component perfect for a wide range of applications. As a direct factory supplier and wholesaler, we offer competitive pricing and bulk order discounts, ensuring you get the best value for your money.
Product Specifications
- Size: 16mm
- LED: Yes, 24V White Light
- Switch Combination: 1NO1NC (1 Normally Open, 1 Normally Closed)
- Max. Current: 3A
- Max. Voltage: 250V
- IP Level: IP40
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Operating Temperature: -5°C to 75°C
- Mechanical Life: 200,000 Cycles
- Electrical Life: 50,000 Cycles
Product Advantages
Our push button switch stands out from the competition with its durable plastic construction, bright LED illumination, and long-lasting performance. The latching mechanism ensures stable operation, making it ideal for use in industrial controls, automation systems, and more. As a factory supplier, we have full control over the manufacturing process, ensuring consistent quality and fast delivery times.
After-Sales Service
We stand behind our products with a comprehensive warranty and dedicated customer support. If you encounter any issues, our team is here to help you resolve them quickly and efficiently.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD16-121L12-W
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
200000
|
|
Electrical Life
|
50000
|
|
Voltage of indicator
|
12v
|
|
Current of indicator
|
＜15mA
|
Why Choose Our 16mm 24V White LED Latching Push Button Switch?
Our push button switch is designed with durability and reliability in mind. The 16mm size makes it compact and easy to install, while the 24V white LED provides clear and bright indication. The latching mechanism ensures stable operation, reducing the risk of accidental activation or deactivation. This makes it ideal for use in industrial controls, automation systems, and other applications where reliable switching is essential.
What Sets Our Product Apart?
As a factory supplier, we have full control over the manufacturing process, allowing us to ensure consistent quality and fast delivery times. Our push button switch is made from high-quality materials, ensuring long-lasting performance and resistance to wear and tear. Additionally, the bright LED illumination makes it easy to see in low-light conditions, enhancing safety and efficiency.
How Can Our Product Benefit Your Business?
By choosing our 16mm 24V White LED Latching Push Button Switch, you can benefit from competitive pricing, bulk order discounts, and reliable after-sales service. Our switch is suitable for a wide range of applications, making it a versatile and cost-effective choice for your business needs. Whether you're looking to upgrade your existing systems or start a new project, our push button switch is the perfect solution.
