Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD16-111L220V-Y
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
220v
|
|
Current of indicator
|
＜5mA
|

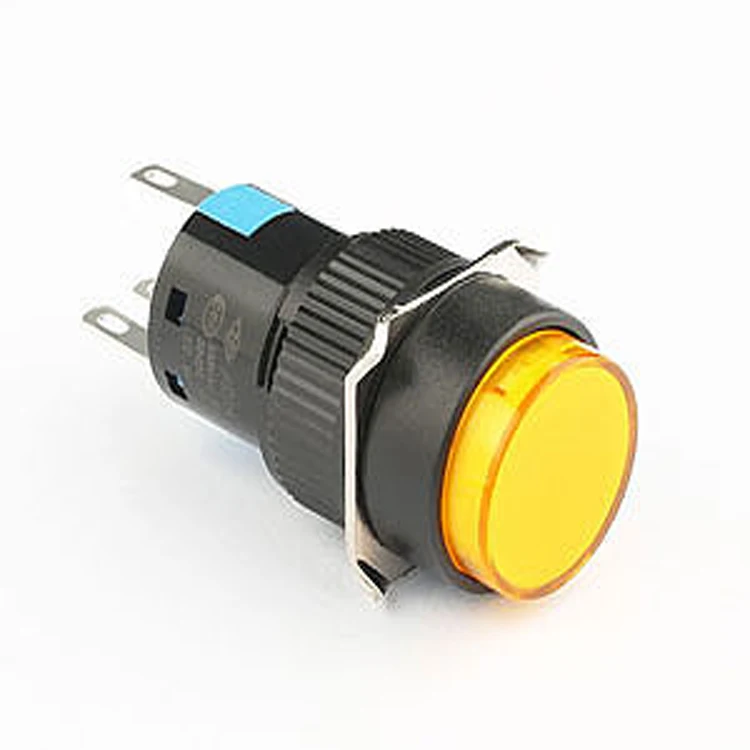

Why Choose Our 16mm 24V Yellow LED Push Button Switch?
Our 16mm 24V Yellow LED Push Button Switch is designed for durability and efficiency. With a 1NO1NC configuration, it offers reliable operation and is suitable for a wide range of industrial and electrical applications. The IP40 protection level ensures it can withstand harsh environments, making it ideal for use in factories and other demanding settings.
What Makes Our Switch Stand Out?
Our switch stands out with its low contact resistance and high insulation resistance, ensuring optimal performance and longevity. The mechanical and electrical life cycles are significantly higher than many competitors, providing a more reliable and cost-effective solution. Additionally, as a factory direct supplier, we offer wholesale pricing, making it an excellent choice for bulk purchases.
How Does the LED Indicator Enhance Usability?
The LED indicator on our push button switch provides clear visibility, making it easy to identify the switch's status. With a 220V indicator voltage and ≤5mA indicator current, it ensures bright and consistent illumination. This feature is particularly useful in low-light environments, enhancing usability and safety.
