Description

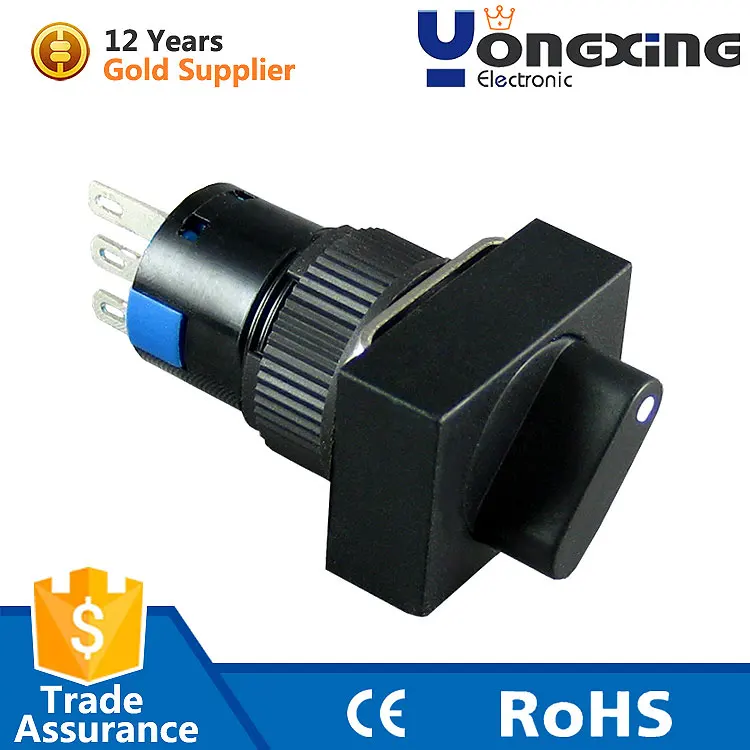

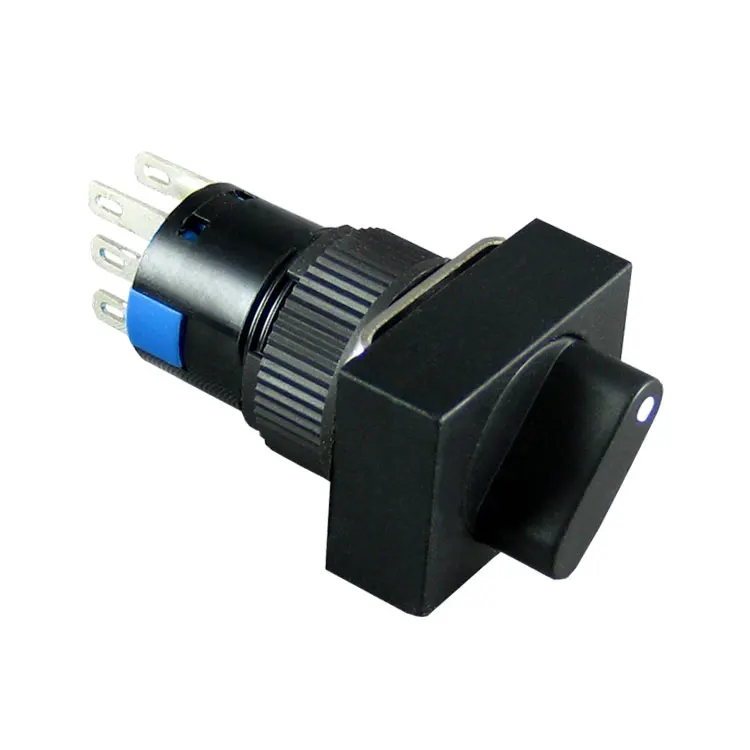

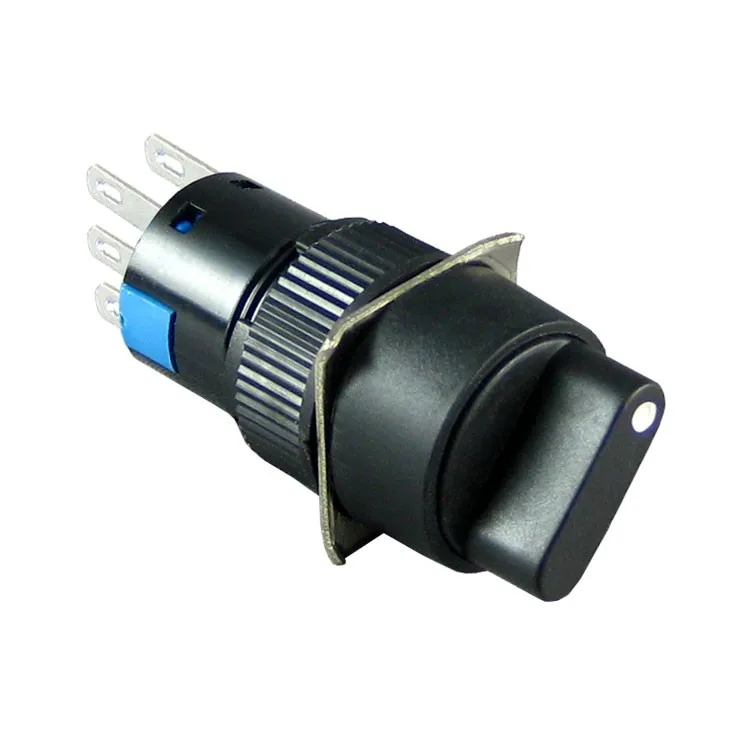

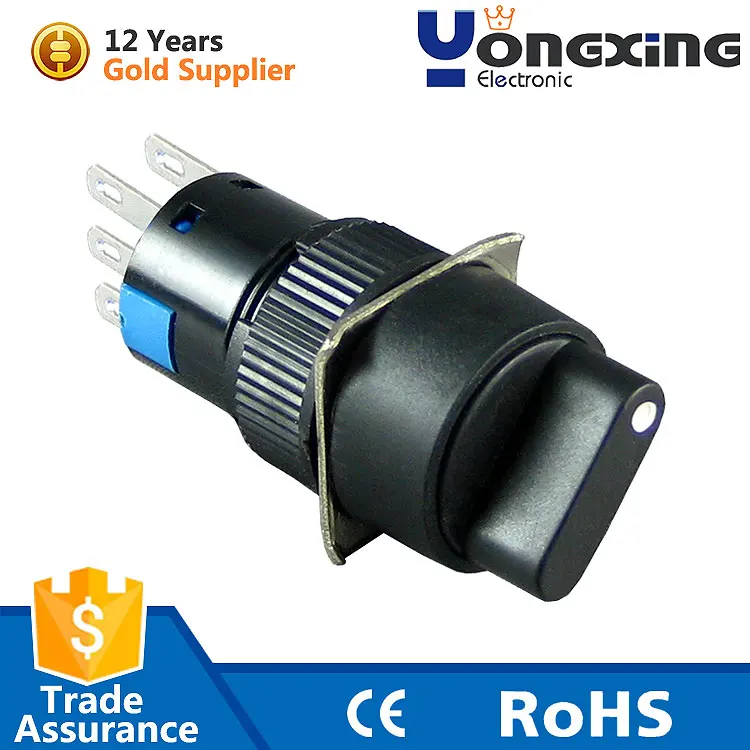

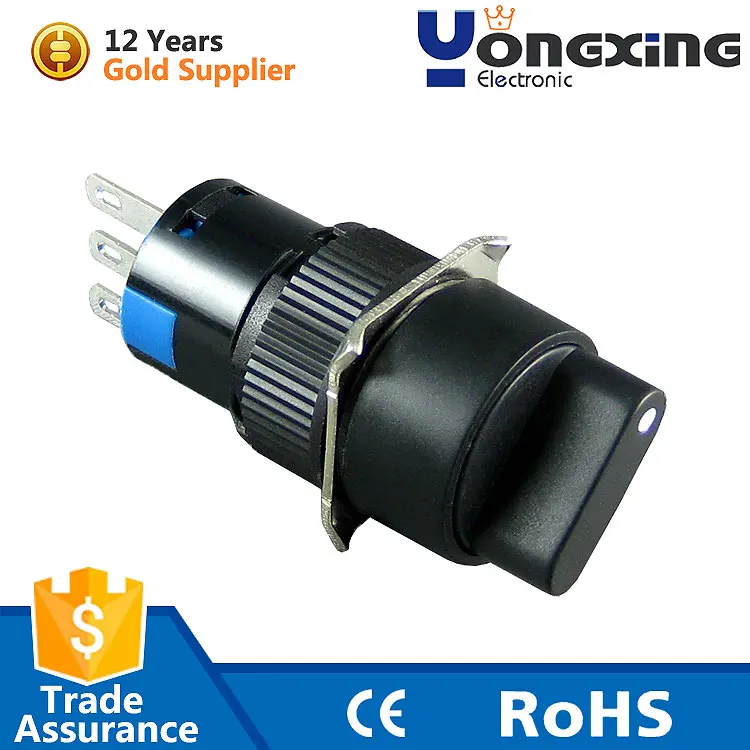

16mm Double Pole 6 Pins Rectangle 3 Positions Alternate Rotary Switch
As a direct factory supplier, we offer this high-quality 16mm double pole 6 pins rectangle 3 positions alternate rotary switch at wholesale prices. Designed for durability and reliability, this switch is perfect for a wide range of applications.
Product Specifications:
- Model Number: AX16-213
- Brand Name: Shiningkey(SK)
- Max. Rating Current & Voltage (Resistive load): 6A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1500V
- Electronic Life (Cycles): 10,000
- Mechanical Life: 200,000
- Operating Temperature: T125
- Certification: CQC ENEC17
Product Advantages:
Our rotary switch stands out from the competition with its robust construction, long mechanical life, and high dielectric resistance. It is ideal for use in industrial equipment, household appliances, and more. The switch’s 3-position design allows for versatile control options, making it a must-have for any application requiring reliable switching.
After-Sales Service:
We stand behind the quality of our products and offer comprehensive after-sales service. If you encounter any issues, our dedicated support team is here to assist you.
Choose us as your wholesale supplier for the best deals on high-quality rotary switches.
|
Max. Rating Current&Voltage(Resistive load) |
6A 250V AC |
| Contact Resistance of hot plate Rotary Switch | ≤50m Ω |
| Insulation Resistance | ≥100MΩ |
| Dielectric Resistance 4 position Rotary Switch | 1500V |
| Electronic life(cycles) | 10,000 |
| Operating temperature Rotary Switch | T125 |
| Certification |
CQC ENEC17 |
Product Features
This 16mm 3-position rotary switch offers precise control and durability. Its double pole, 6 pins design ensures reliable performance in various applications.
Why Choose Us?
As a factory supplier, we offer competitive wholesale prices and ensure the highest quality standards. Our switches are certified and have a long mechanical life.
Applications
Ideal for industrial equipment, household appliances, and control systems, this switch provides versatile and reliable switching solutions.
