16mm 5 Pin Latching Push Button Switch – Wholesale Supplier Direct from Factory
Enhance your electrical systems with our high-quality 16mm 5 Pin Latching Push Button Switch, available for wholesale directly from our factory. As a leading supplier, we offer competitive pricing and reliable products.
Product Specifications:
- Max. Rating Current & Voltage: 3A 250VAC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1,500V
- Electronic Life (Cycles): Momentary: 50,000; Alternate: 25,000
- Mechanical Life (Cycles): Momentary: 200,000; Alternate: 50,000
- Certification: CQC, CE
- Operating Temperature: -5℃~+75℃
- IP Code: IP40
- Switch Combination: 1NO1NC, 2NO

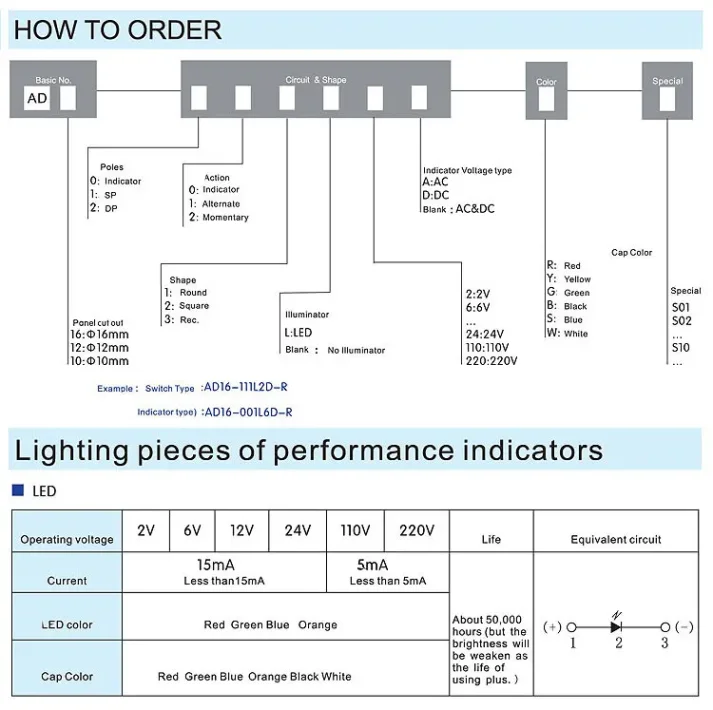

- Indication Voltage: 2V, 6V, 12V, 24V, 110V, 220V
- Color Options: Red, Green, Yellow, Blue, Orange, White
Product Advantages:
Our push button switch stands out with its durable plastic construction, long electronic and mechanical life, and wide range of indication voltages. It’s perfect for industrial and commercial applications where reliability is key.
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage, ensuring your satisfaction with our products.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our 16mm 5 Pin Latching Push Button Switch?
Our switch offers unmatched durability with a long electronic and mechanical life, ensuring reliable performance in demanding environments. The wide range of indication voltages and color options make it versatile for various applications.
What Makes Our Switch Stand Out?
As a factory supplier, we offer competitive pricing without compromising on quality. Our switch is CQC and CE certified, guaranteeing its safety and reliability. The plastic construction ensures durability and resistance to wear and tear.
Where Can You Use Our Switch?
Our 16mm 5 Pin Latching Push Button Switch is ideal for industrial and commercial control panels, machinery, and other applications where a reliable push button switch is needed. Its latching and momentary functions provide flexibility in operation.
