16mm IP40 Self-locking Rotary Switch – Wholesale Supplier from Factory

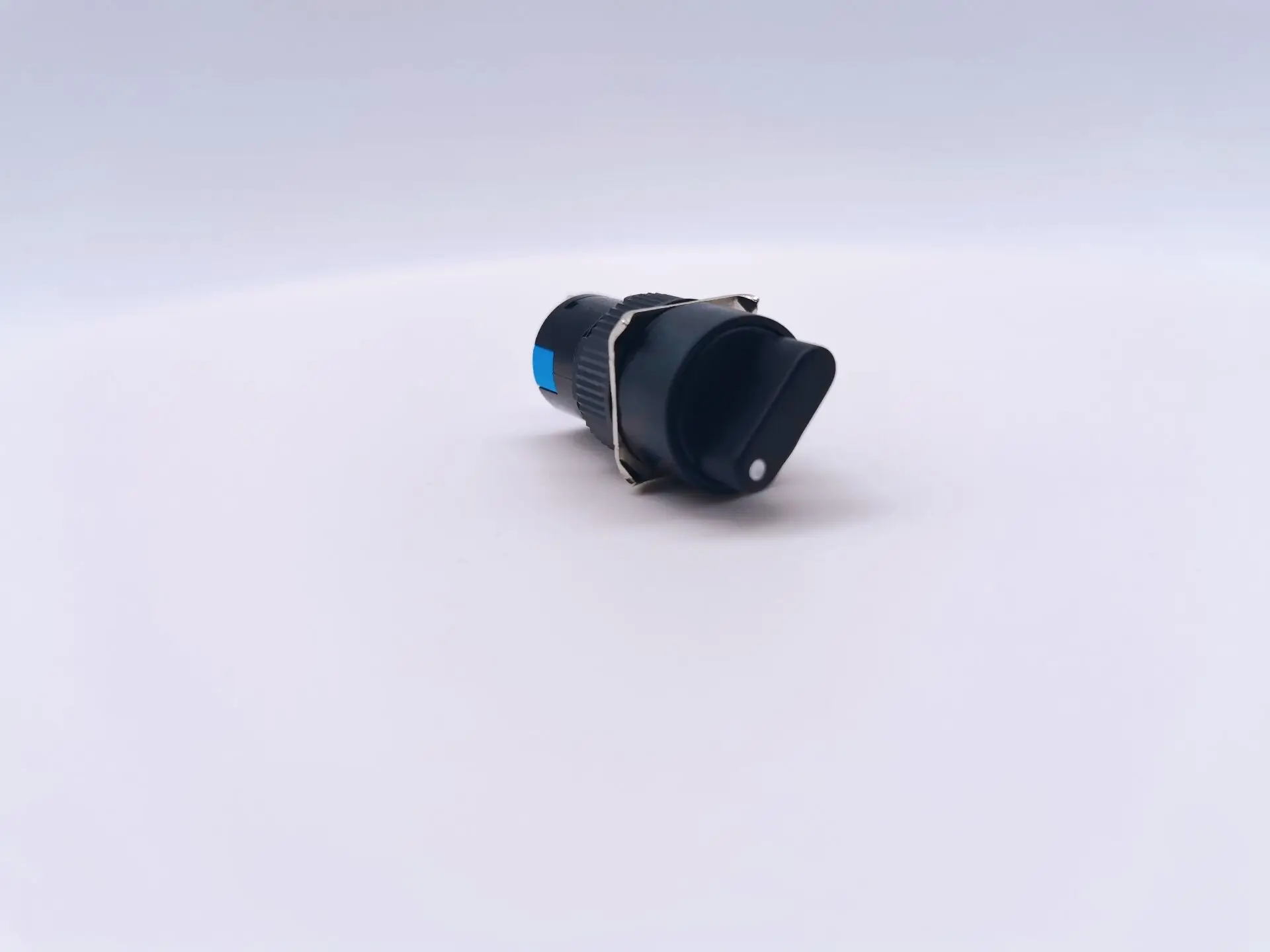

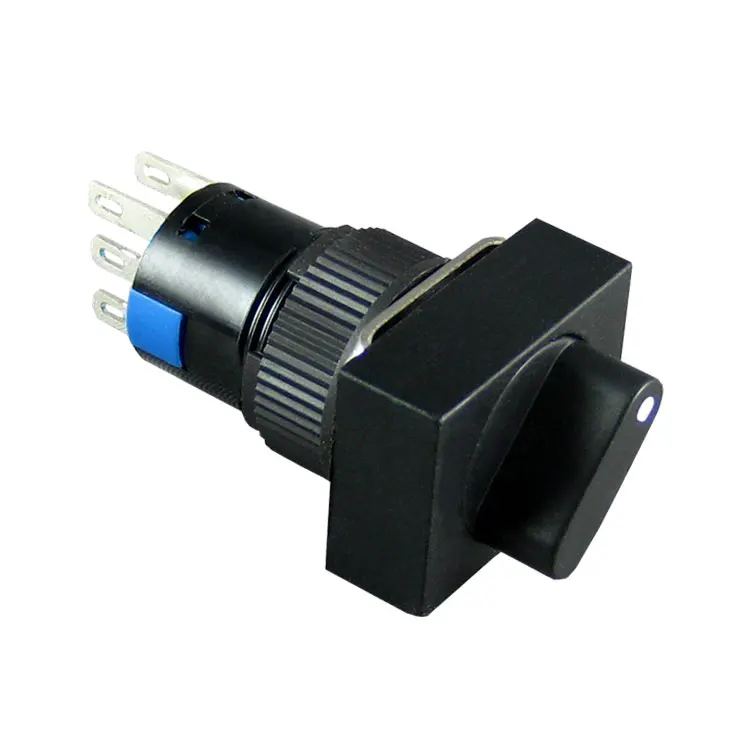

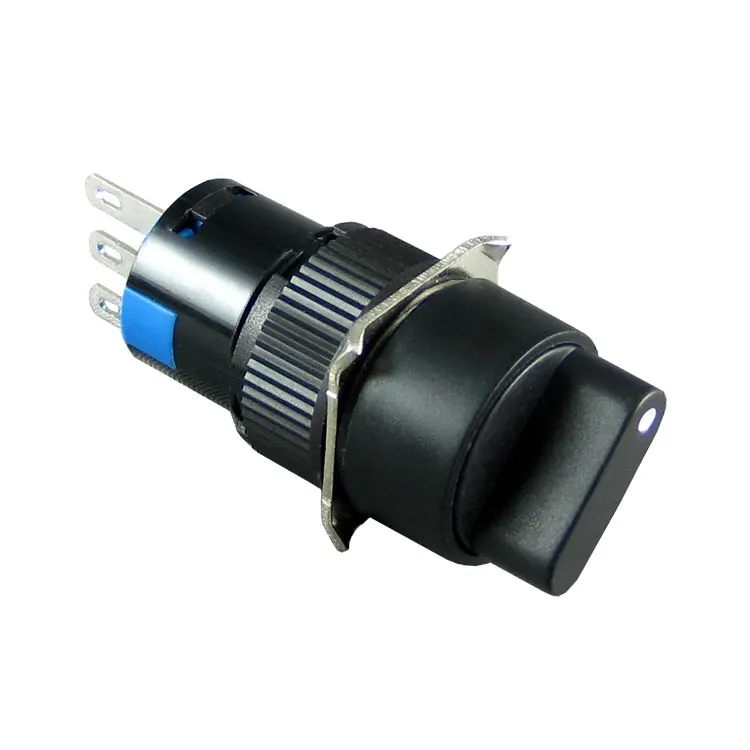

Our 16mm IP40 Self-locking Rotary Switch, model AX16-213-2, is a high-quality product designed for various industrial applications. As a direct supplier and factory, we offer wholesale pricing and ensure top-notch quality. This rotary switch features a 2-position, double-pole, 6-pin design, making it versatile and reliable. It is rated for a maximum current of 3A and a maximum voltage of 250V AC, ensuring it can handle demanding electrical loads. The switch has a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, providing excellent electrical performance. With a dielectric strength of 1500V and an operating temperature range of -25°C to +55°C, it is suitable for a wide range of environments. The switch also boasts an electrical life of 25,000 cycles and a mechanical life of 50,000 cycles, ensuring long-lasting durability. It fits a 16mm panel cut-out and accommodates panel thicknesses from 0.5mm to 6.0mm. The black color and compact size make it aesthetically pleasing and easy to install. Our rotary switch stands out from competitors with its superior quality, competitive pricing, and reliable performance. Choose us as your supplier for factory-direct wholesale pricing and exceptional customer service.
