Description
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ16F-11ETZ/J/S/12V/G
|
|
Protection Level
|
IP67
|
|
Max. Current
|
0.1A
|
|
Max. Voltage
|
12VDC
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NO 1NC with LED light
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|

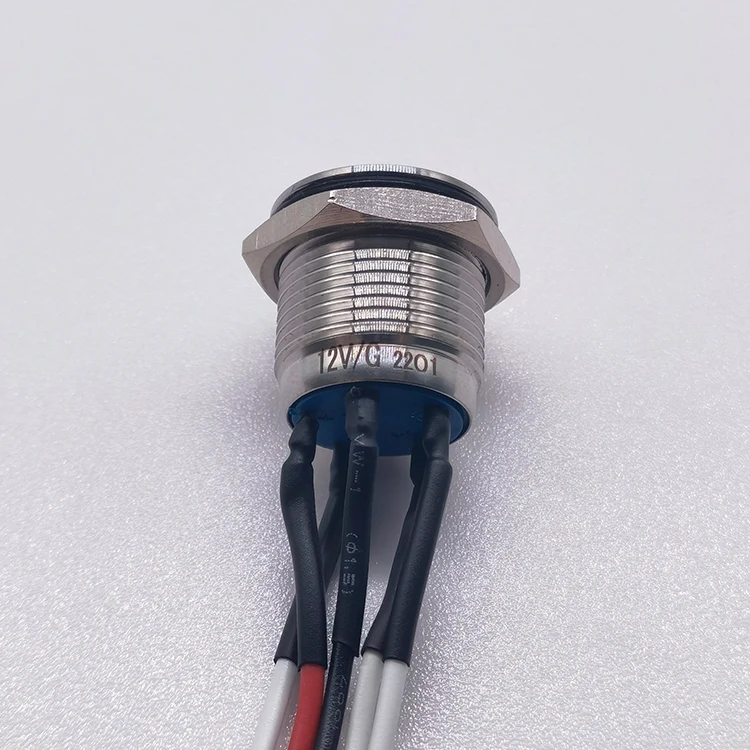

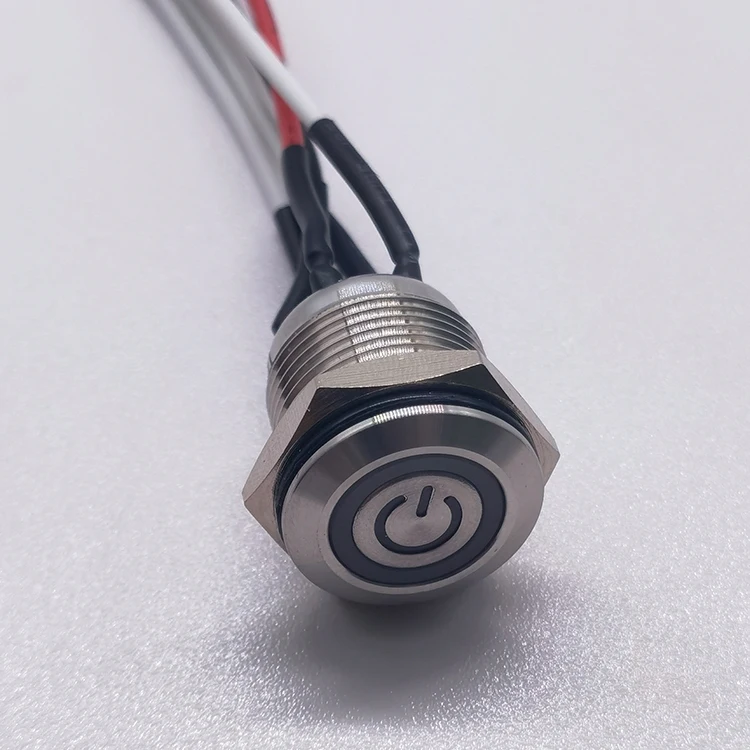

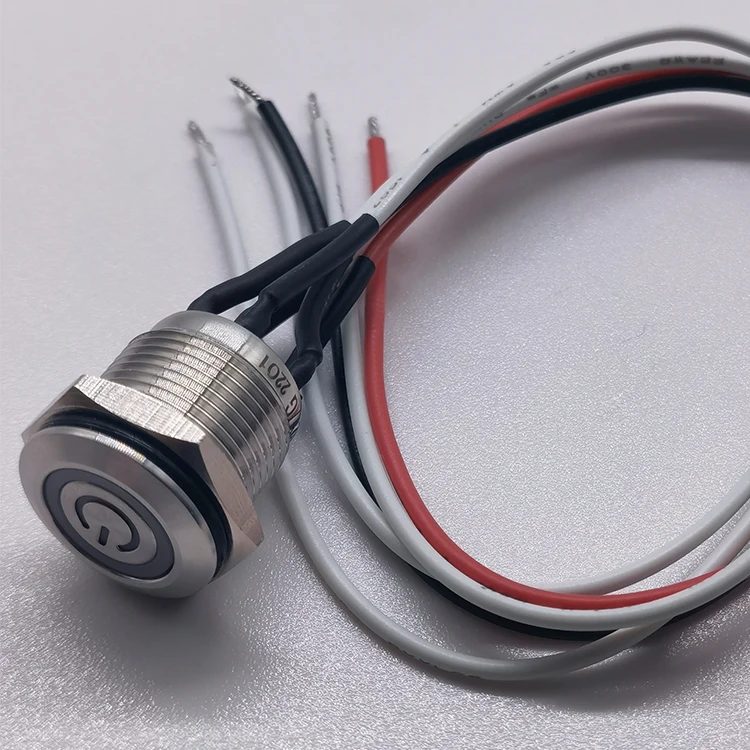

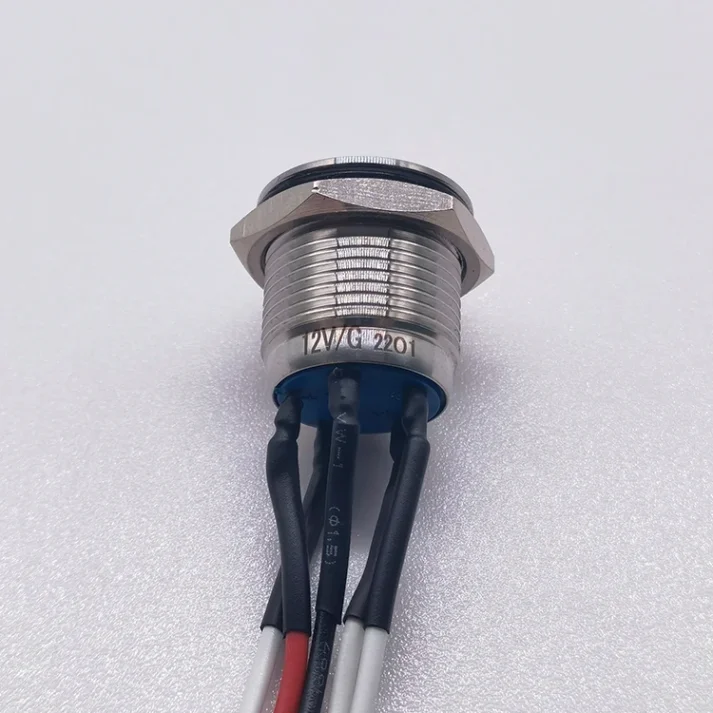

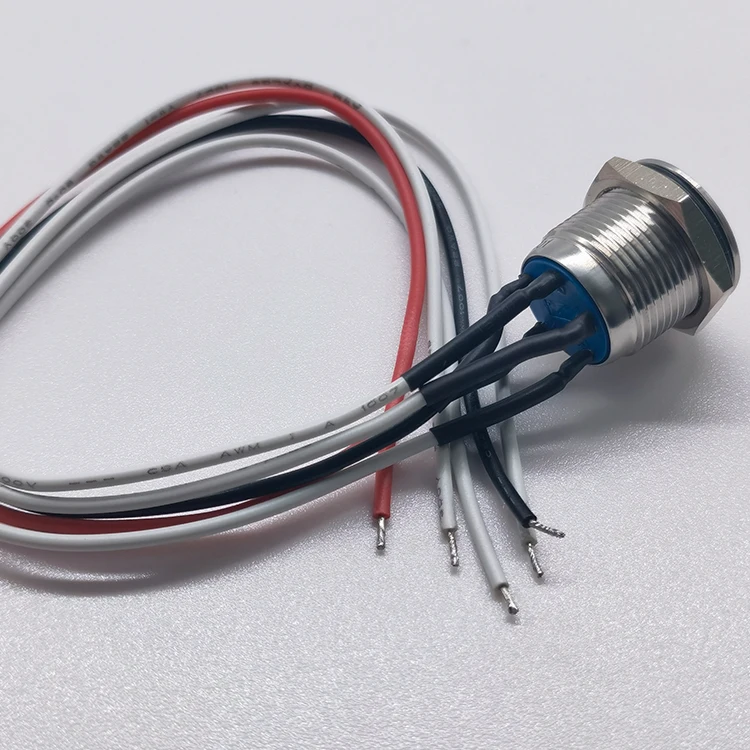

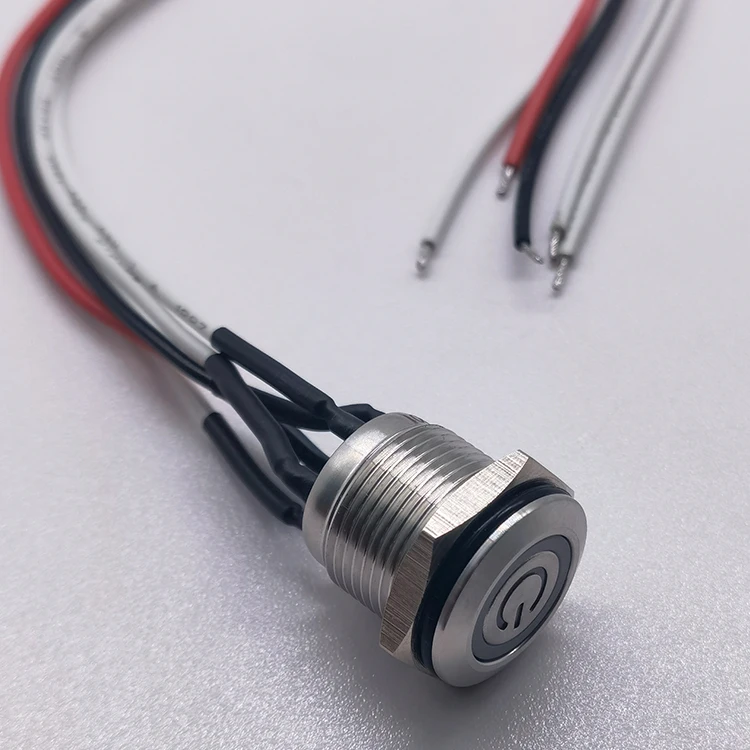

Why Choose Our 16mm IP67 Waterproof LED Push Button Switch?
Our switch is designed to withstand harsh environments with its IP67 waterproof rating, making it ideal for outdoor and industrial applications. The built-in LED light provides clear visual indication, enhancing user experience and safety. With a 5-pin latching mechanism and 1NO1NC switch circuit, it offers versatile control options. The stainless steel construction ensures durability and longevity, while the factory直销 (direct sale) and wholesale supplier status allow us to offer competitive pricing.
What Are the Key Features of Our Push Button Switch?
Key features include a 16mm compact size, 12V DC operation, and a mechanical life of 50,000 cycles. The switch is CE and RoHS certified, ensuring safety and compliance. The LED life is 50,000 hours, providing reliable illumination over time. The working environment temperature range of -25°C to +65°C makes it suitable for a wide range of conditions, from cold storage to hot workshops.
How Does Our Switch Compare to Others on the Market?
Our switch stands out with its superior waterproof design, LED illumination, and robust construction. The factory直销 (direct sale) and wholesale supplier status allow us to offer high-quality products at competitive prices. With excellent after-sales service and a commitment to customer satisfaction, we ensure that our switch meets and exceeds your expectations. Choose our 16mm IP67 Waterproof LED Push Button Switch for reliable and efficient performance.
