Description
Our switch boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, providing long-lasting durability and reliability. It operates at a maximum current of 0.1A and a maximum voltage of 12VDC, ensuring compatibility with a wide range of industrial systems. Additionally, it features a 1NO 1NC switch circuit, offering versatile configuration options.
As a factory wholesale supplier, we offer competitive pricing and bulk order discounts, making it an excellent choice for businesses looking to save on costs. Our switch is CE and RoHS certified, guaranteeing its quality and safety. Choose our 16mm IP67 Waterproof Metal Push Button Switch for unparalleled performance and value.
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ16F-11Z/J/S
|
|
Protection Level
|
IP67
|
|
Max. Current
|
0.1A
|
|
Max. Voltage
|
12VDC
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NO 1NC
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|

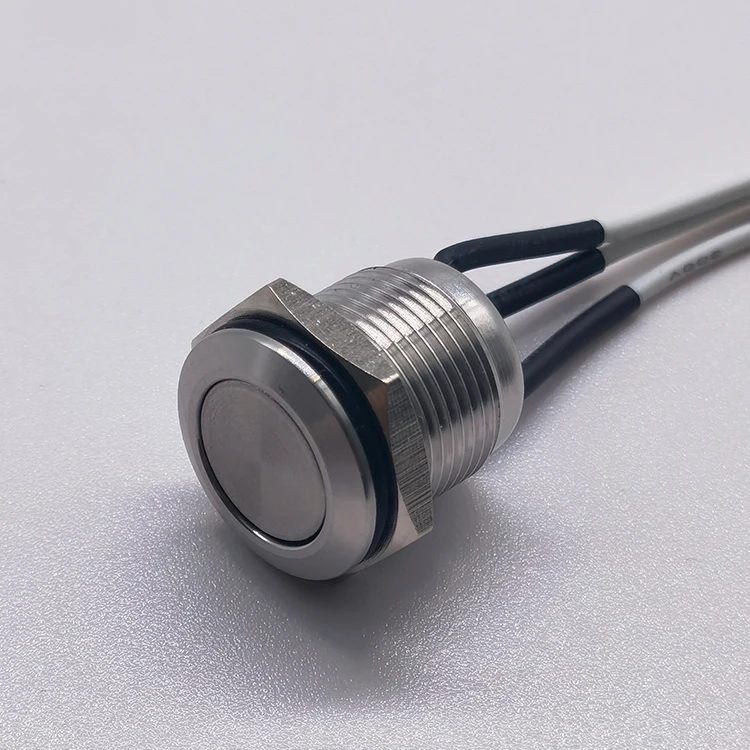

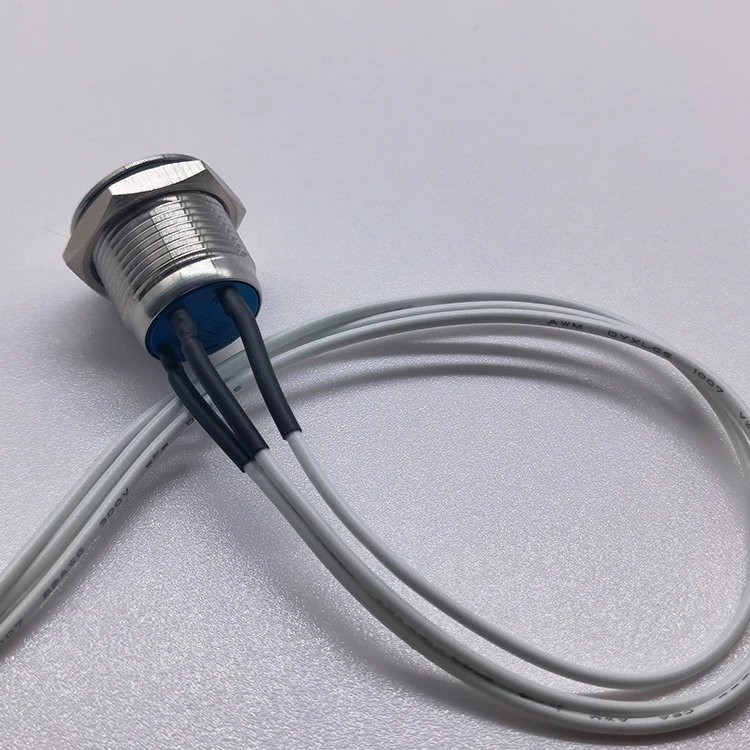

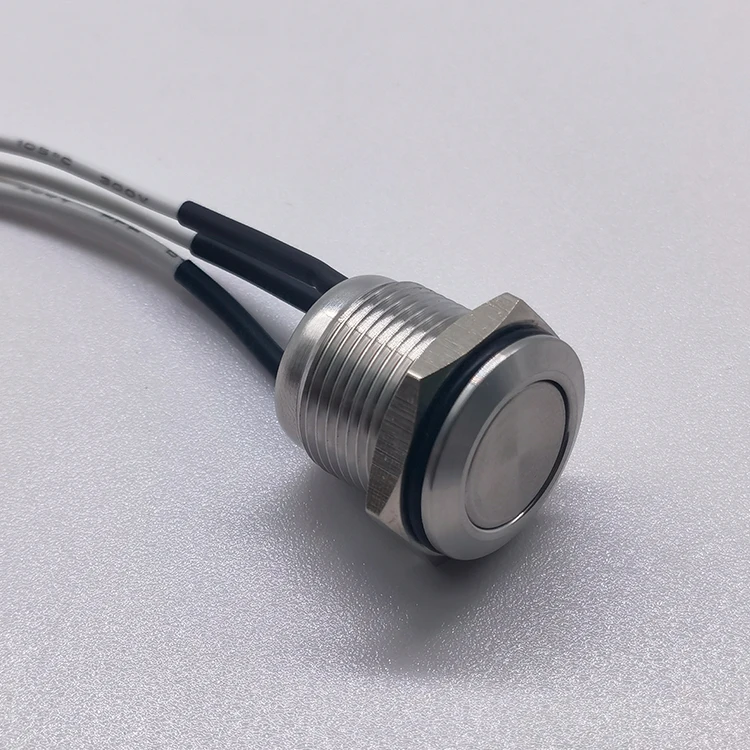

Why Choose Our 16mm IP67 Waterproof Metal Push Button Switch?
Our 16mm IP67 Waterproof Metal Push Button Switch stands out for its exceptional durability and reliability. Crafted from stainless steel, it offers superior resistance to harsh environments, ensuring long-lasting performance even in challenging conditions. With a protection level of IP67, it is fully waterproof and dustproof, making it ideal for outdoor or wet applications.
What Are the Key Features of Our Switch?
Our switch boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, providing unmatched durability. It operates at a maximum current of 0.1A and a maximum voltage of 12VDC, ensuring compatibility with a wide range of industrial systems. Additionally, it features a 1NO 1NC switch circuit, offering versatile configuration options to meet your specific needs.
Why Buy from Us as a Factory Wholesale Supplier?
As a factory wholesale supplier, we offer competitive pricing and bulk order discounts, making it an excellent choice for businesses looking to save on costs. Our switch is CE and RoHS certified, guaranteeing its quality and safety. Choose us for reliable products, exceptional service, and unbeatable value.
