Description

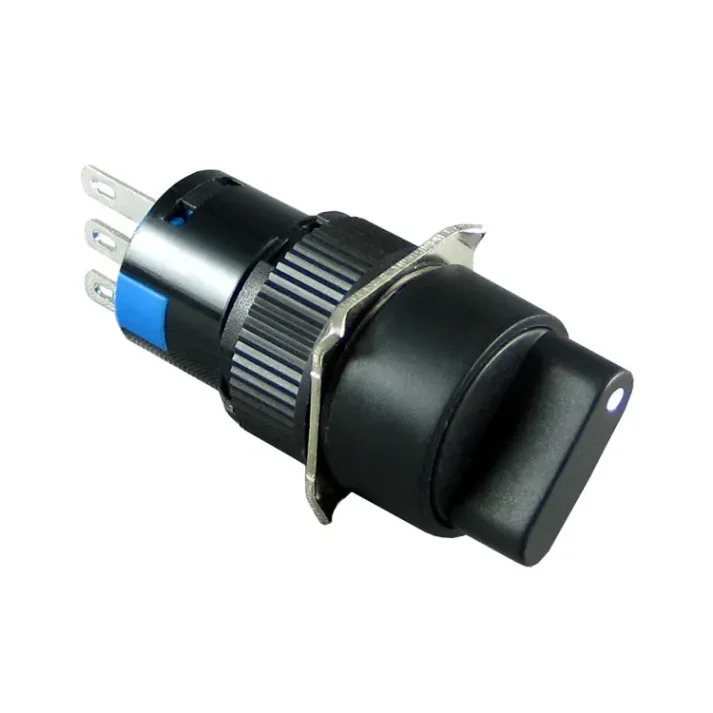

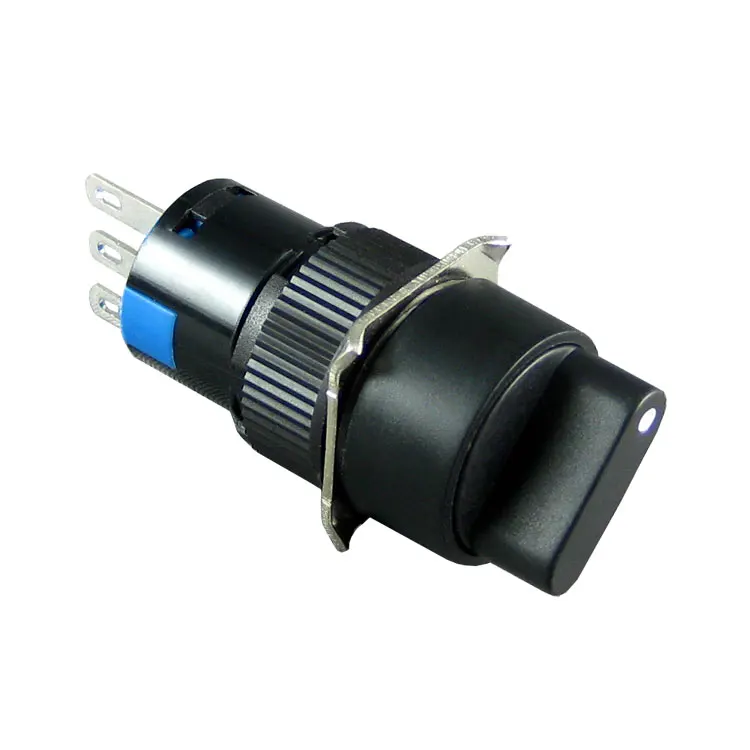

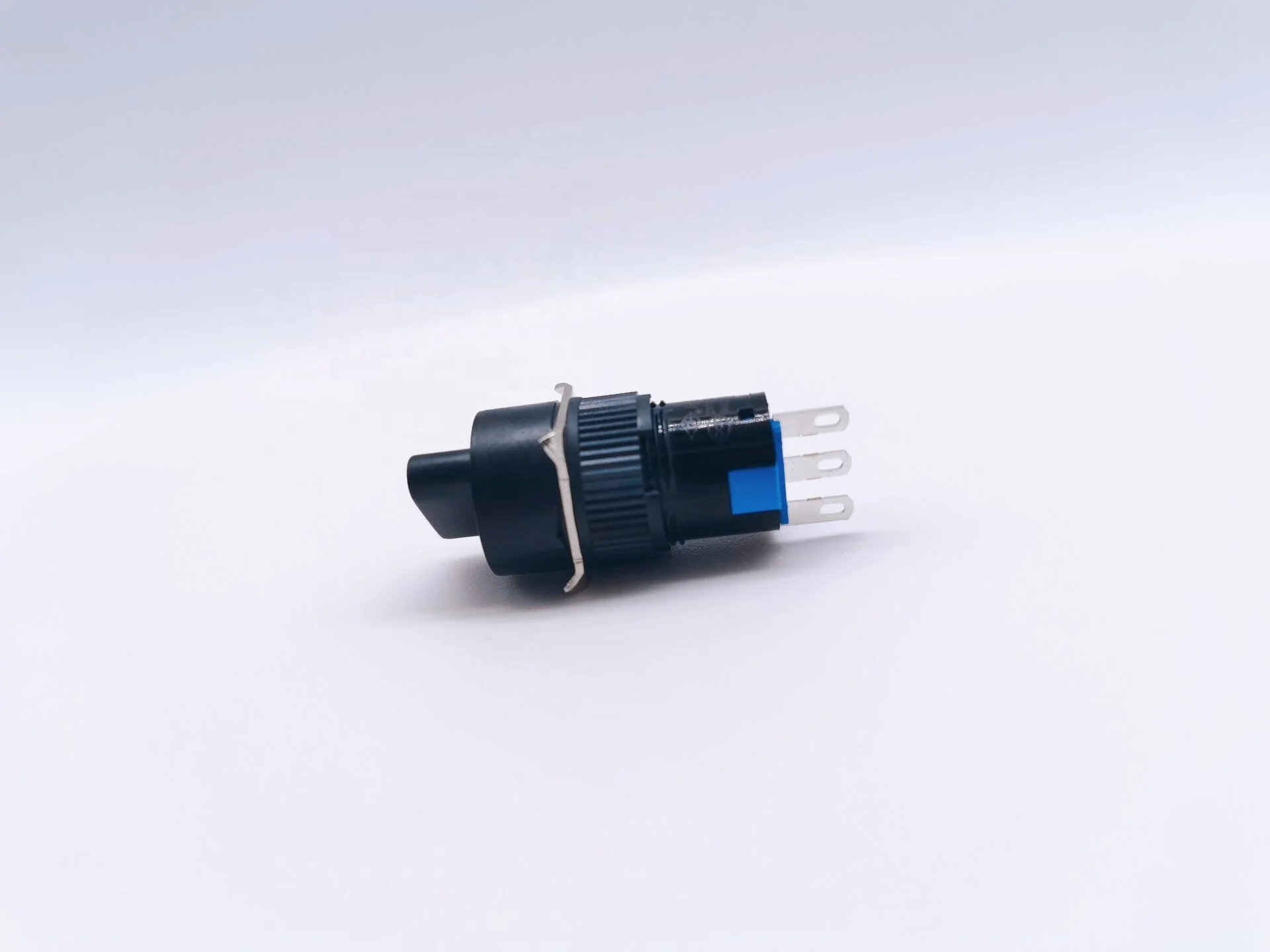

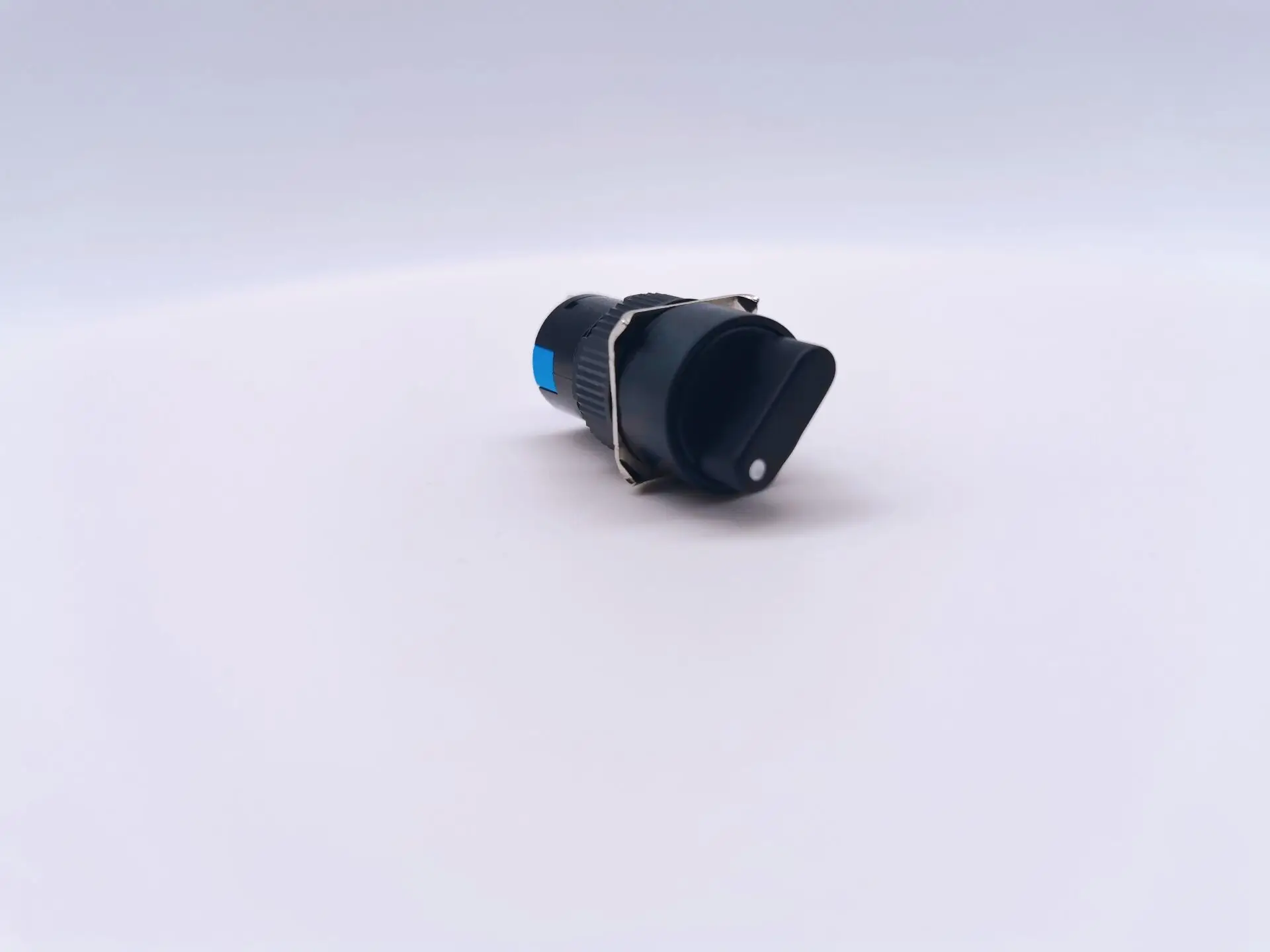

Our 16mm Miniature Rotary Switch, a high-quality product from our factory, is a versatile and reliable component suitable for various industrial control applications. This switch, with a model number of AX16-111-2, offers 2 positions with 1NO+1NC configuration, ensuring flexibility in circuit design. It boasts a max current of 3A and a max voltage of 250V AC, making it suitable for a wide range of electrical systems. With a protection level of IP40, it provides adequate protection against dust and water ingress. The switch’s contact resistance is ≤50mΩ, and insulation resistance is ≥100MΩ, ensuring efficient and safe operation. It has a dielectric strength of 1500V, an operating temperature range of 25°C to 55°C, and an electrical life of 25,000 cycles, along with a mechanical life of 50,000 cycles. The panel cut-out size is 16mm, and it accommodates panel thicknesses from 0.5mm to 6.0mm. As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Choose our 16mm Miniature Rotary Switch for its durability, reliability, and cost-effectiveness.
|

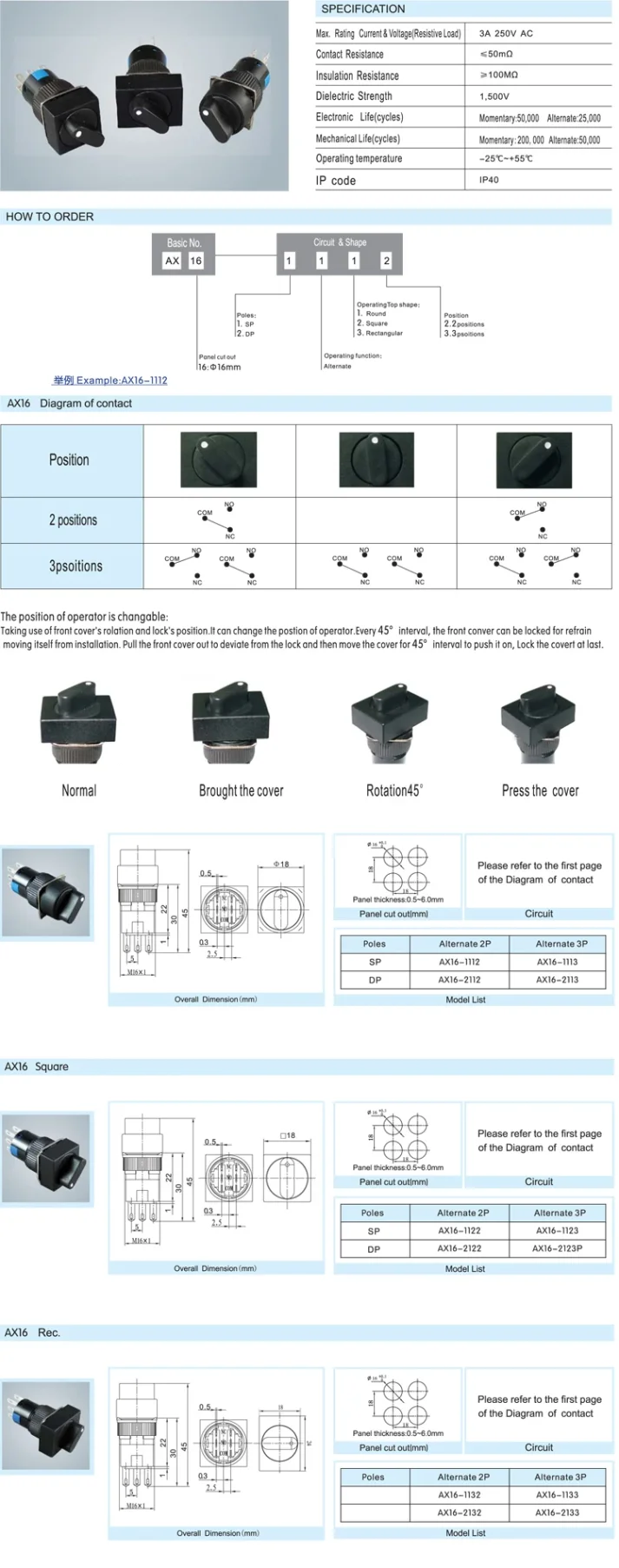

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AX16-111-2
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
25000
|
|
Mechanical Life
|
50000
|
|
Panel cut out
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
Position
|
2 Positions,1NO+1NC
|
Key Features
Our 16mm Miniature Rotary Switch stands out with its compact design, high current and voltage ratings, and durable construction. It offers two positions with a 1NO+1NC configuration, making it ideal for industrial control applications.
Why Choose Our Switch?
As a factory-direct supplier, we offer unbeatable wholesale prices without compromising on quality. Our switch is built to last, with a long electrical and mechanical life, ensuring reliable performance in demanding environments.
After-Sales Service
We stand behind our products with excellent after-sales service. If you have any questions or concerns, our dedicated team is here to assist you, ensuring a smooth and satisfactory purchasing experience.
