Description
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ momentary push button switch |
| Dielectric Resistance | 1,500V 3 pin push button switch |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

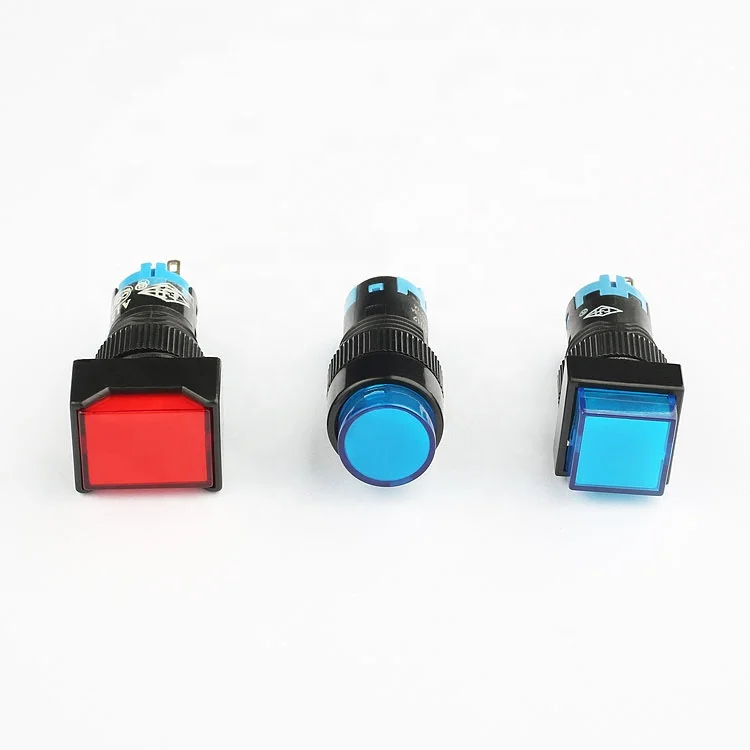

Why Choose Our 16mm Momentary Push Button Switch?
Our 16mm Momentary Push Button Switch stands out due to its high durability, low contact resistance, and impressive electronic and mechanical life. With options for 1NO1NC or 2NO2NC switch combinations and a range of vibrant colors, it offers both functionality and style for various applications.
What Are the Key Features of This Switch?
Key features include a 3A 250V AC rating, ≤50mΩ contact resistance, 1500V dielectric strength, and an IP40 protection level. It operates within a temperature range of -5℃ to +75℃ and is certified by CQC and CE for quality assurance.
Why Buy from Us as a Wholesale Supplier?
As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our switches are manufactured in Shanghai, China, by Shangkai(SK), ensuring high quality and reliability. Choose us for your push button switch needs and experience the difference in quality and service.
