Description
Product Specifications:
- Max. Current: 3A
- Max. Voltage: 250V AC
- Switch Combination: 1NO1NC, 2NO2NC
- Color Options: White, Red, Yellow, Green, Blue, Gray
- Action Types: Alternate, Moment
- Indicator Voltage: 2V, 6V, 12V, 24V, 110V, 220V
- Operating Temperature: -5℃~+75℃

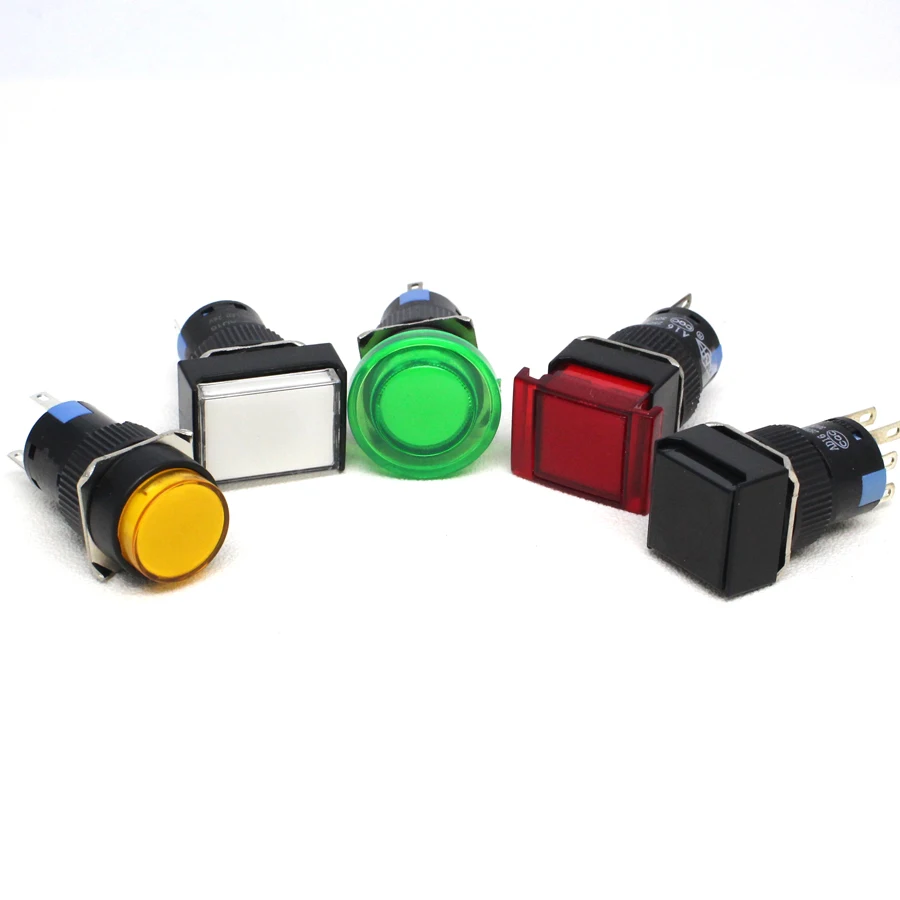

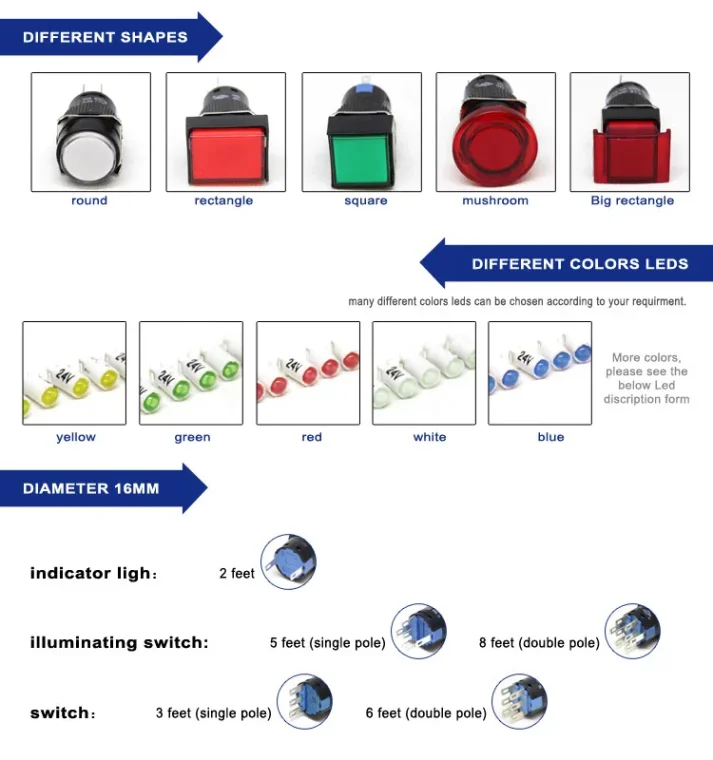

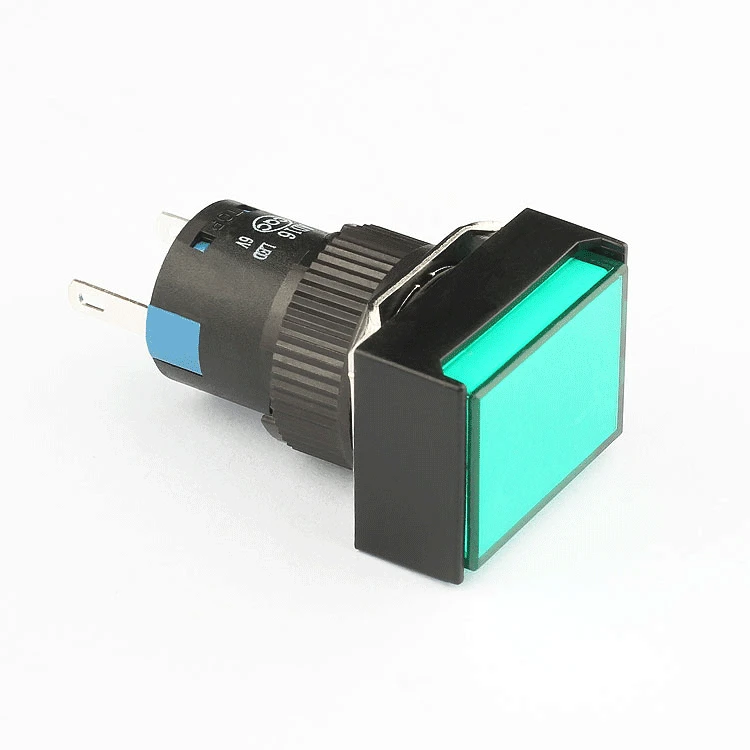

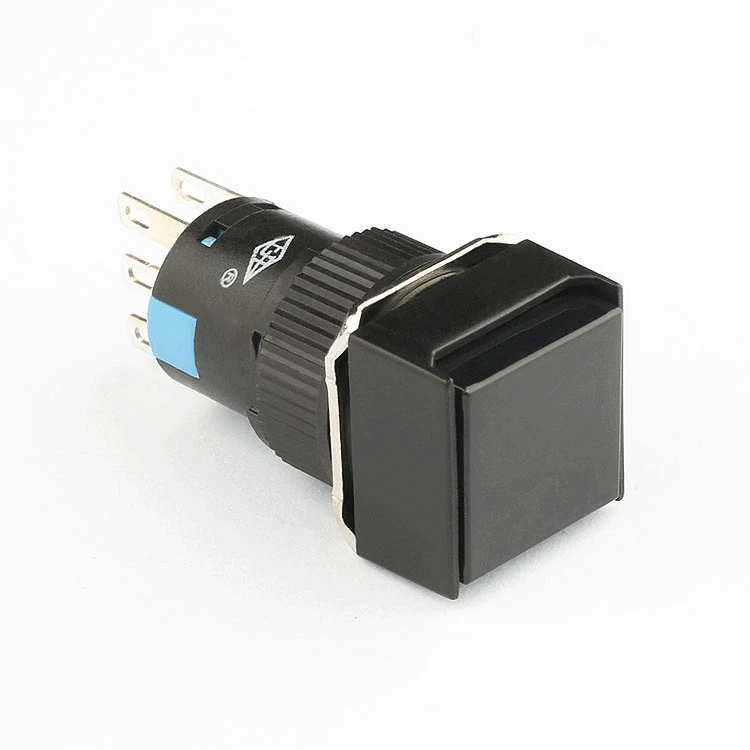

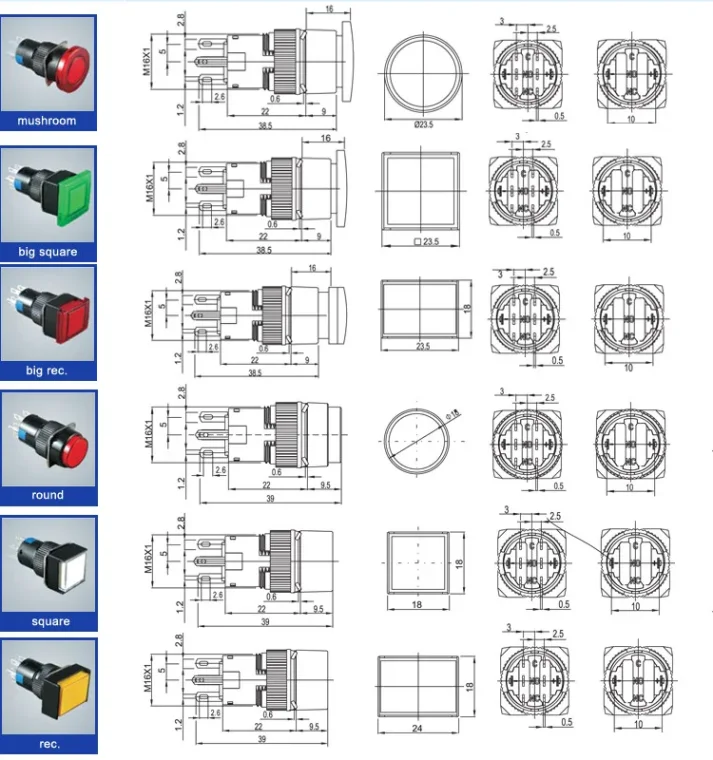

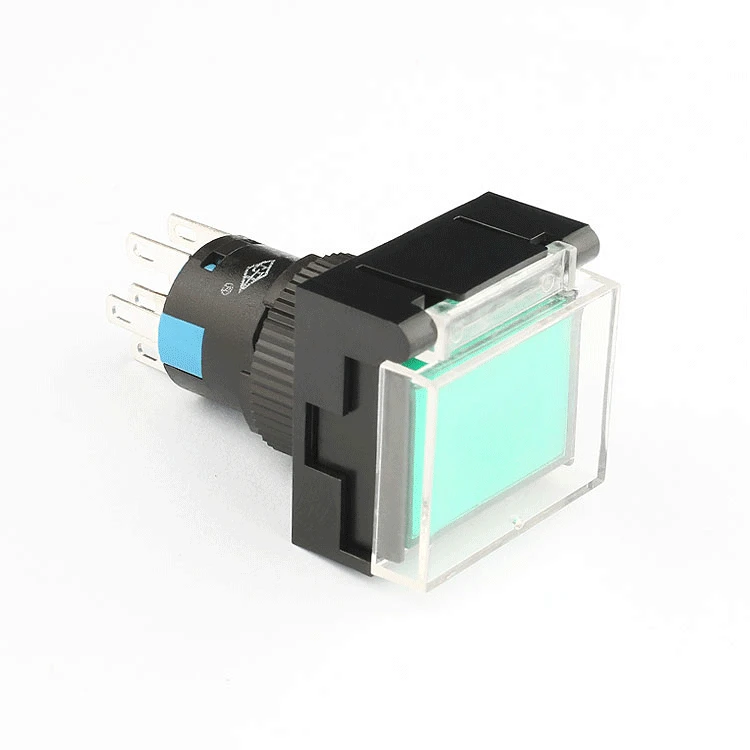

- Button Shape: Round, Square, Rectangular, Mushroom, Big Square, Big Rectangular
- Material: Plastic
- Certification: CQC CE
- Protection Level: IP40
- Size: 16MM
Product Advantages:
- Long mechanical life of up to 200,000 cycles
- Electronic life of 50,000 cycles
- Wide operating temperature range
- Multiple color and shape options for customization
- Factory direct pricing for cost savings
After-Sales Service:
We stand behind the quality of our products and offer comprehensive after-sales service. If you encounter any issues with your purchase, our dedicated support team is here to assist you.
Choose our 16mm Push Button Switch for its reliability, durability, and competitive pricing. As a trusted factory and supplier, we ensure that you receive the best value for your money.
| Operating Voltage | 2V | 6V | 12V | 24V | 110V | 220V | Lifespan |
| Current | Less than 15mA | Less than 5mA | About 50000hours(but the brightness will be weaken as the life of using plus | ||||
| LED color | Red Green Blue Yellow Orange | ||||||
| Cap color | Red Green Blue Yellow Orange Black White Gray | ||||||
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Key Features and Benefits
Our 16mm Push Button Switch stands out for its robust construction, featuring a plastic body that ensures durability and longevity. With a max current rating of 3A and a max voltage of 250V AC, it's suitable for a wide range of applications. The switch offers both alternate and moment action types, providing flexibility in operation. Additionally, it supports multi-voltage indicator lights, making it versatile for different electrical setups.
Why Choose Our Switch?
As a factory direct supplier, we offer unbeatable wholesale pricing without compromising on quality. Our switch has a long mechanical life of up to 200,000 cycles and an electronic life of 50,000 cycles, ensuring reliable performance over time. With multiple color and shape options, you can customize the switch to fit your specific needs. Plus, our comprehensive after-sales service provides peace of mind, knowing that we're here to support you.
Ideal Applications
This push button switch is perfect for industrial control systems, commercial equipment, and any custom application where a reliable and durable switch is required. Its wide operating temperature range and IP40 protection level make it suitable for various environments. Whether you're looking to upgrade your existing setup or start a new project, our 16mm Push Button Switch is the ideal choice.
